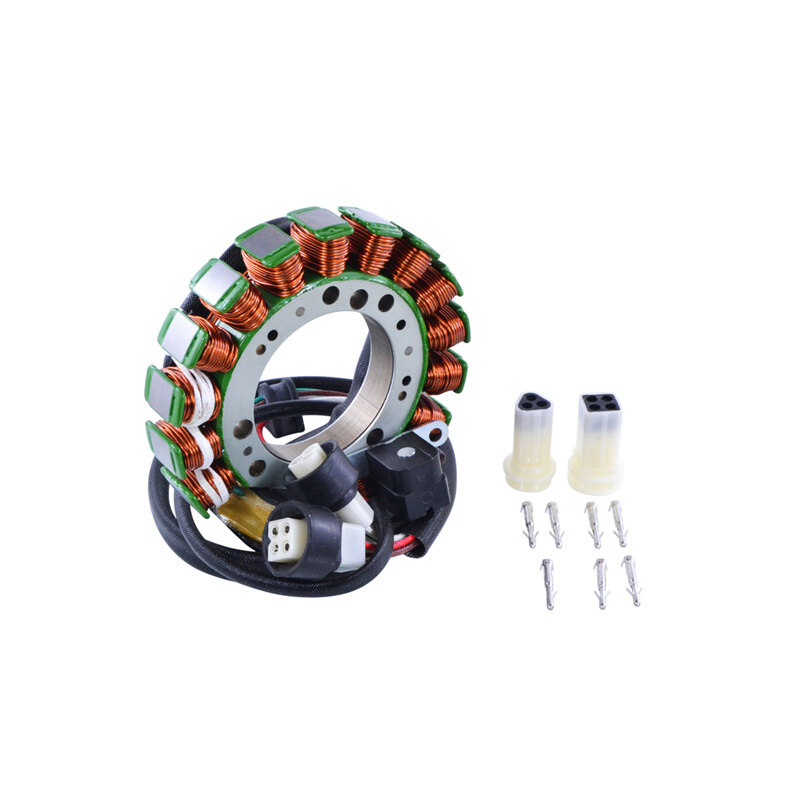

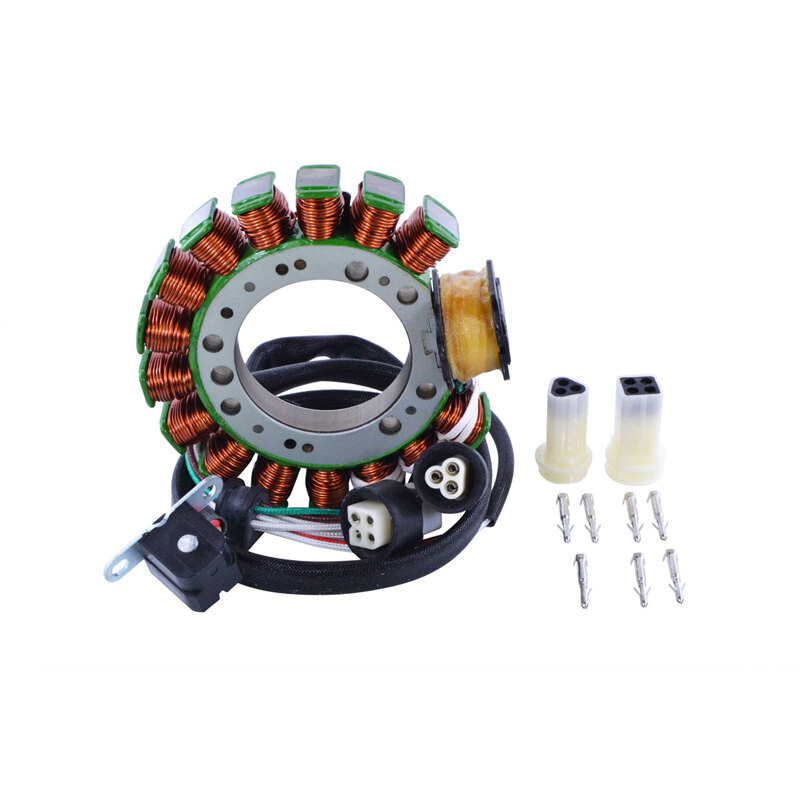

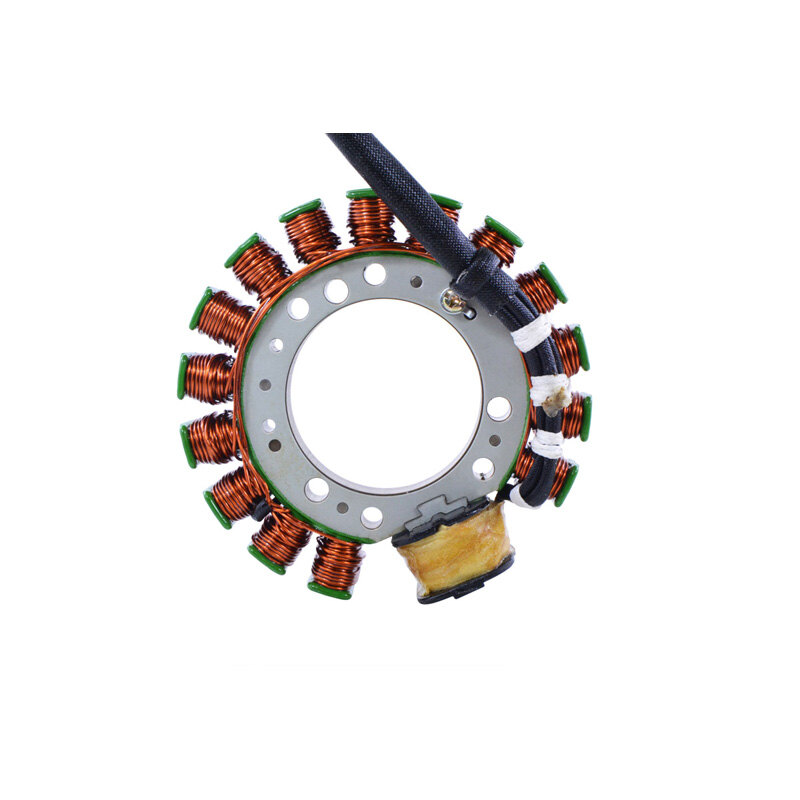

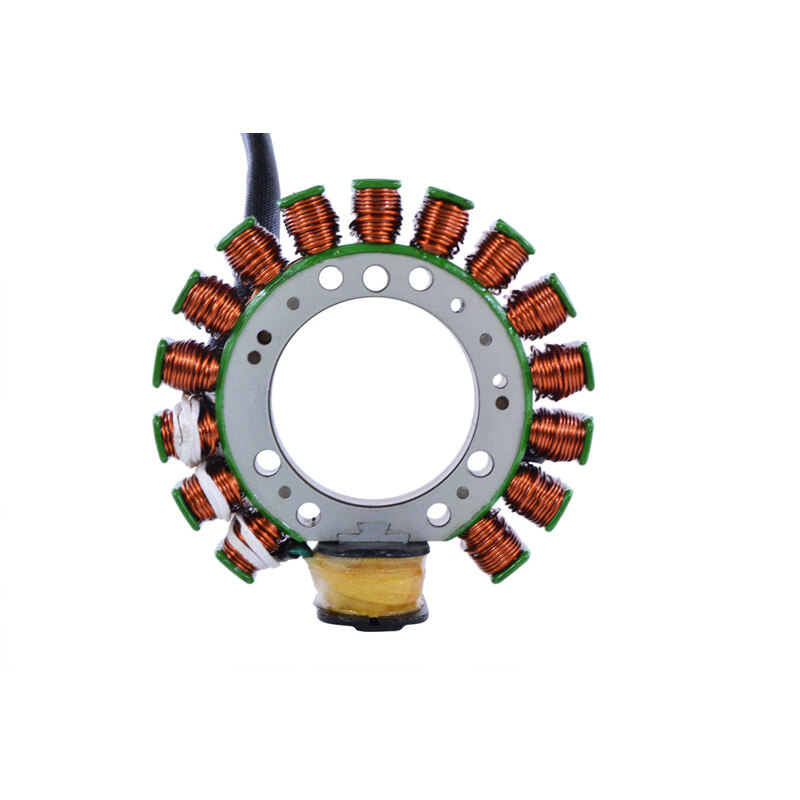

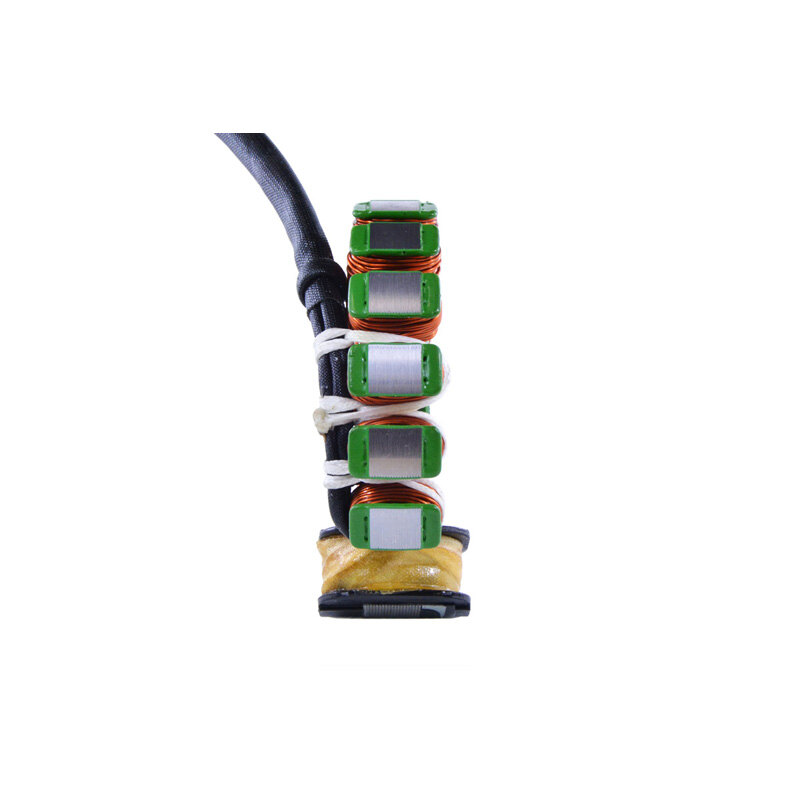

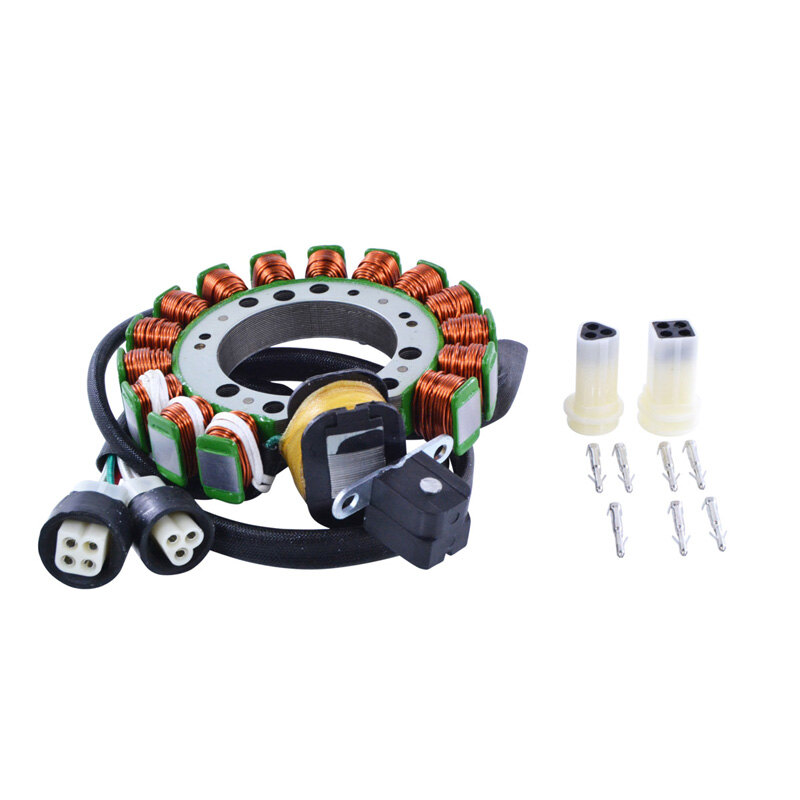

STATOR YAM YFM350 BIG BEAR|MOTO-4|WARRIOR 88-95

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.

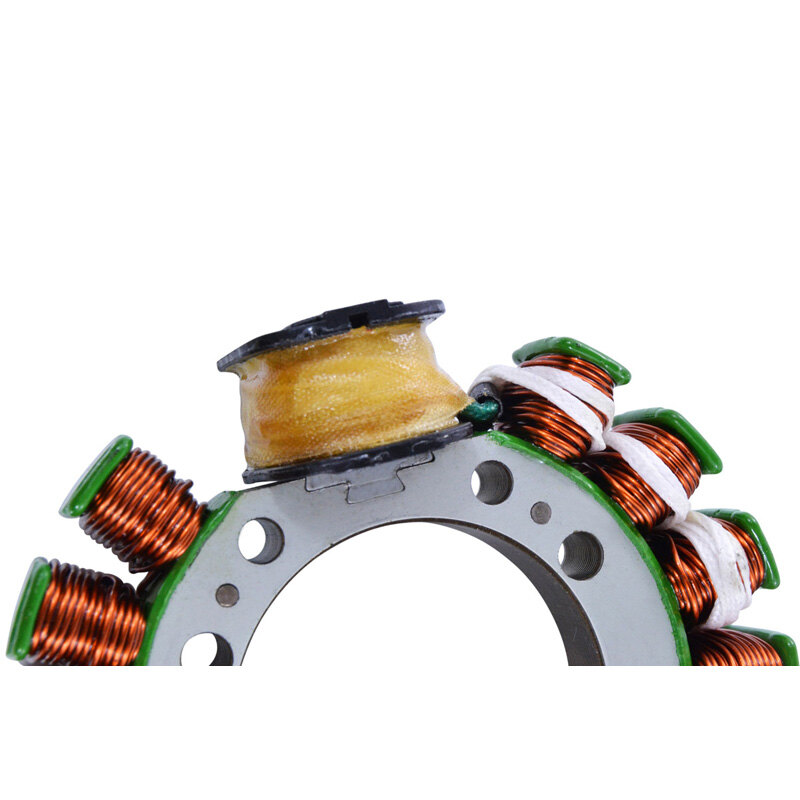

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

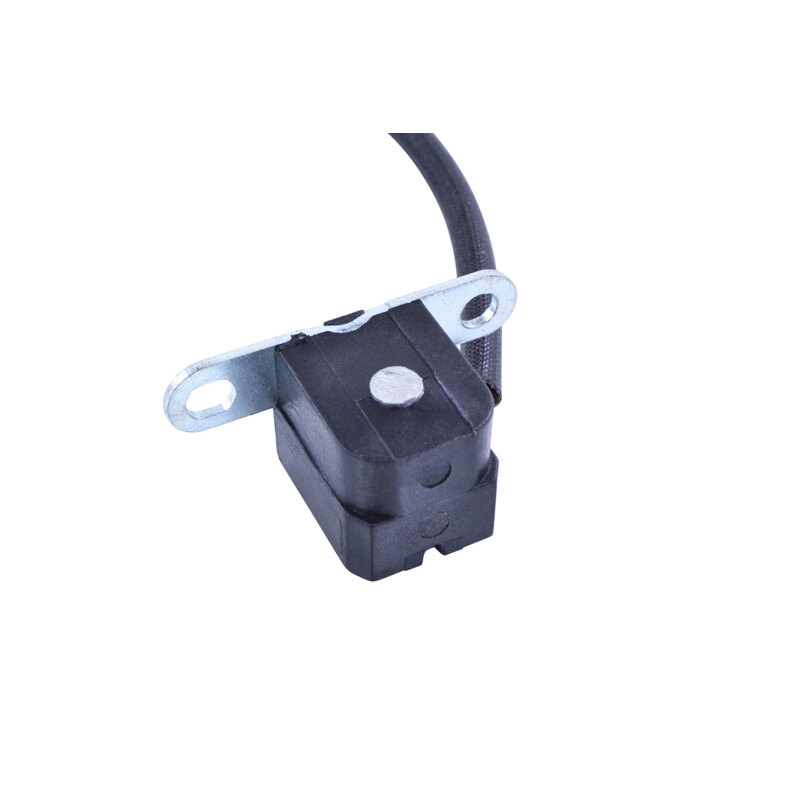

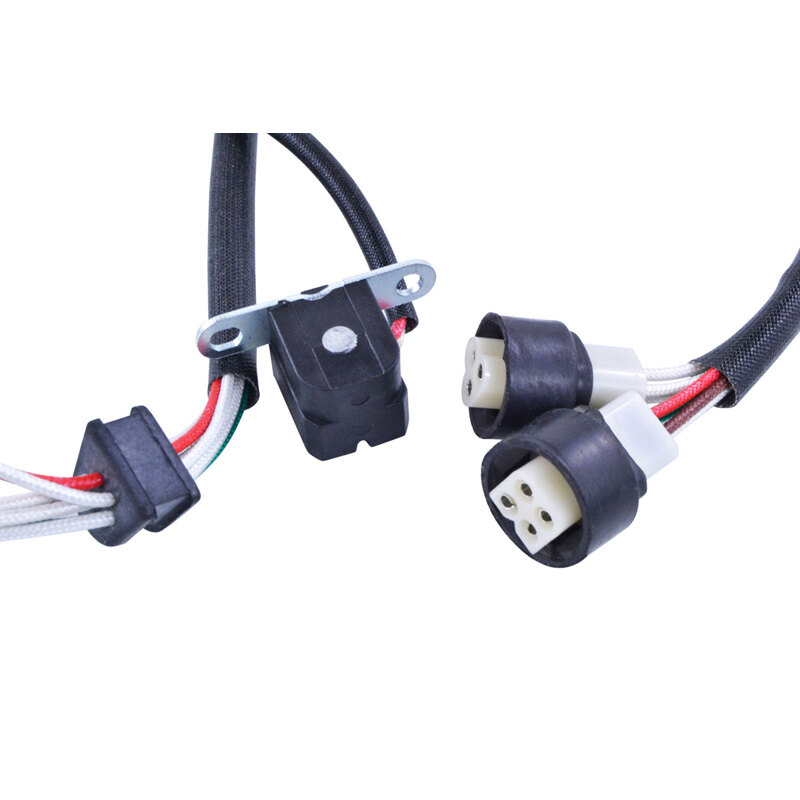

• Pick up pulsar coil included

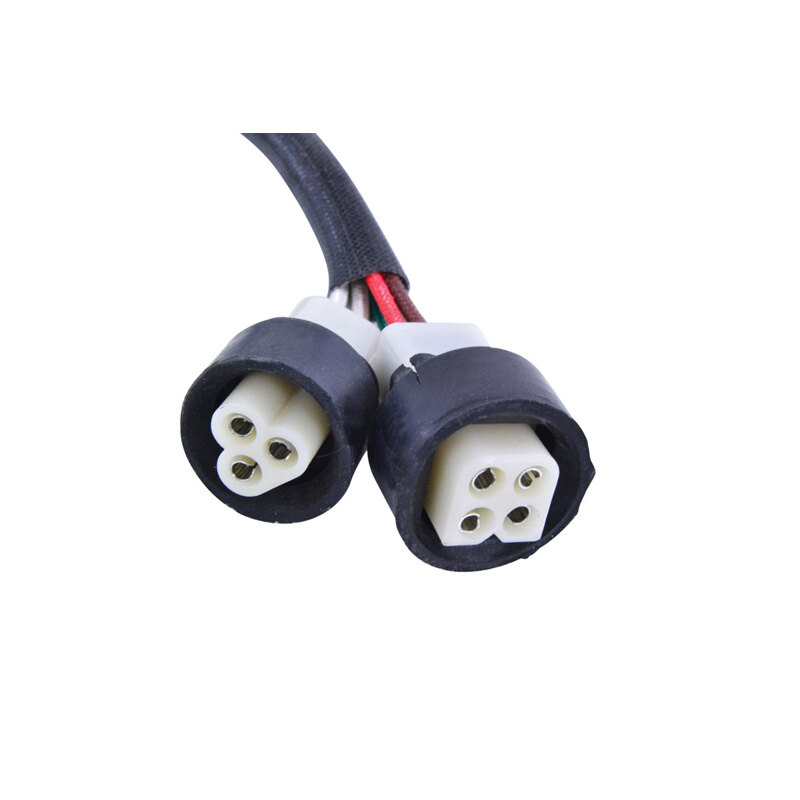

• Connector included

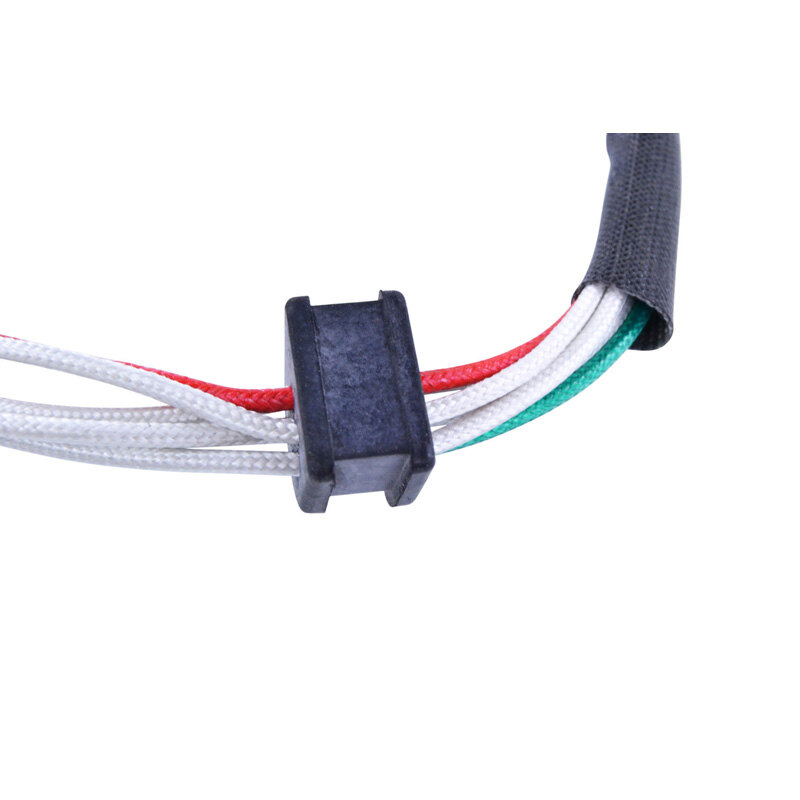

• Rubber grommet included
• All product shipped are tested

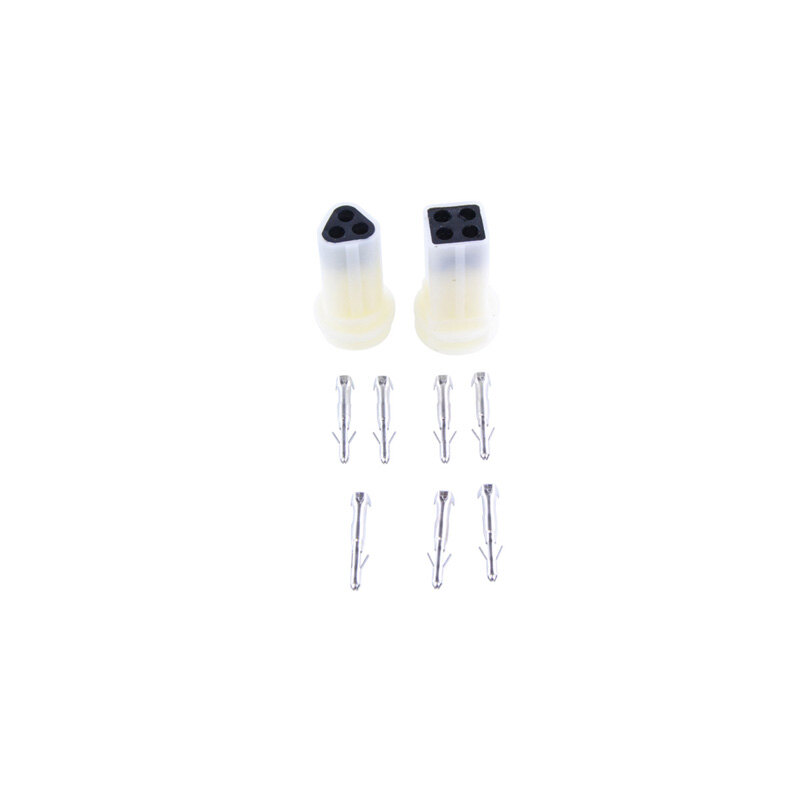

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4ohms \/-20%
Pickup : White to Red = 570ohms \/-20%
Source : Brown to Green = 315ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
