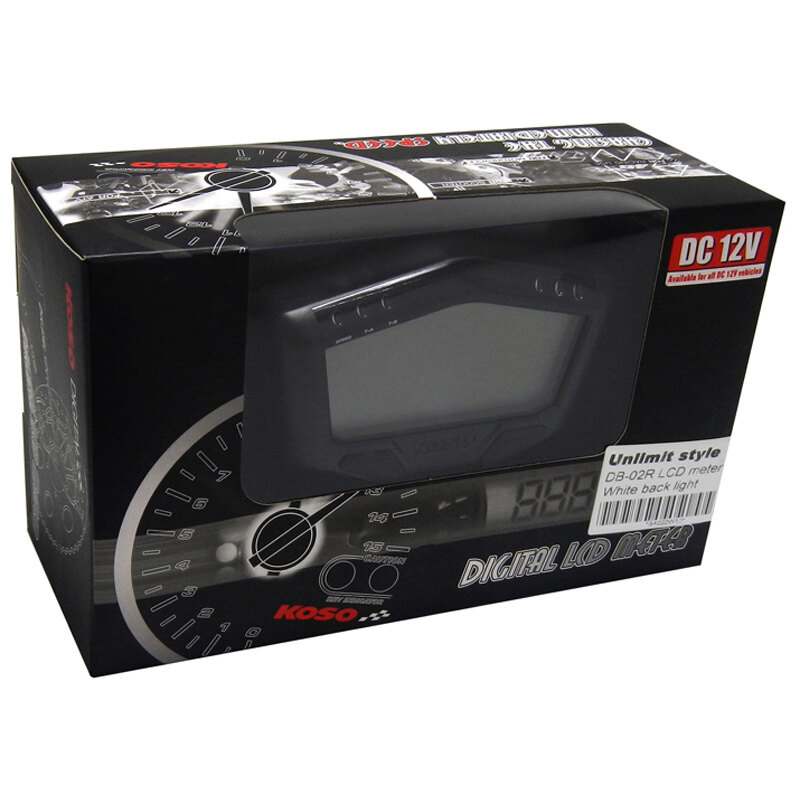

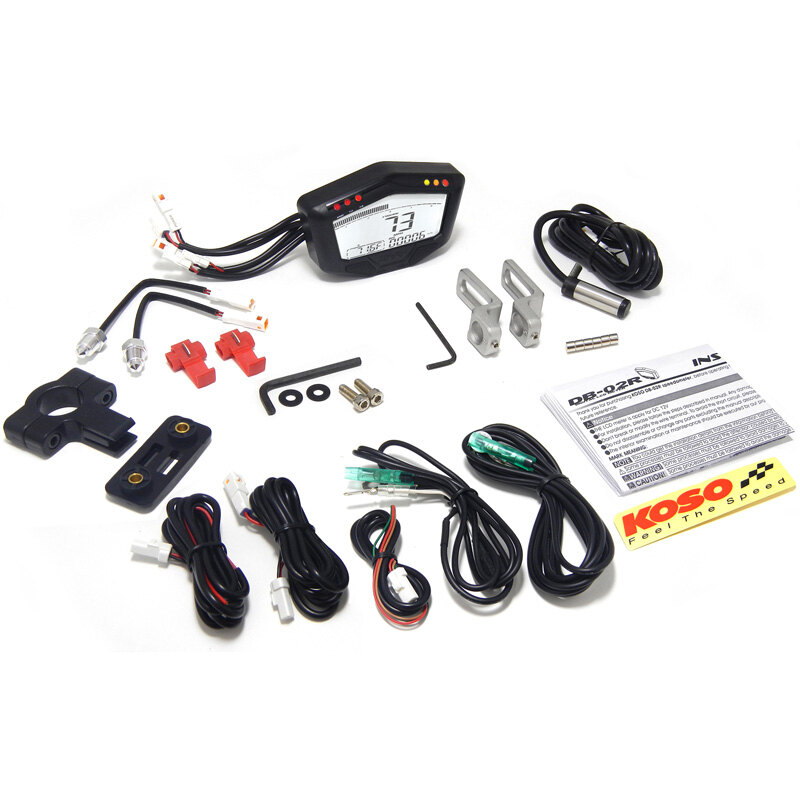

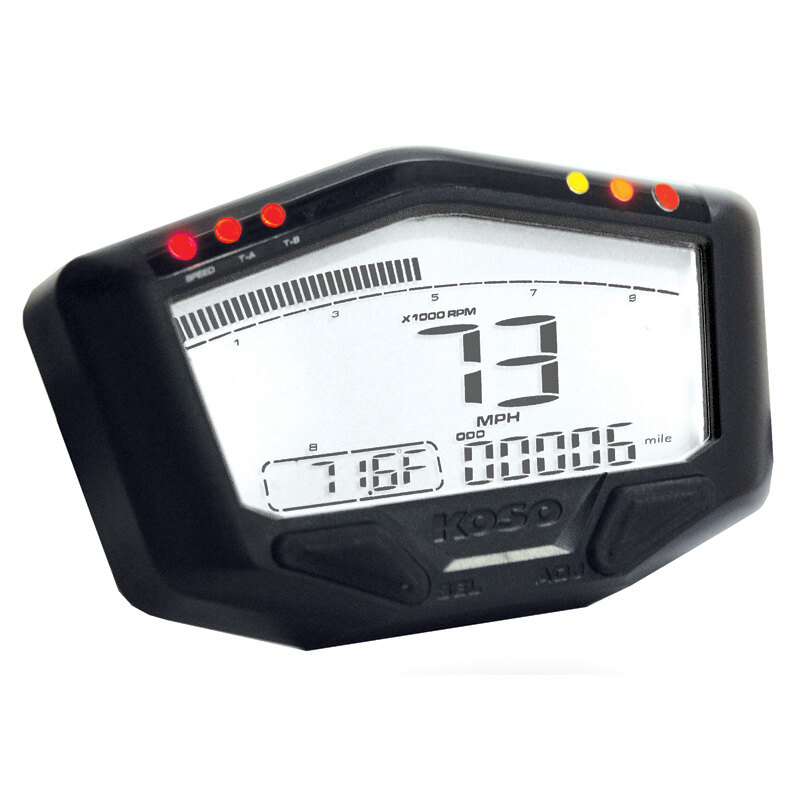

DB-02R DIGITAL LCD METER STREET/RACE VERSION

The DB-02R LCD Meter is especially made to fit your street or race bike needs. Its white backlight makes it very easy to read at night even at high speed. Its great shape and nice LCD display makes it the perfect meter to get for your street or race bike. The changeable RPM scale allows this meter to fit on about any engine application. This instrument also features a 3 stage shift light to allow you to shift your gears perfectly. Beside those great functions, the DB-02 features: speed, odometer, trip meter, RPM, inner battery level, temperature, hour meter and more.

Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH or km/h (alternative)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Speeding warning light
  R: 20 ~ 225 MPH (30 ~ 360 km/h)
• Top speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH(km)
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 6
• Tachometer
  R: 0 ~ 20,000 RPM | U: 10 RPM
• Level tachometer 60 levels
  R: 0 ~ 10,000 RPM | U: 166 RPM
  R: 0 ~ 15,000 RPM | U: 250 RPM
  R: 0 ~ 20,000 RPM | U: 333 RPM

• RPM shift light
  R: 5,000 ~ 20,000 RPM | U: 100 RPM
• Pre-shift light A/B
  R: -500 ~ -5,000 RPM before shift light
  U: 100 RPM
• Maximum RPM record
  R: 0 ~ 20,000 RPM
• RPM input pulse
  R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
• Hour meter
  R: 0 ~ 999,9 hours | U: 0.1 hour (6s)
• Thermometer A/B
  R: 32 ~ 482 °F (0 ~ 250 °C)
  U: 0.1 °F or °C (alternative)
• Over temperature warning A/B
  R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C
• Top temperature record
  R: 32 ~ 482 °F (0 ~ 250 °C)
