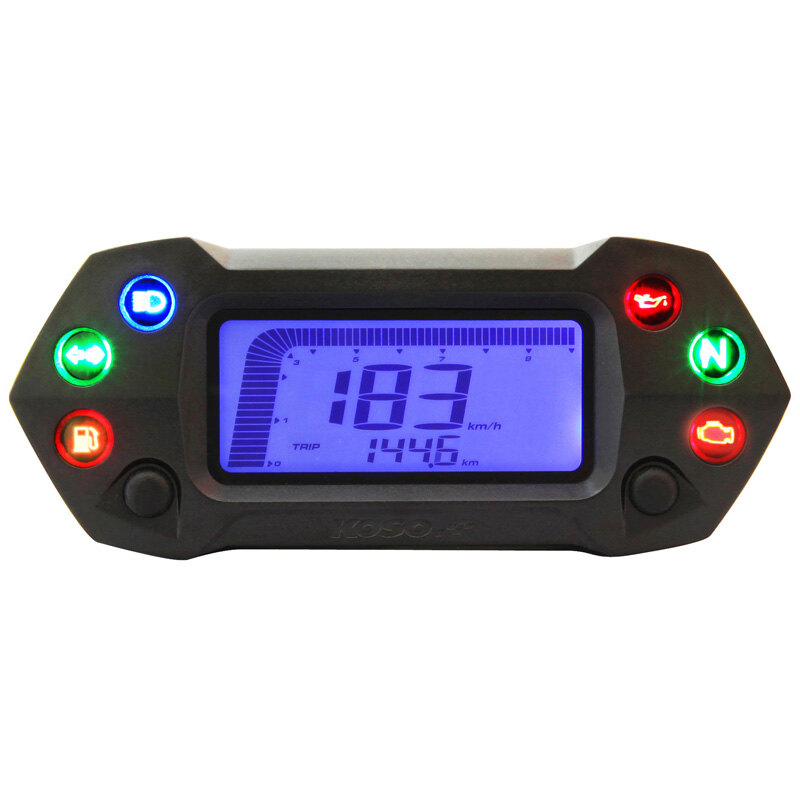

DB-01R+ SPEEDOMETER

DB-01R\ Multifunction Meter

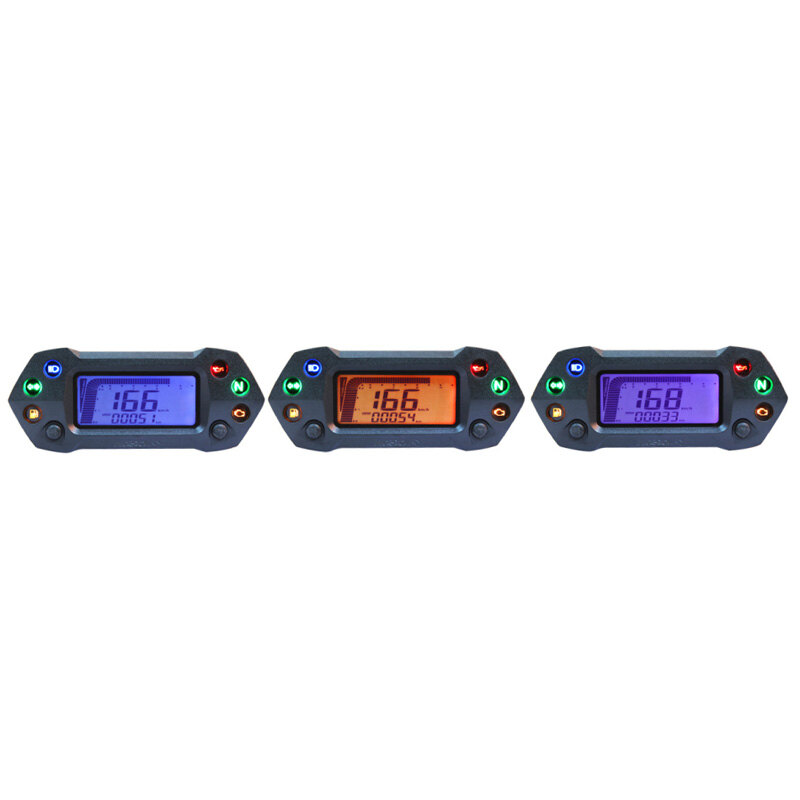

Our DB01R\ multifunction meter is an upgraded version of our popular DB01R multifunction meter. Perfect for motorcycles, street fighters or dualsports motorcycles, this meter features a large LCD display which uses a 3 different color changeable backlight to makes it easier to read during day or night riding. Get every information you need on this unique and lightweight meter that will enhance your motorcycle.

 Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH or km/h (alternative)

• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)

• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)

• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 20

• Graph bar tachometer
  R: 10,000 / 12,000 / 15,000 RPM
  U: 500 RPM

• RPM input pulse
  R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6

• Fuel meter
  R: 10 levels | U: 1 level = 16.6 %

• Fuel resistance
  R: 100 Ω / 250 Ω / 510 Ω / 510 Ω / 1,200 Ω
• Low fuel warning
  R: 0.1 ~ 16.6% (flashing) | R: 0 (light on)
• Stroke / piston setting
  2 stroke: 1, 2, 3, 4 pistons
  4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
• Indicator lights
  Neutral / High beam / Turn signals / Check engine / Oil level / Low fuel
• Effective temperature range
  14 ~ 140 °F (10 ~ 60 °C)
• Effective voltage
  DC 12 V

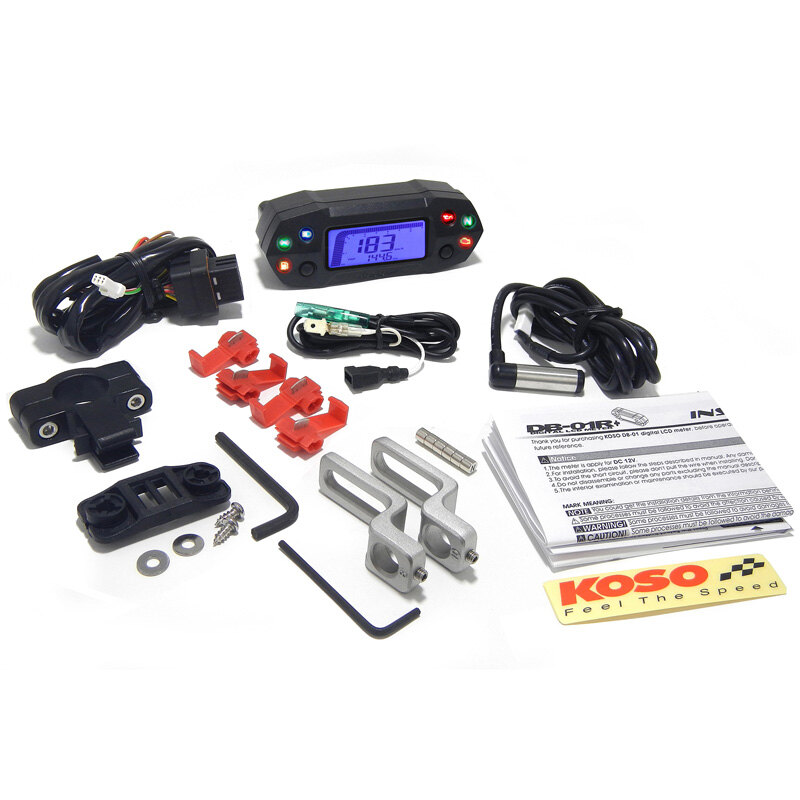

• Sensor included
  Passive speed sensor : BF019J06

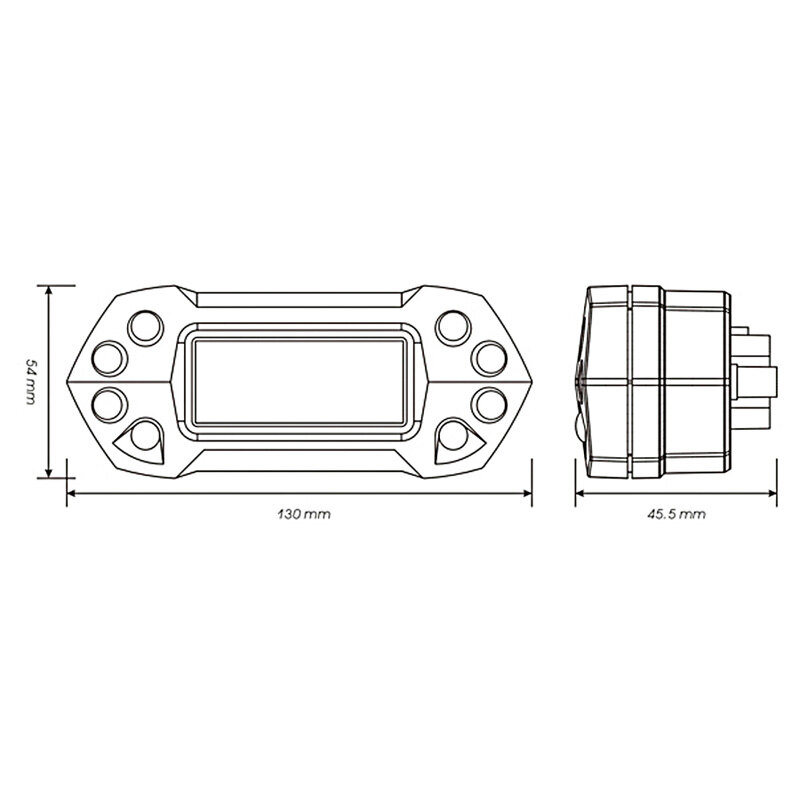

• Meter size (W x L x H)
  130mm x 54mm x 35mm
• Meter weight
  ±90g
