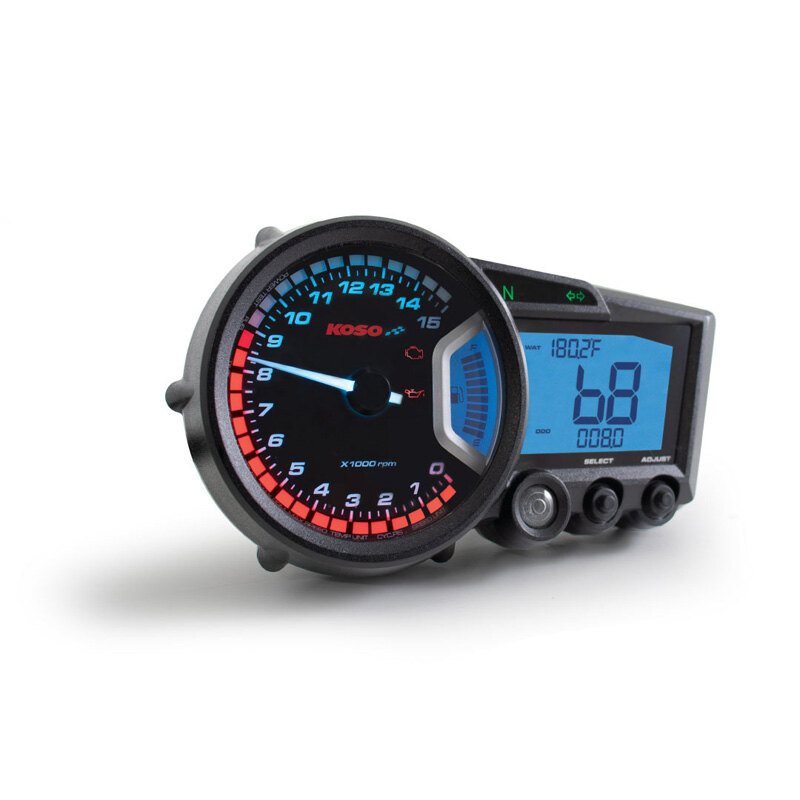

SPEEDOMETER GP STYLE RX-2

RX-2 GP Style Multifunction

The RX2 is one of Koso signature gauge. Its unique color changeable backlight makes it a very popular instrument. The illuminated needle with LED pointer makes it very easy to read even at night. This instrument features many different functions such as speed, odometer, tripmeter, RPM, shift light, temperature, indicator lights and many other cool functions. Set yourself apart with the RX2!

 Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: MPH or km/h (alternative)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Speeding warning light
  R: 20 ~ 110 MPH (30 ~ 180 km/h)
  U: 5 MPH (km/h)
• Top speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH(km)
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 60
• Tachometer
  R: 0~15,000 RPM | U: 100 RPM

• RPM shiftlight
  R: 5,000 ~ 15,000 RPM | U: 100 RPM
• Maximum RPM record
  R: 0 ~ 15,000 RPM
• Stroke / piston setting
  2 stroke: 1, 2, 3, 4 pistons
  4 stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons
• Digital temperature (Water & Oil)
  R: 32 ~ 248 °F (0 ~ 120 °C)
  U: 0.1 F or C (alternative)
• Temperature level meter
  R: 68 ~ 248 °F (20 ~ 120 °C)
  R: 10 levels | U: 1 level = 50 °F or 10 °C (alternative)
• Over Temperature warning (Water & Oil)
  R: 140 ~ 248°F (60 ~ 120°C) | U: 1°F (°C)
• Top temperature record
  R: 32 ~ 248 °F (0 ~ 120 °C)

• Fuel meter
  R: 10 levels | U: 1 level = 10 %
• Fuel resistance
  R: 100 Ω / 510 Ω / no display
• Low fuel warning
  R: 10 ~ 50% | U: 10%
• Clock
  R: 24 H format
• Target speed timer
  D: 20 ~ 225 MPH (30 ~ 360 km/h)
  R: 5 MPH (km/h)
• Target distance timer
  D: 1/32 ~ 20/32 mile (50 ~ 1,000 m)
  U: 1/32 mile (50 m)
• Top speed timer
  Speed : 0 ~ 225 MPH (0 ~ 360 km/h)
  Distance : 0 ~ 3,280 feet (0 ~ 999 m)
  RPM : 0 ~ 15,000 RPM
  Timer : 0 ~ 9’59”99

• Indicator lights
  Neutral / High beam / Turn signals / Check engine / Oil level / Temperature / Speeding / RPM shift light

• Effective temperature range
  14 ~ 140 °F (10 ~ 60 °C)

• Effective voltage
  DC 12 V

• Sensor included
  Passive speed sensor : BF019005
  Temperature sensor: BF030125
