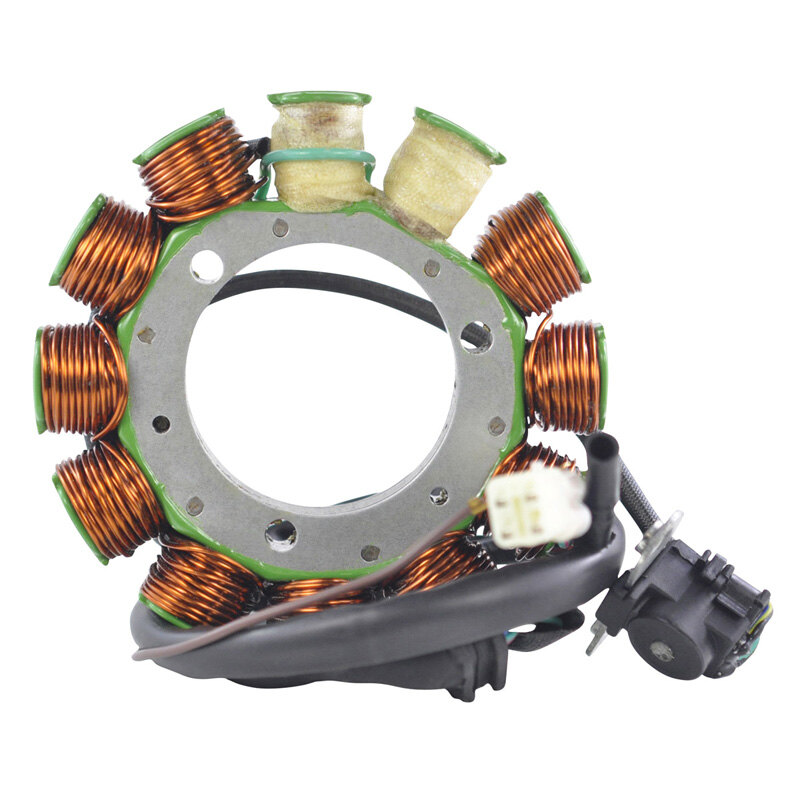

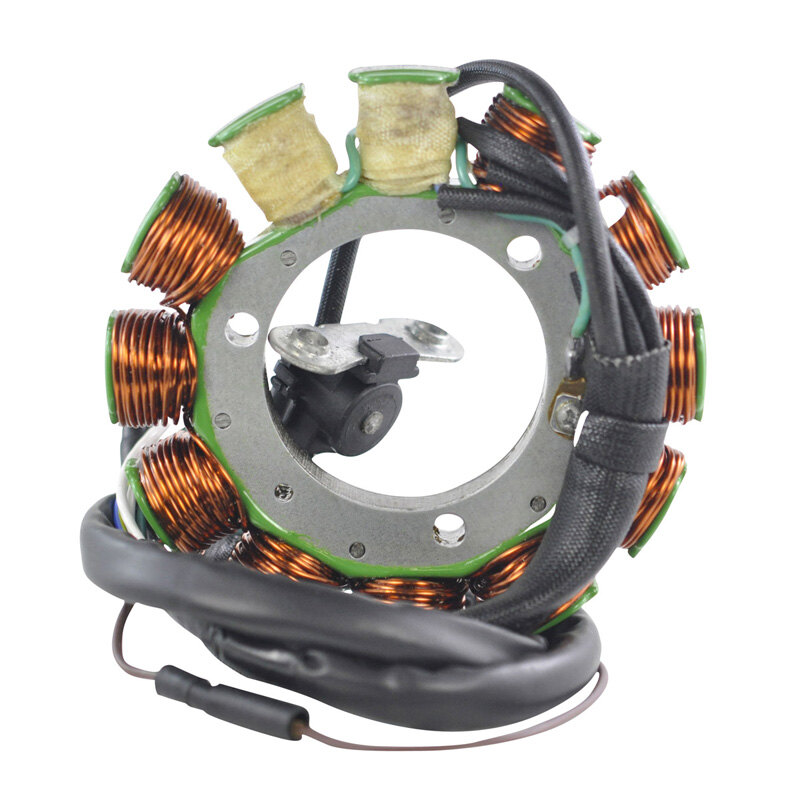

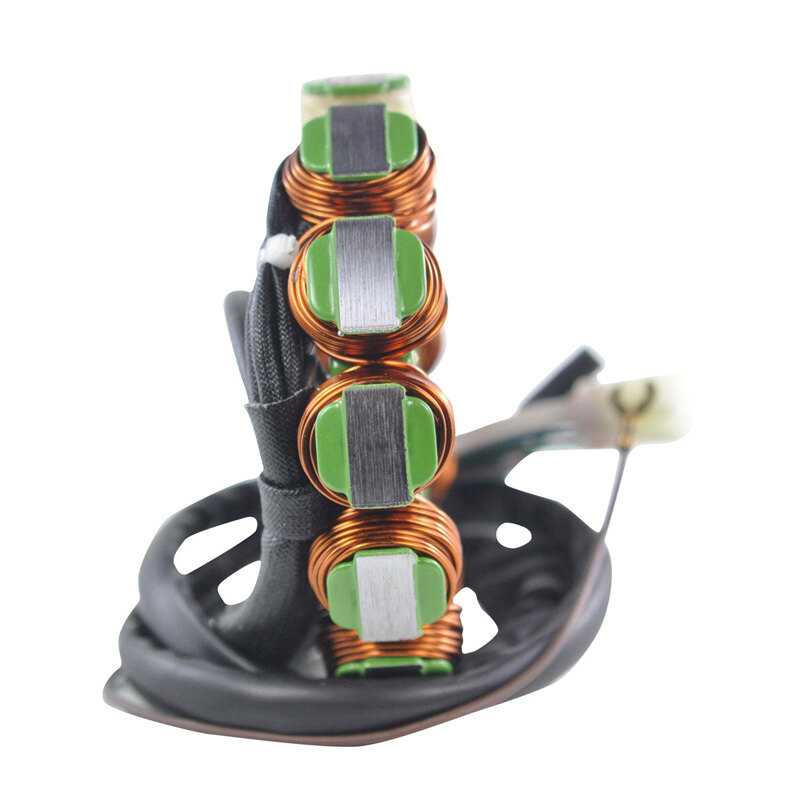

STATOR HON TRX400EX 99-08|TRX400X 09-14

Brand new stator assembly 200 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

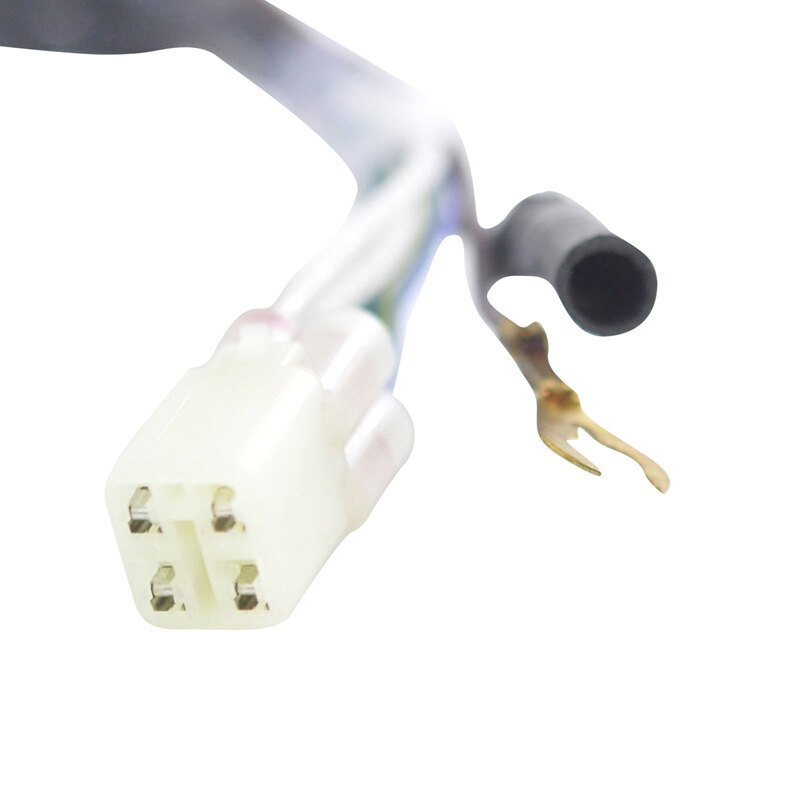

• Connector included
• Rubber grommet included
• All product shipped are tested

20% MORE OUTPUT OVER STOCK, WORK WITH ALL OTHER OEM COMPONENTS.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires: 6
Number of plugs: 2
Number of terminals: 6
Alternator: Green to White = 0.4 ohms \/-20%
Pick up: Blue/Yellow to Green/Red = 230 ohms \/-20%
Source: Black/Red to Brown = 90 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
