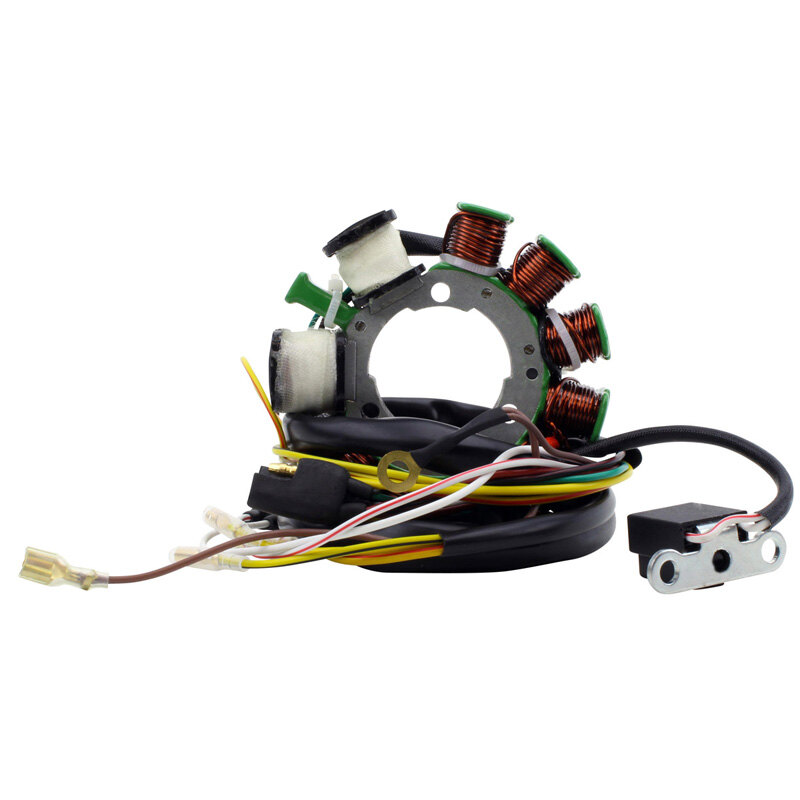

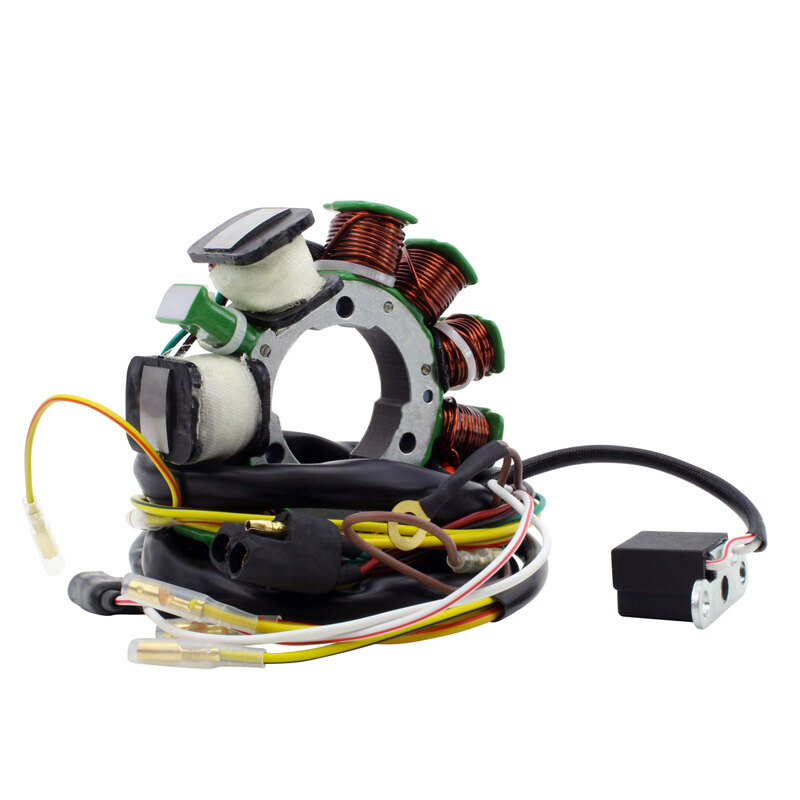

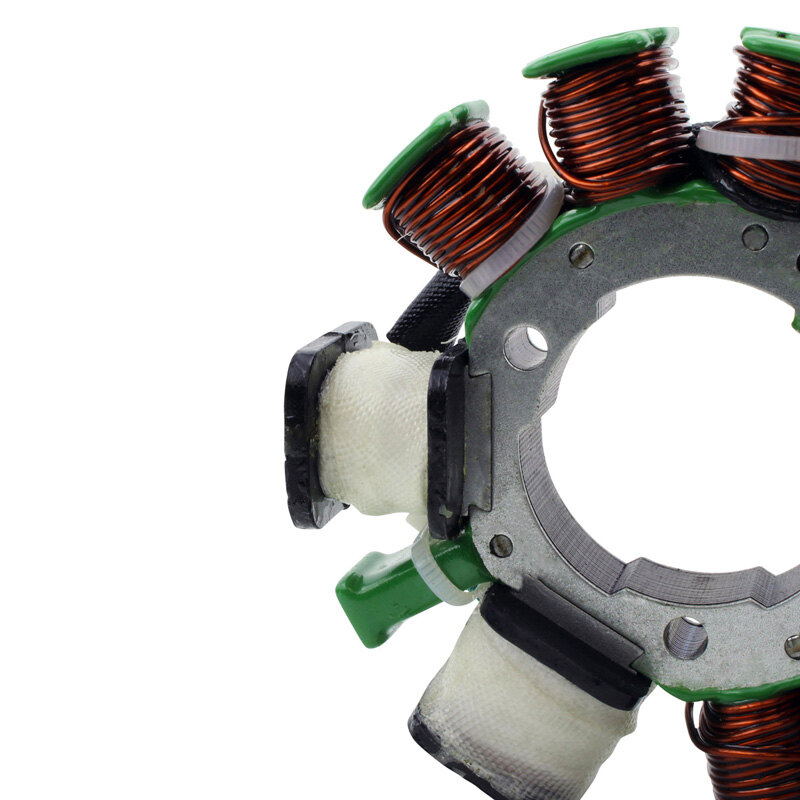

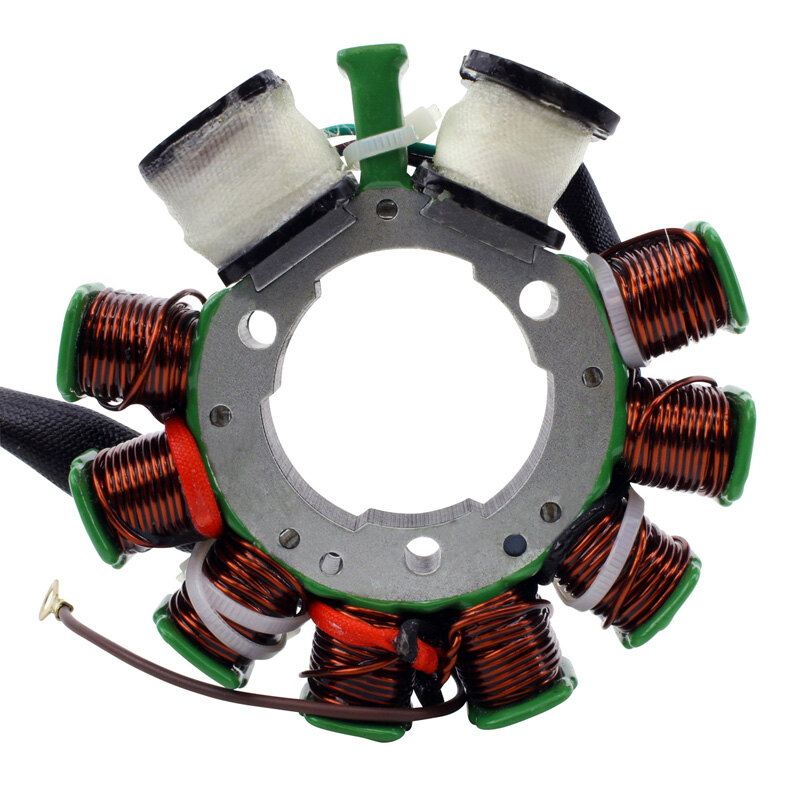

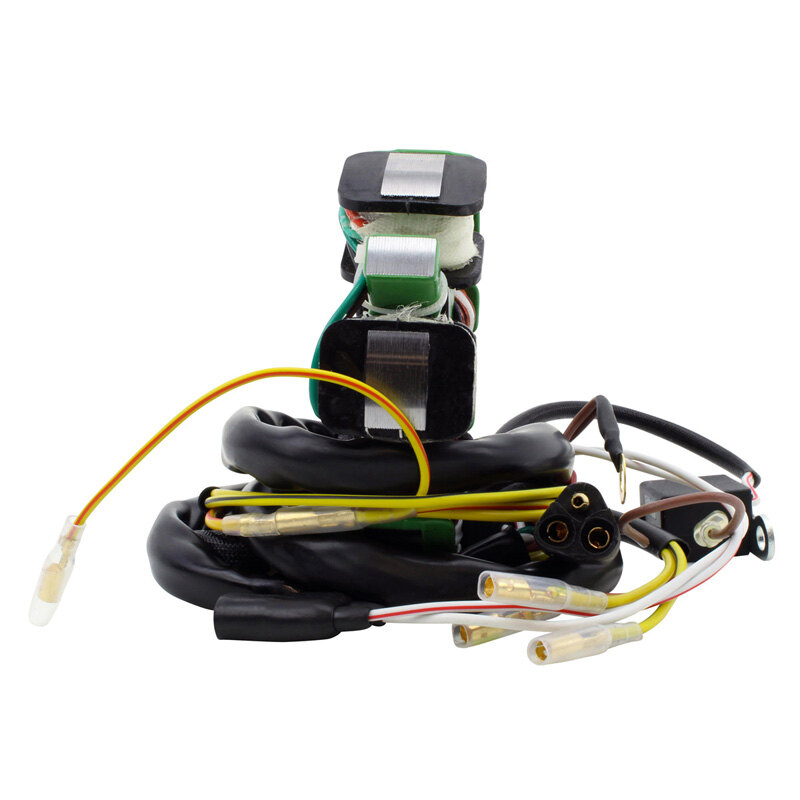

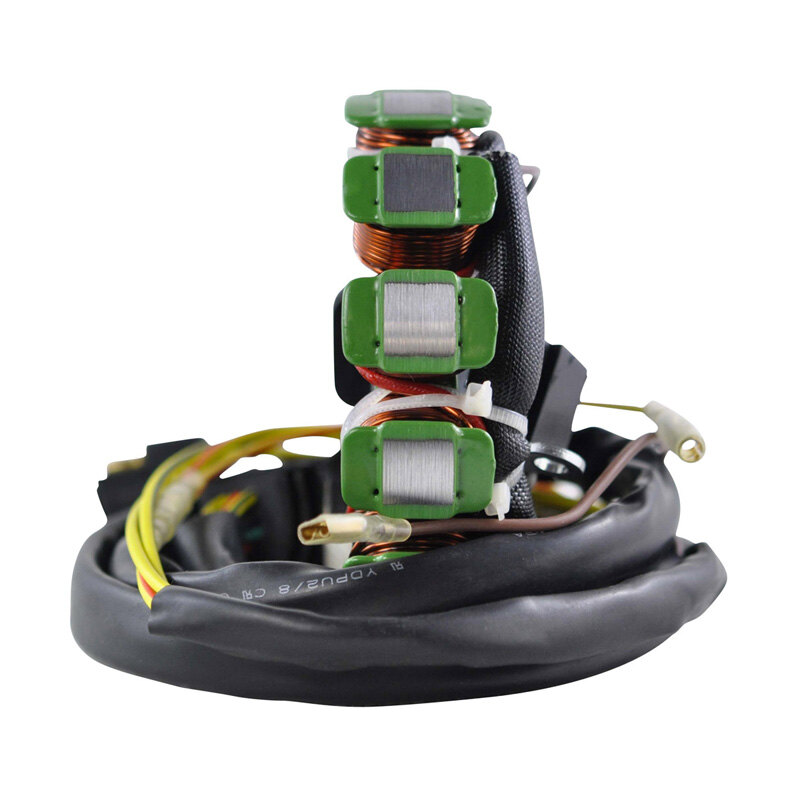

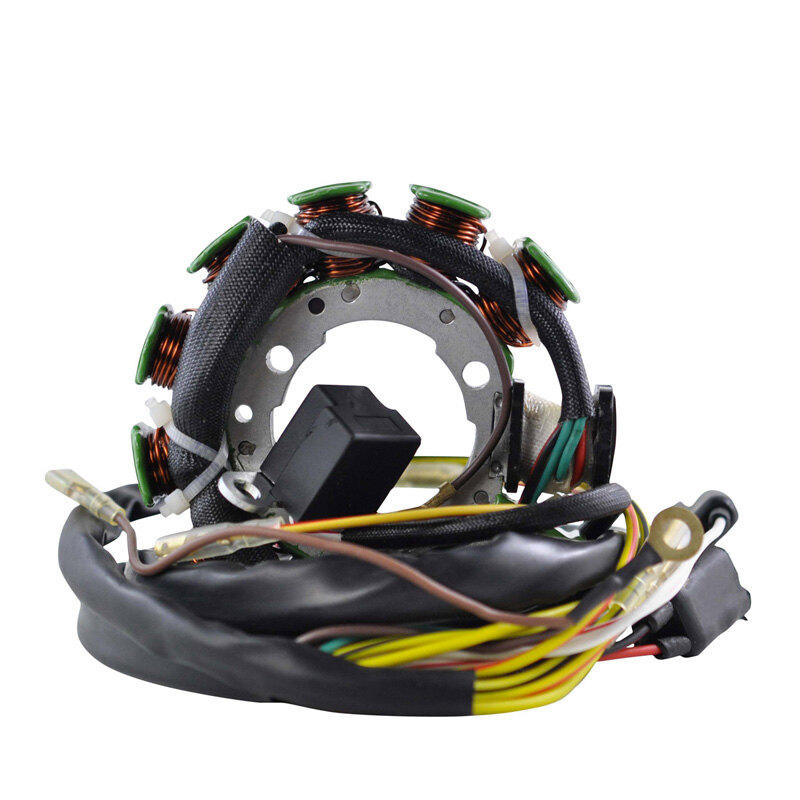

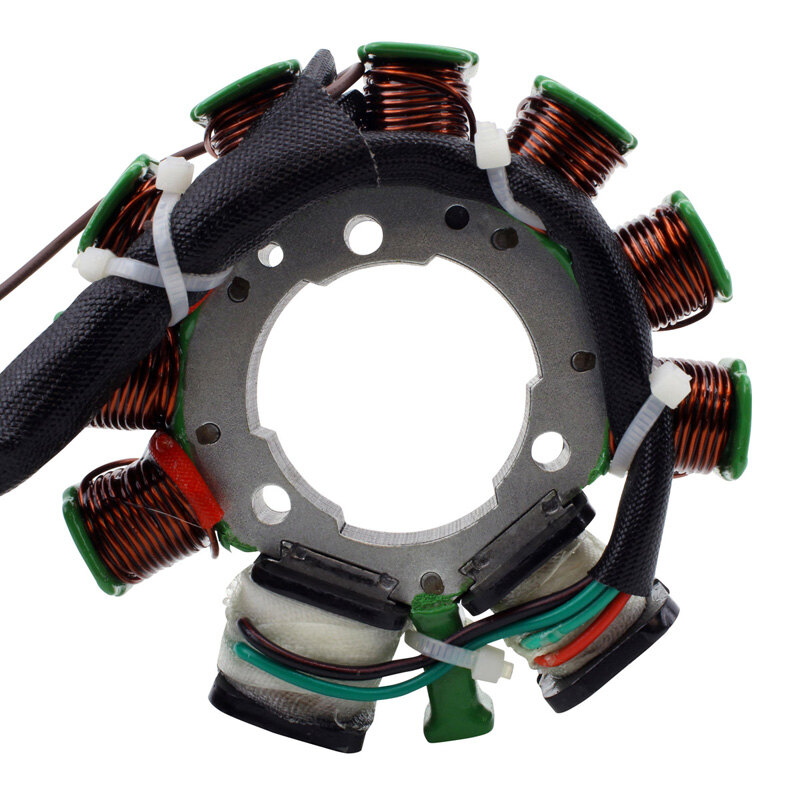

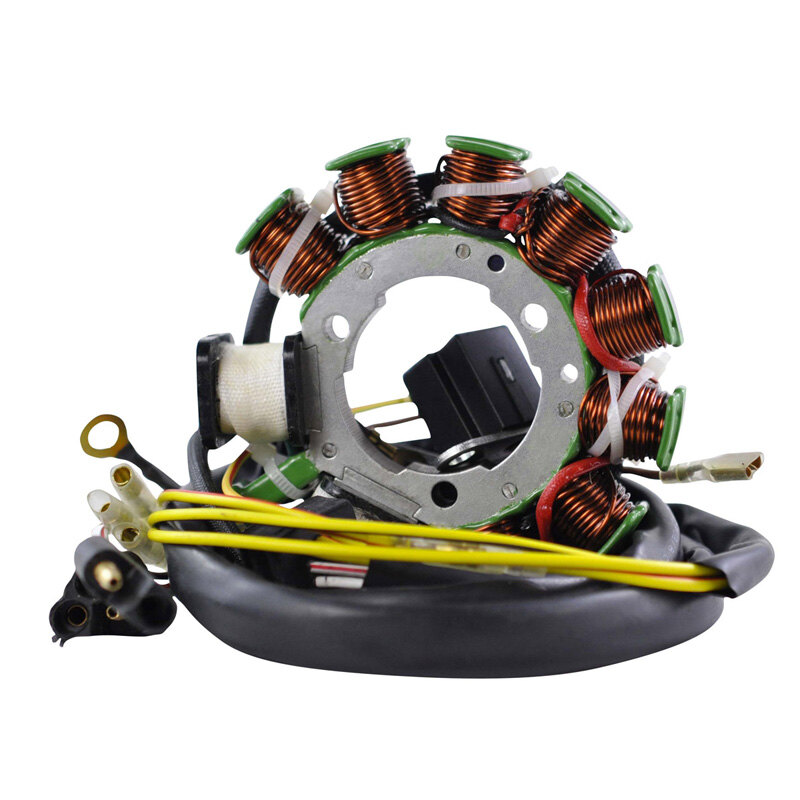

STATOR POL RANGER|SPORTSMAN 335-500 95-04

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

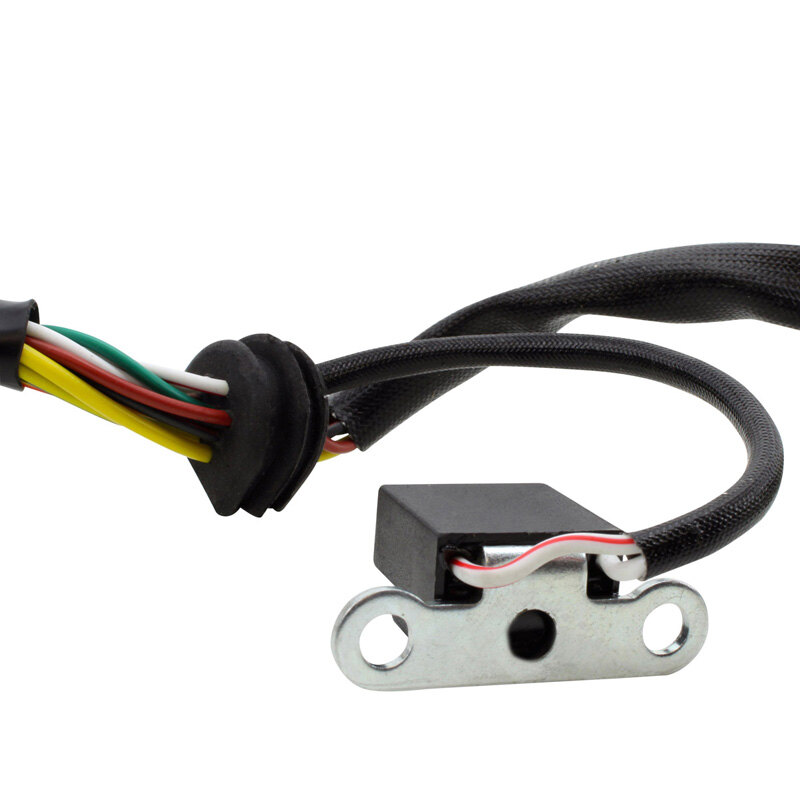

• Pick up pulsar coil included

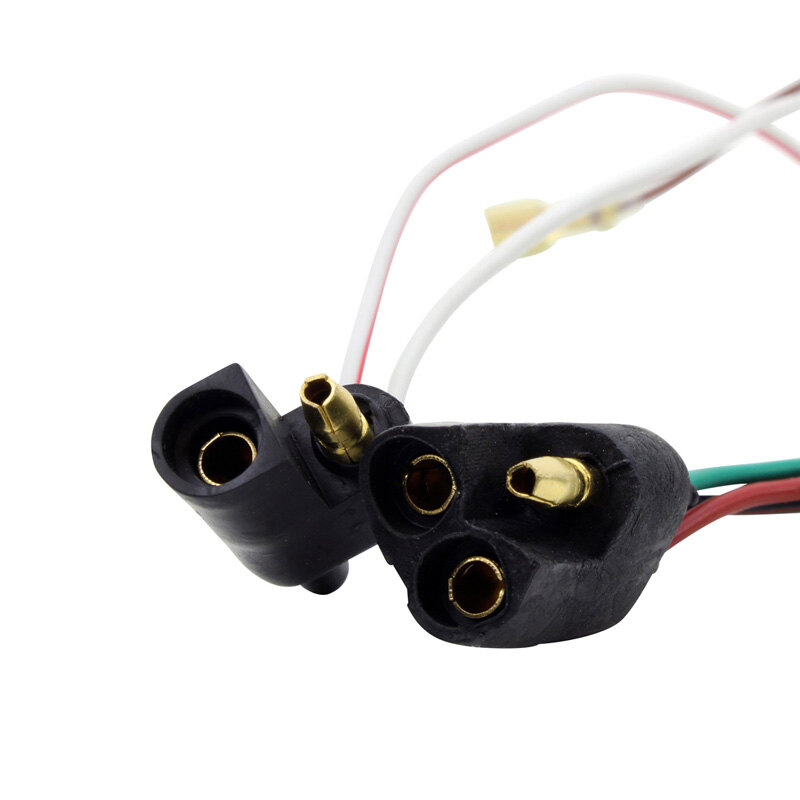

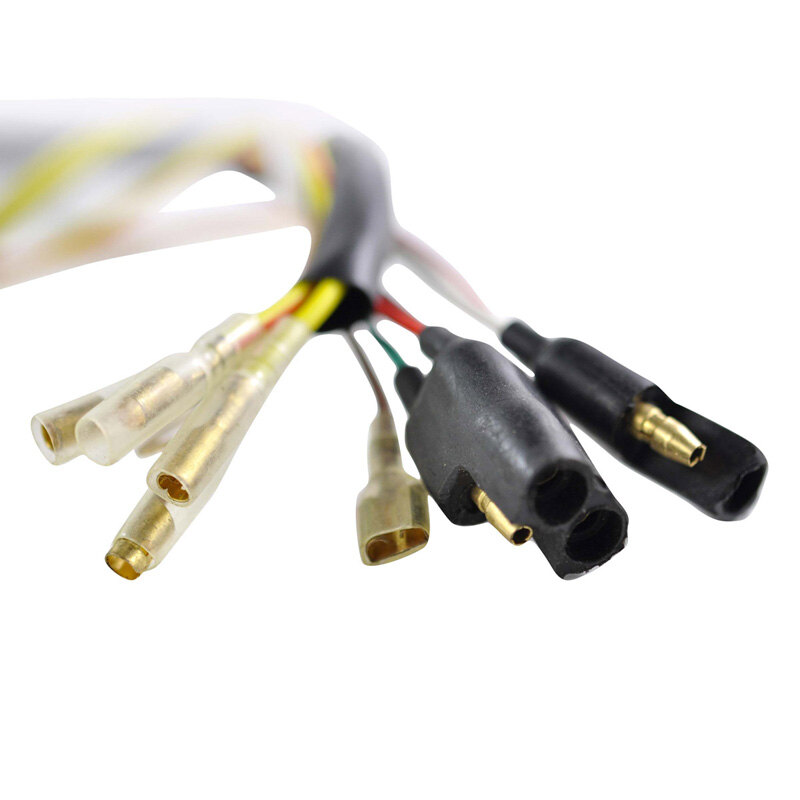

• Connector included
• Rubber grommet included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4ohms \/-20%
Pickup : White/Red to White = 115ohms \/-20%
Source : Black/Red to Green = 450ohms \/-20%
Source 2 : Red to Green = 4.1ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

For Polaris Series 10 Ranger 2003, this stator only fits model code #A10RB42AA.
