STATOR POL SPORTSMAN|RANGER 700/800 04-07

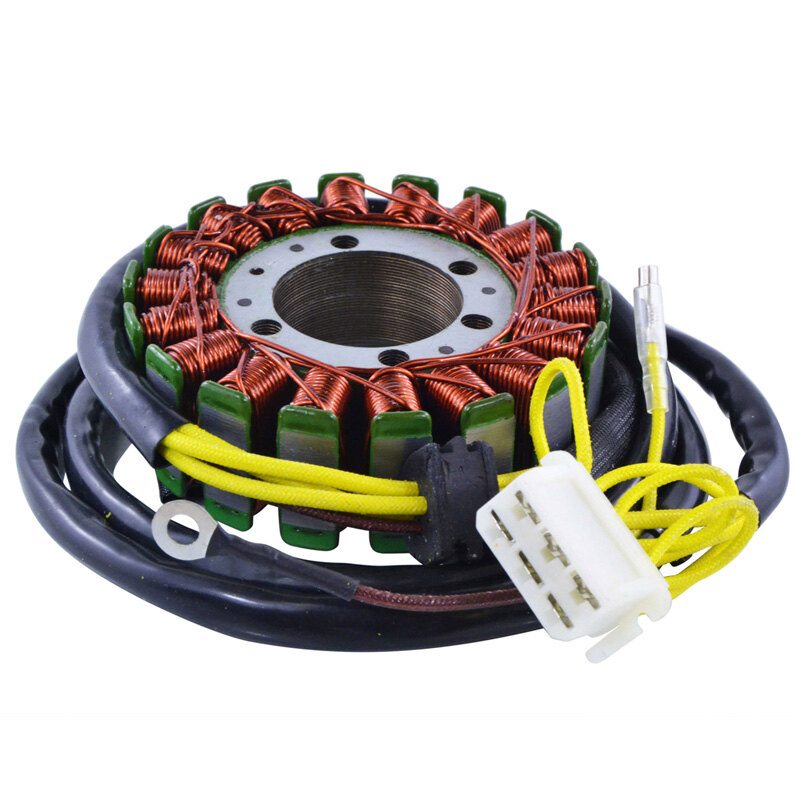

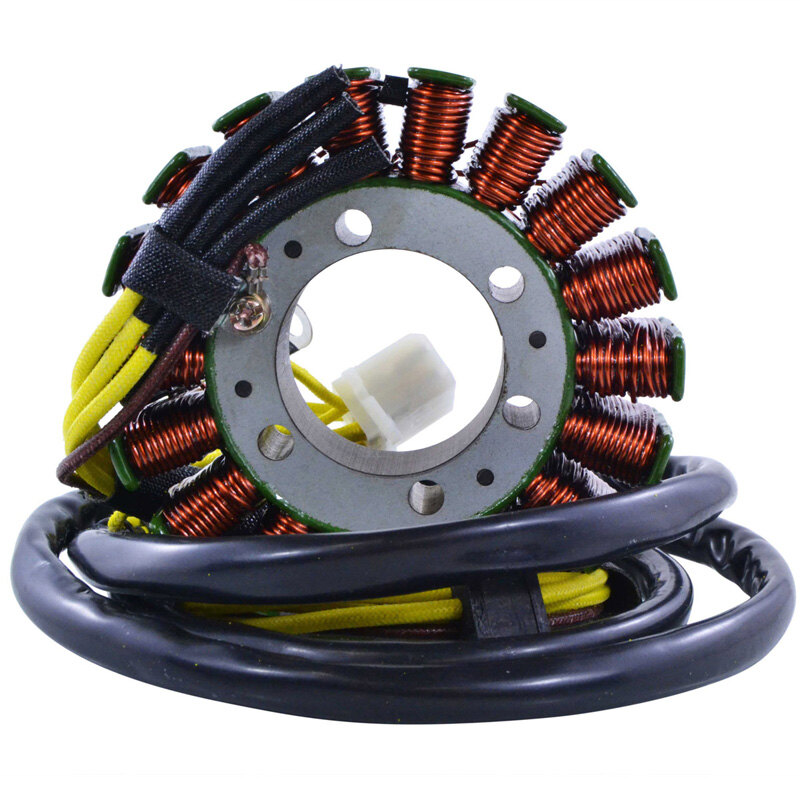

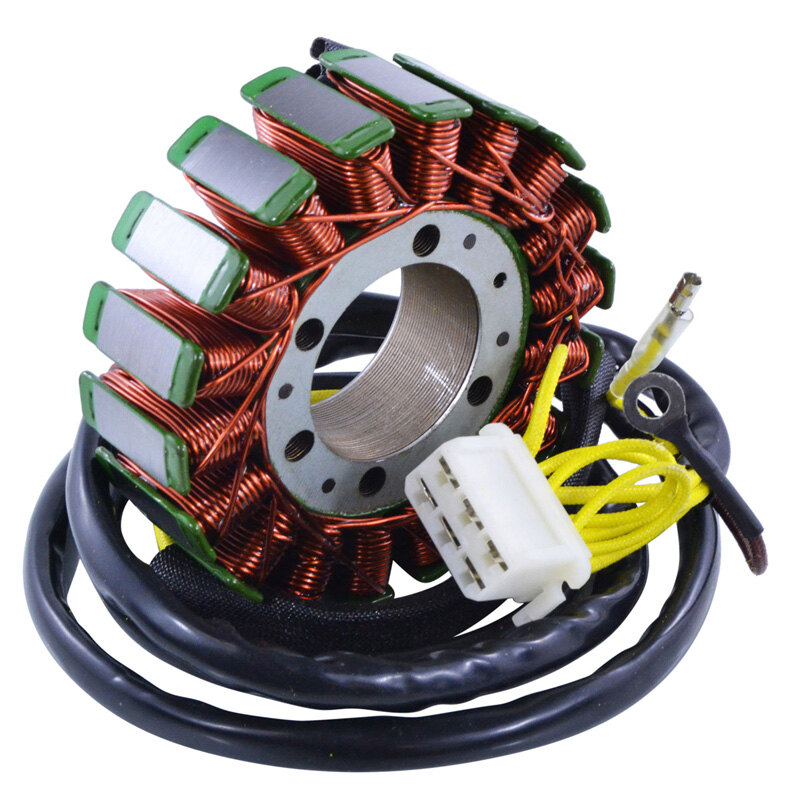

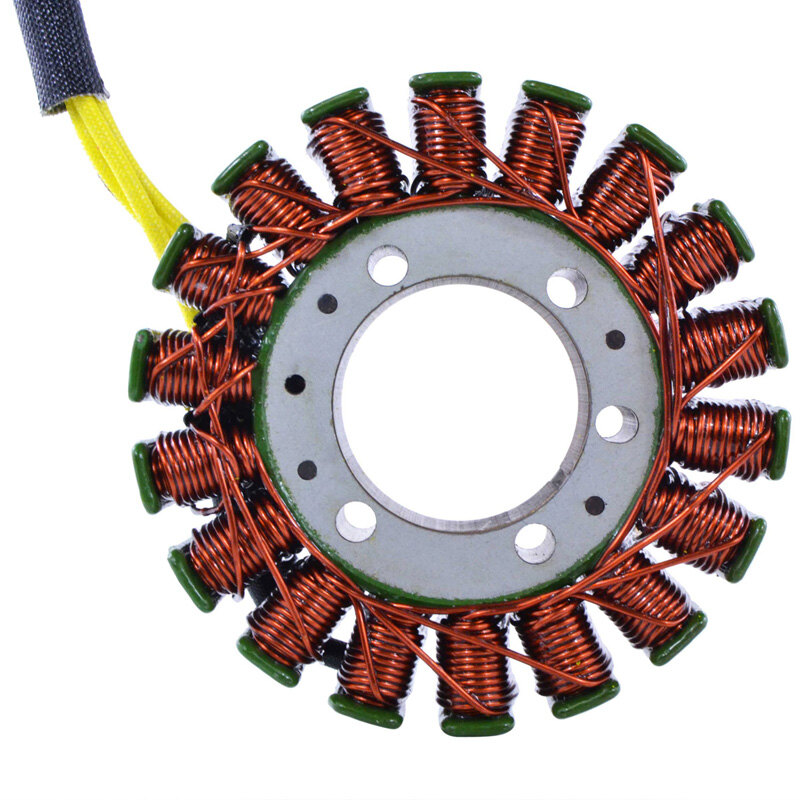

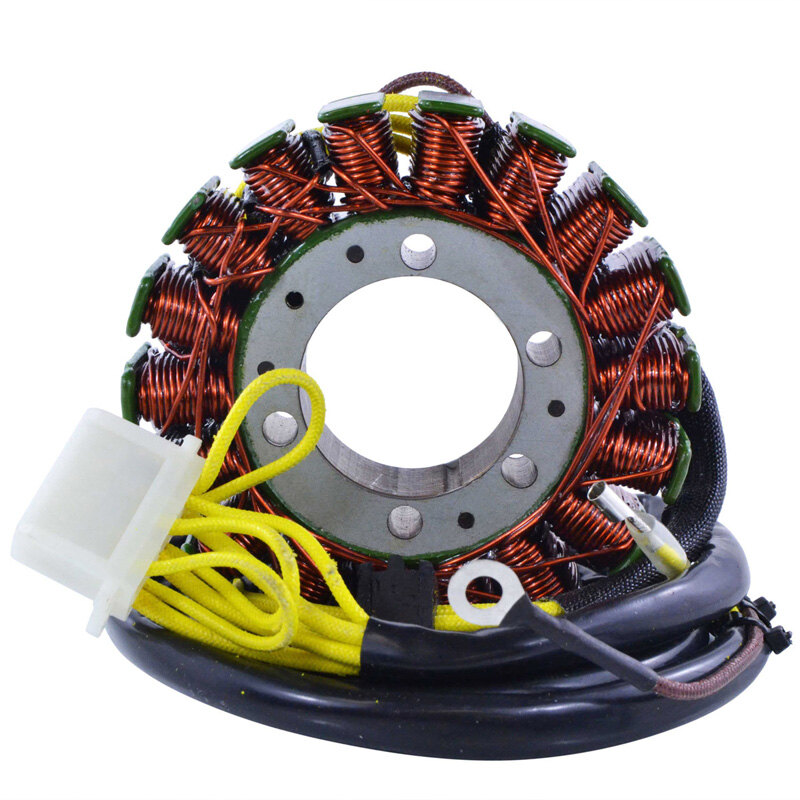

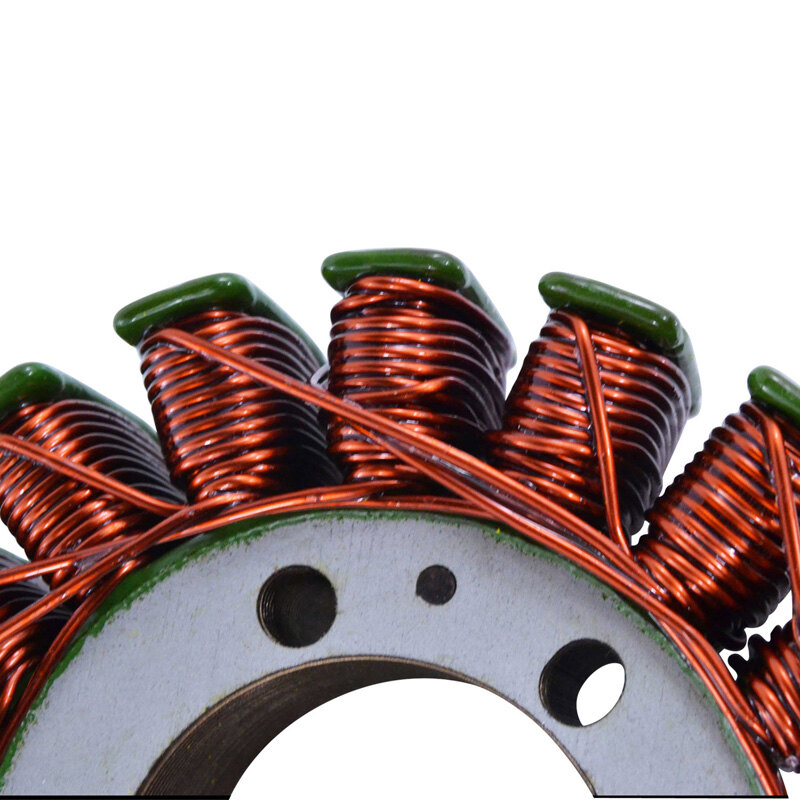

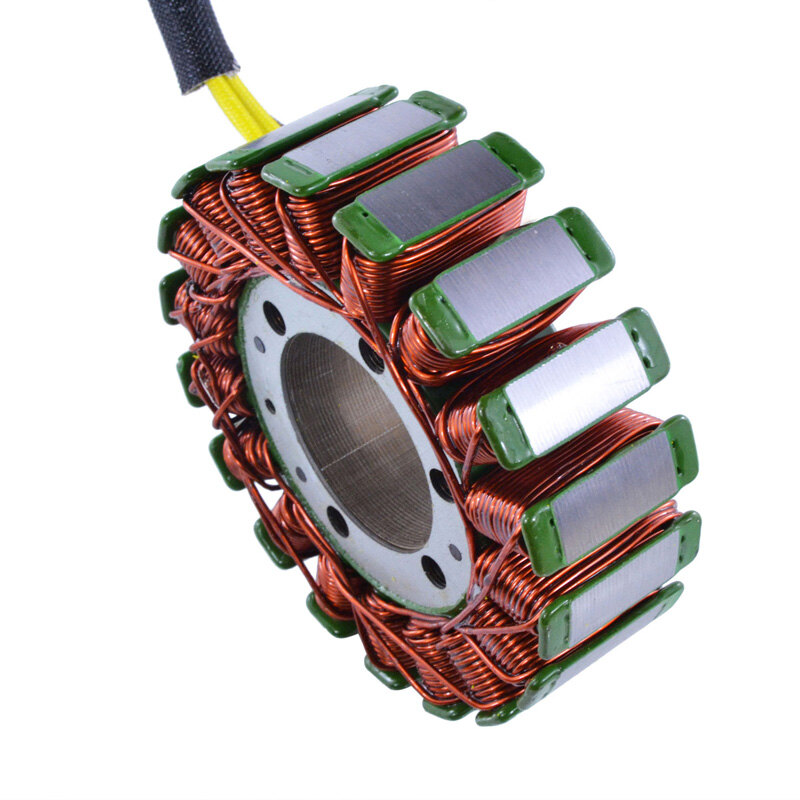

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

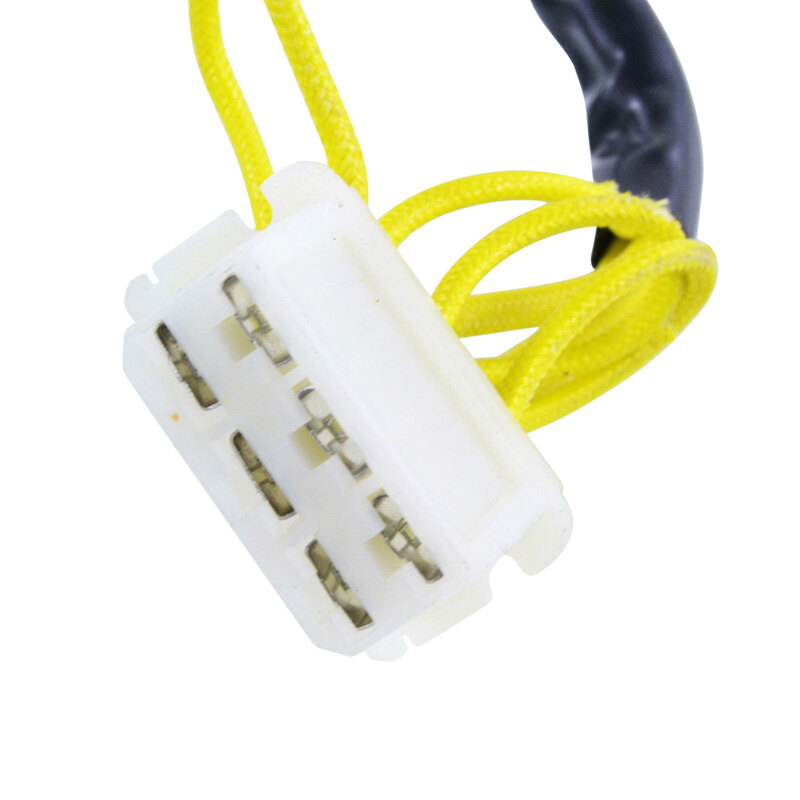

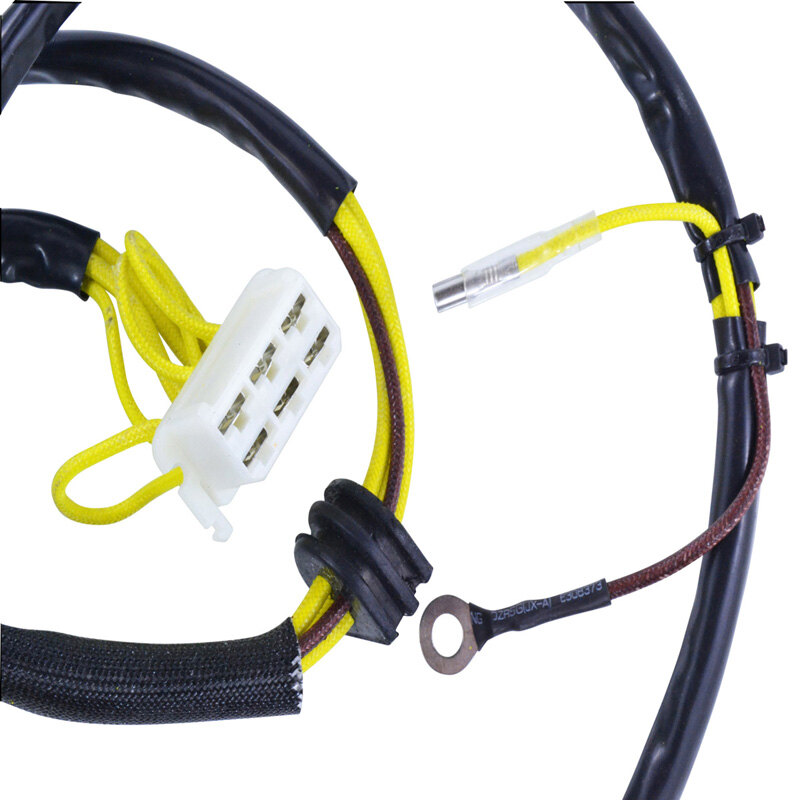

• Connector included

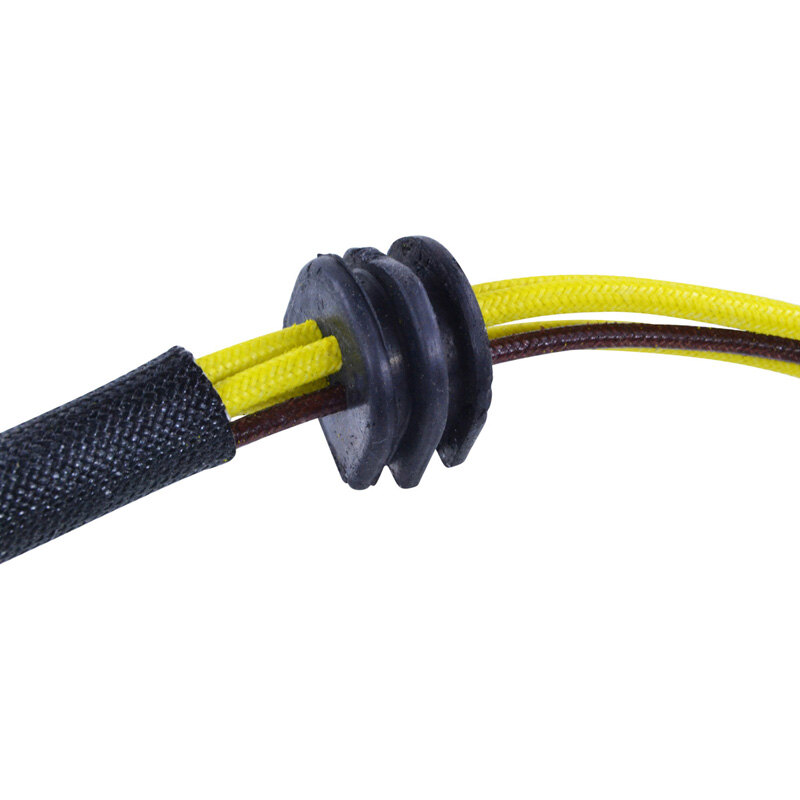

• Rubber grommet included
• All products shipped are tested

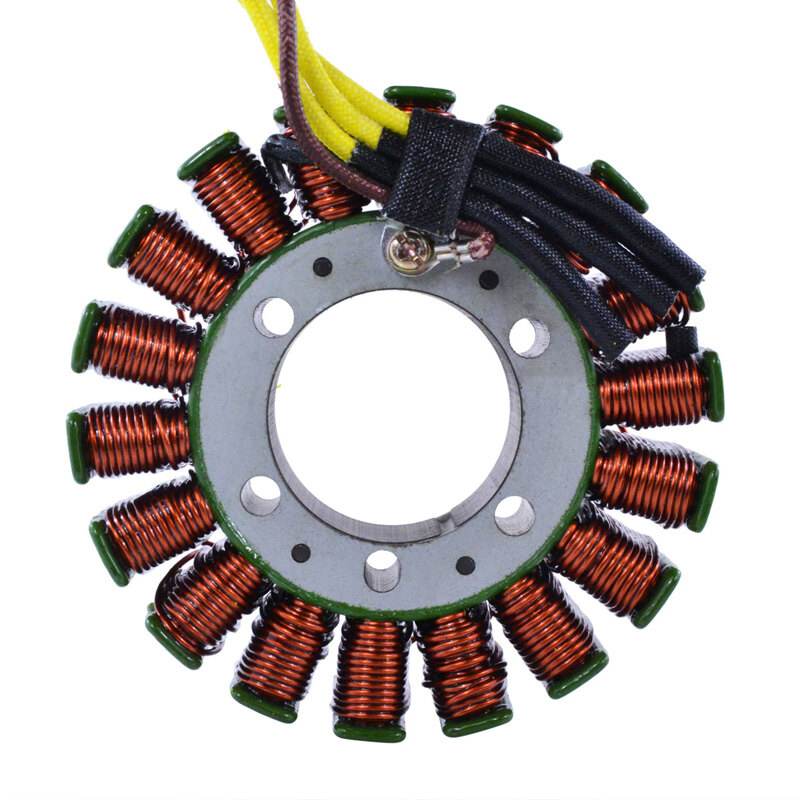

*18 pole stator. There are more that one possible stator for the Sportsman 700 Non-EFI 4x4 2004. *The RM01057 OD is 107 mm, ID 41 mm, thickness is 23 mm. Please call for further clarification.

*All item pictures are accurate, if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 107 mm
Thickness : 23 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 1200 mm

Other specifications :
Number of wires : 8
Number of plugs : 3
Number of pins : 8

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
