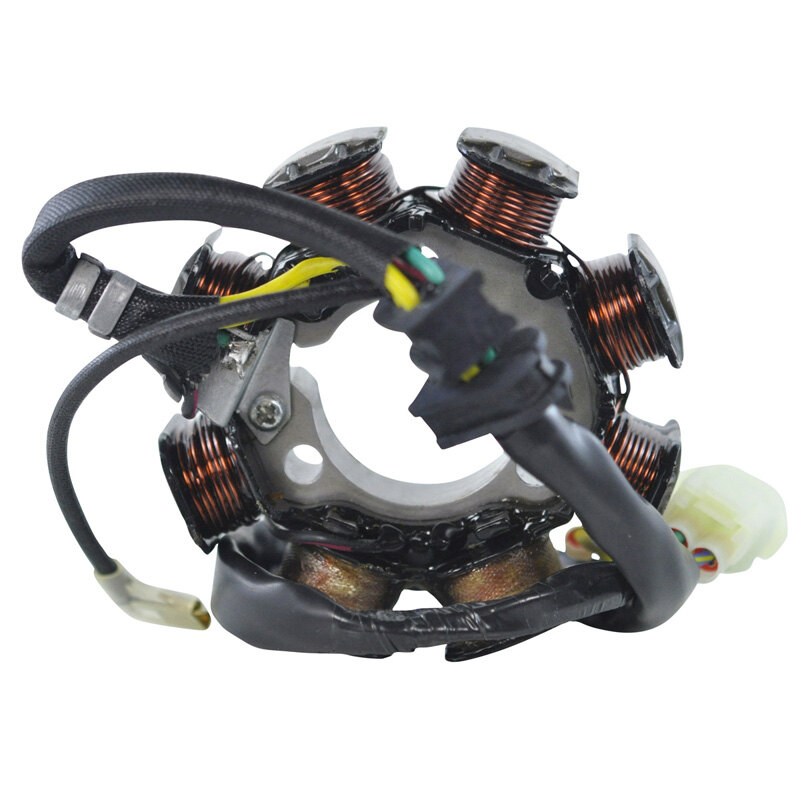

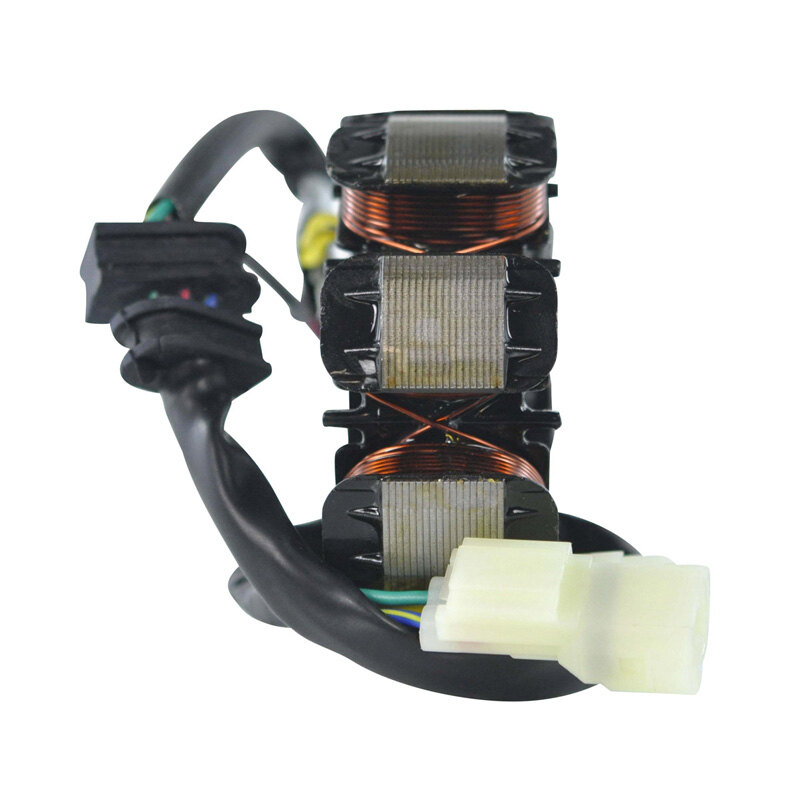

STATOR HON TRX250TM/TE 97-04|TRX250EX 01-05

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

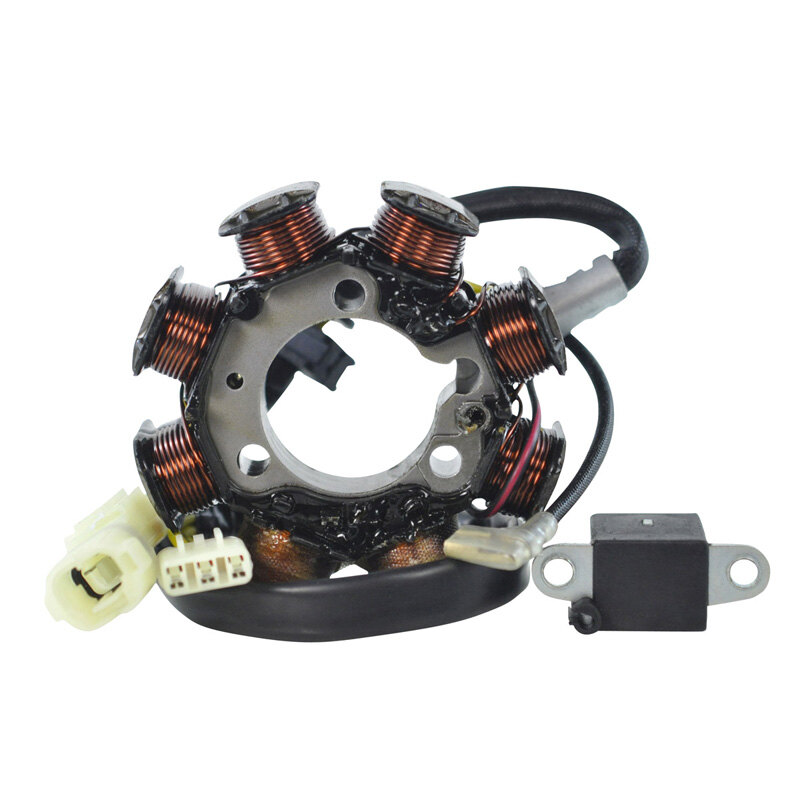

• Pickup pulsar coil included

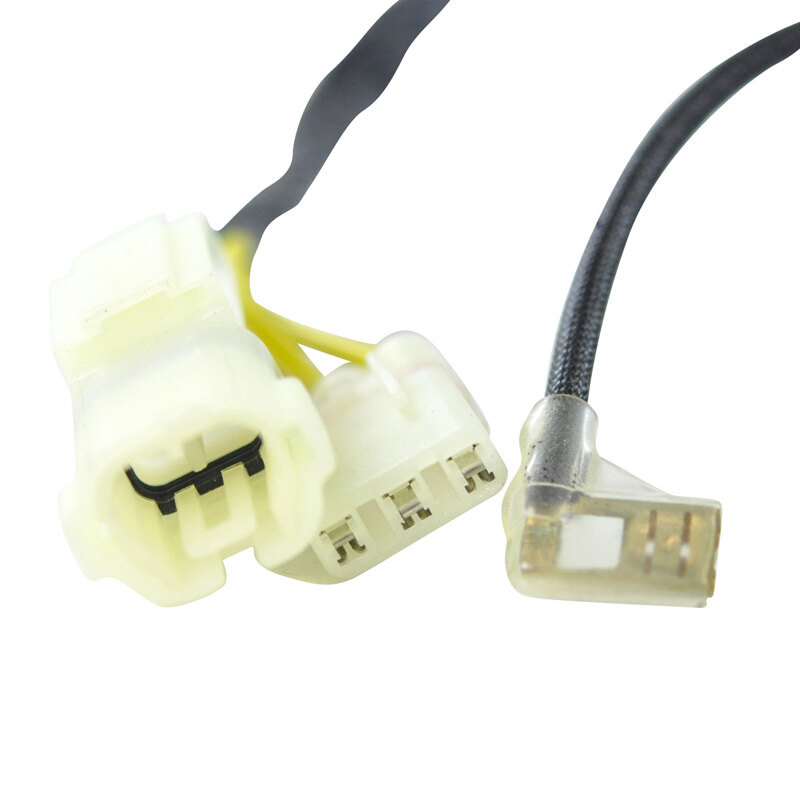

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34 mm
Exterior diameter : 88 mm
Thickness : 18 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 250 mm
Length of pickup coil\'s wire to grommet : 110 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms \/-20%
Pickup : Blue/Yellow to Green = 280 ohms \/-20%
Source : Black/Red to Green = 190 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
