STATOR POL SCRAMBLER|SPORTSMAN 500 00-03

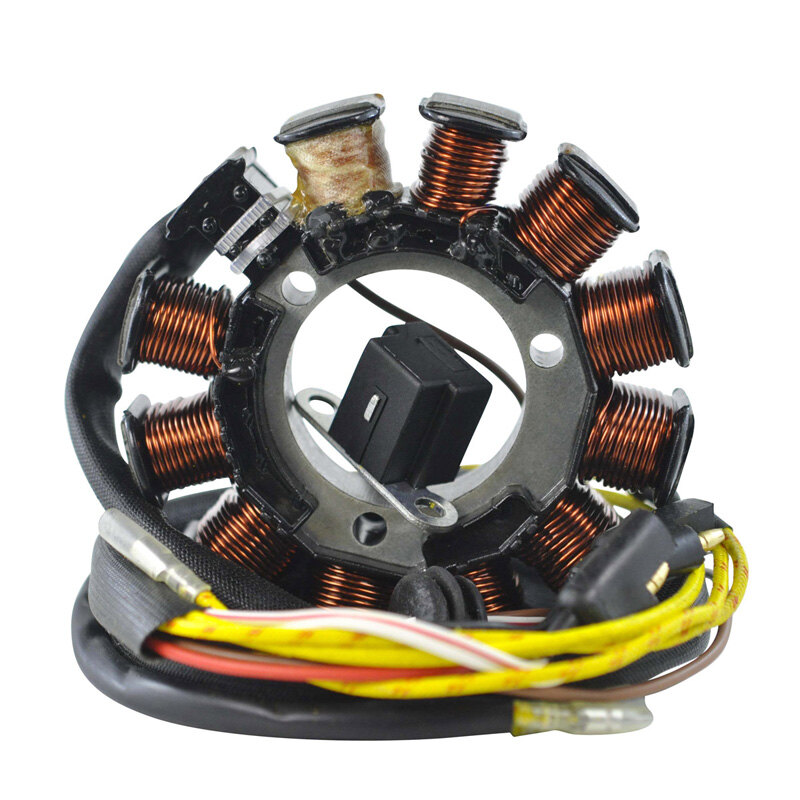

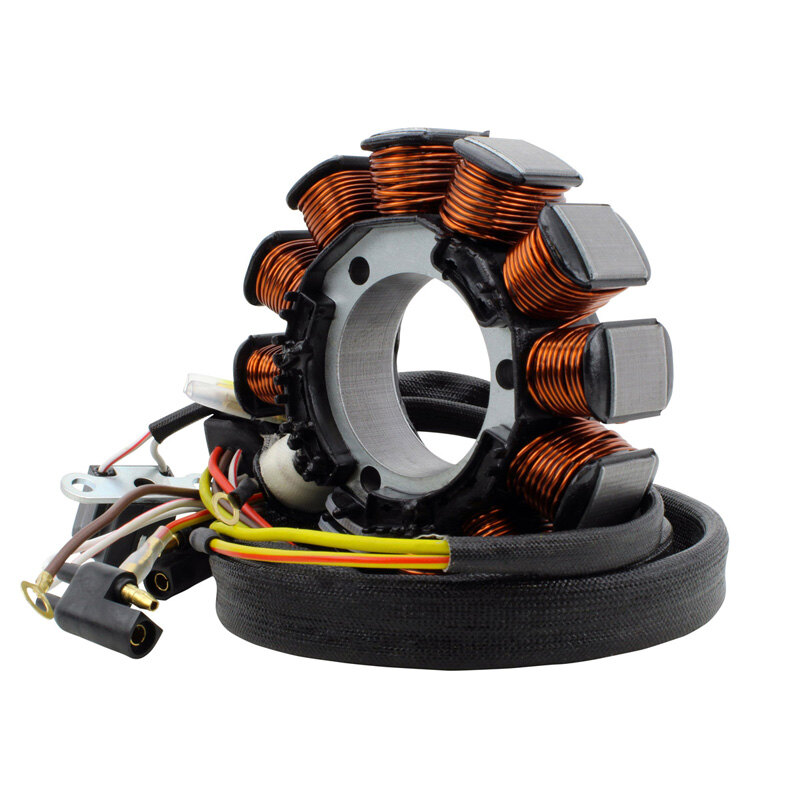

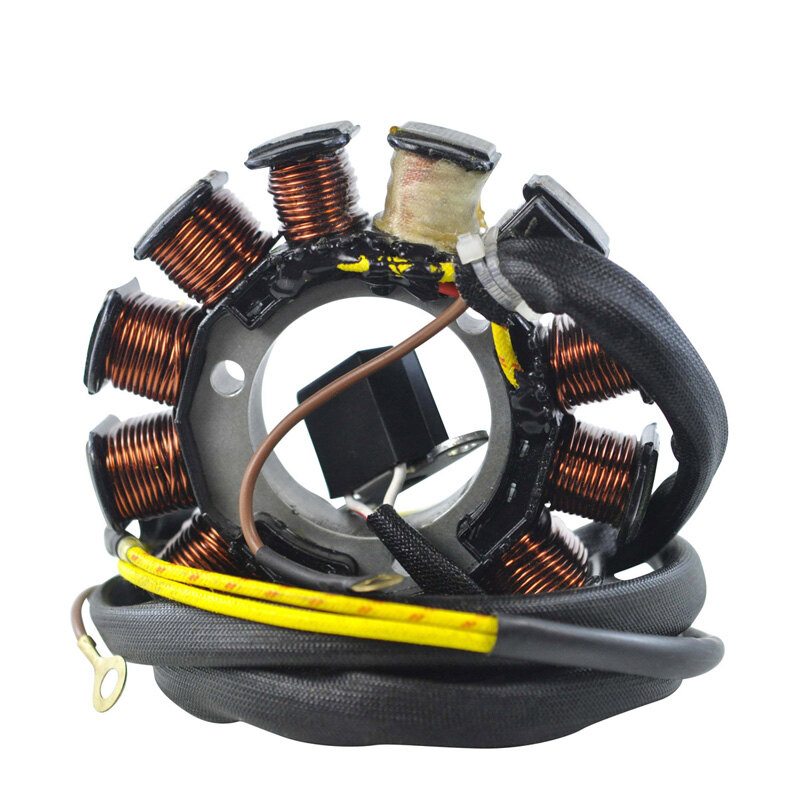

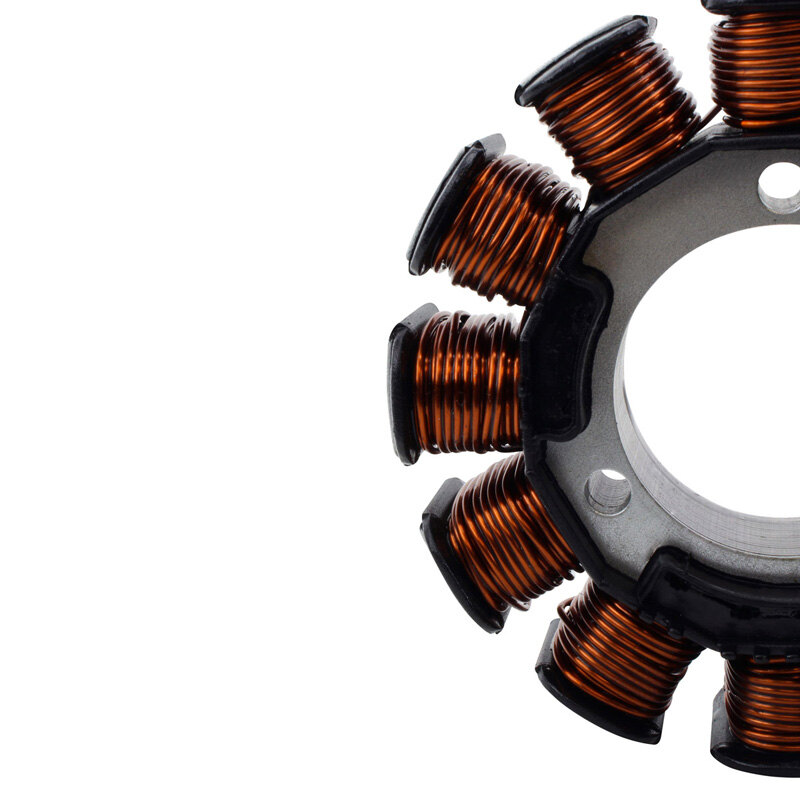

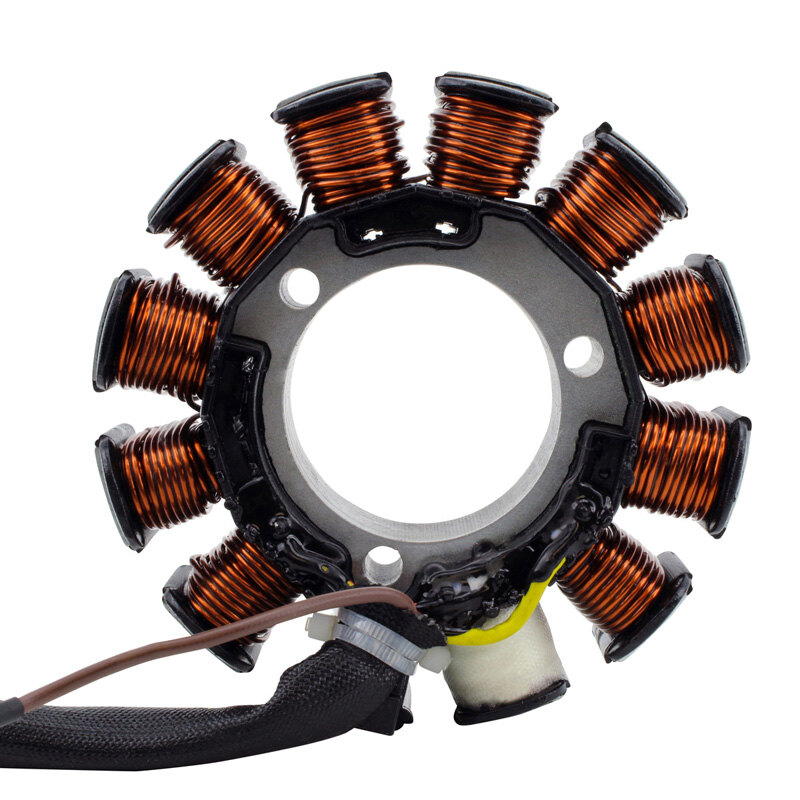

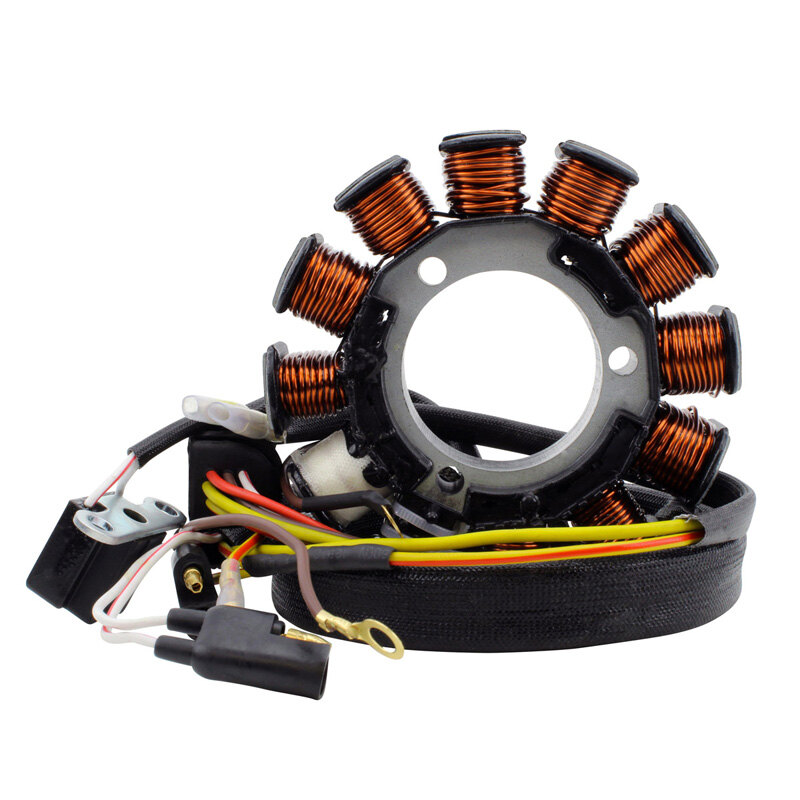

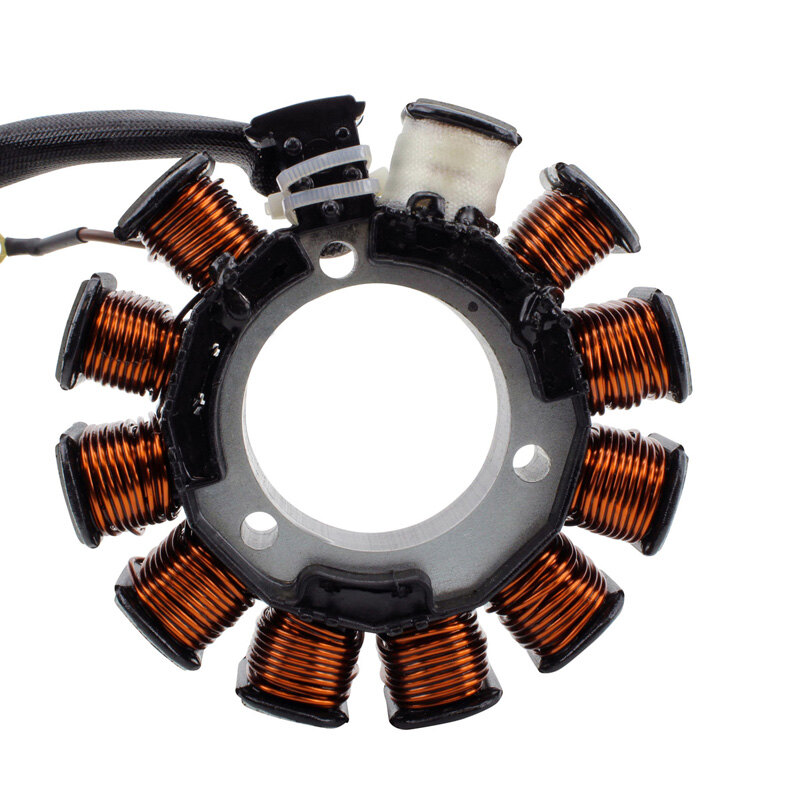

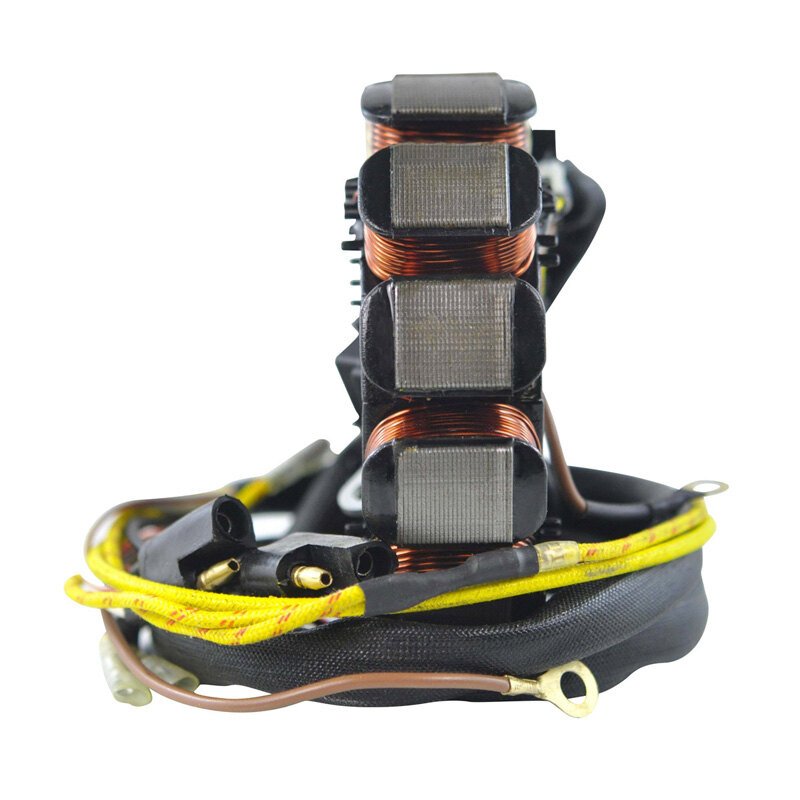

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

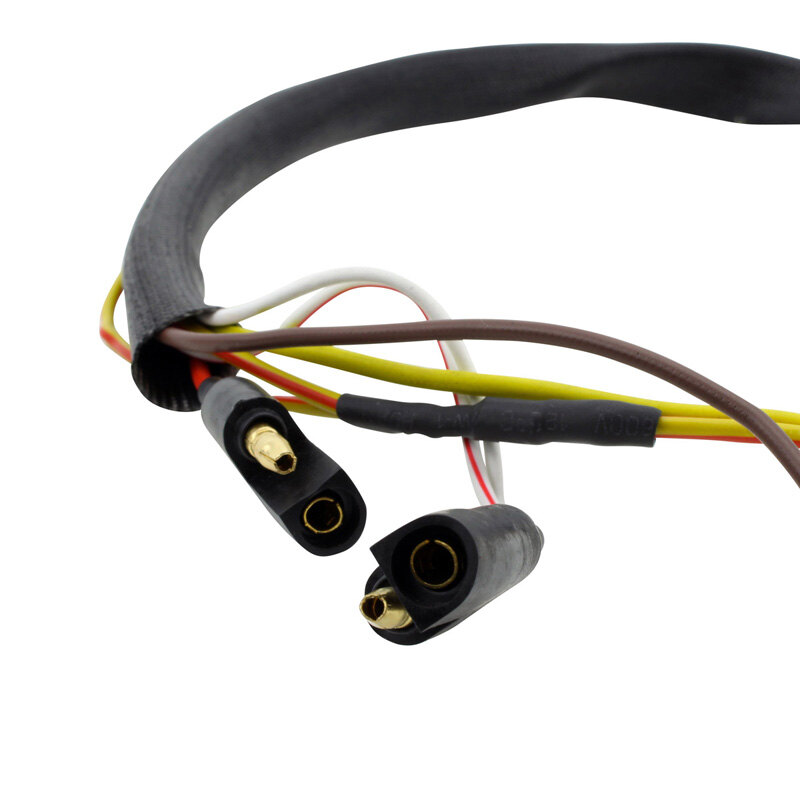

• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 1200 mm
Length of pickup coil\'s wire to grommet : 120 mm

Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 9

Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms \/-20%
Pickup : White/Red to White = 130 ohms \/-20%
Source : Red to Black = 20 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible stators for many Polaris models :

• For the Magnum 500, Big Boss 500, Scrambler 500 and Sportsman 500 2000. This stator fits S# 00-01961 and after.
• There are two possible stators for many 2002-2003 Polaris m
