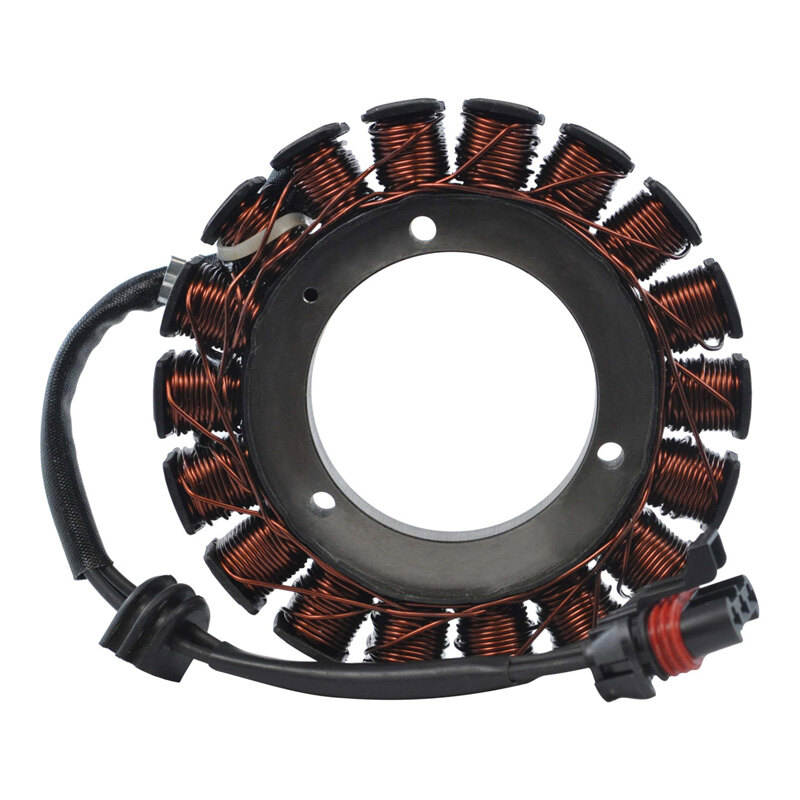

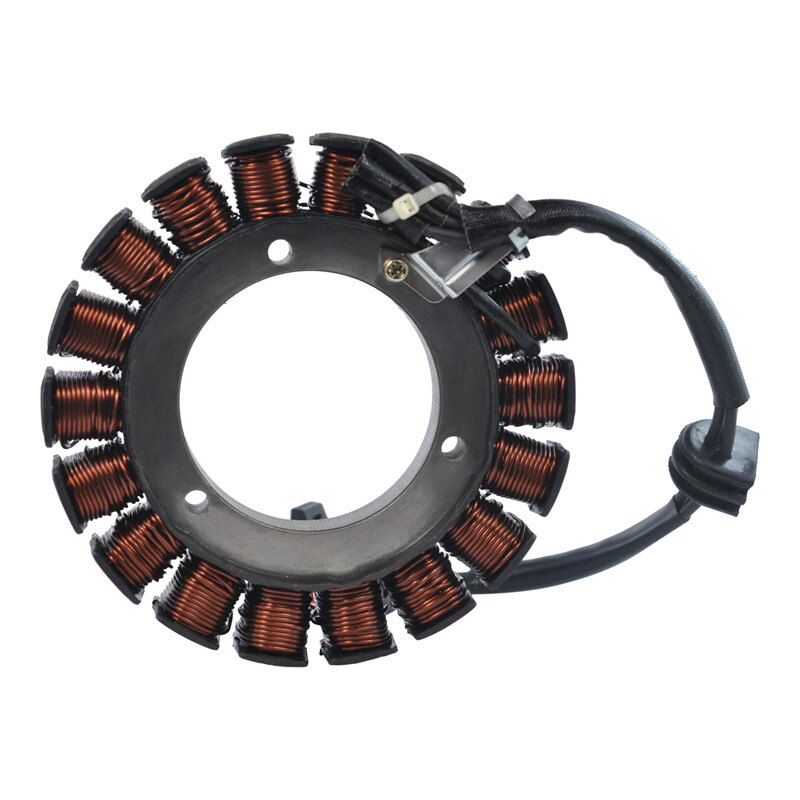

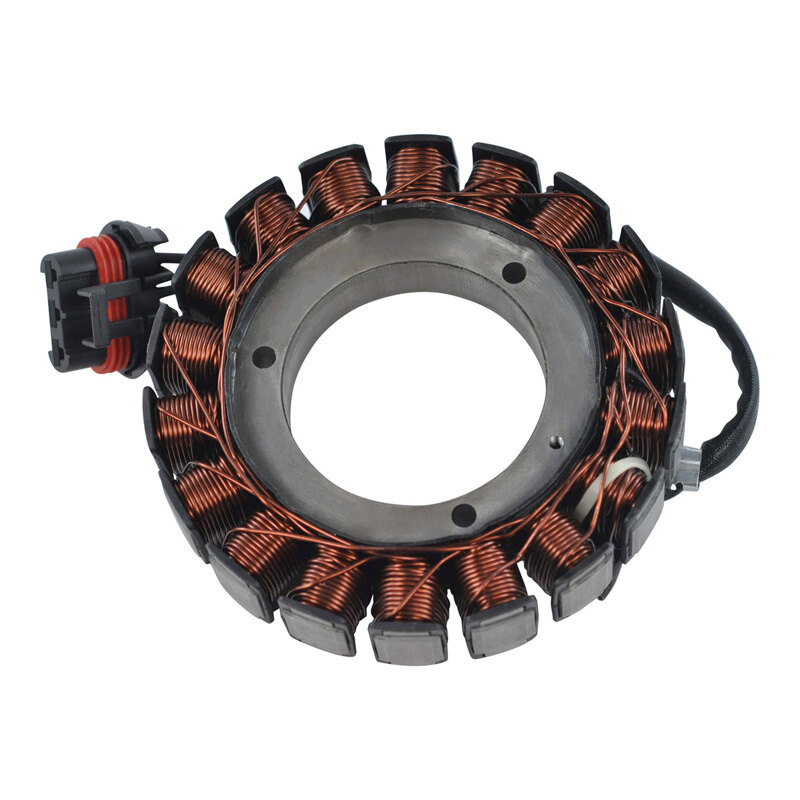

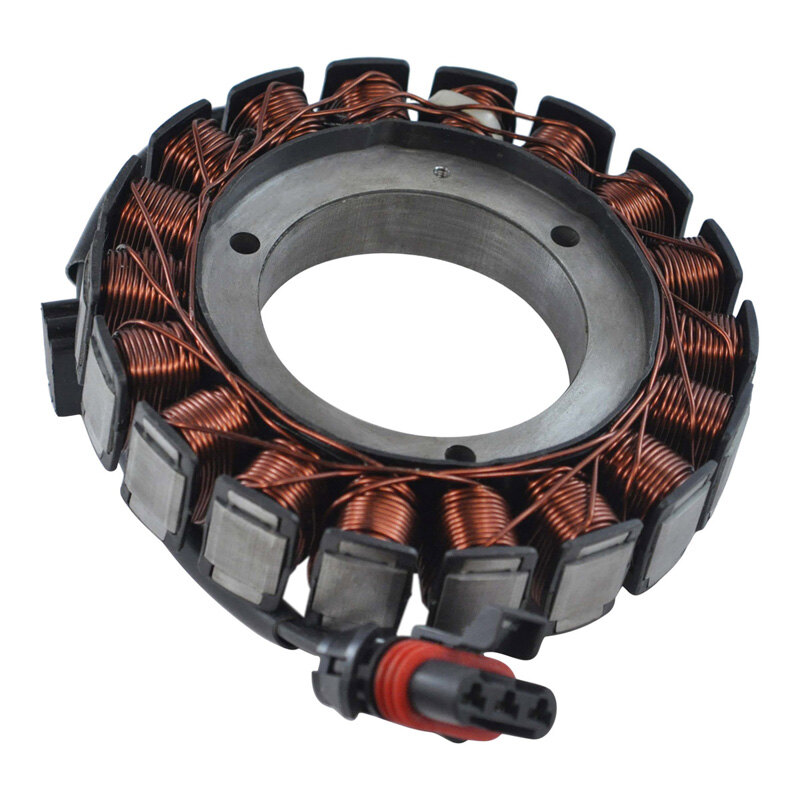

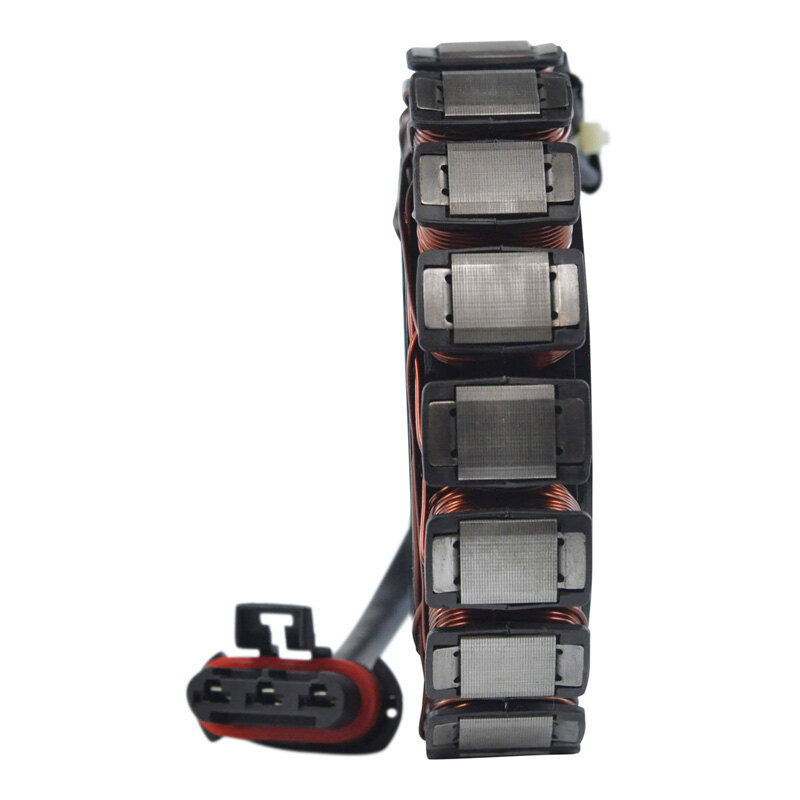

STATOR POL SCRAMBLER|SPORTSMAN 850-1000 09-15

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.

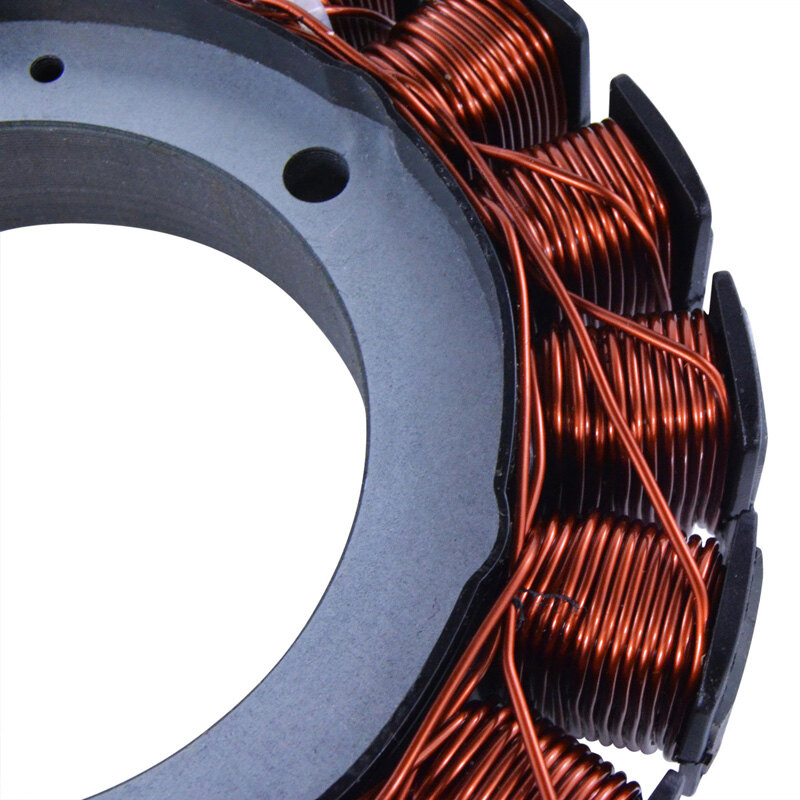

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

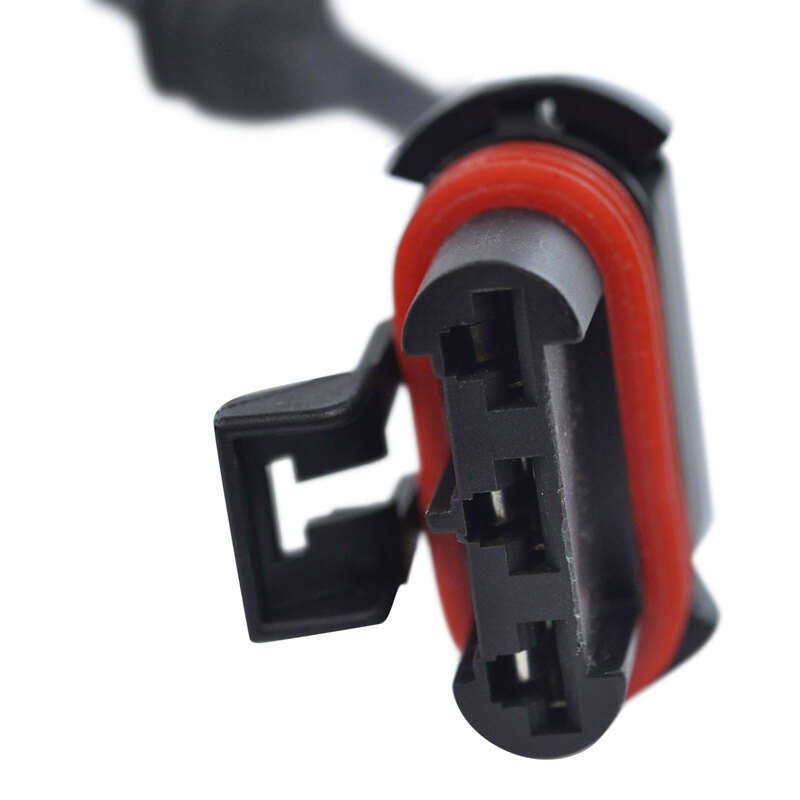

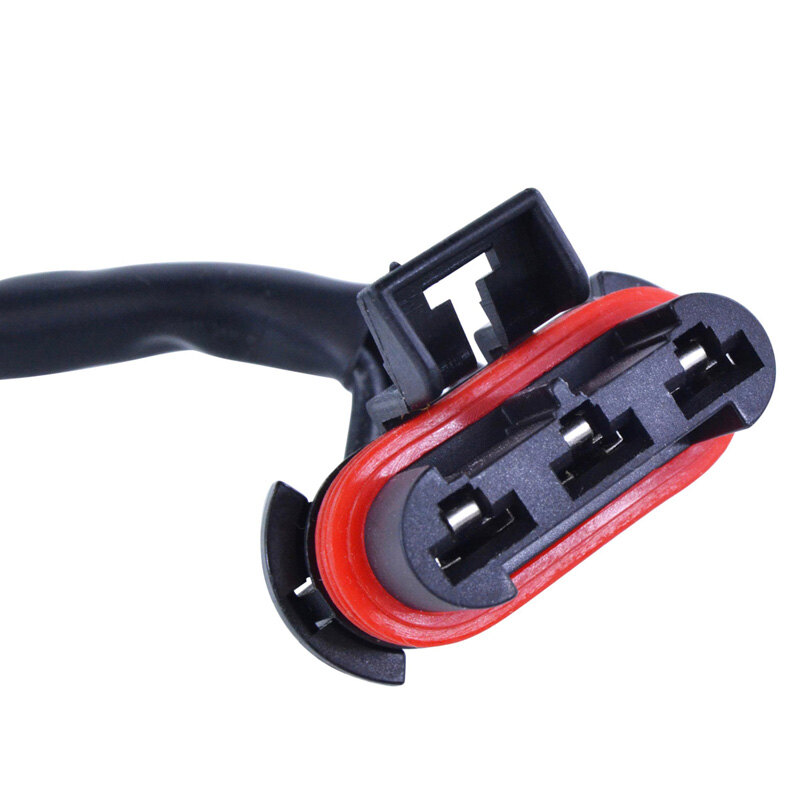

• Connector included

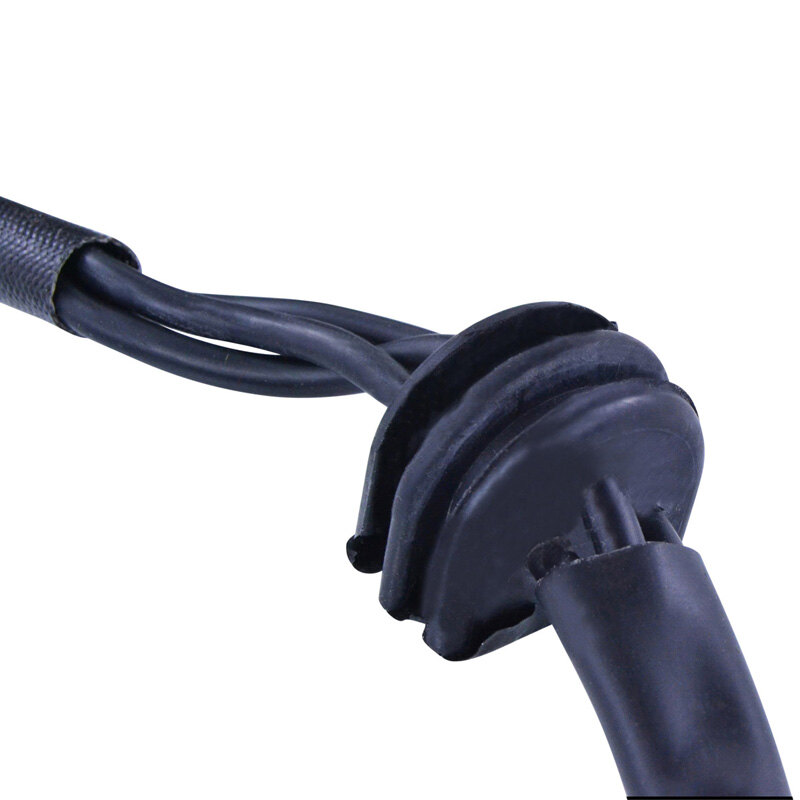

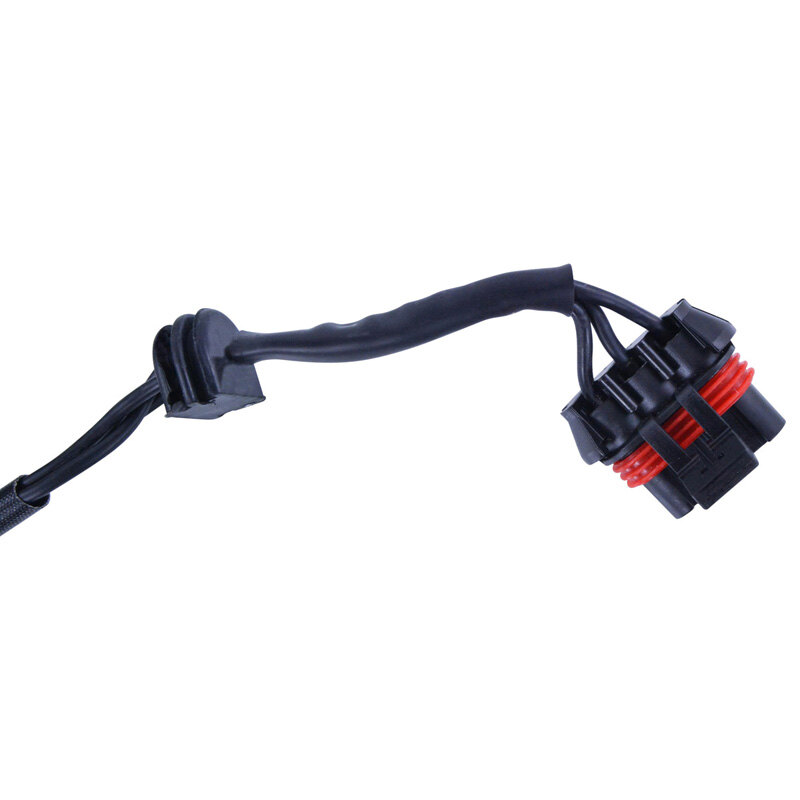

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 69mm
Exterior diameter : 144mm
Thickness : 20mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 100mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.2ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
