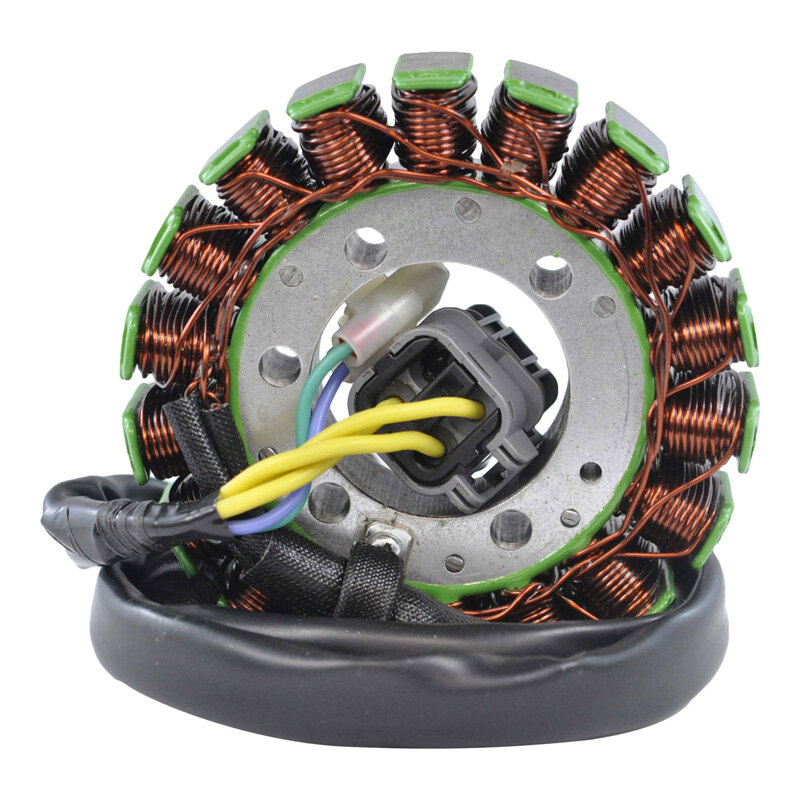

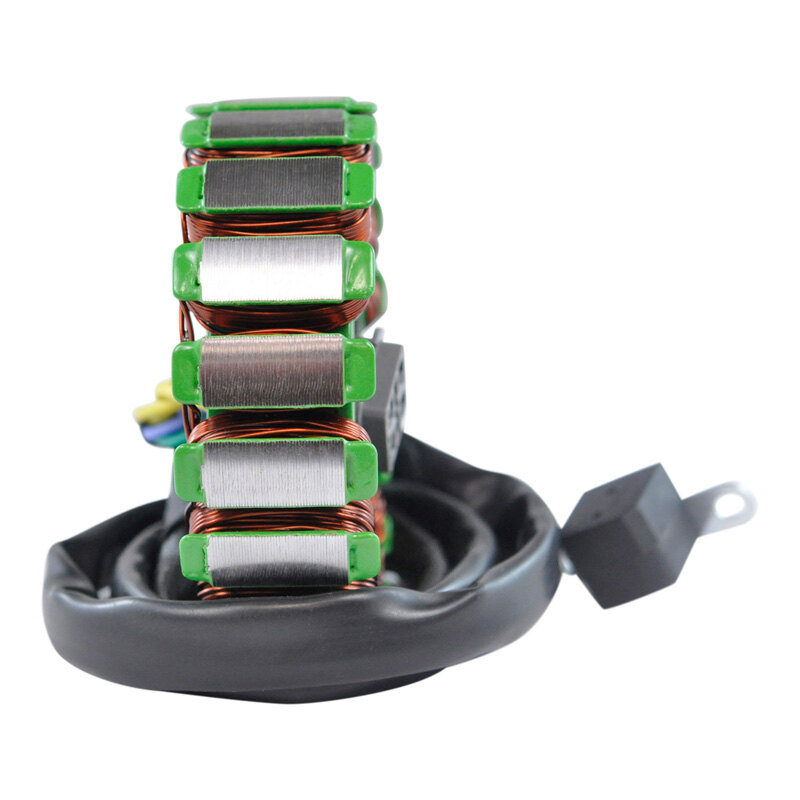

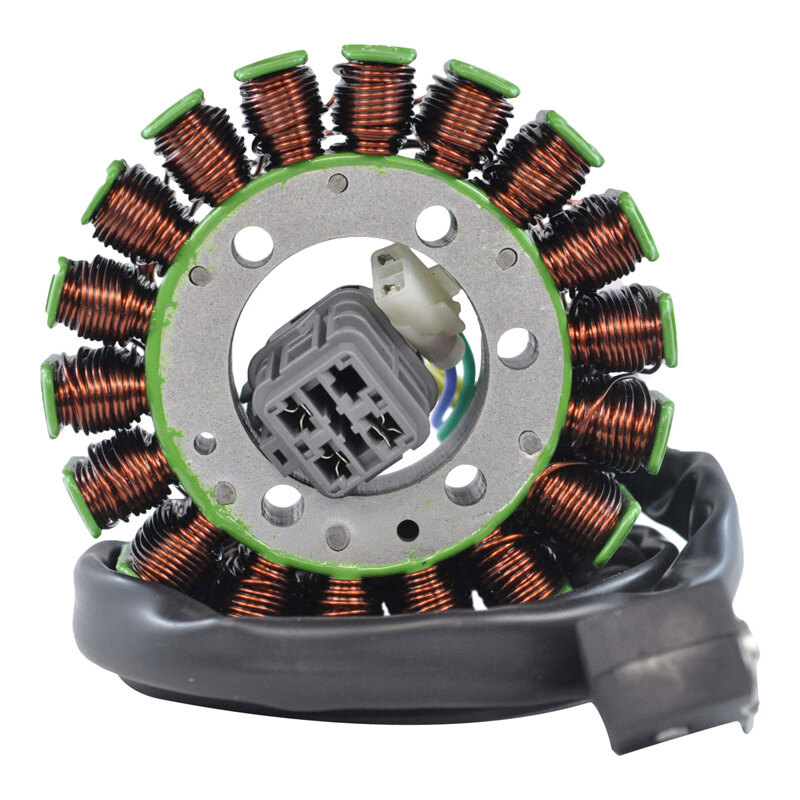

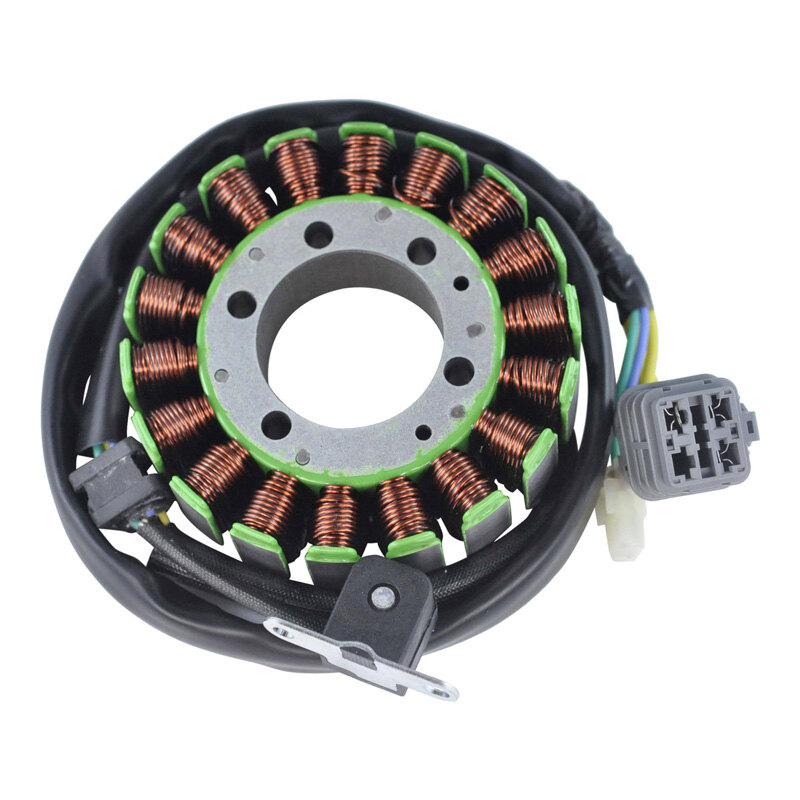

STATOR CAN-AM DS 250 08-14

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

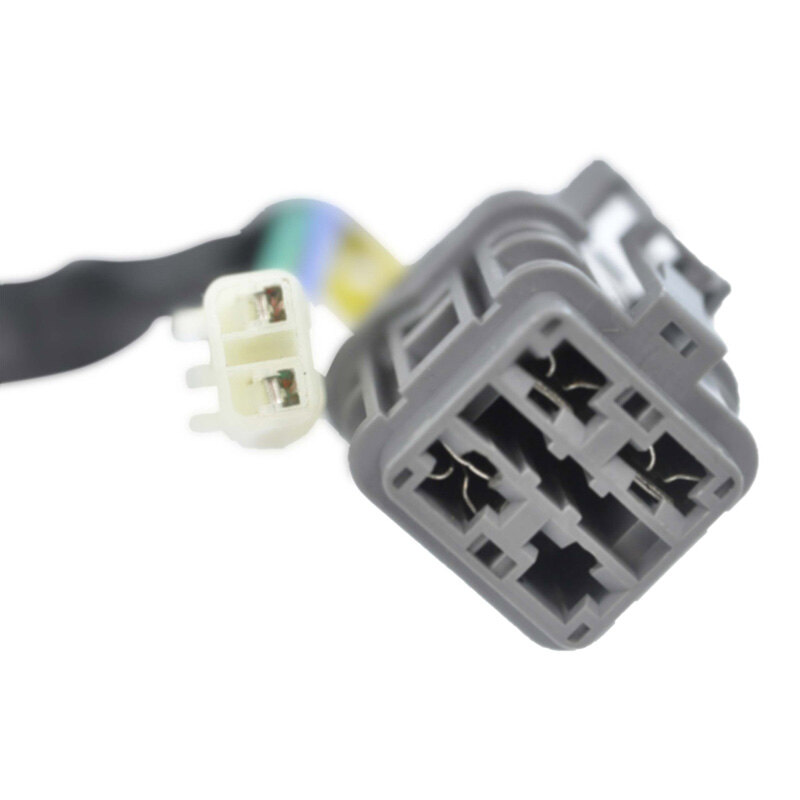

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 41 mm
Exterior diameter: 103 mm
Thickness: 25 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 700 mm
Length of pickup coil\'s wire to grommet: 40 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: Yellow between each Yellow = 0.2 ohms \/-20%
Pickup: Green to Blue = 500 ohms =\/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
