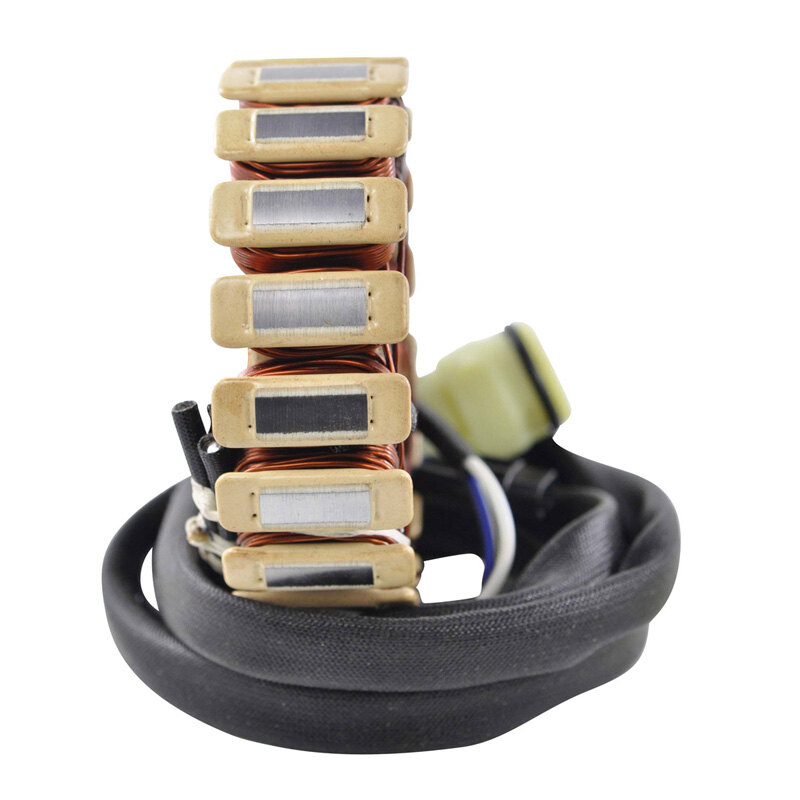

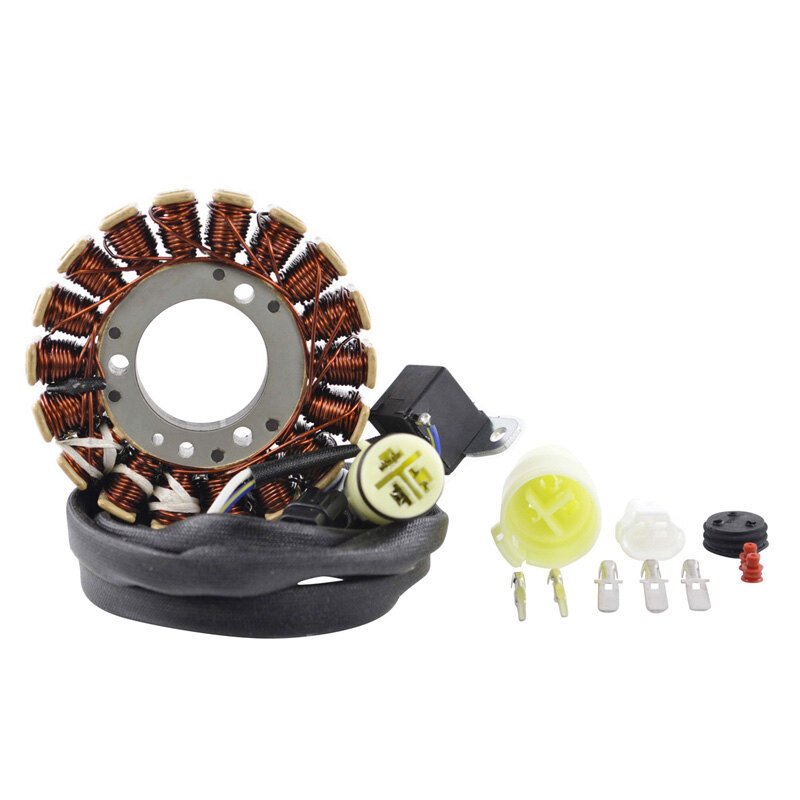

STATOR KAW KFX450R 08-14

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

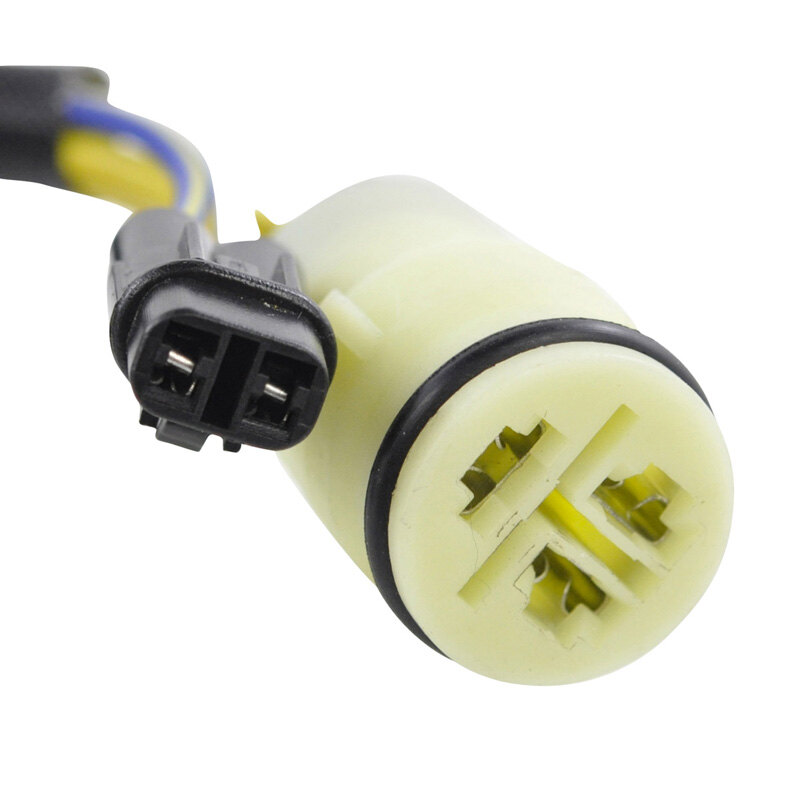

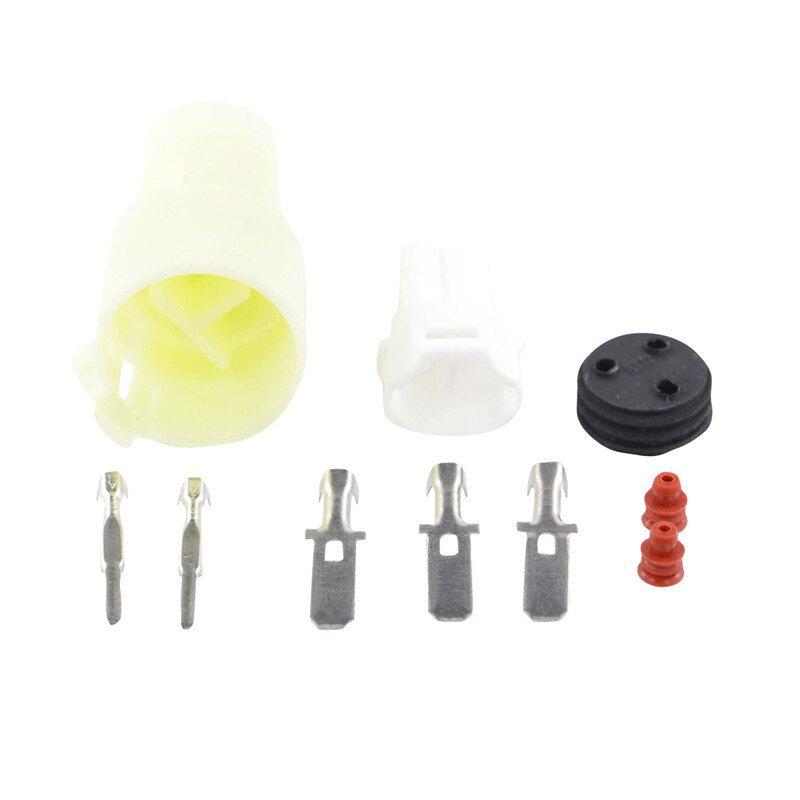

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92 mm
Thickness : 18 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil\'s wire to grommet : 40 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms \/-20%
Pickup : Blue/Yellow to White = 190 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
