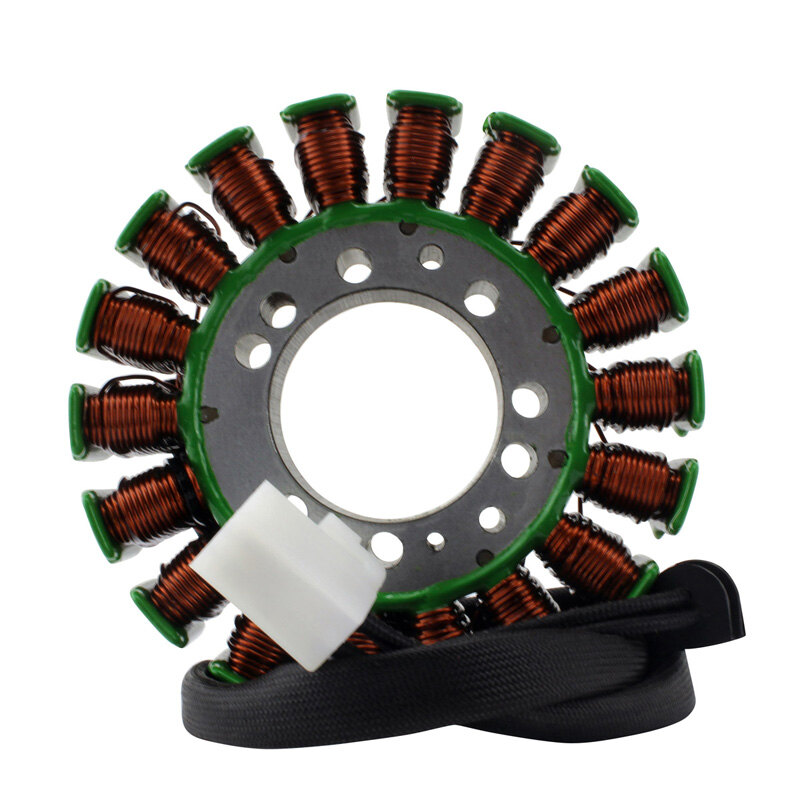

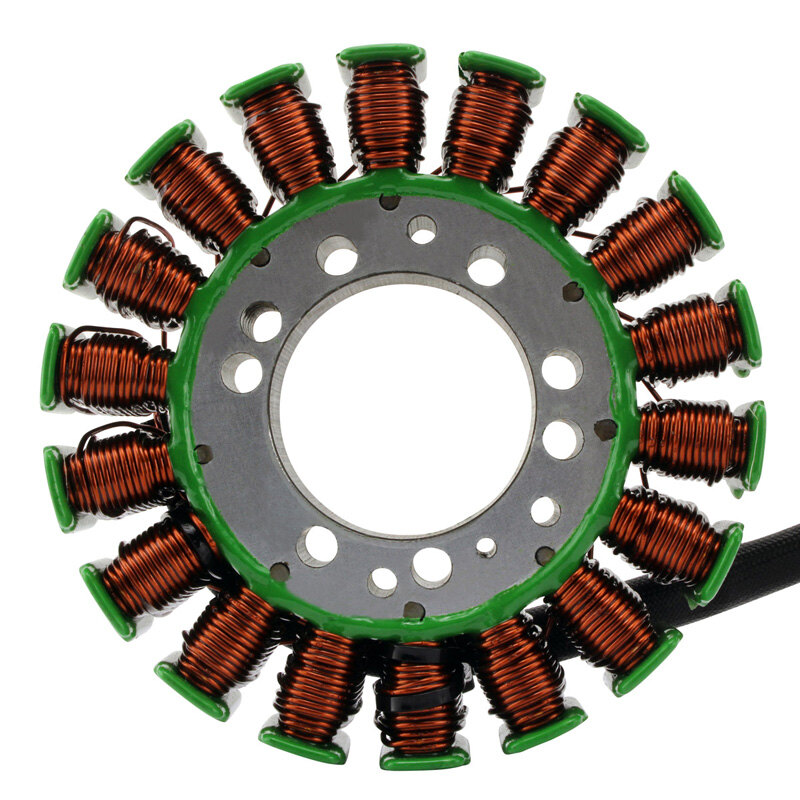

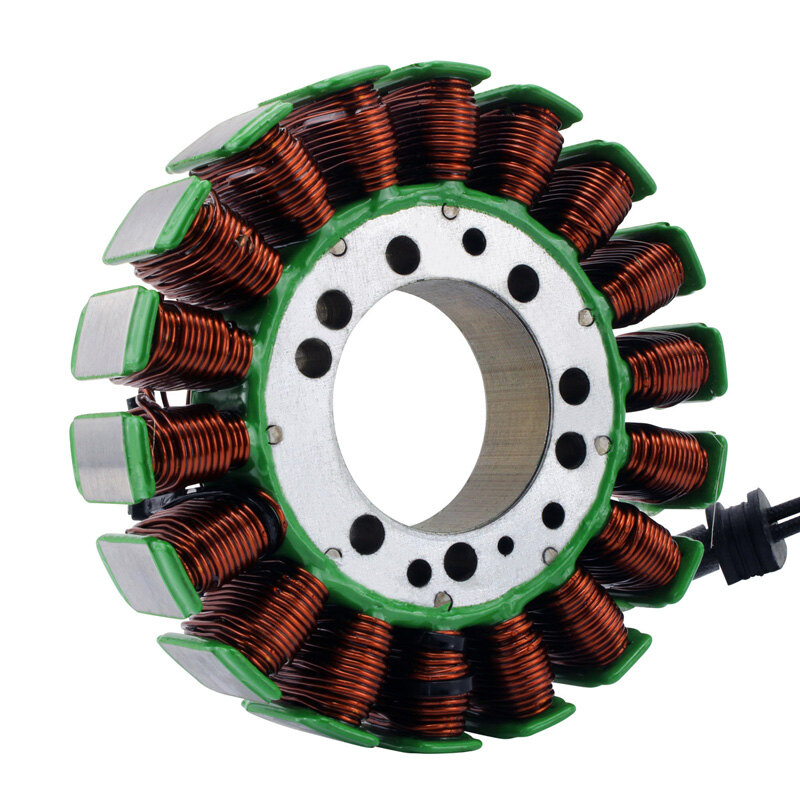

STATOR TRI SPEED TRIPLE|SPRINT|TIGER 1050 94-20

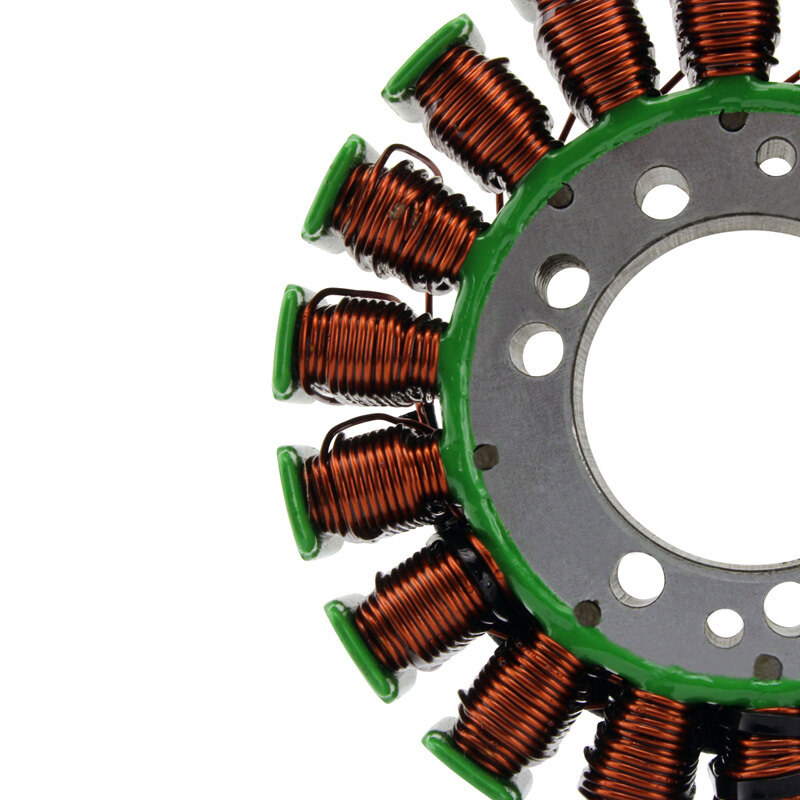

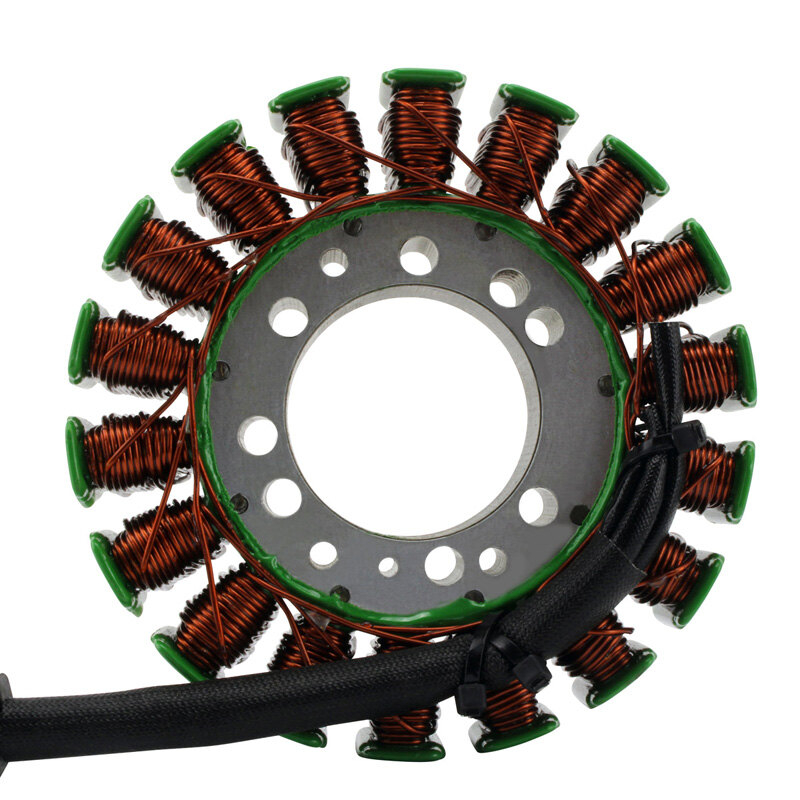

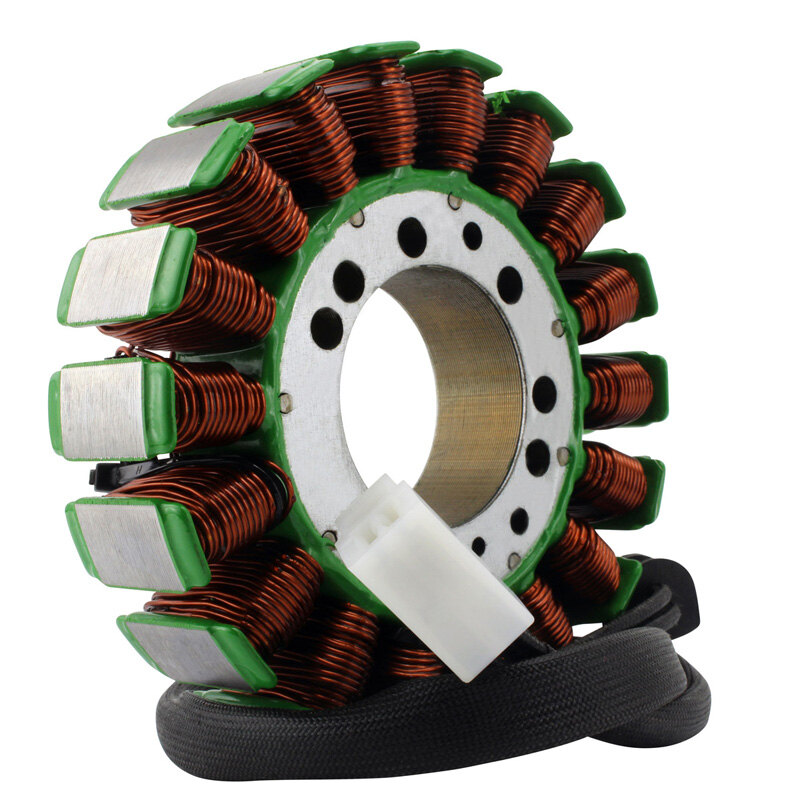

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

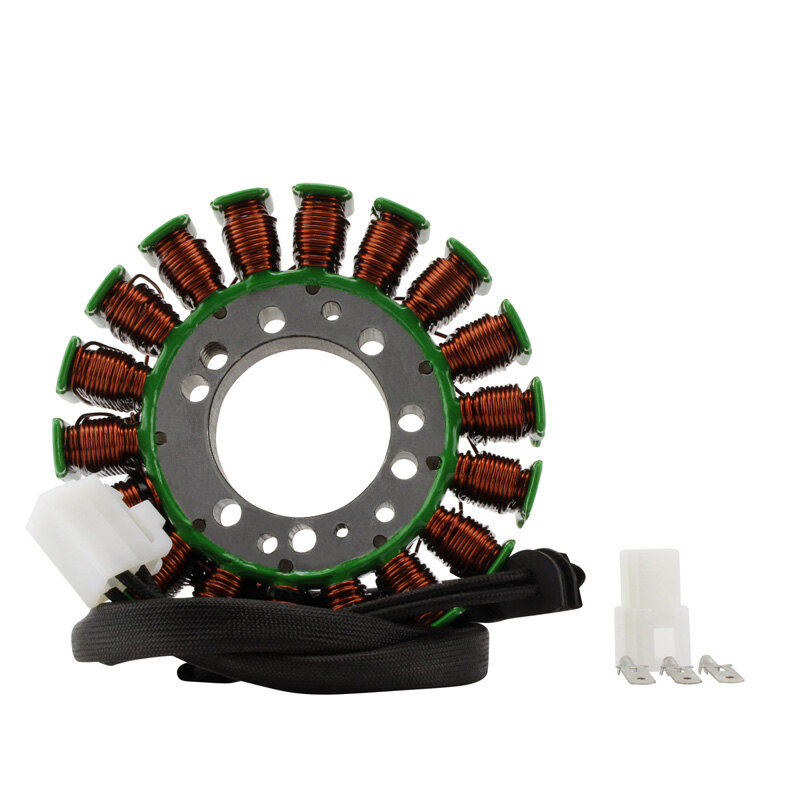

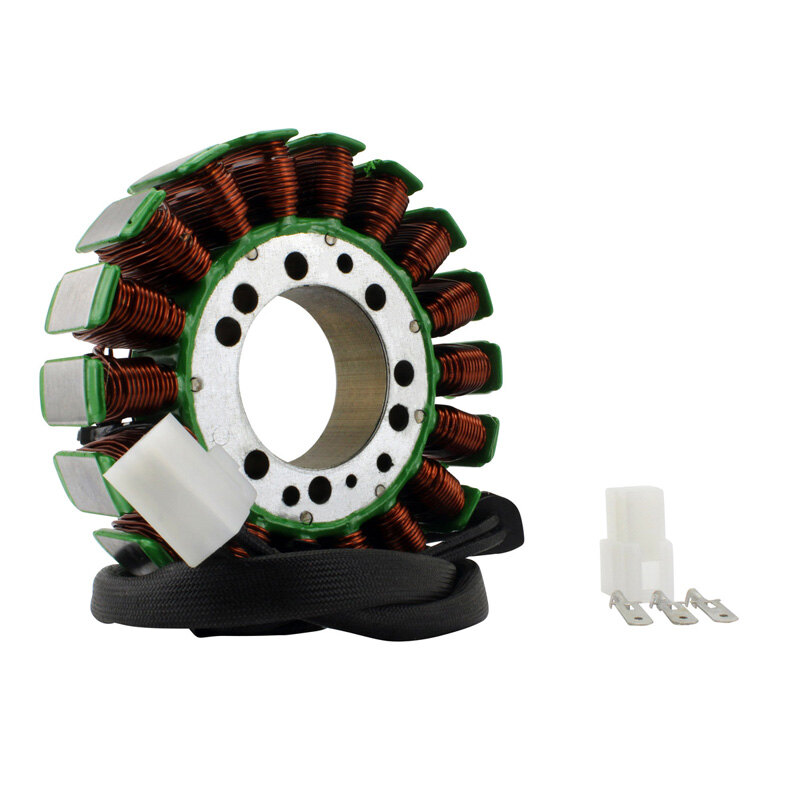

• Connector included

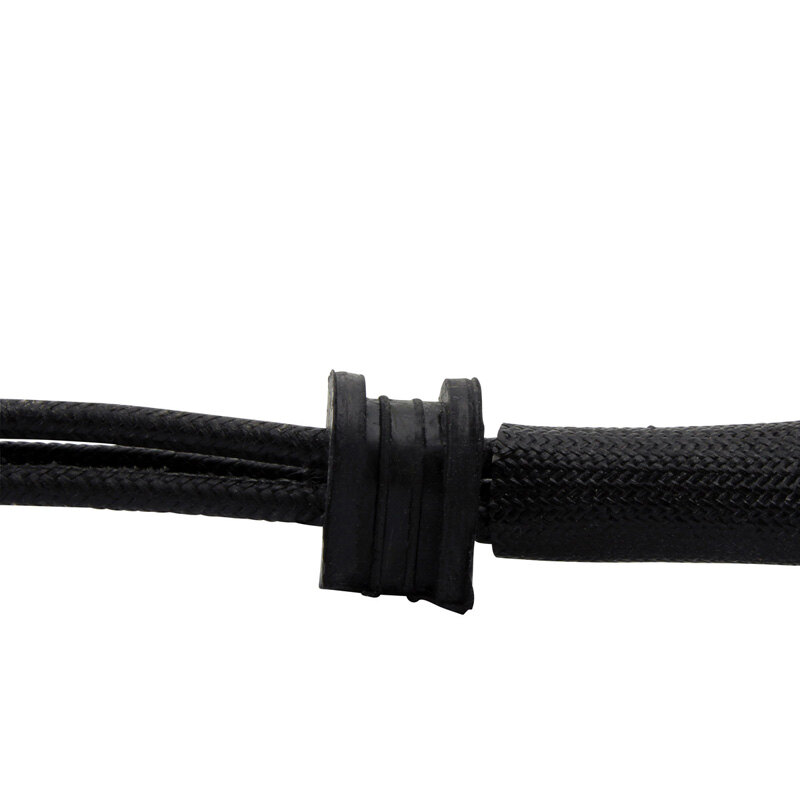

• Rubber grommet included
• All products shipped are tested

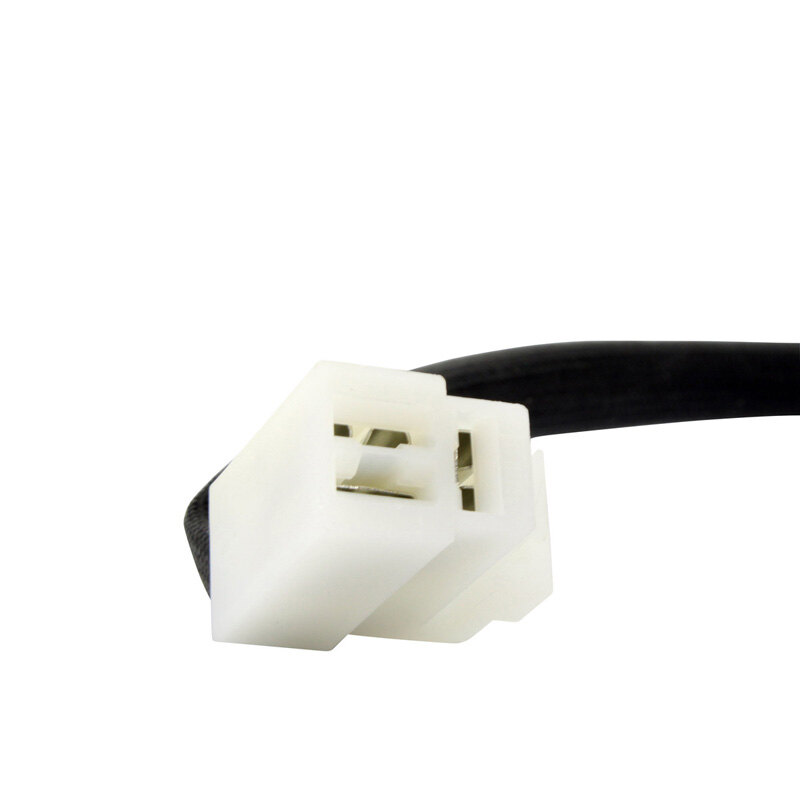

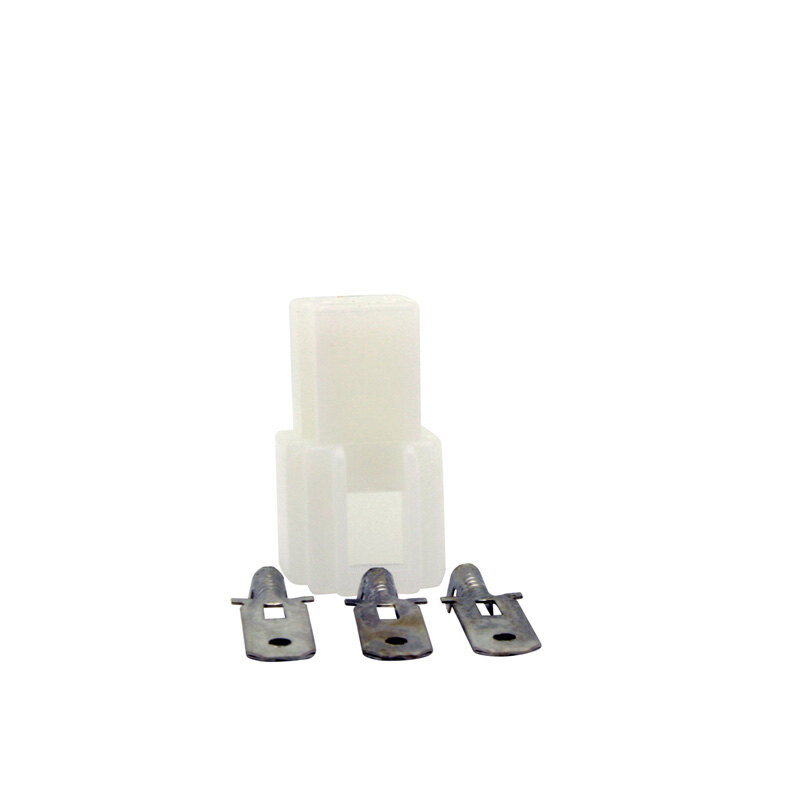

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm

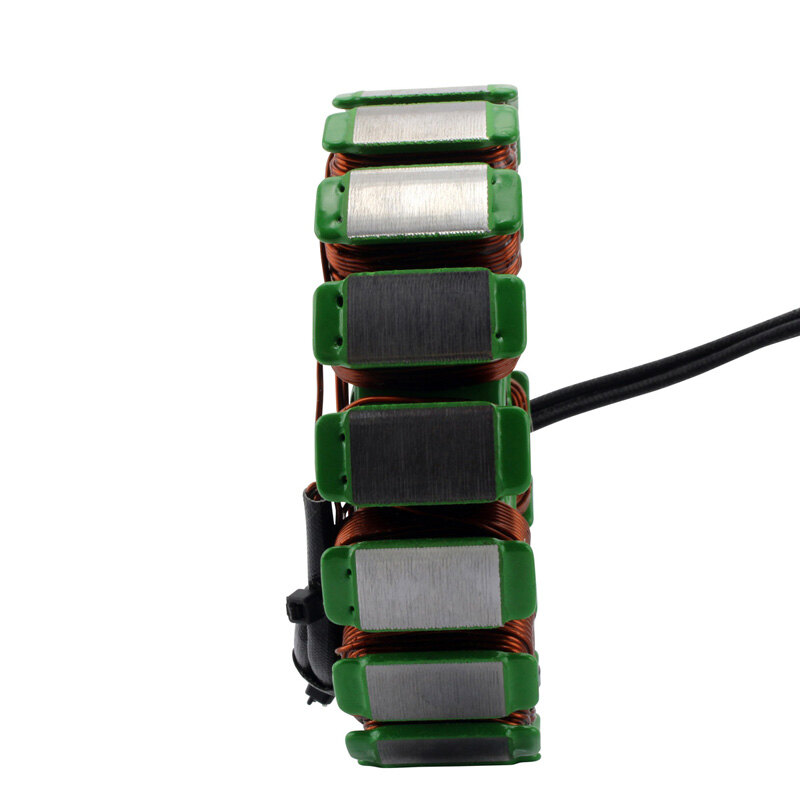

Width : 22 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of terminals : 3
Harness length Stator to grommet : 110 mm
Harness length grommet to plug : 600 mm

Wire to wire resistance :
Alternator : Black between each Black = 0.5 ohms \/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note: that some Triumph models have multiple stator for some models. Please refer to the note below to make sure you have the right part. Speed triple R from 2011 to 2017 : This part will only fit on Speed triple R with a vin lower than 735336. For
