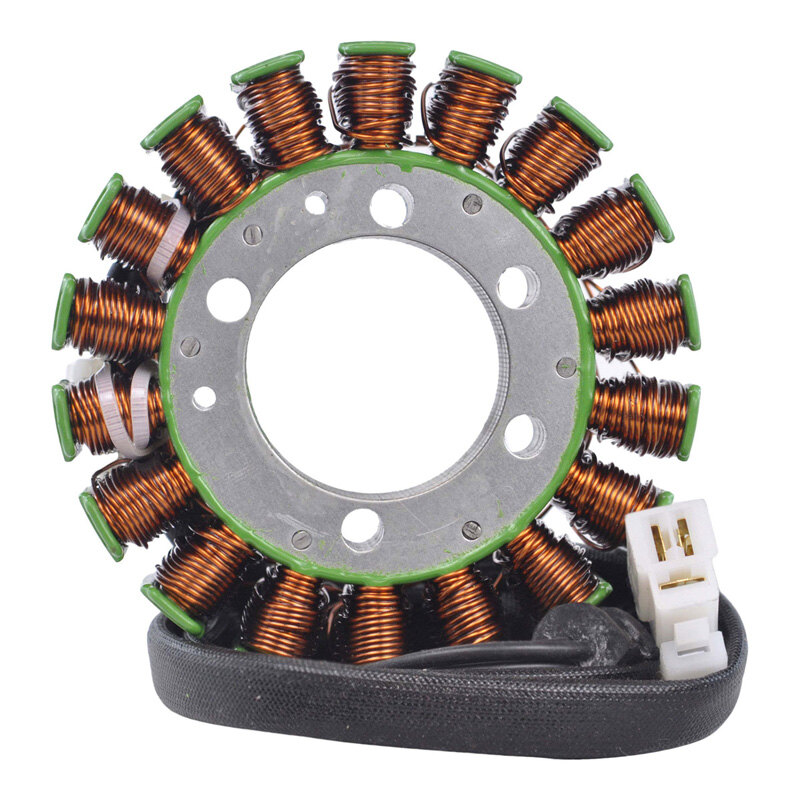

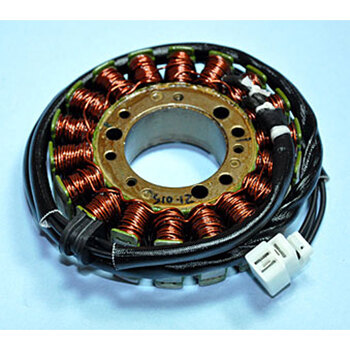

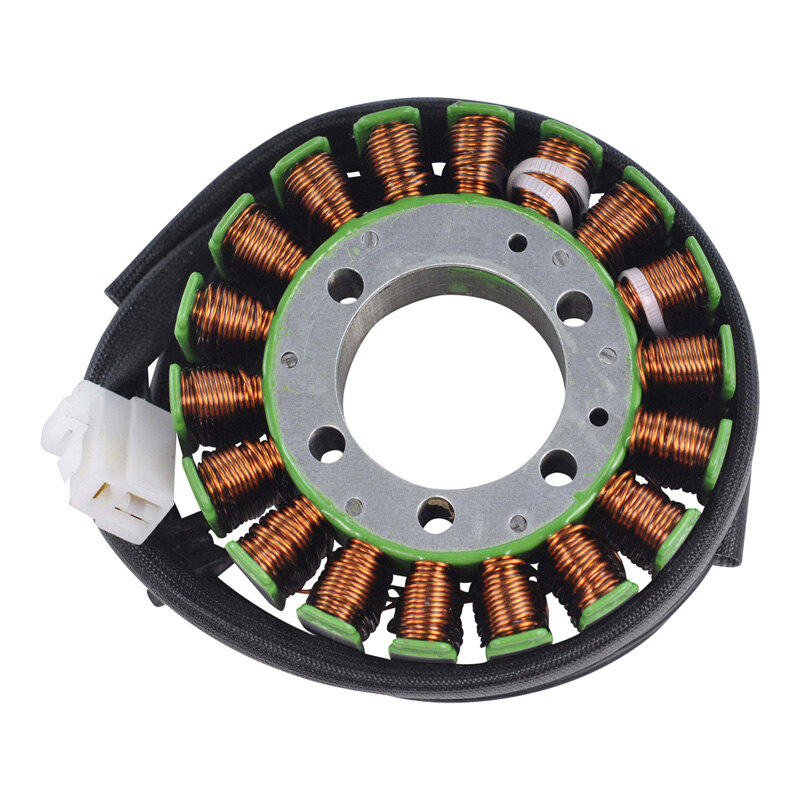

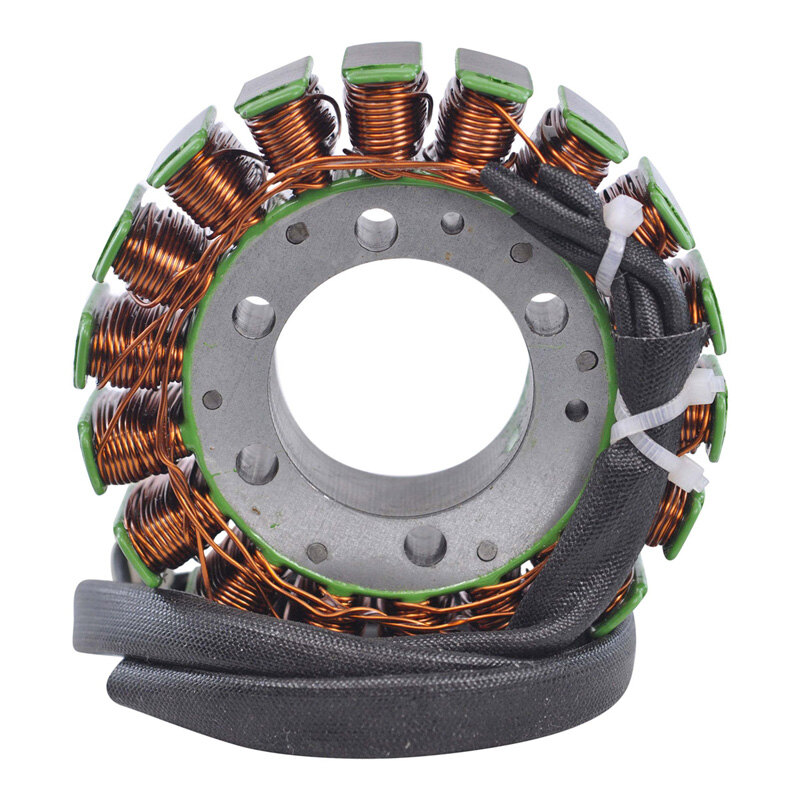

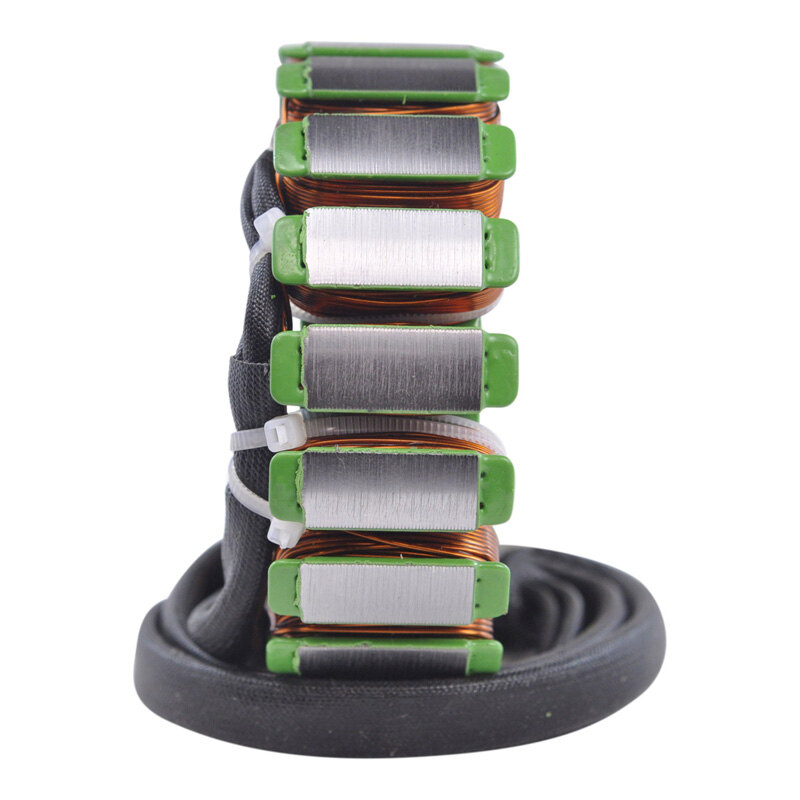

STATOR TRI SPEED TRIPLE 1050 05-10

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

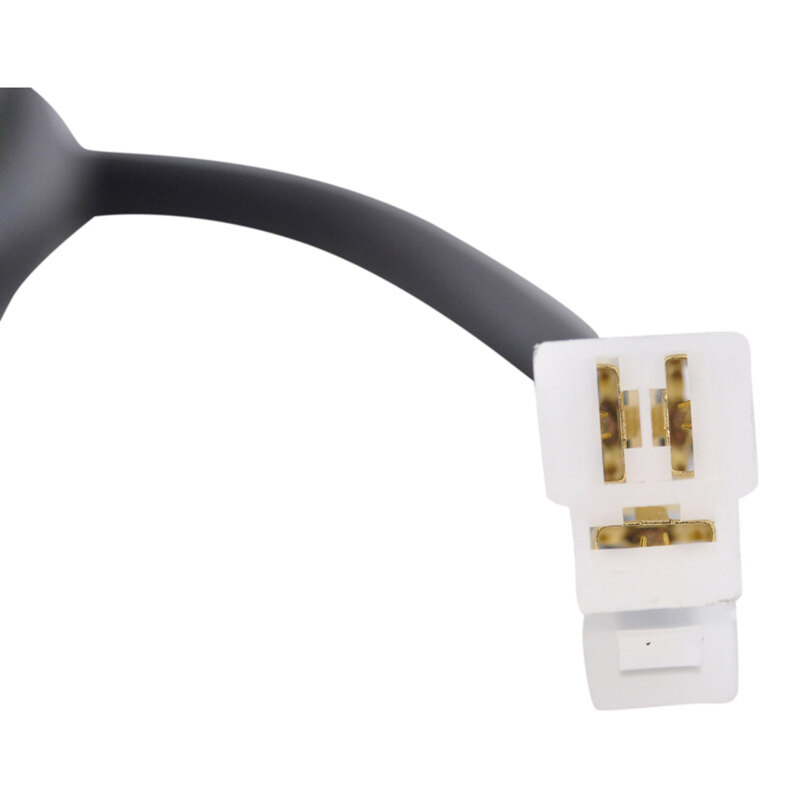

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 26 mm
Harness length to grommet: 113 mm
Harness length grommet to plug: 820 mm

Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Between each Black = 0.4 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Speed Triple 1994 to 2018 This part will only fit Speed Triple with a vin between 141872 and 210444 and has a engine number higher than 183487 or a vin between 210445 and 461331 and an engine number lower than 356142. If your vehicle has a vin between 141
