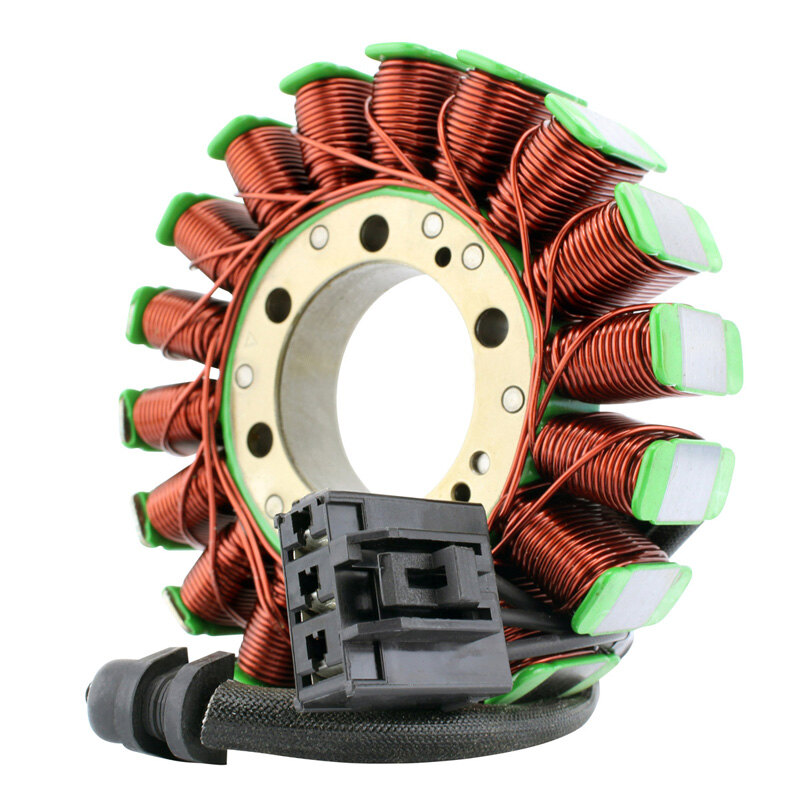

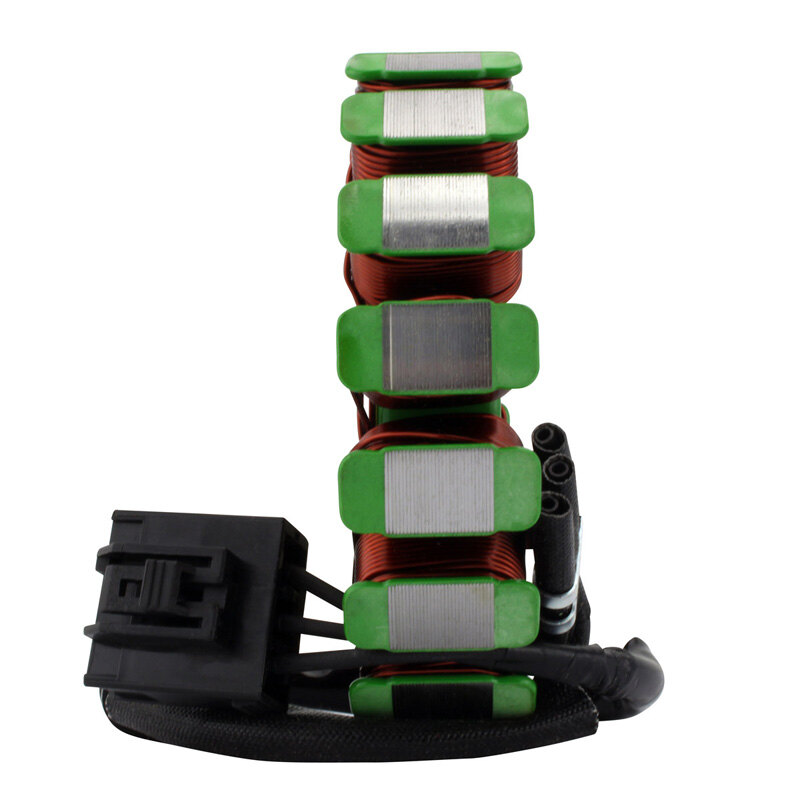

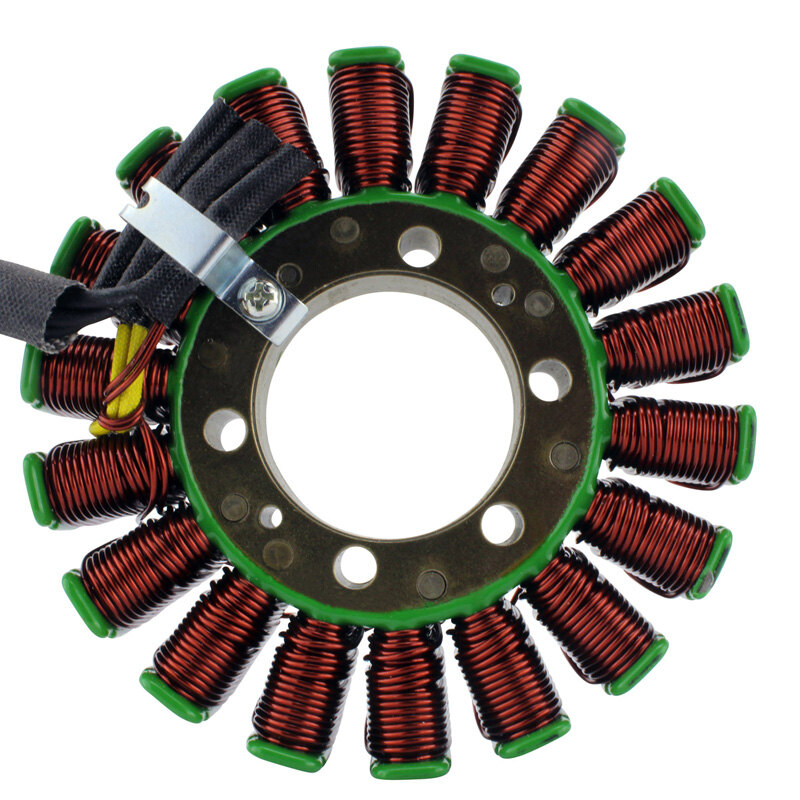

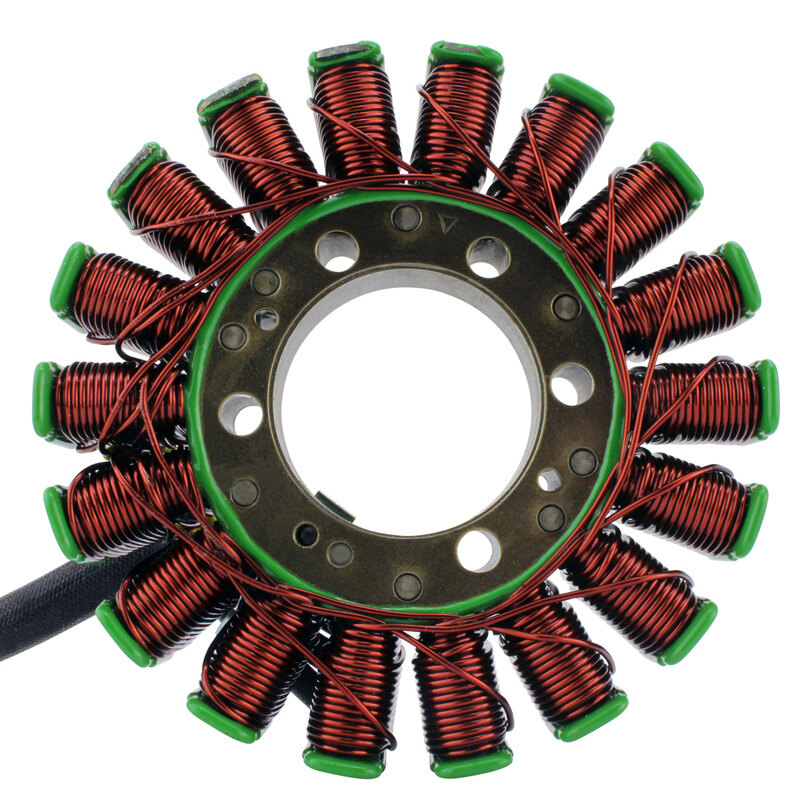

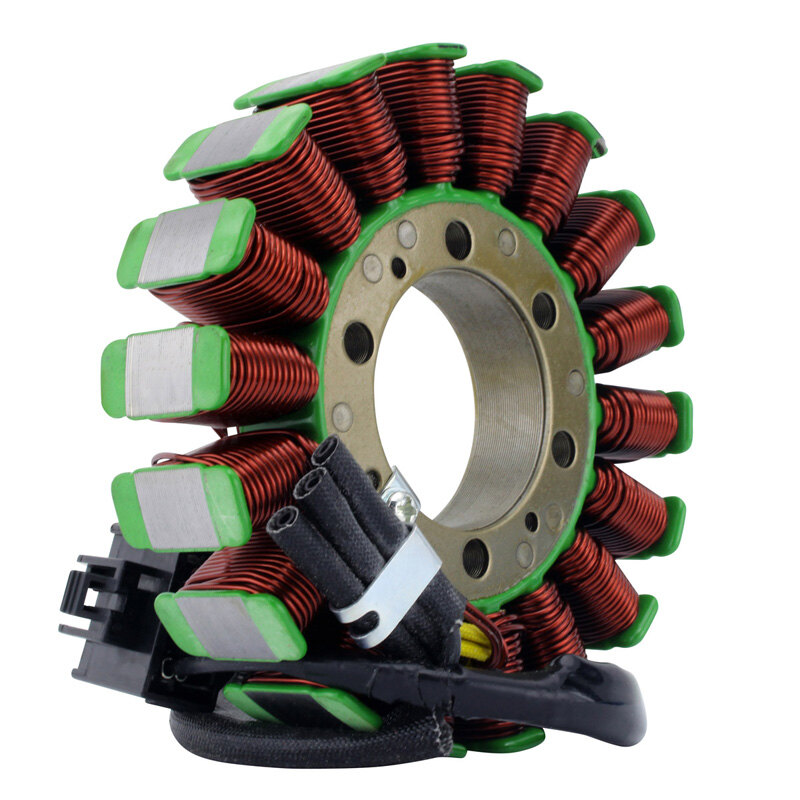

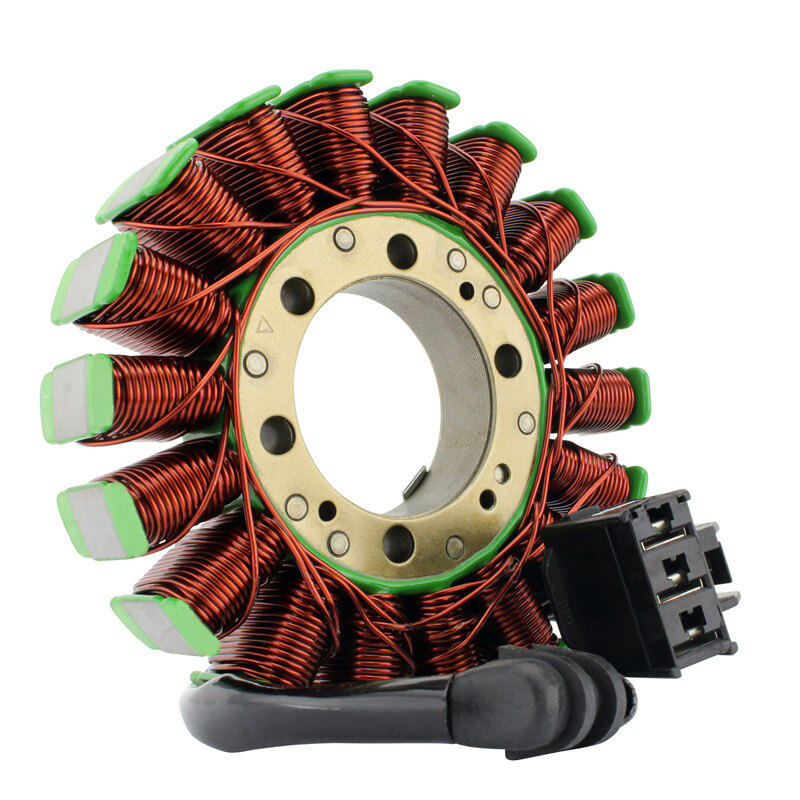

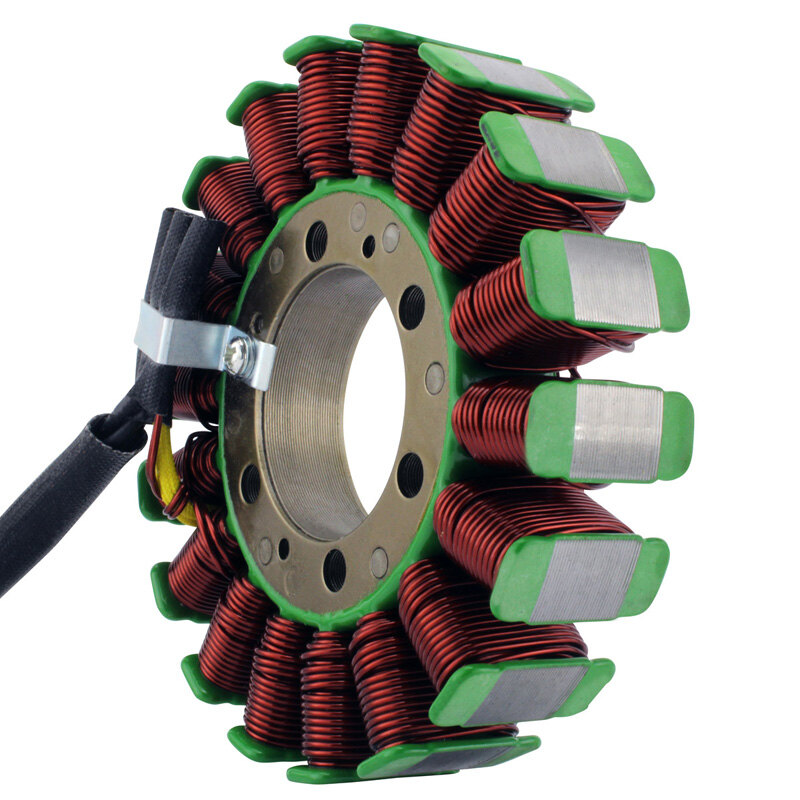

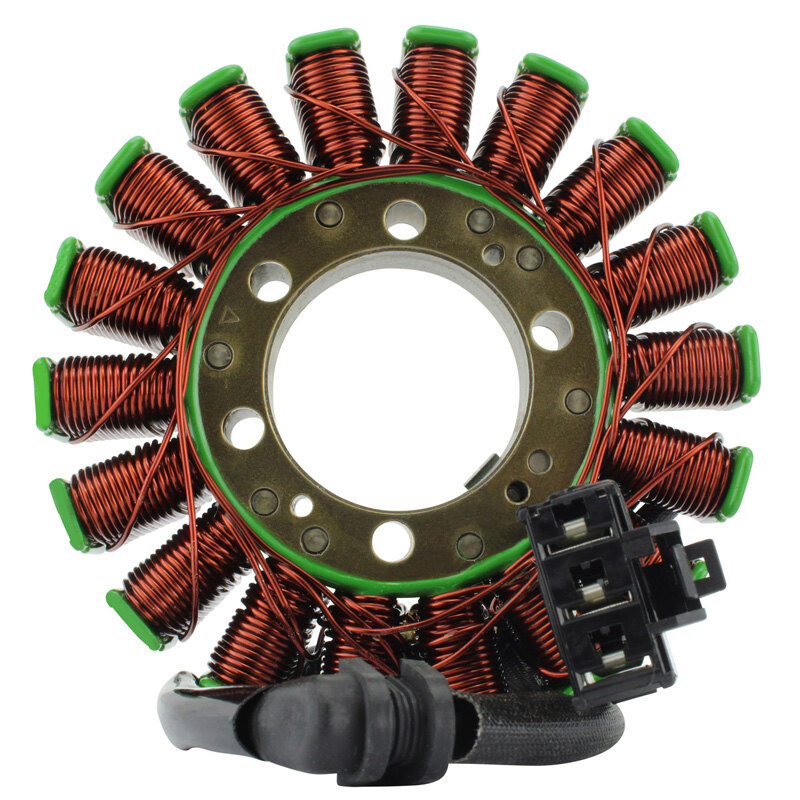

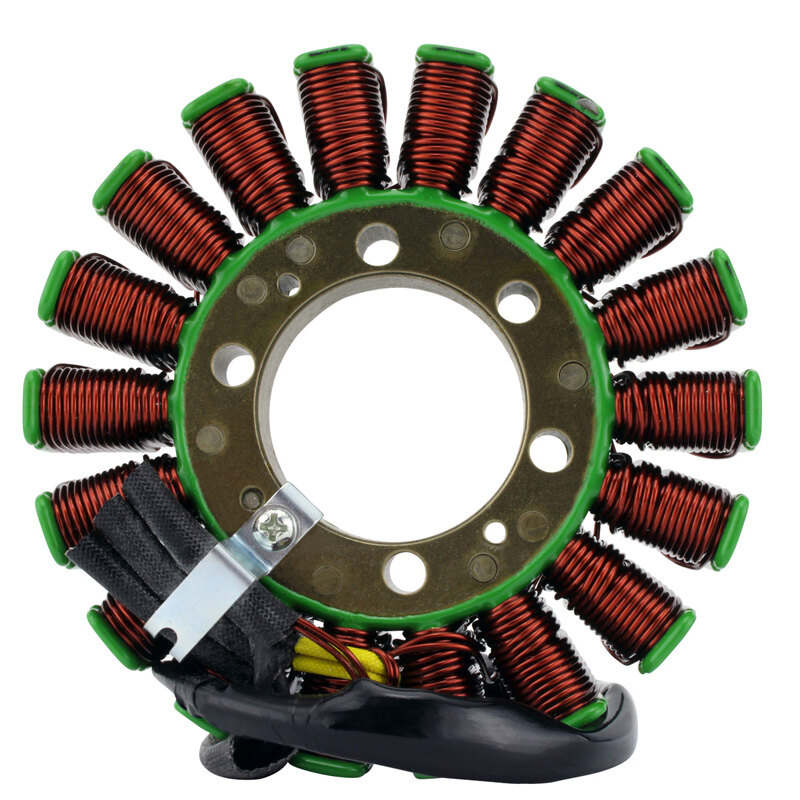

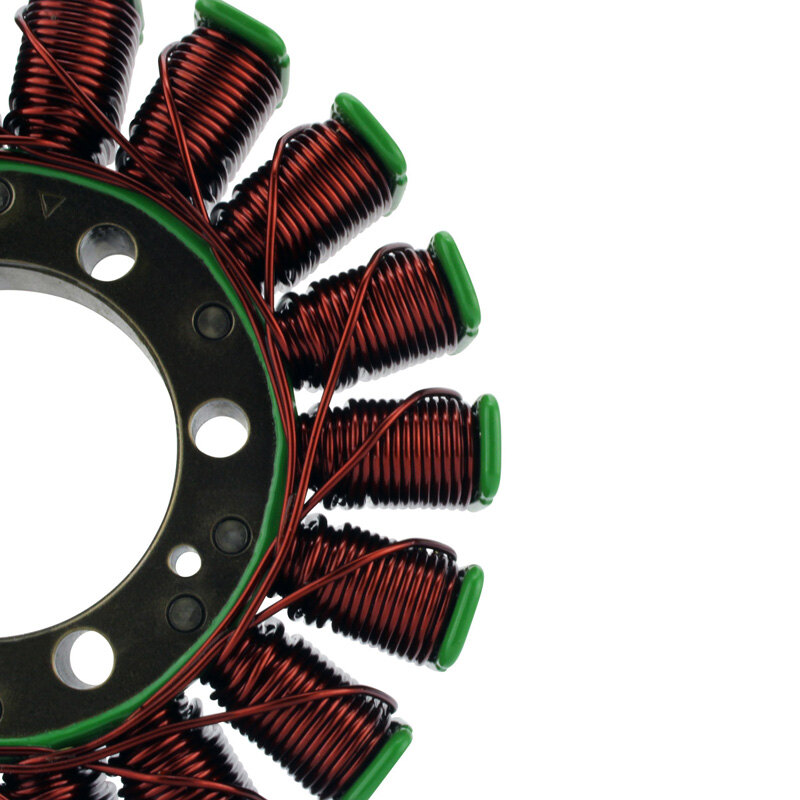

STATOR TRI STREET TRIPLE 675|R 07-18

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included

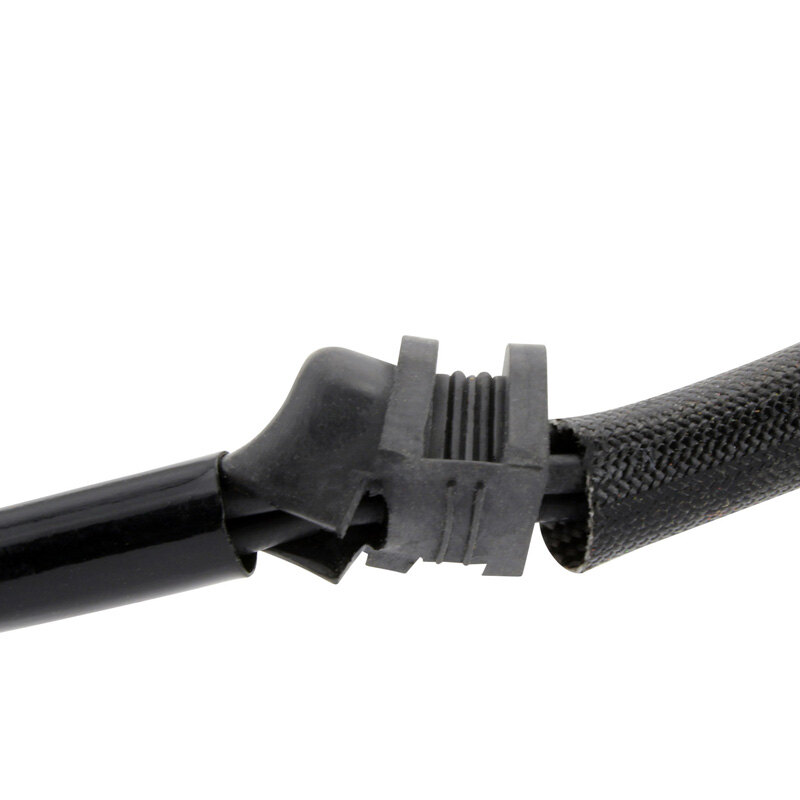

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42mm
Exterior diameter: 115mm
Thickness: 18mm
Length of wires stator to grommet: 100mm
Length of wires grommet to plug: 200mm

Other specifications:
Number of wires: 3
Number of plugs: 1

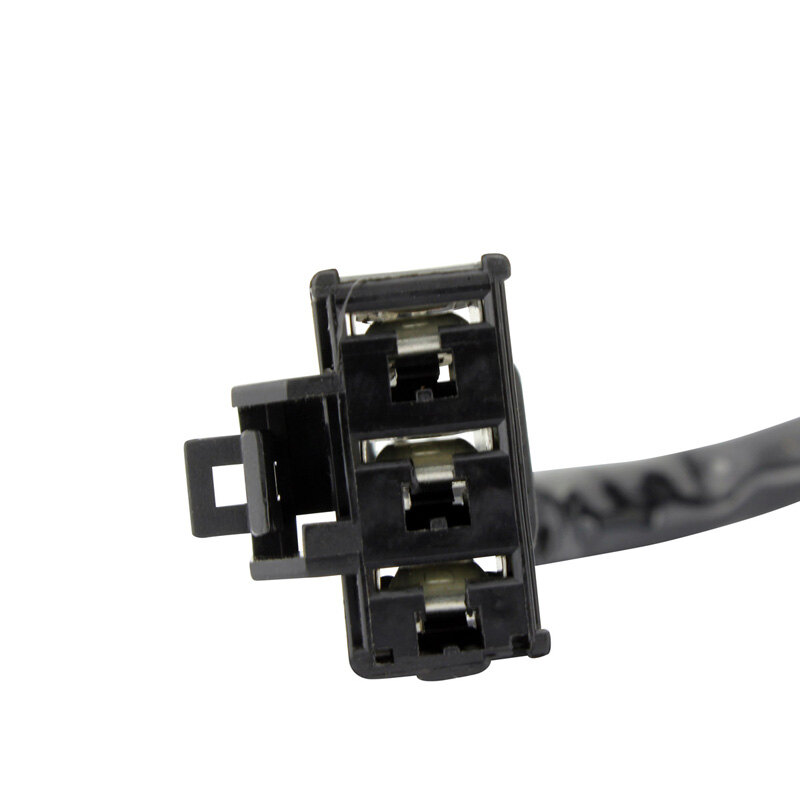

Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms \-20%
Alternator: to ground = O.L

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Please note That there are multiple possible stators for the 2007 to 2018 Street Triple. This stator will only fits on :

Street Triple Standard This part will only fit Street Triple Standard with a VIN HIGHE
