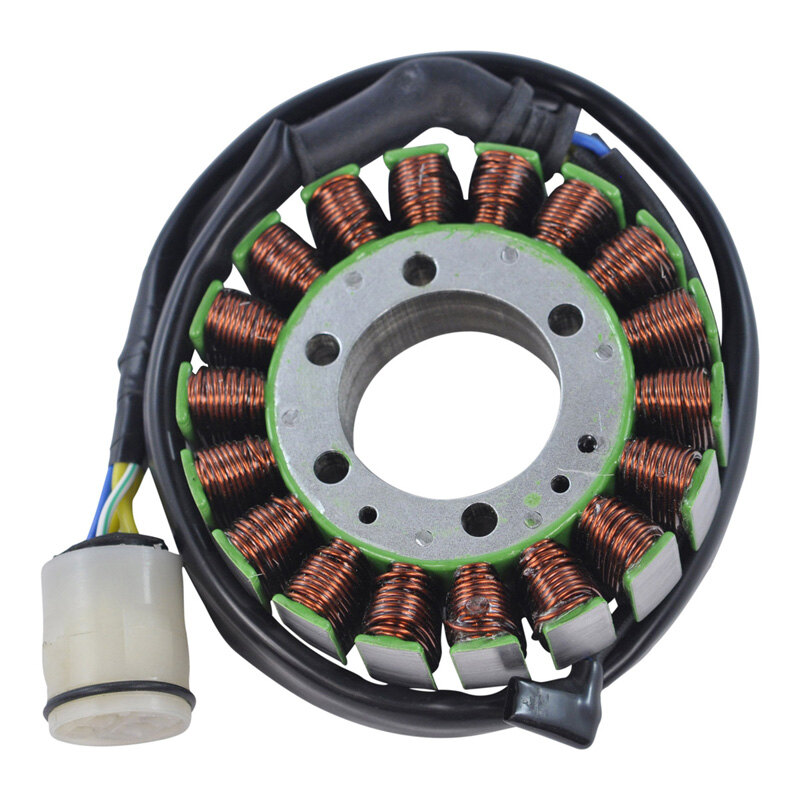

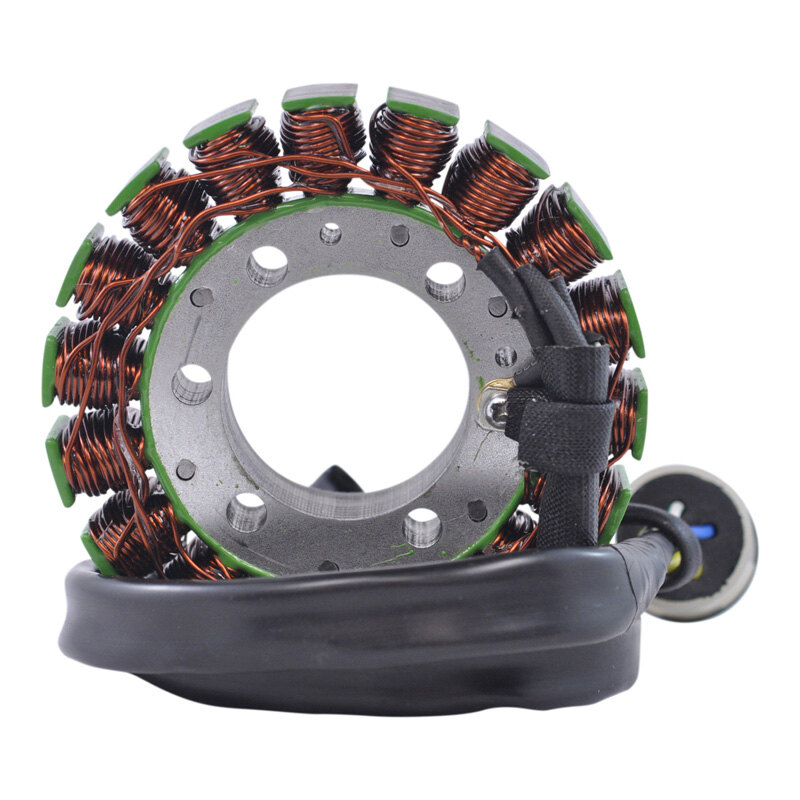

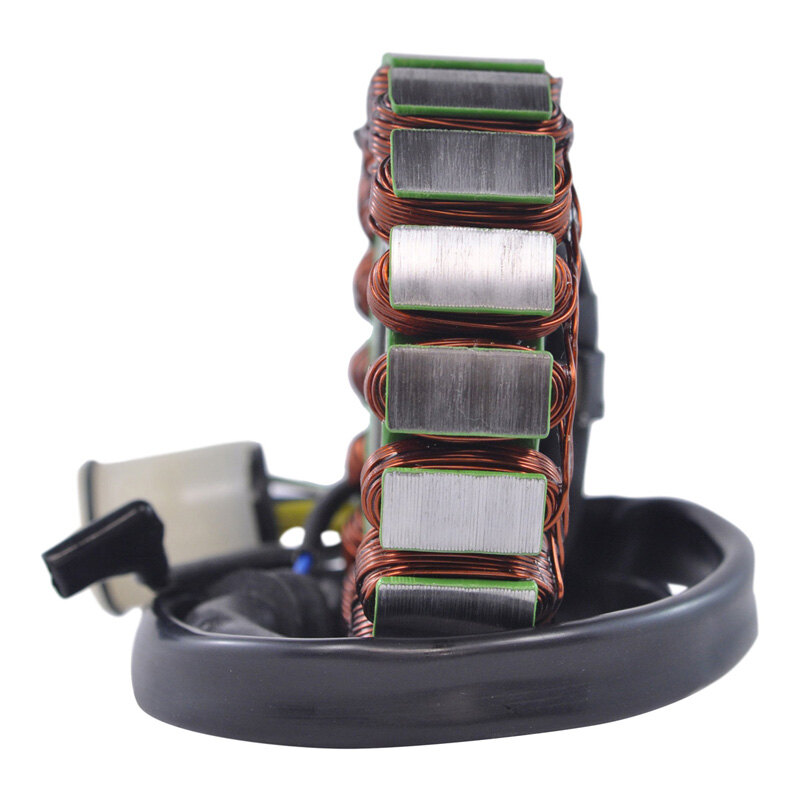

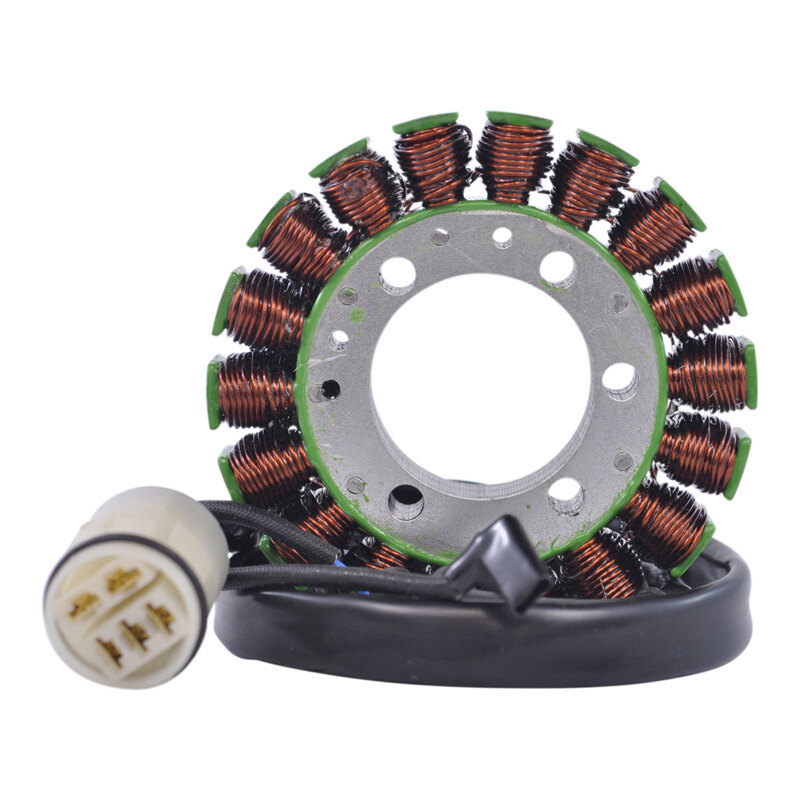

STATOR HON TRX500FA|FGA|FPA 01-14

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

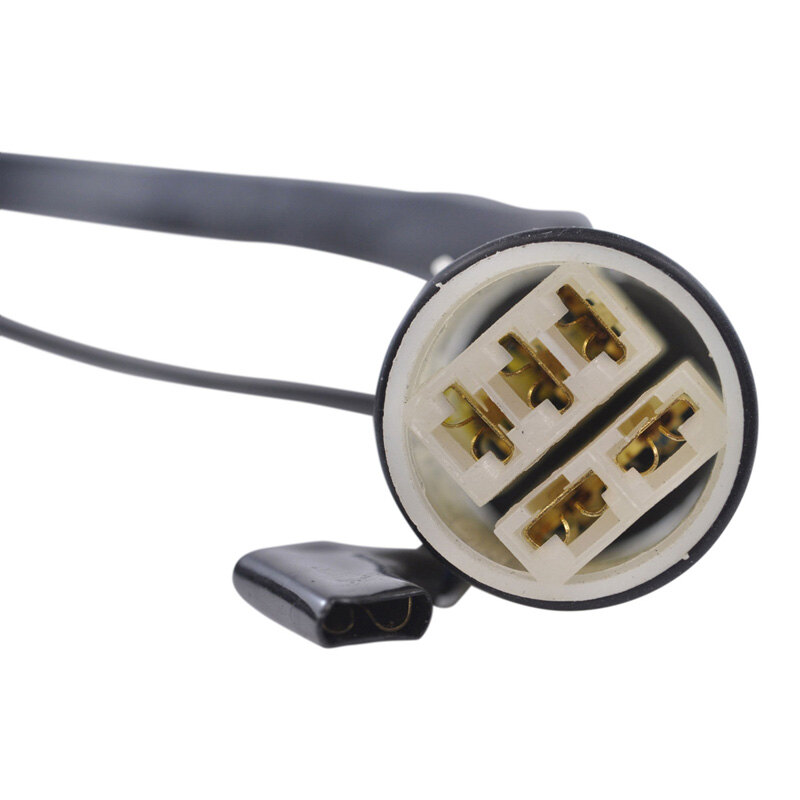

• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 41mm
Exterior diameter: 106mm
Thickness: 21mm
Length of wires stator to grommet: 70mm
Length of wires grommet to plug: 500mm

Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5

Wire to wire resistance:
Alternator: = 0.4ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
