STATOR HON TRX420FA/FPA 09-14

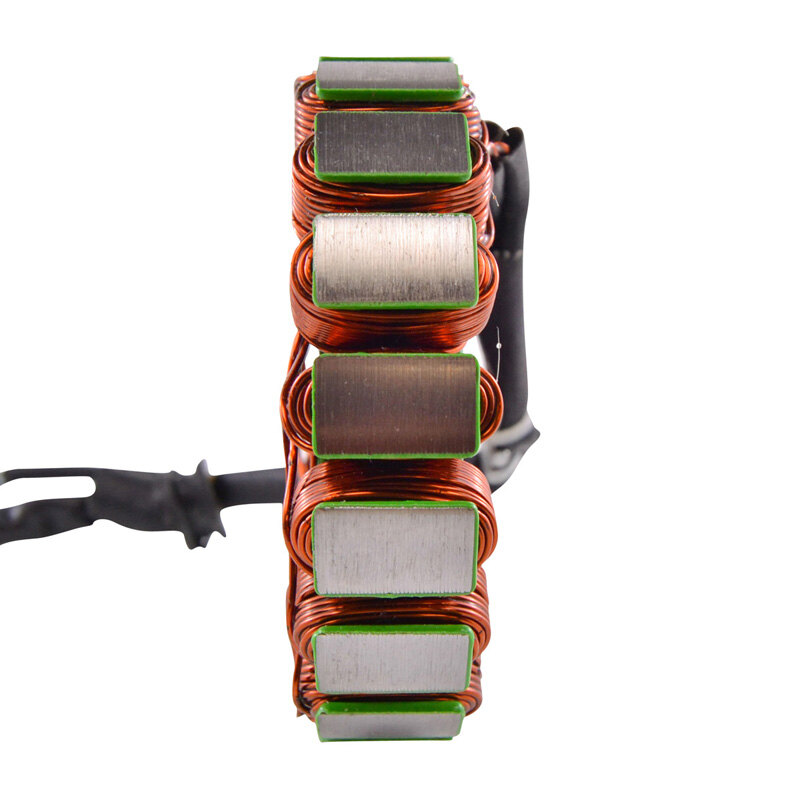

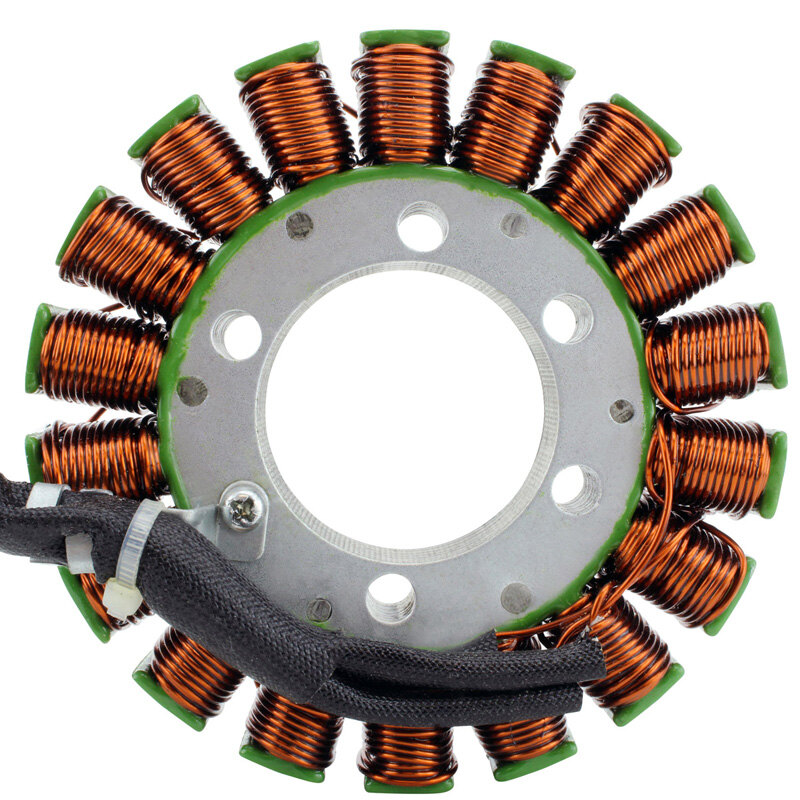

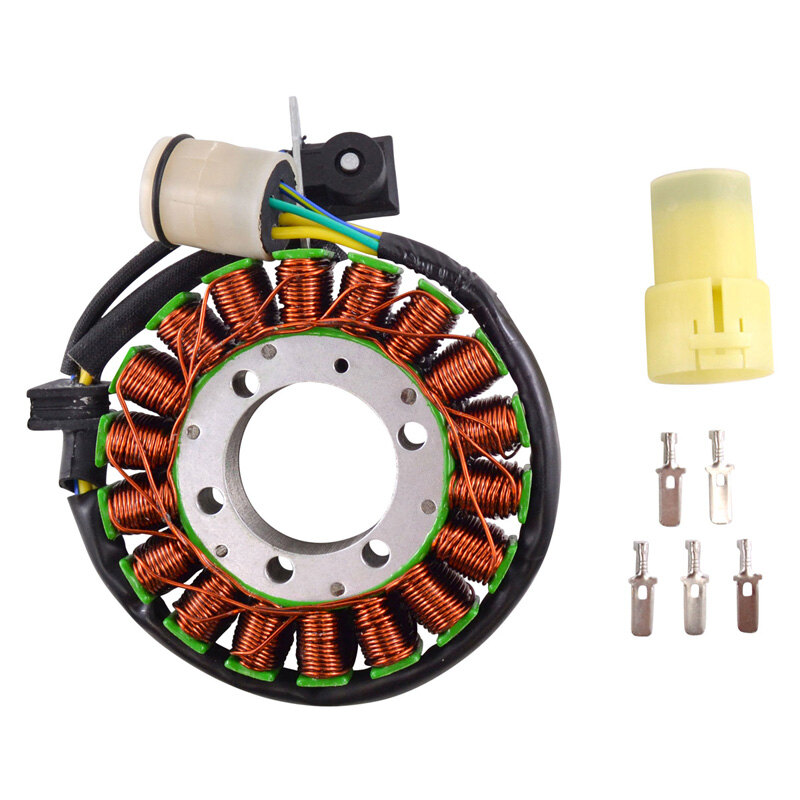

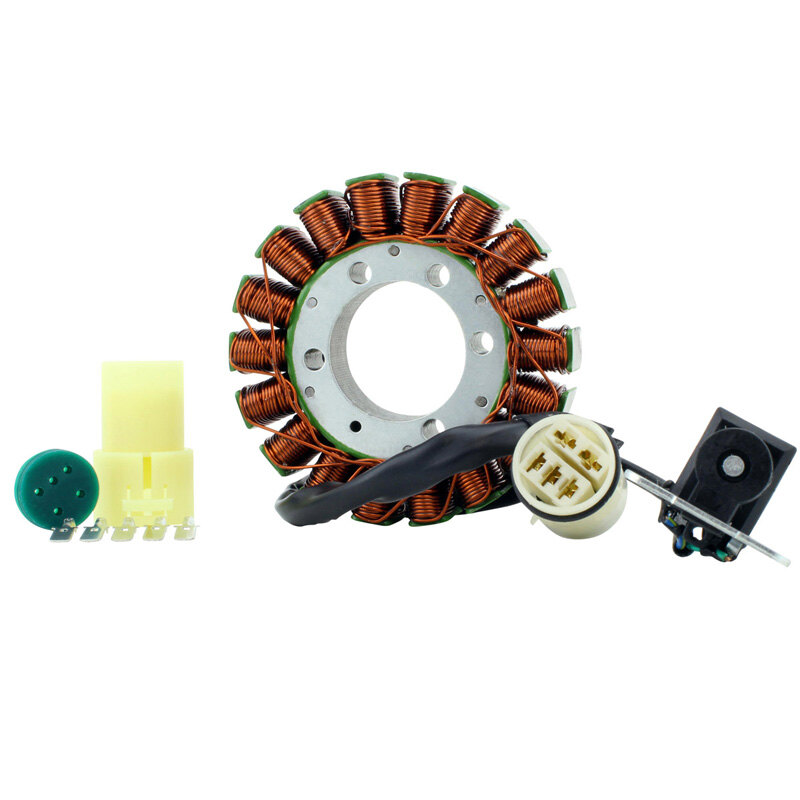

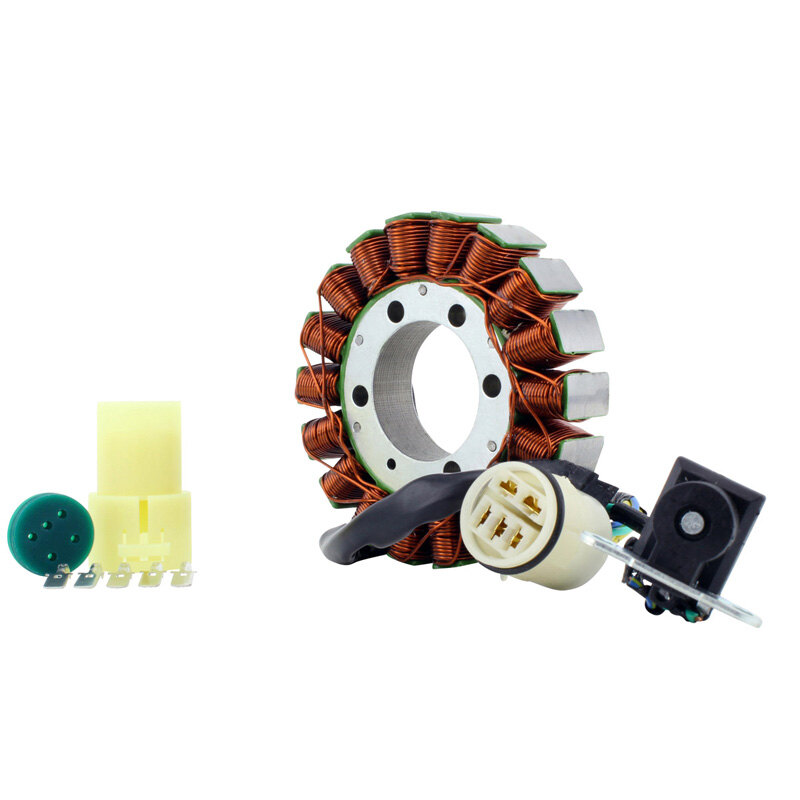

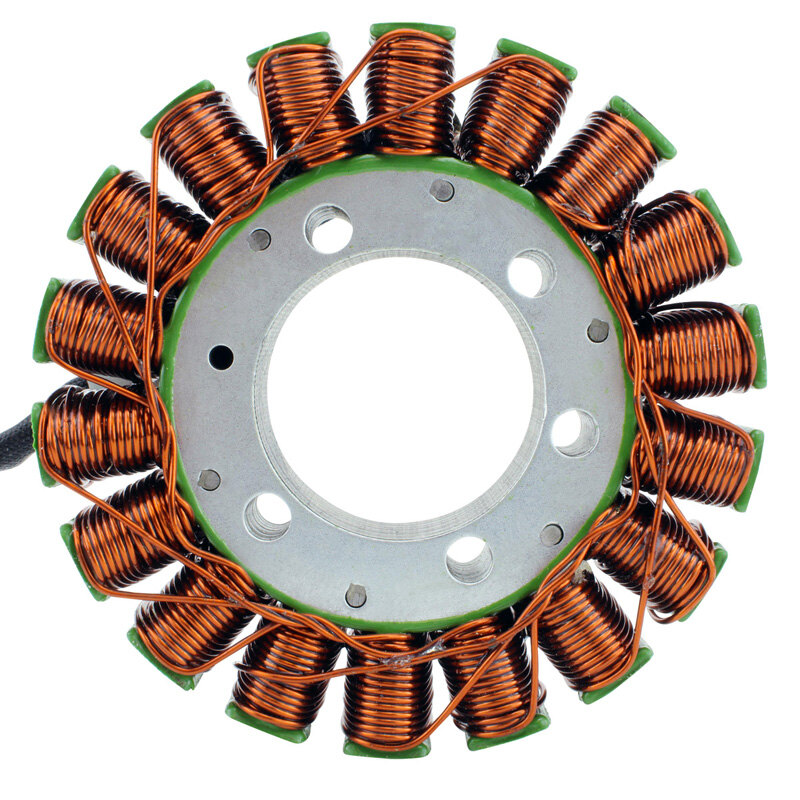

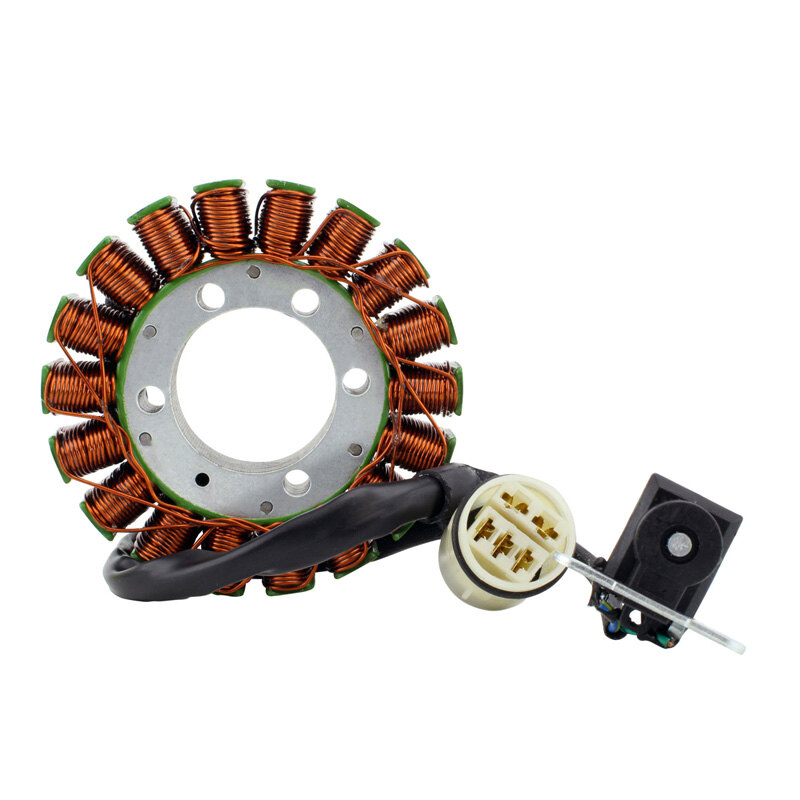

Brand-new generator stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

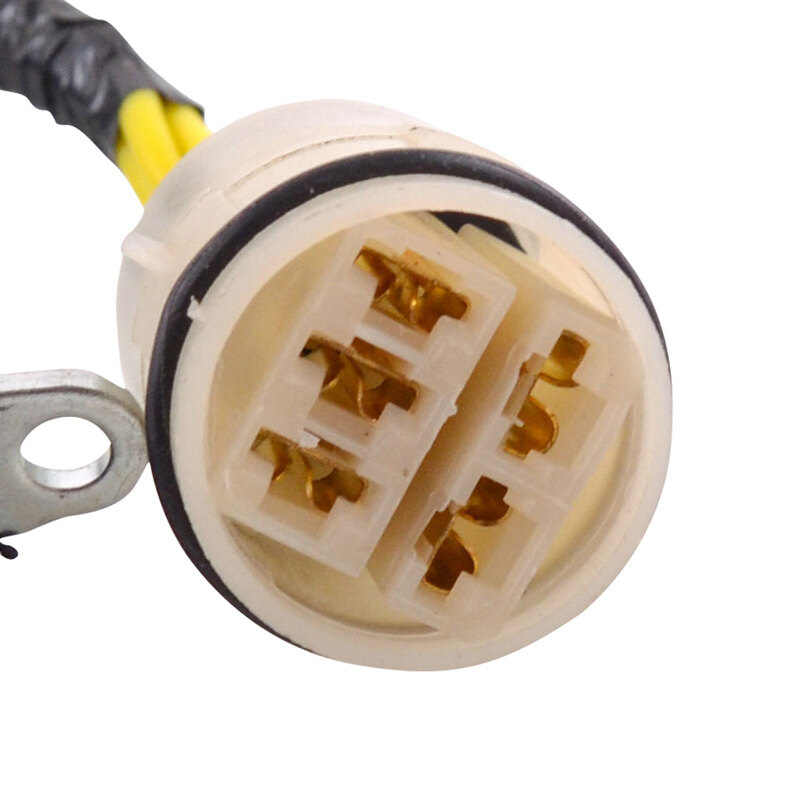

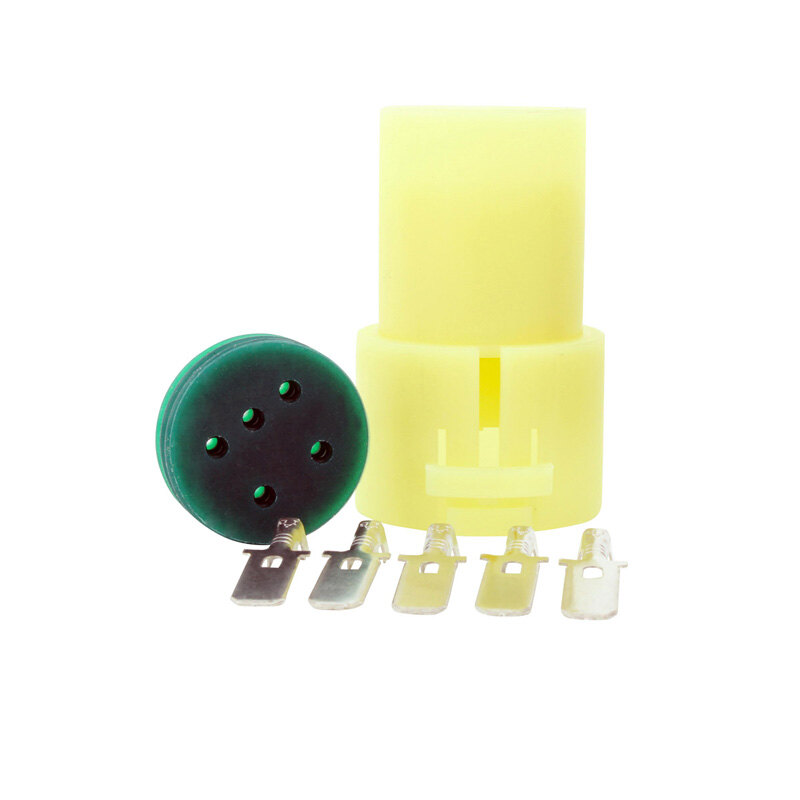

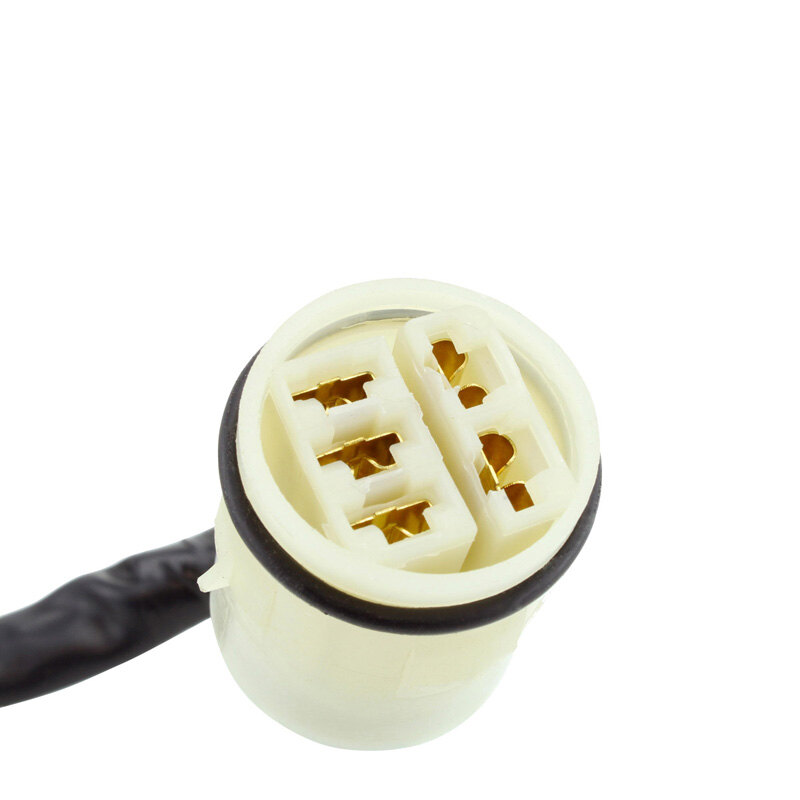

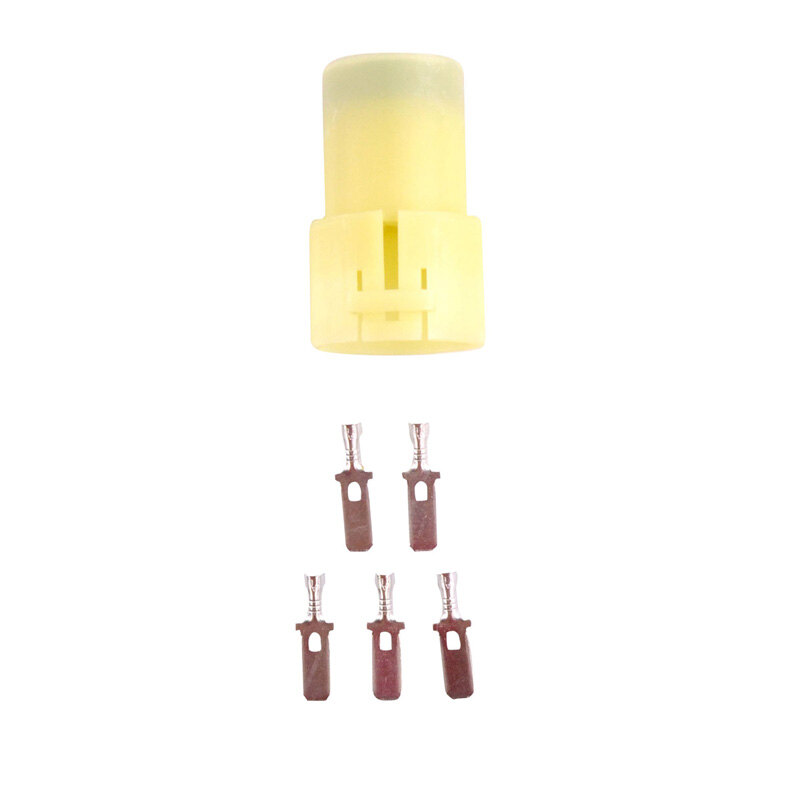

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 106 mm
Thickness: 20 mm
Length of wire stator to grommet: 100 mm
Length of wire grommet to plug: 250 mm
Length of pickup coil's wire to grommet: 80 mm


Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5

Wire to wire resistance:
Alternator: yellow between each yellow = 0.4 ohms \/-20%
Pickup: blue to green = 115 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
