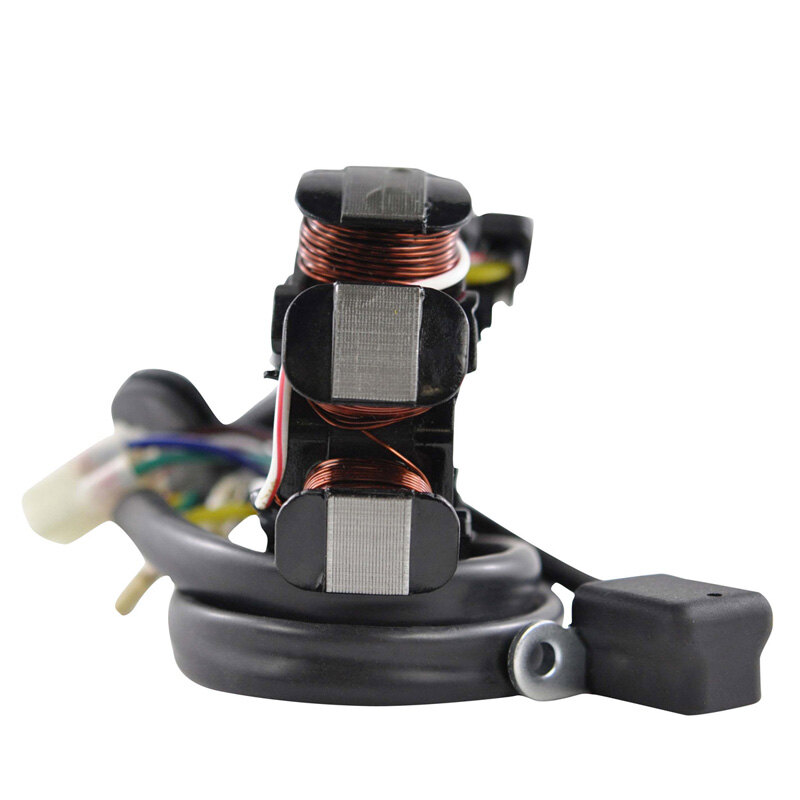

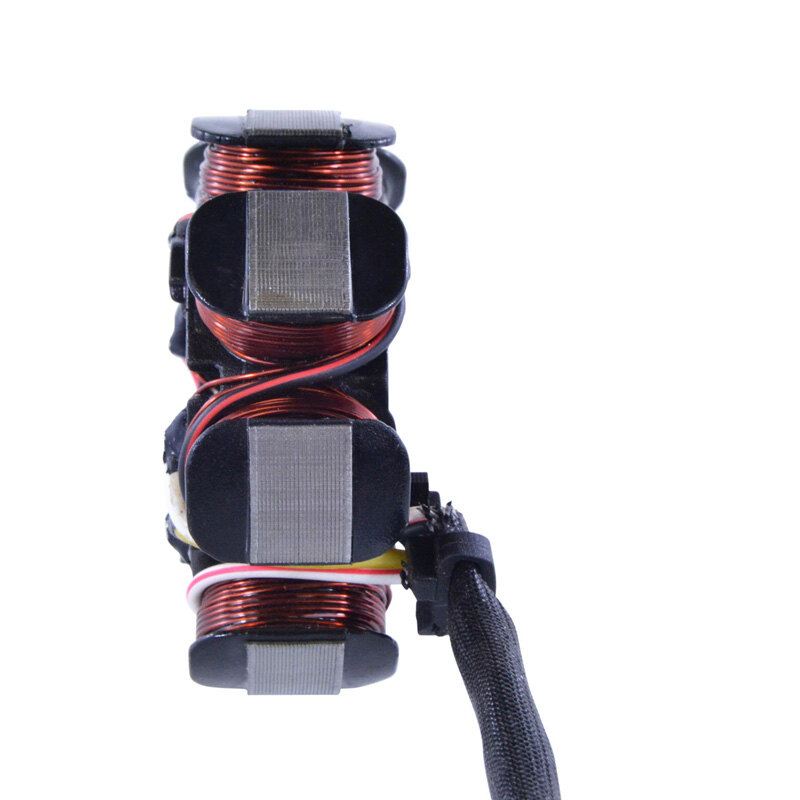

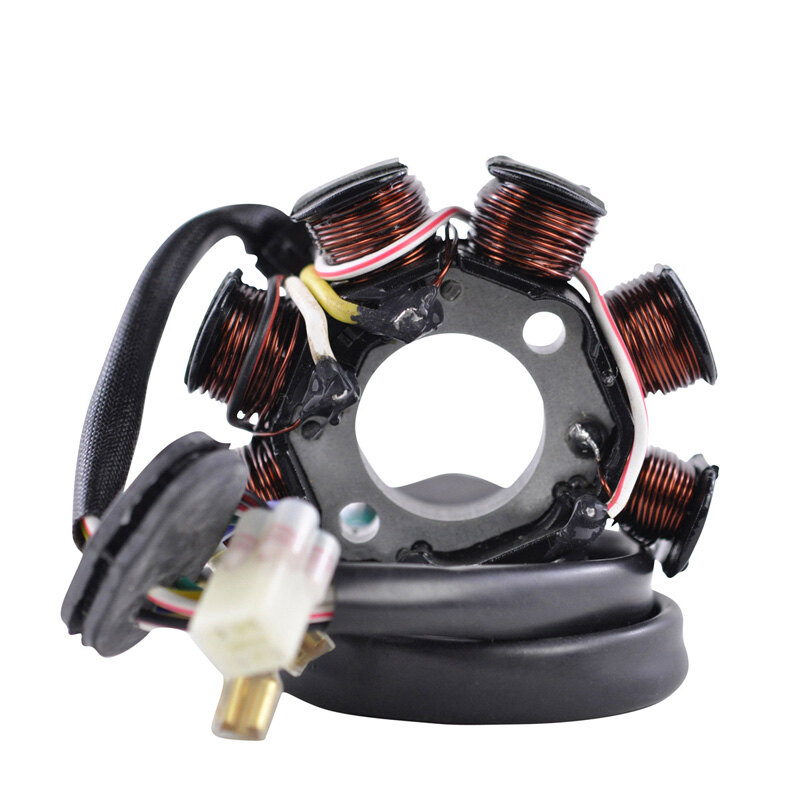

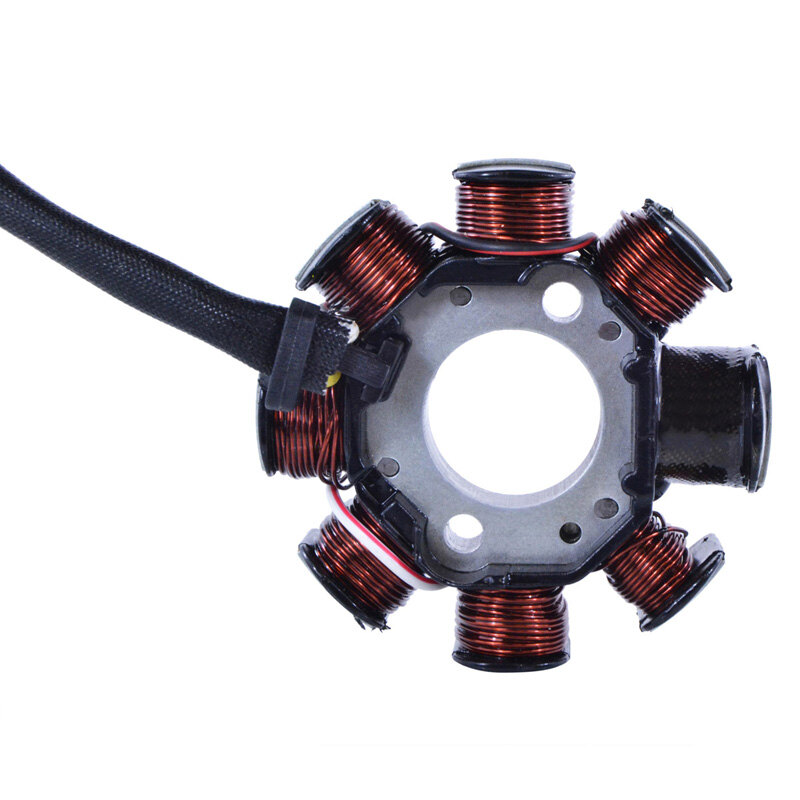

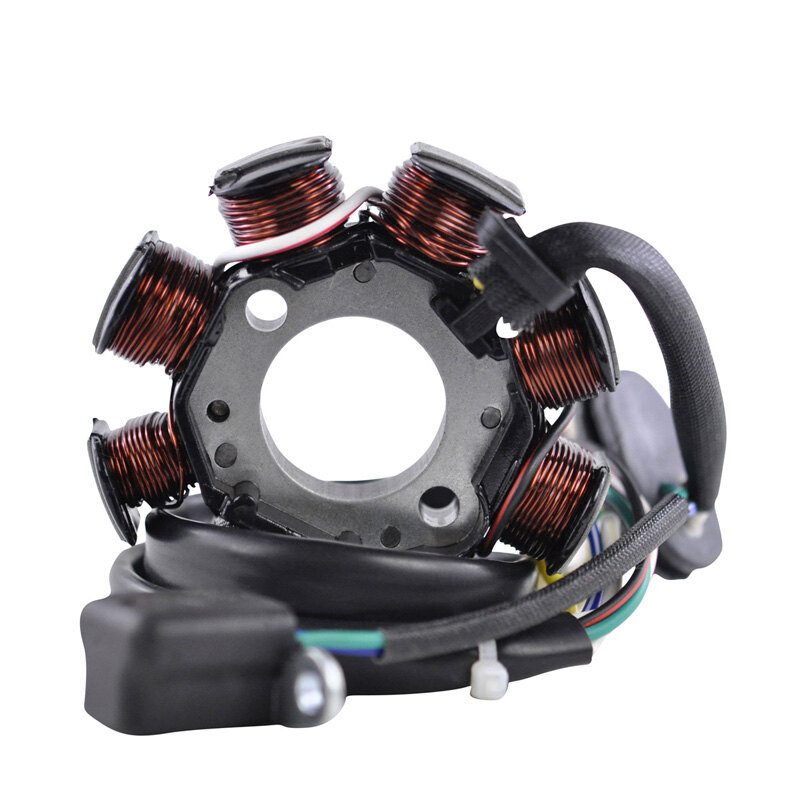

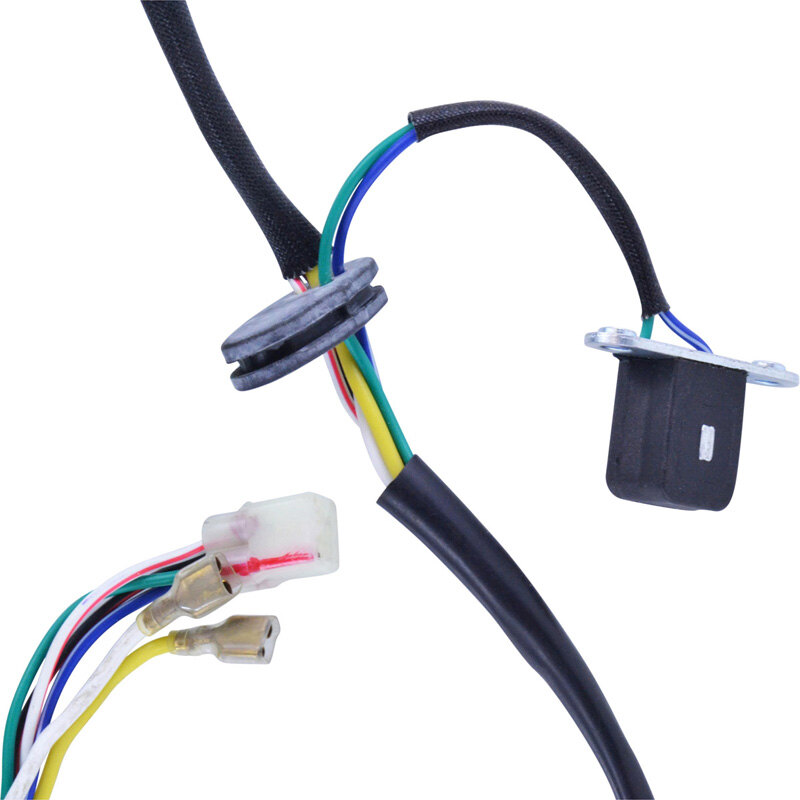

STATOR KTM SX|XC|XC-W|144|150|200|250|300|07-19

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

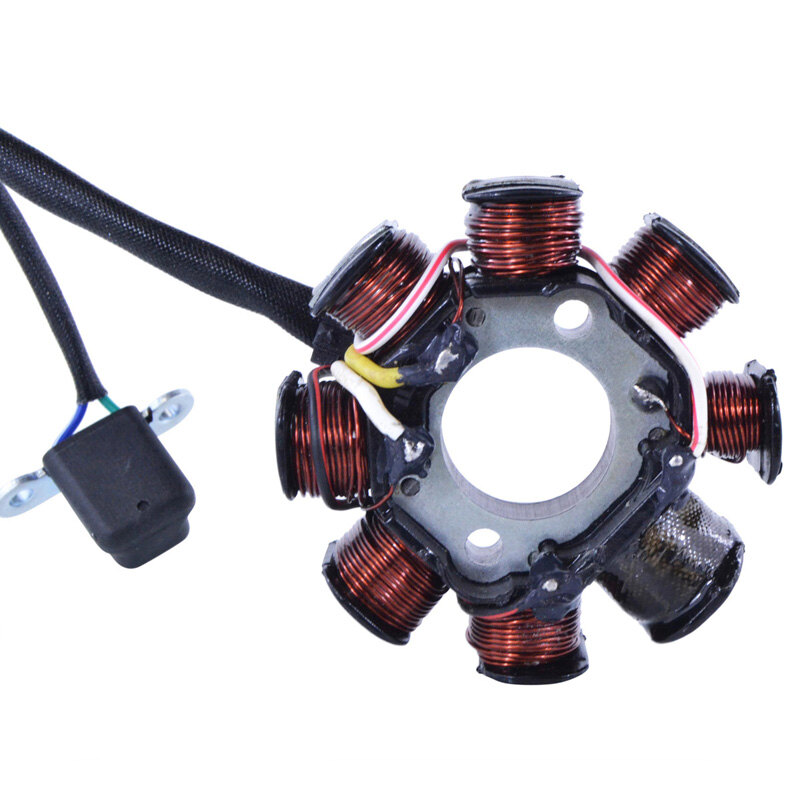

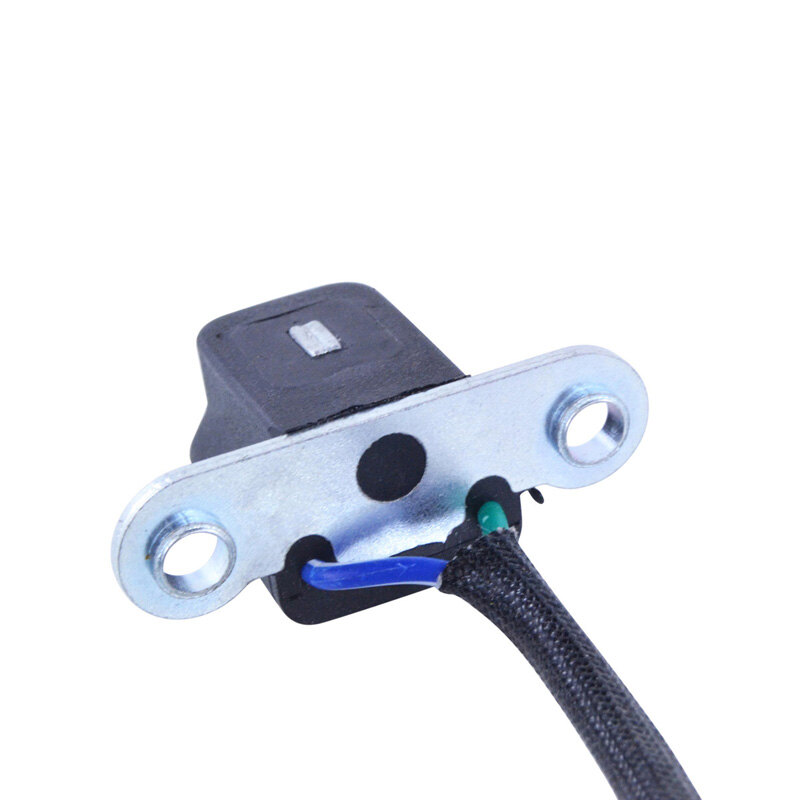

• Pick up pulsar coil included

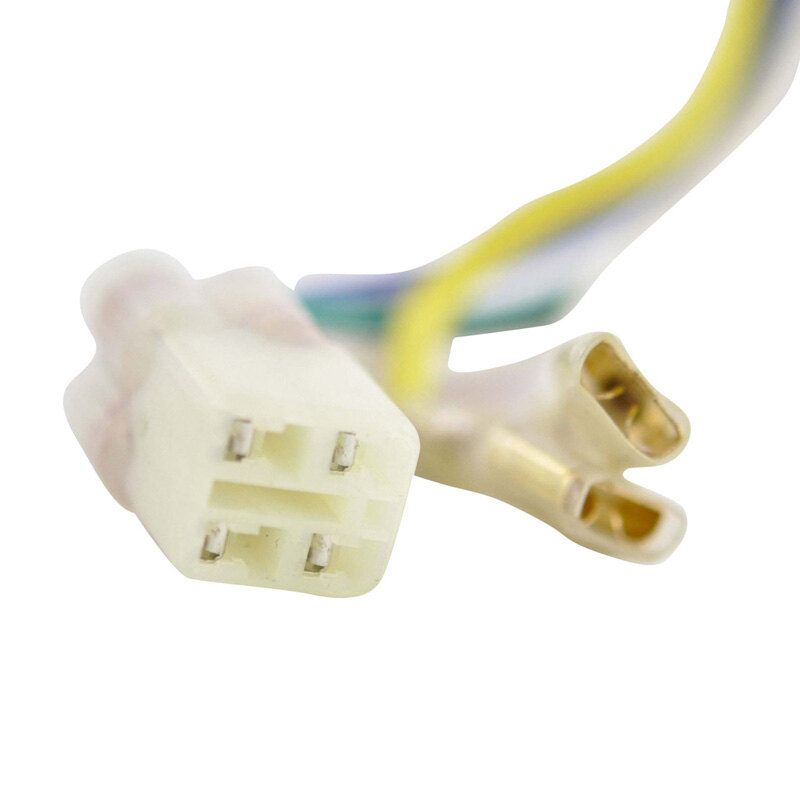

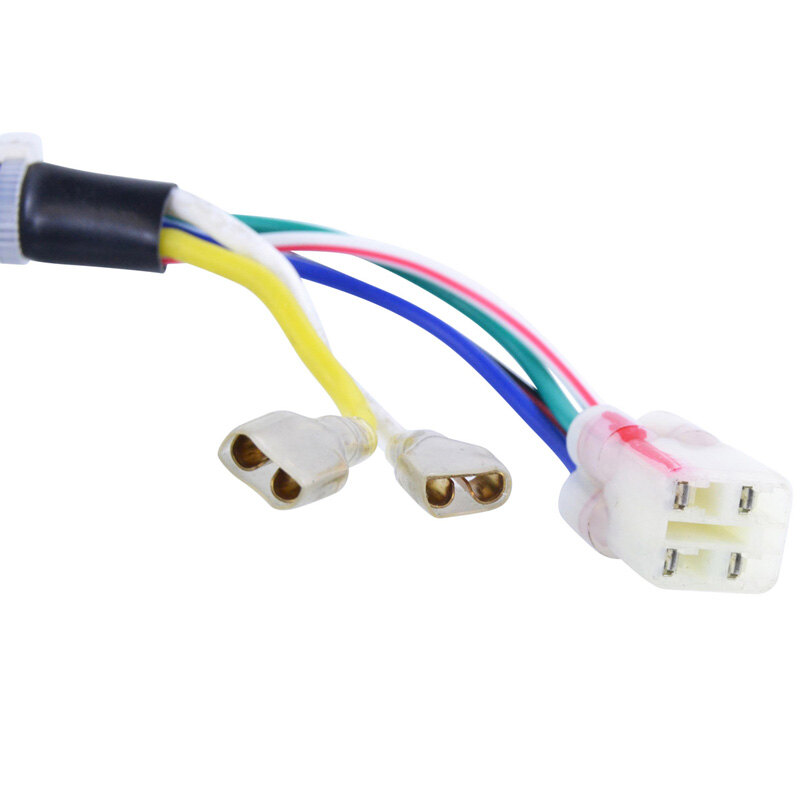

• Connector included

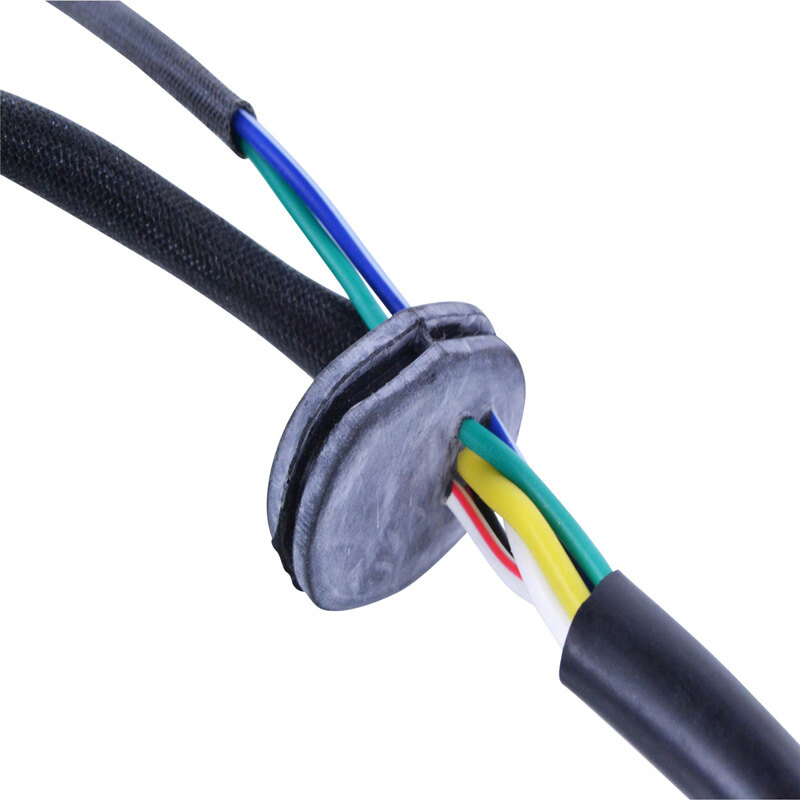

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 84 mm
Thickness : 12 mm
Length of wires stator to grommet : 82 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil\'s wire to grommet : 40 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : White To Yellow = 0.6 ohms \/-20%
Pickup : = Green To Red = 100 ohms \/-20%
Source : Red/White To Black/Red = 15 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
