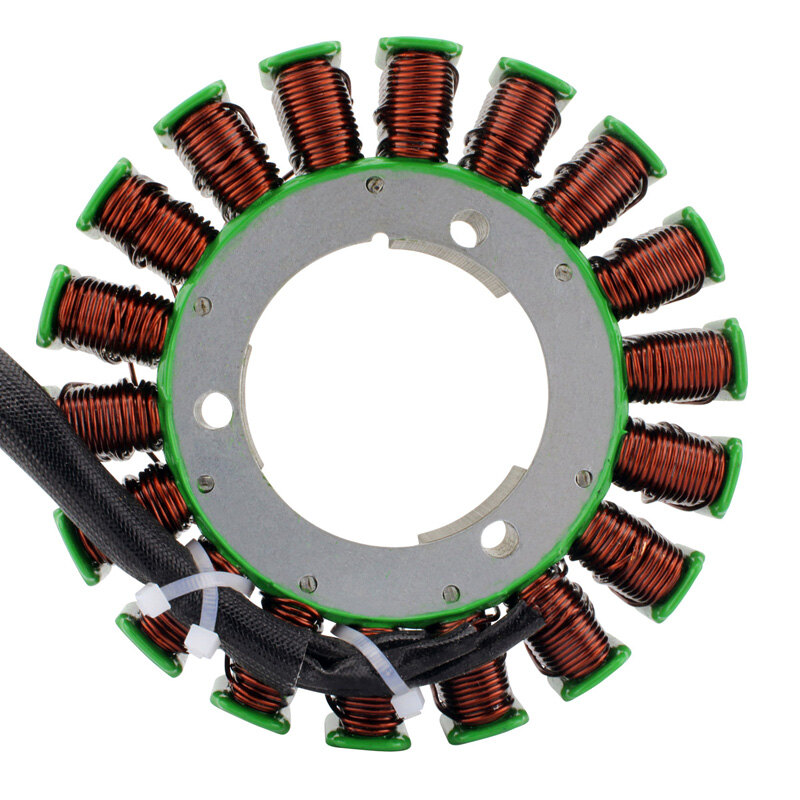

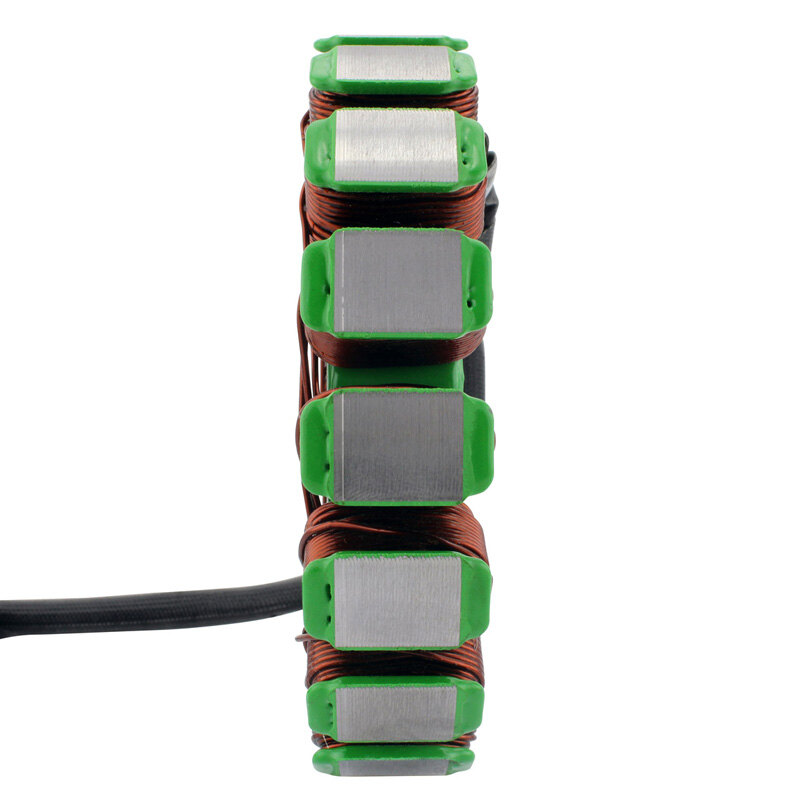

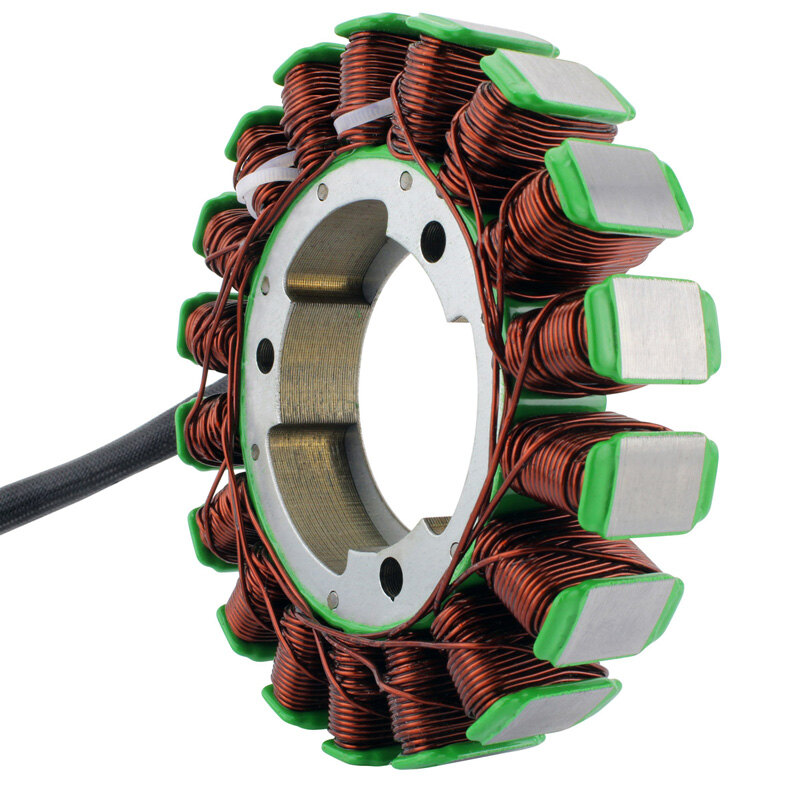

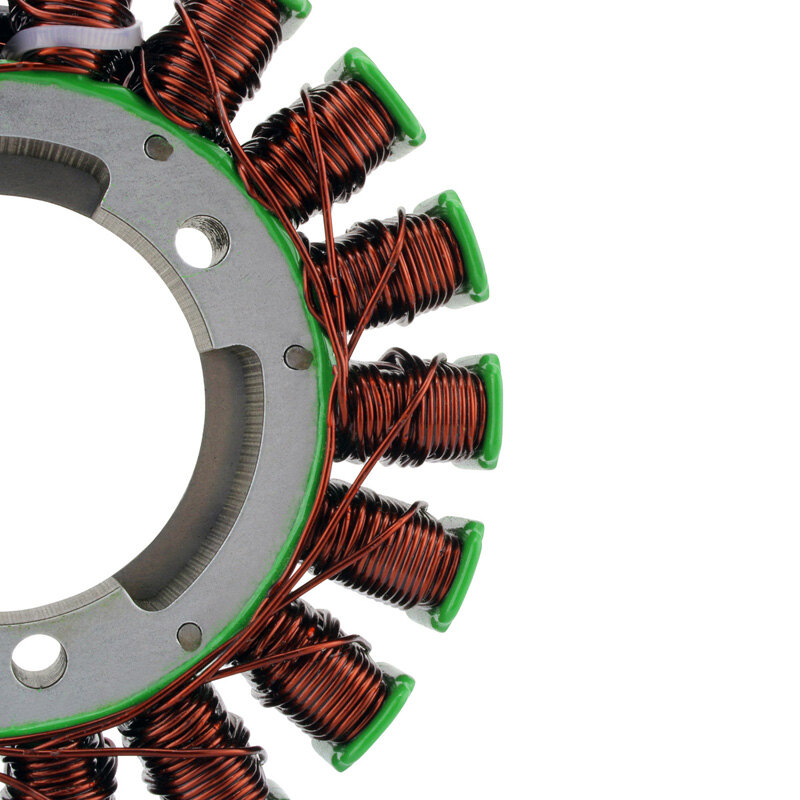

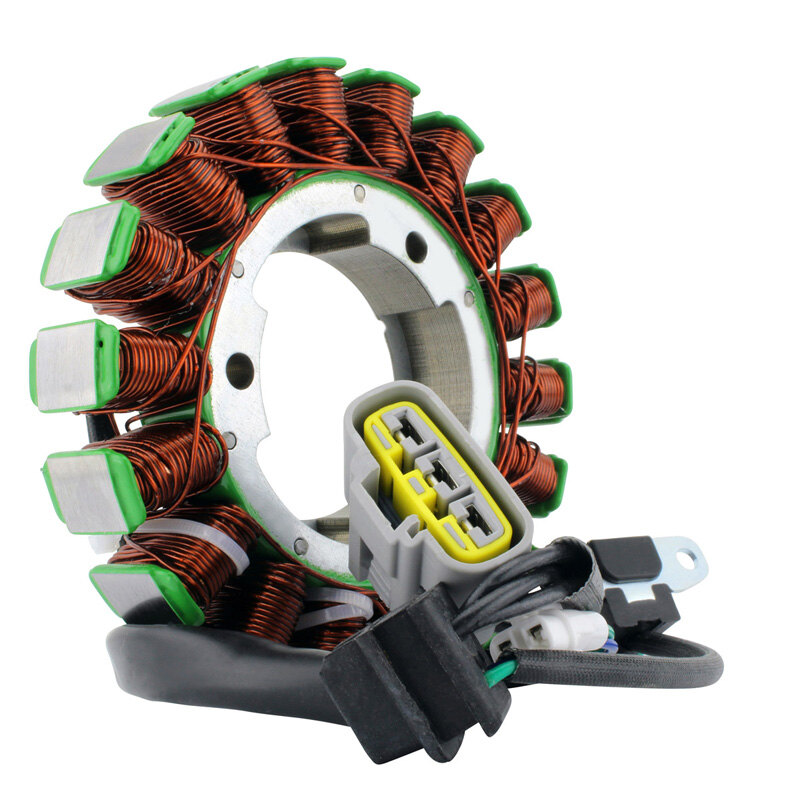

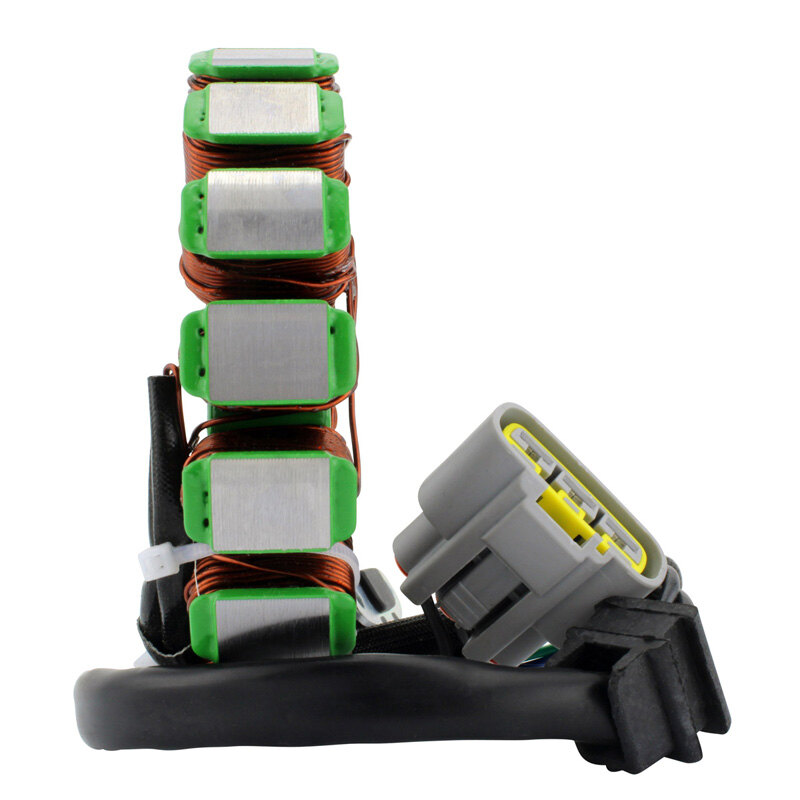

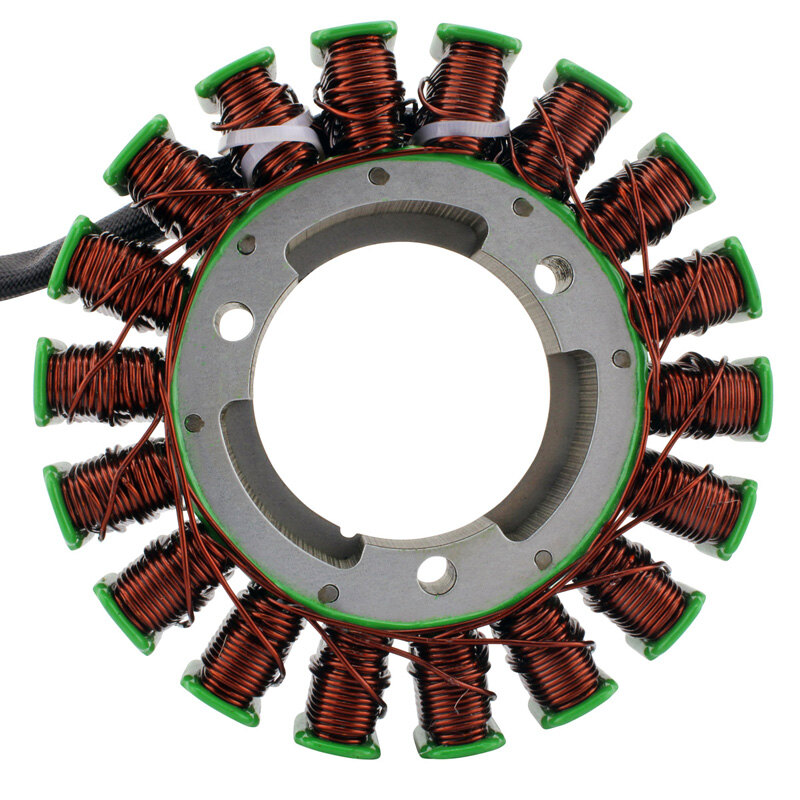

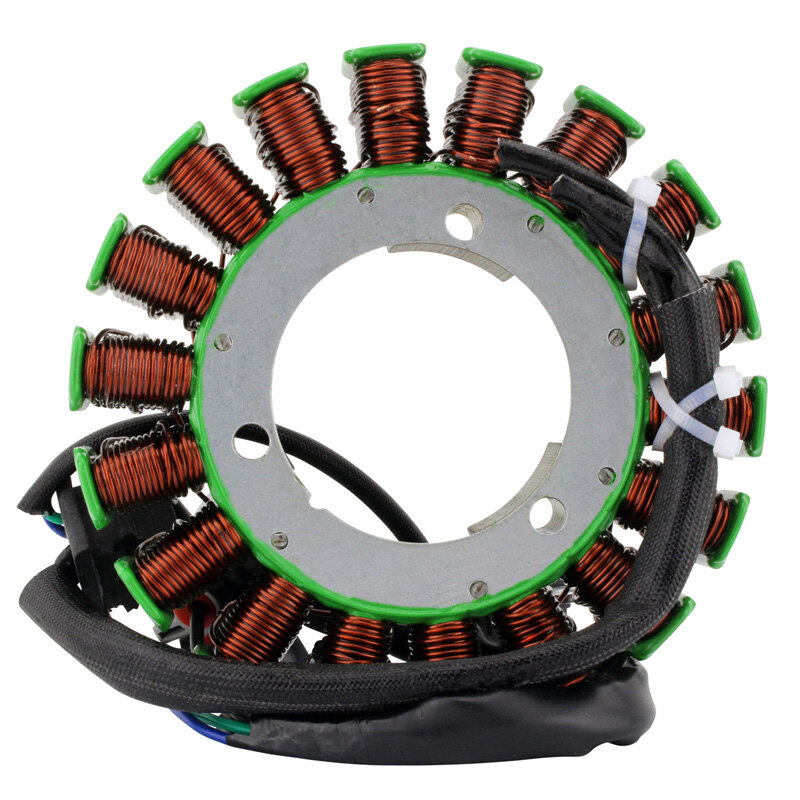

STATOR SUZ LT-A750 KINGQUAD AXI 19-22

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

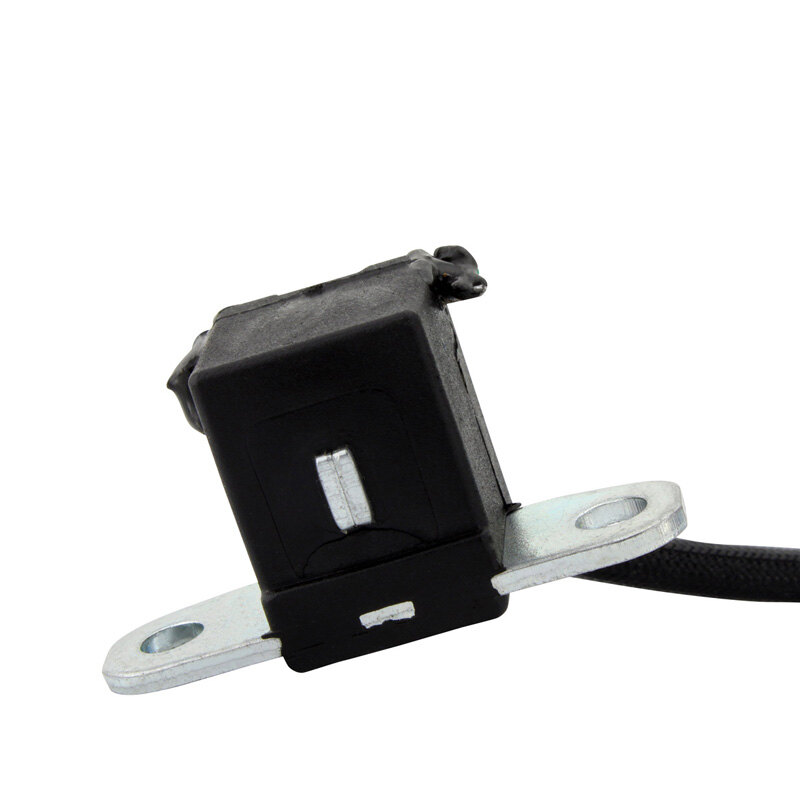

• Pick up pulsar coil included

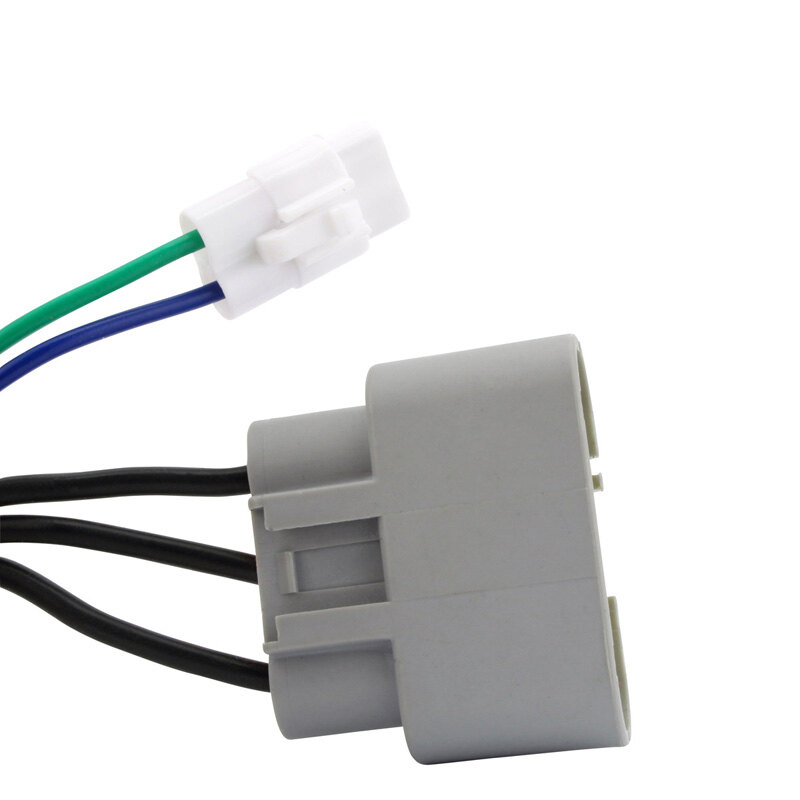

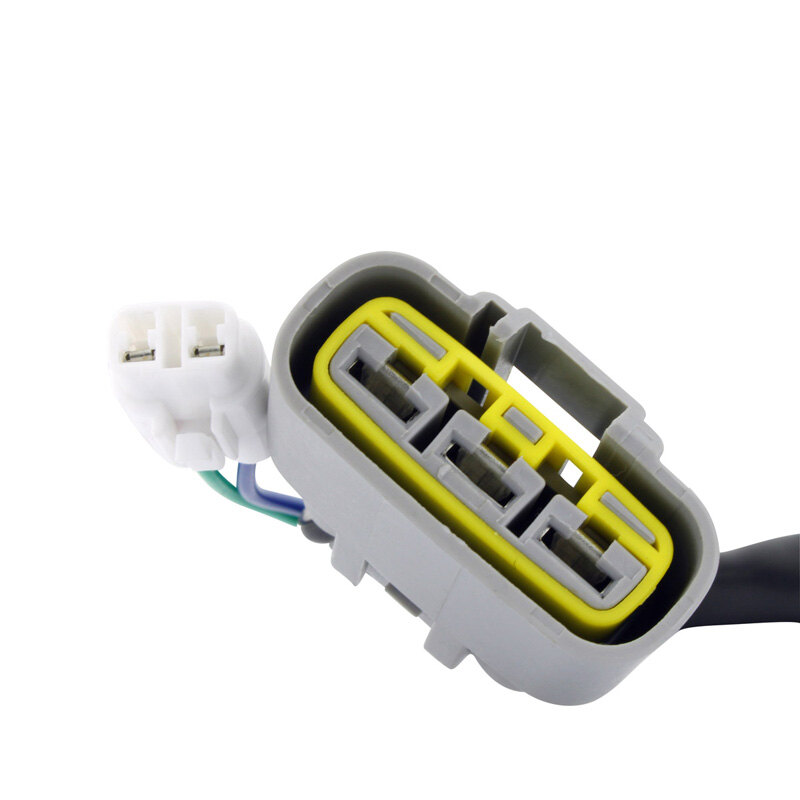

• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54mm
Exterior diameter: 127mm
Thickness: 19mm
Length of wires stator to grommet: 195mm
Length of wires grommet to plug #1 : 250mm, length of wires grommet to plug #2 : 270mm
Length of pickup coil\'s wire to grommet: 130mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6ohms \-20%
Alternator: to ground = O.L
Pickup: Green to Blue = 196ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
