-1 BOOST METER

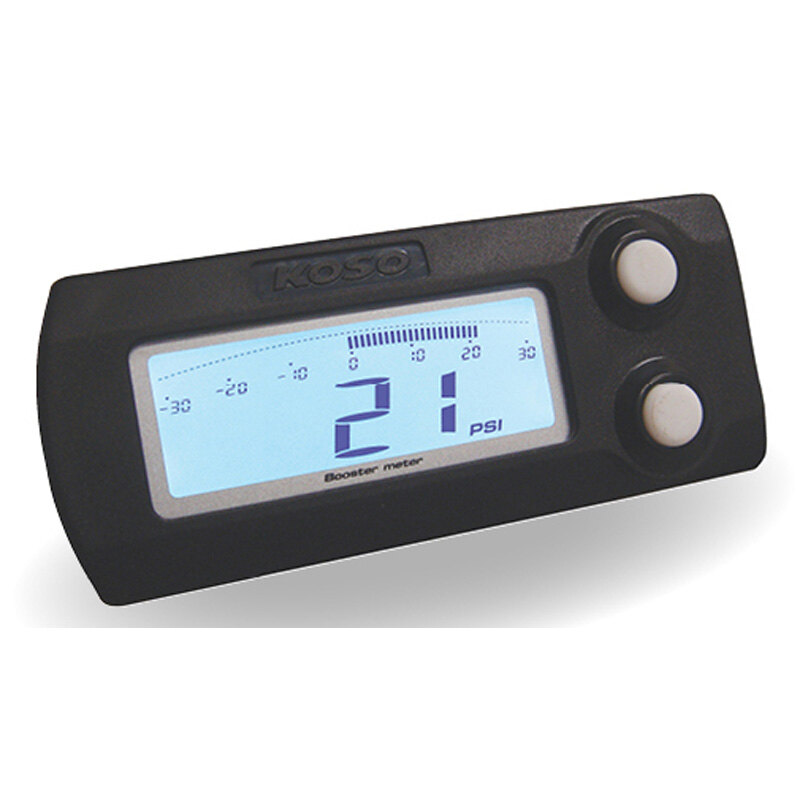

X-1 | Boost Gauge

Today, many horsepower enthusiasts are upgrading their engine with turbo or supercharger. For this reason, we came up with this basic X1 boost gauge with warning and peak functions. Made to resist cold temperature, water or dust, this meter can be adapted to any engines with turbo or supercharger. The changeable scale from 15 to 30 psi, the warning and peak recall function makes it a great tool.

 Specifications (R= Range U=Unit)

• Digital boost pressure
  R: 0 ~ 15/30 psi | U: 0.5 psi
• Peak recall
  positive R: 10 ~ 30 psi | U: 1 psi
  negative R: -1 ~ -30 psi | U: 1 psi
• Level boost pressure
  15 psi R: 0 ~ 15 psi | U: 0.5 psi
  30 psi R: 0 ~ 30 psi | U: 1 psi
• Warning function
  Screen changes blue to amber
• Effective temperature range
  14 ~ 140 °F (10 ~ 60 °C)
• Effective voltage
  AC/DC 12 V

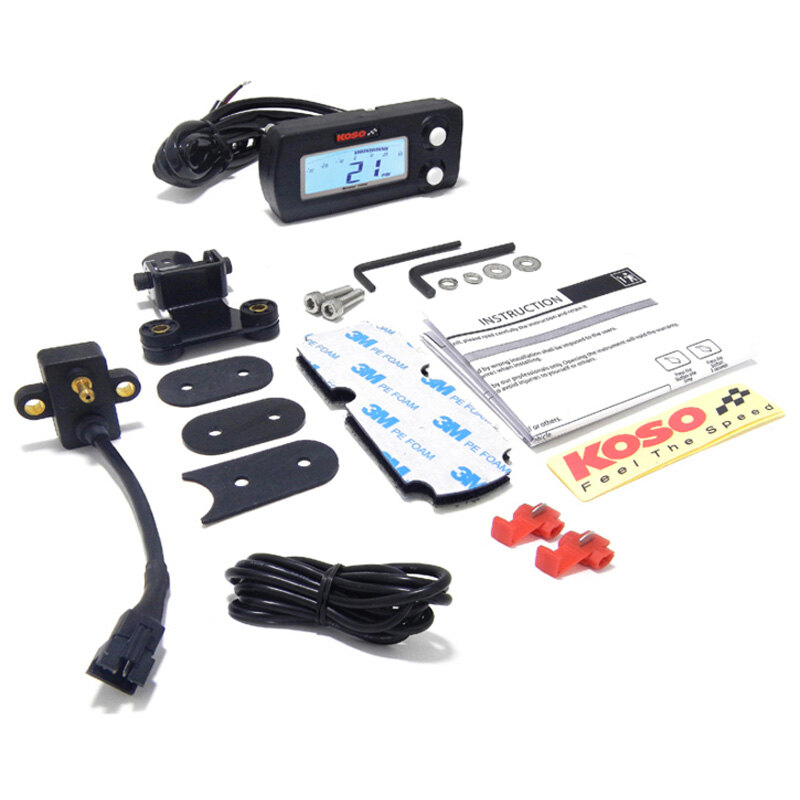

• Sensor included
  Boost sensor: BF521000

• Waterproof
  JIS D 0203

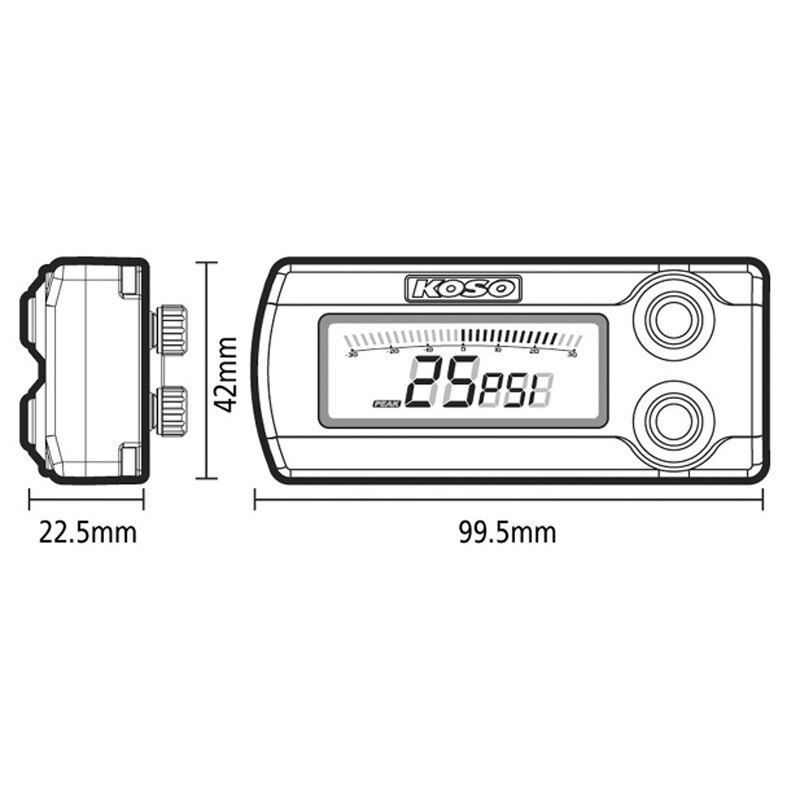

• Meter size (W x L x H)
   99.5 x 42 x 22.5 mm

• Meter Weight
  ±85g
