STATOR HON TRX500|FE|FM|FPE|FPM 12-13

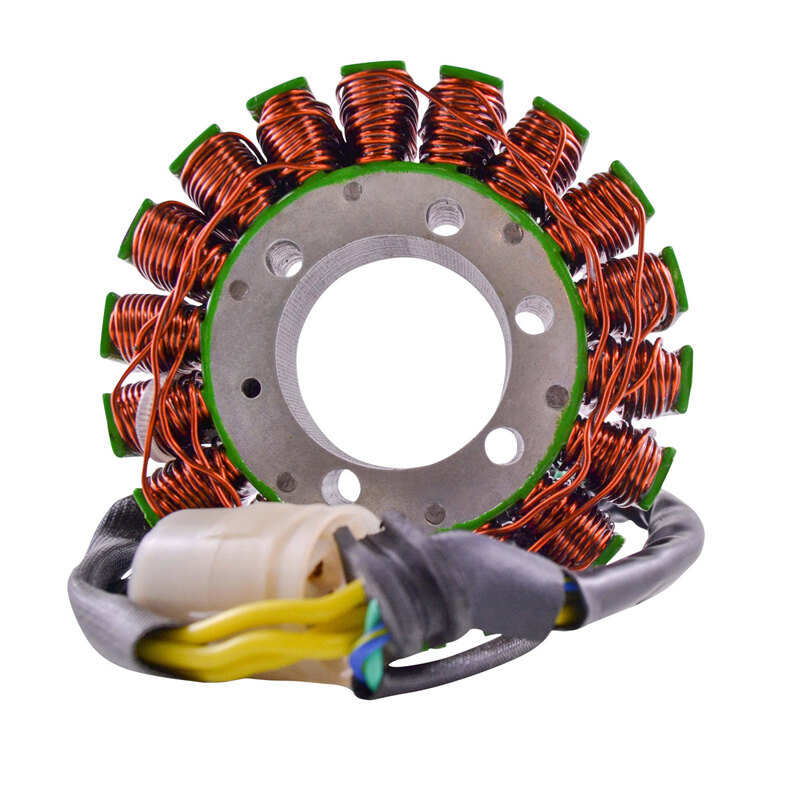

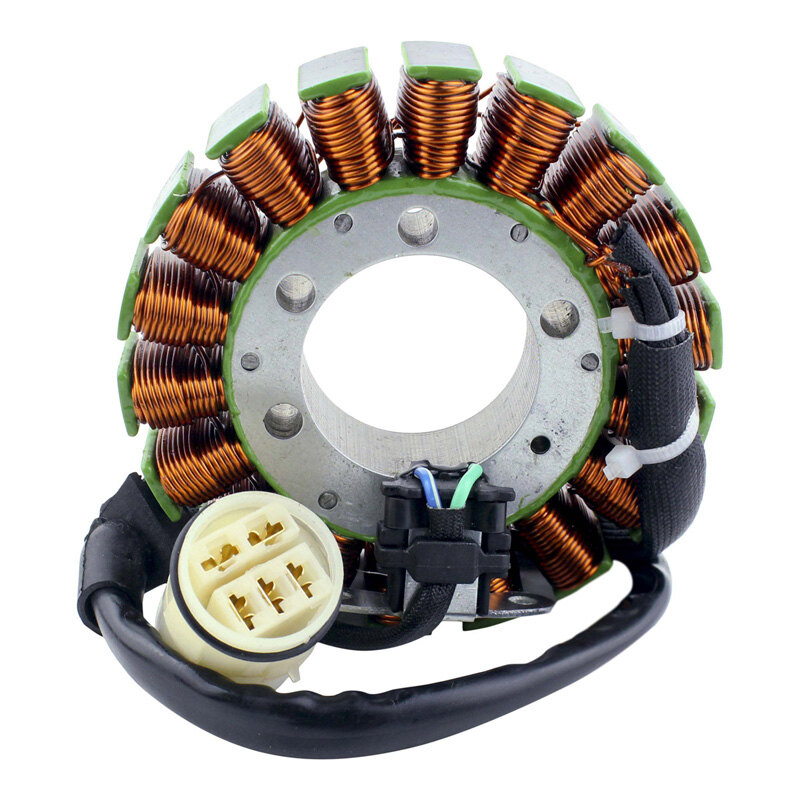

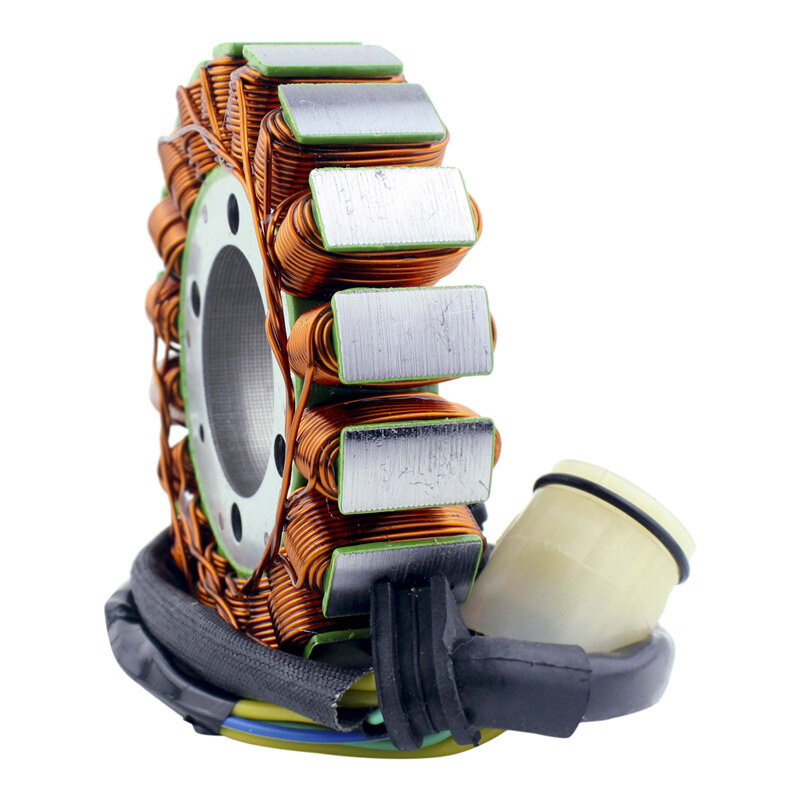

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

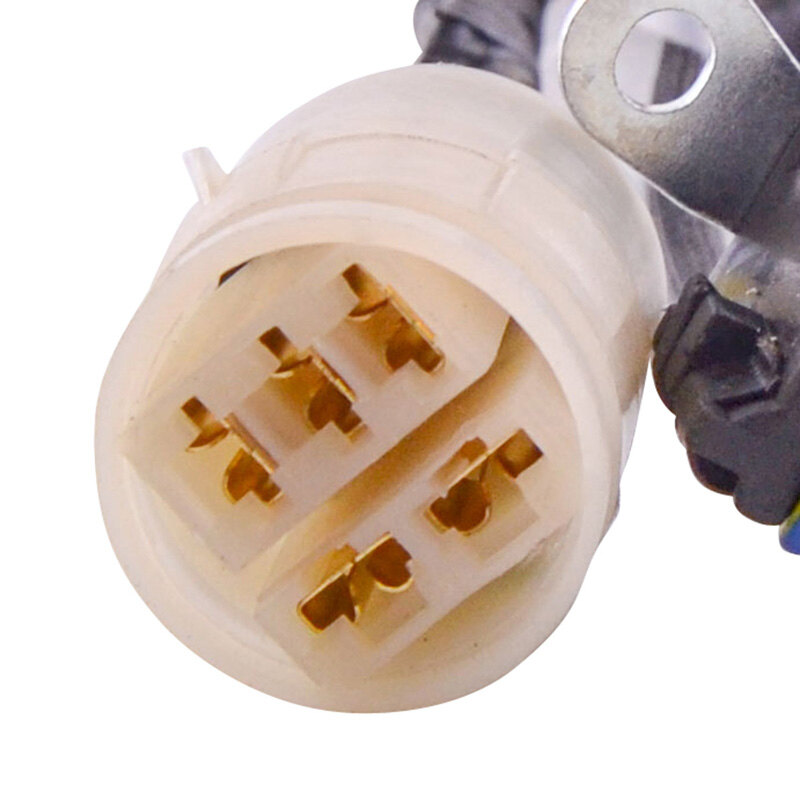

• Connector included
• Rubber grommet included
• Pick-up coil included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Alternator resistance (Yellow to Yellow) : 0.4 ohms \/- 20%
Pick-up 1 resistance (Blue/Yellow to Green) : 239 ohms \/- 20%
Number of wires : 5
Number of plugs : 1
Number of terminals : 5
Harness length - Stator to grommet (mm) : 130
Harness length - Grommet to plug (mm) : 270
Pick-up coil wire length - Coil to grommet (mm) : 70
Inside diameter (mm) : 41
Outside diameter (mm) : 107
Thickness (mm) : 21

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
