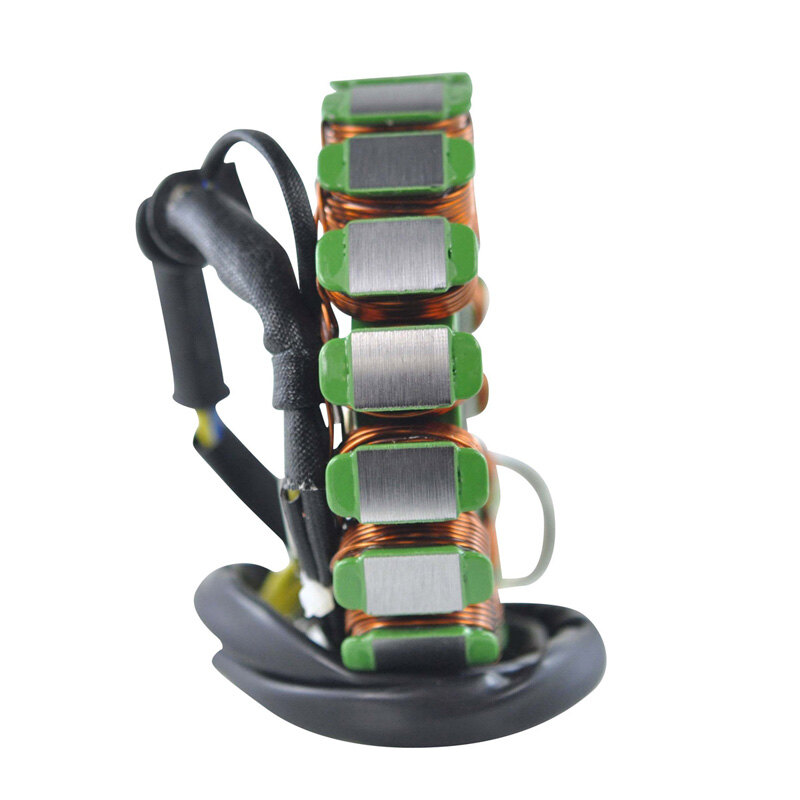

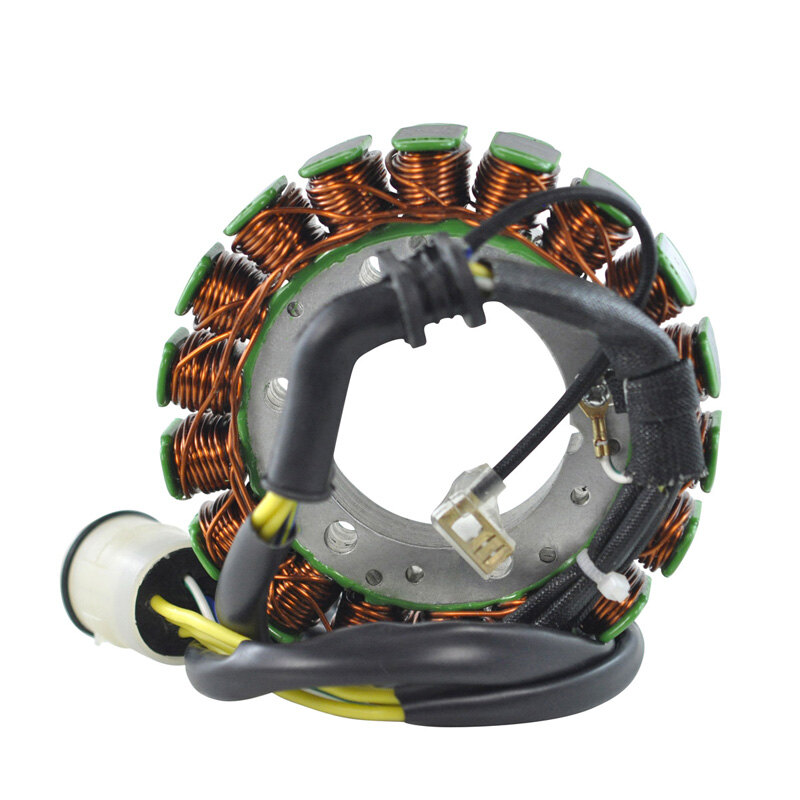

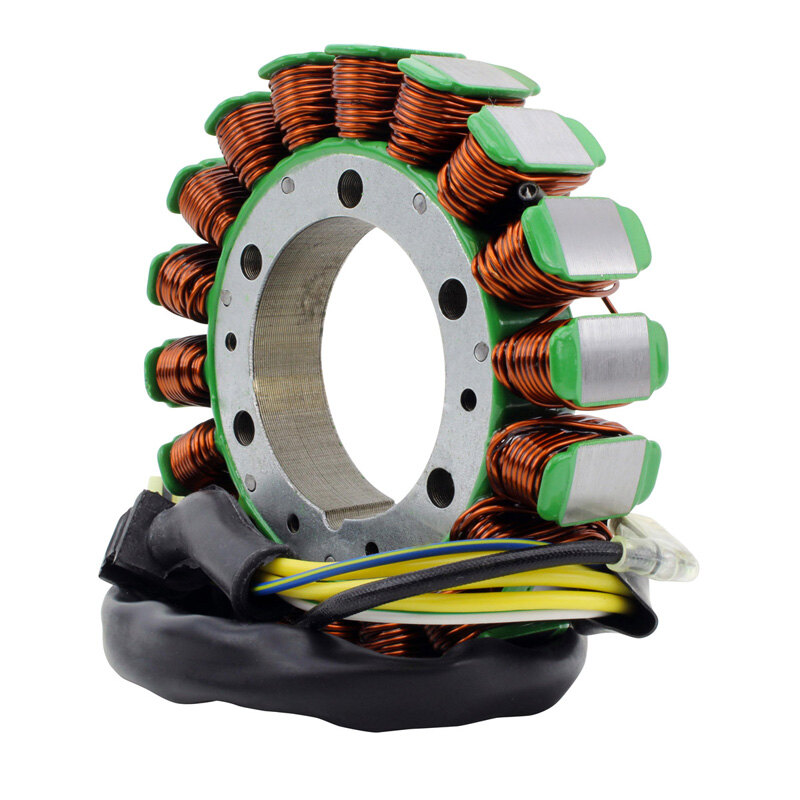

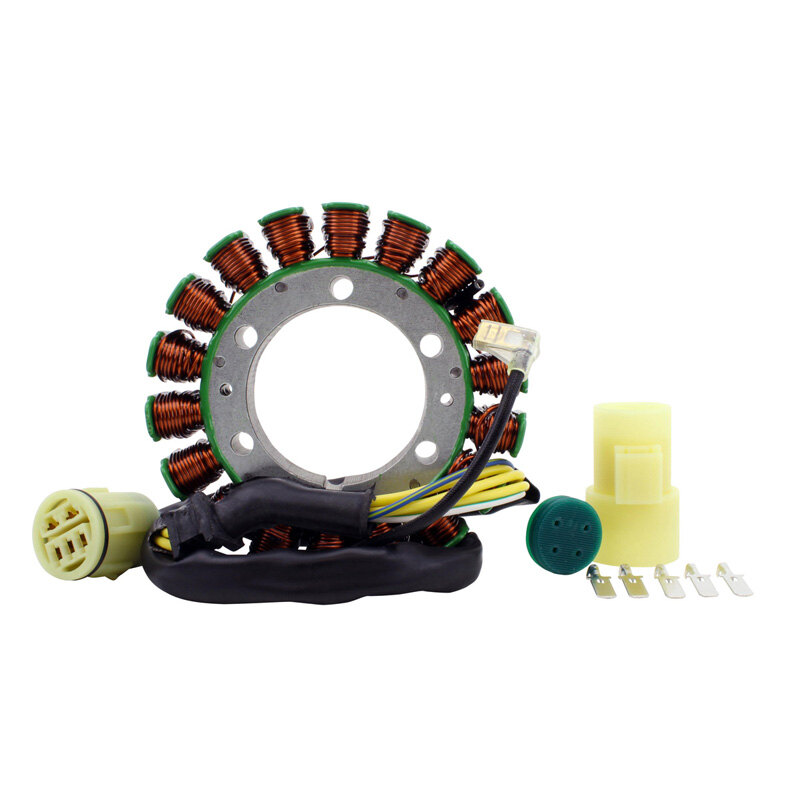

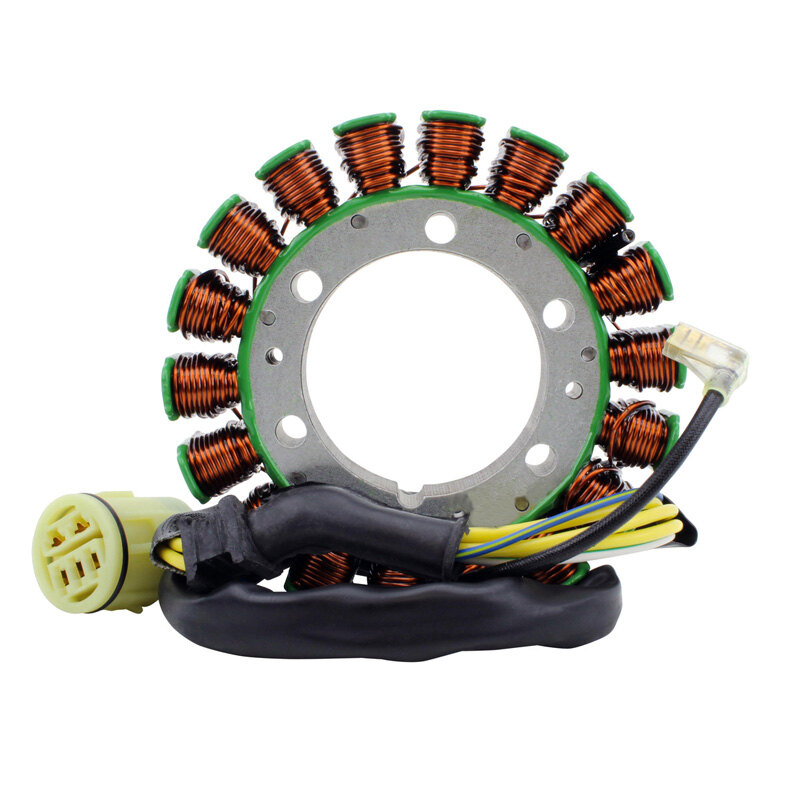

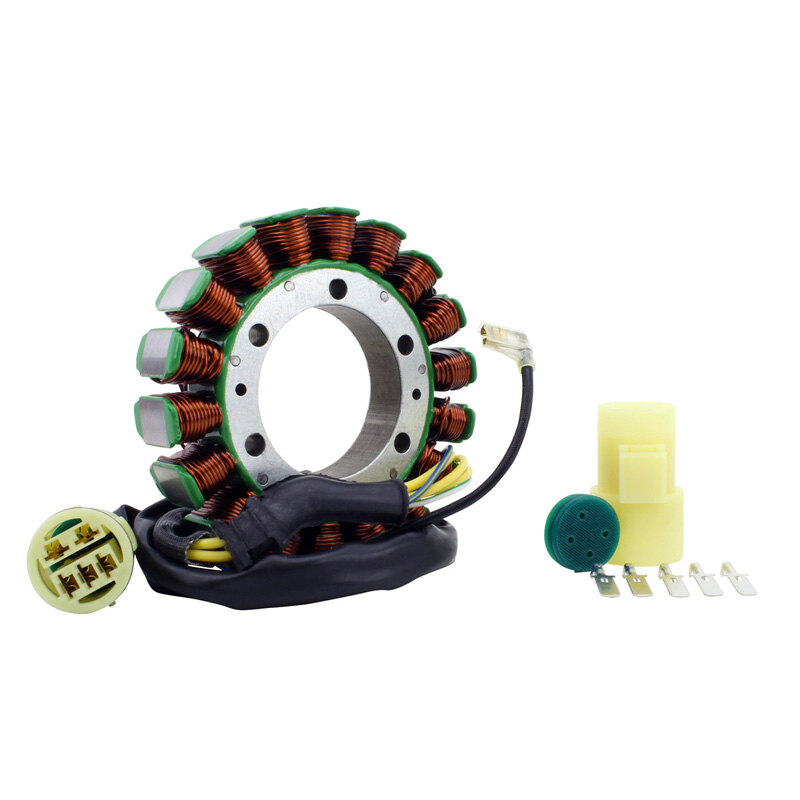

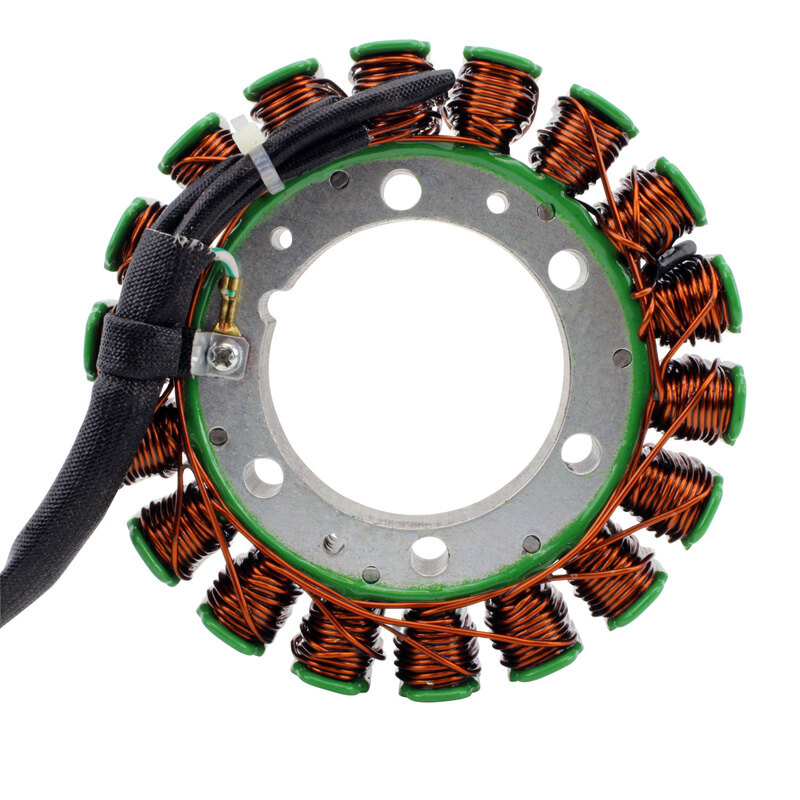

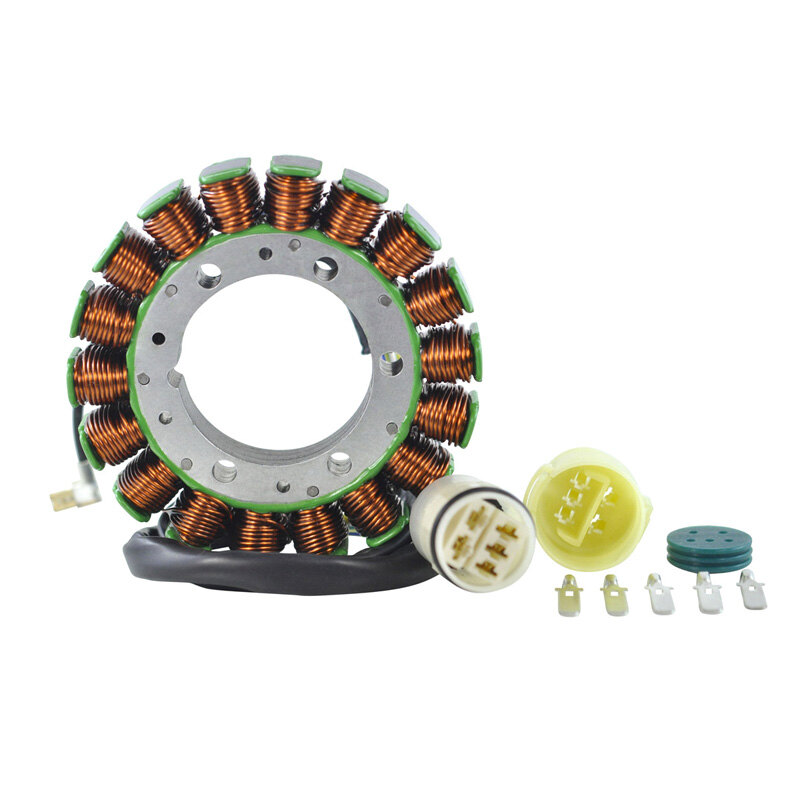

STATOR HON TRX400/450FW/FE/ES/FM 95-04

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil sold separately (see RM00108)
• Pick up pulsar coil\'s wire and plug included

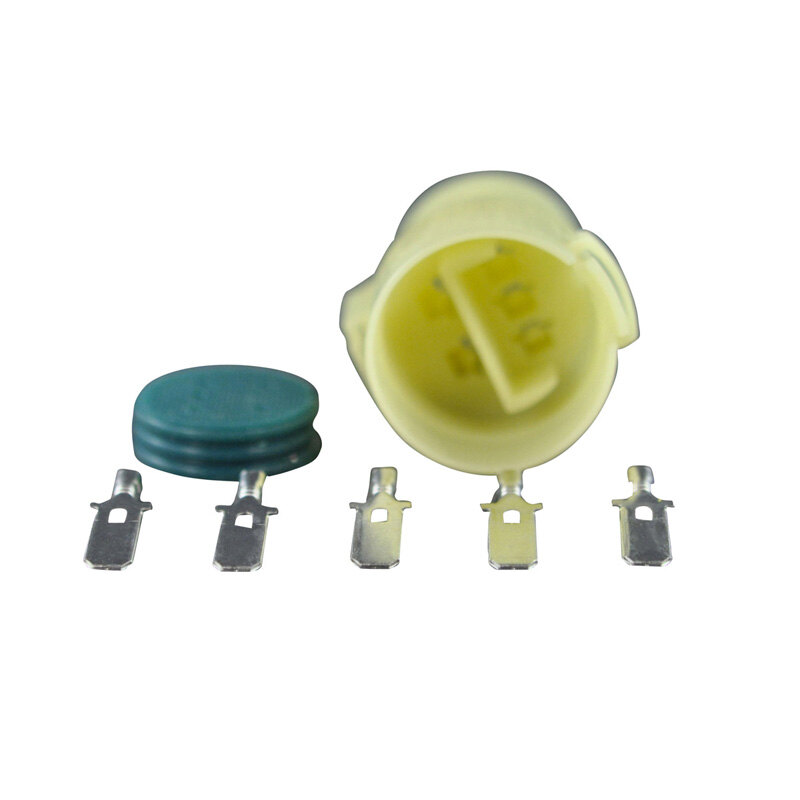

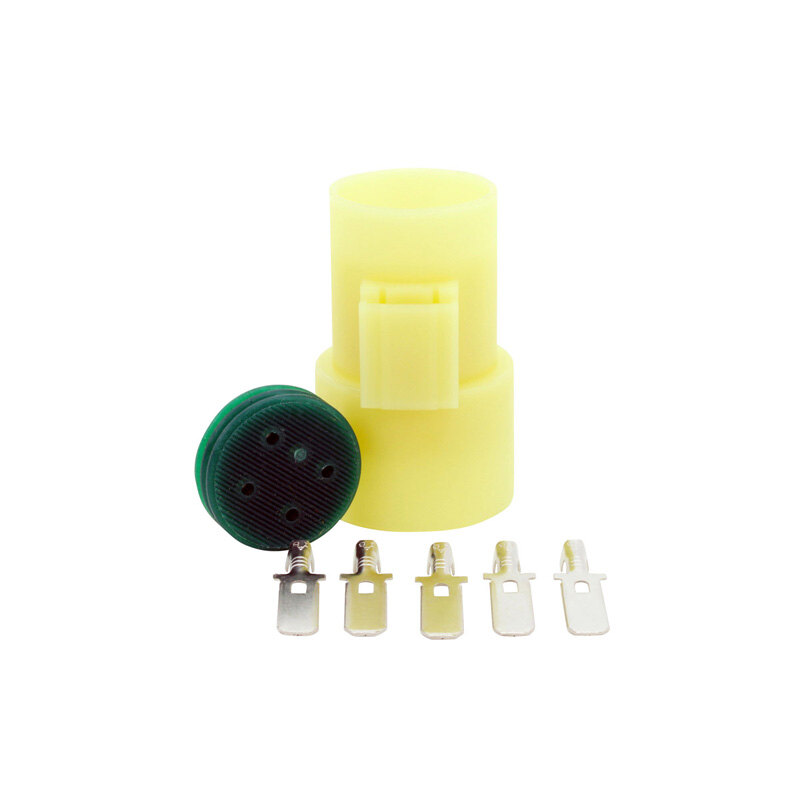

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 6

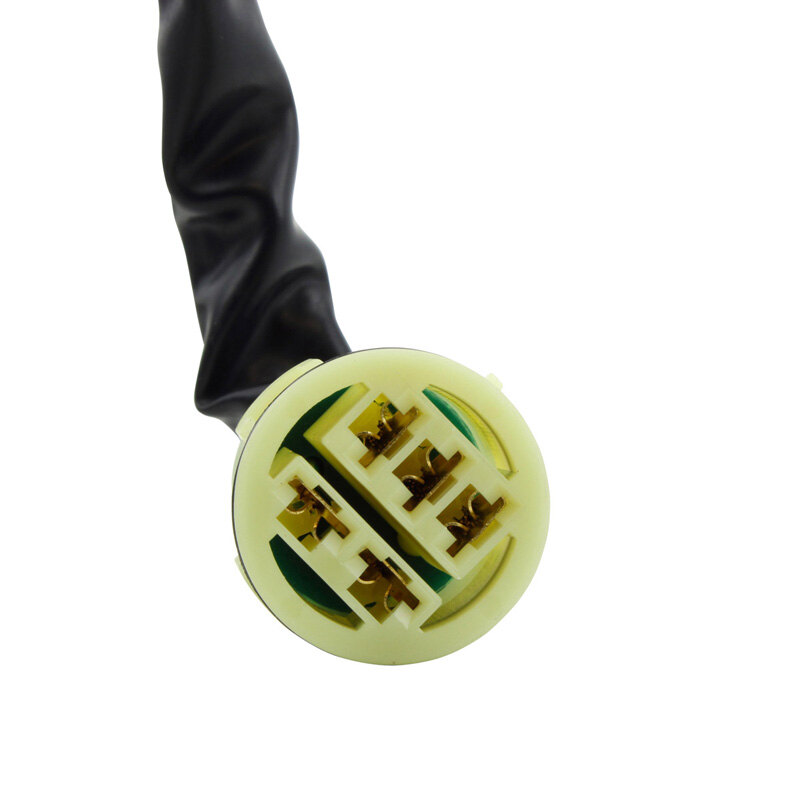

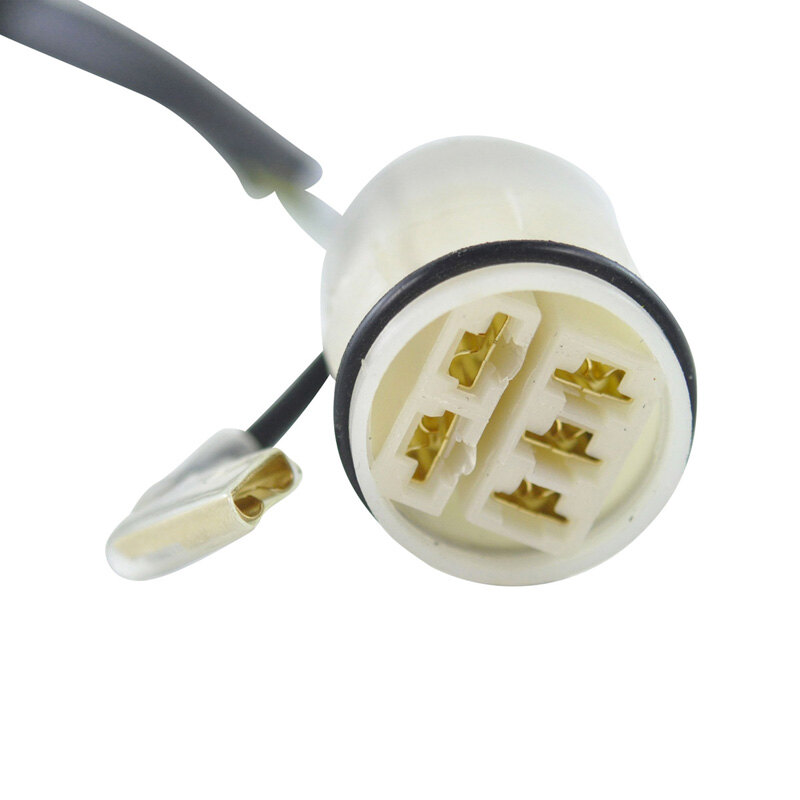

Number of plugs : 1
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms \/-20%
Pickup : Blue to Ground = 360 ohms \/-20%
Please Note: The pickup pulsar coil is sold separately: please see RM00108

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
