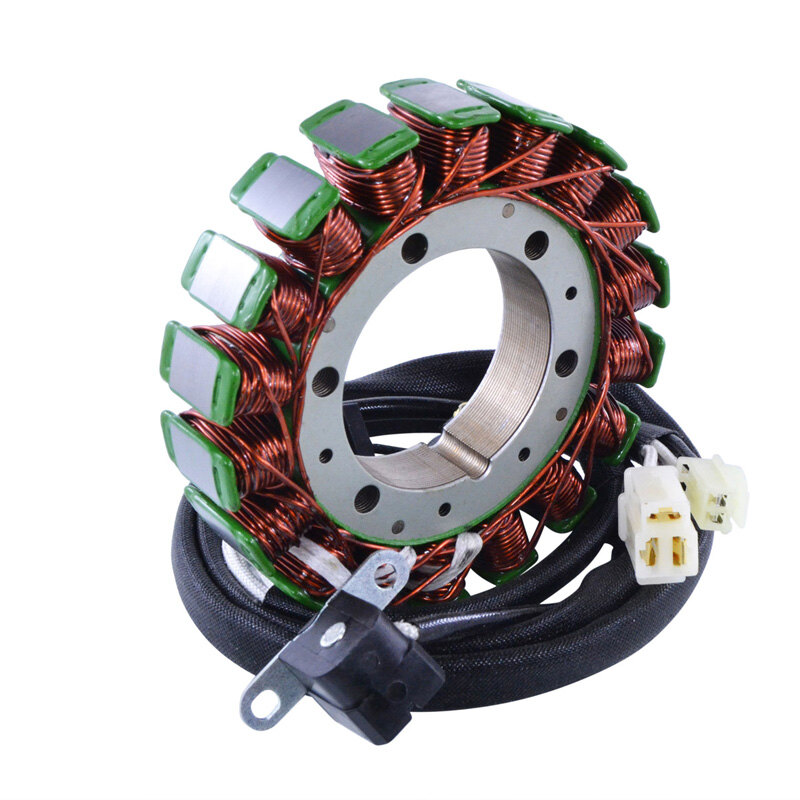

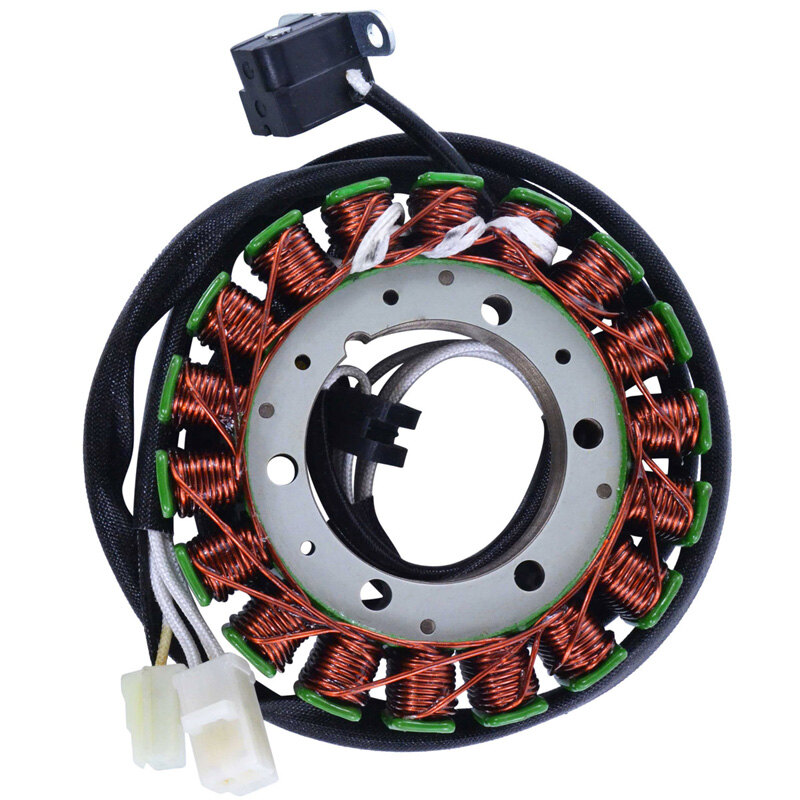

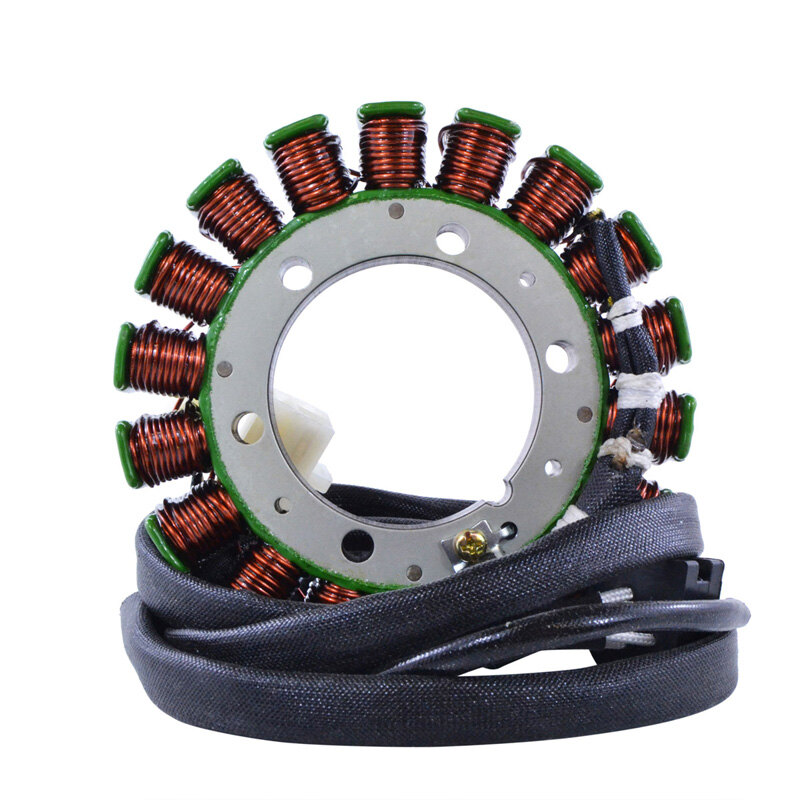

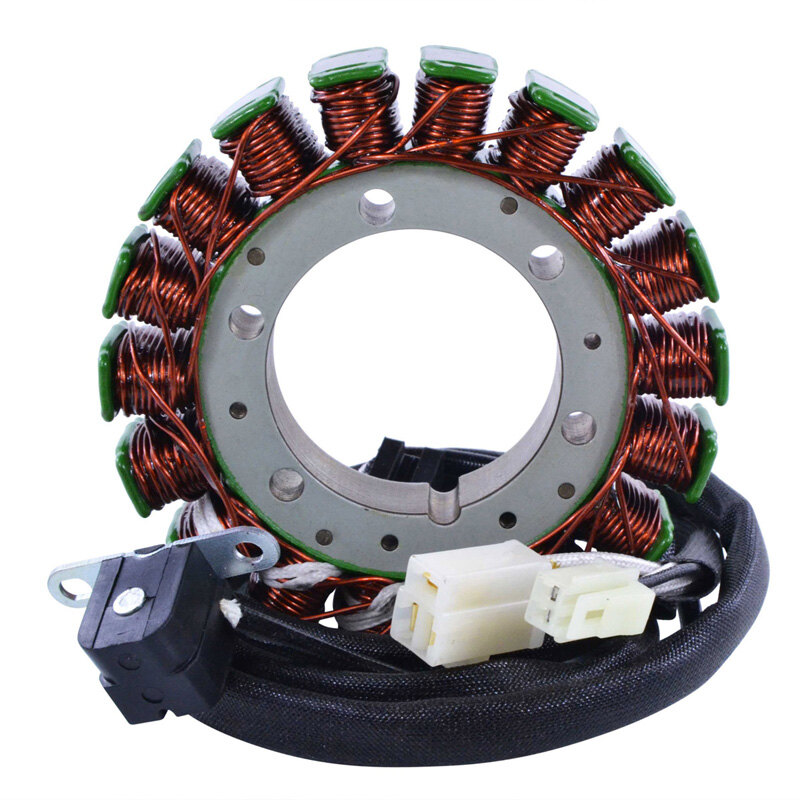

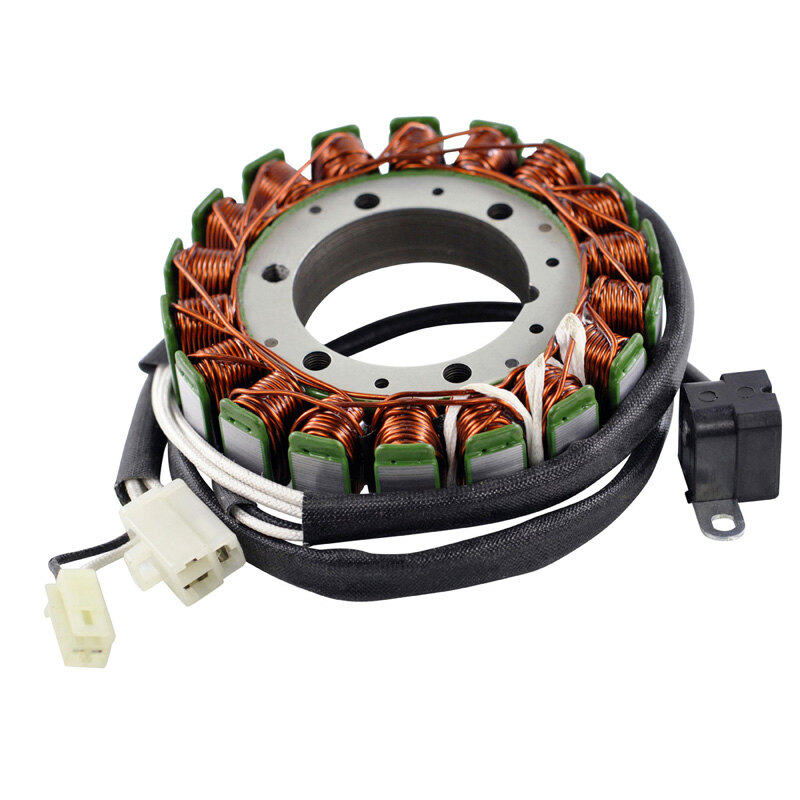

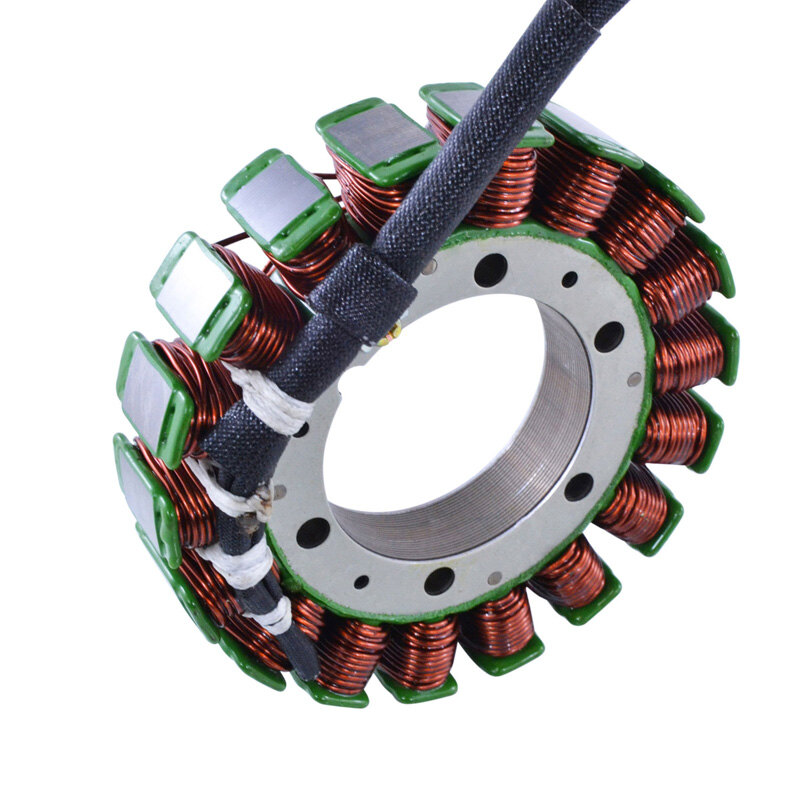

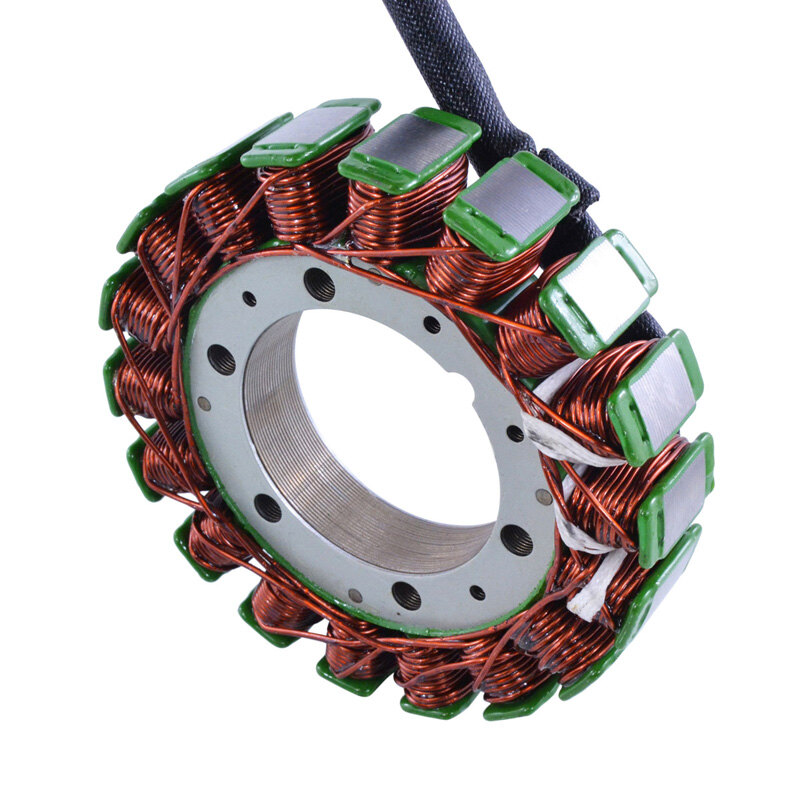

STATOR YAM V-STAR 650 04-16

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

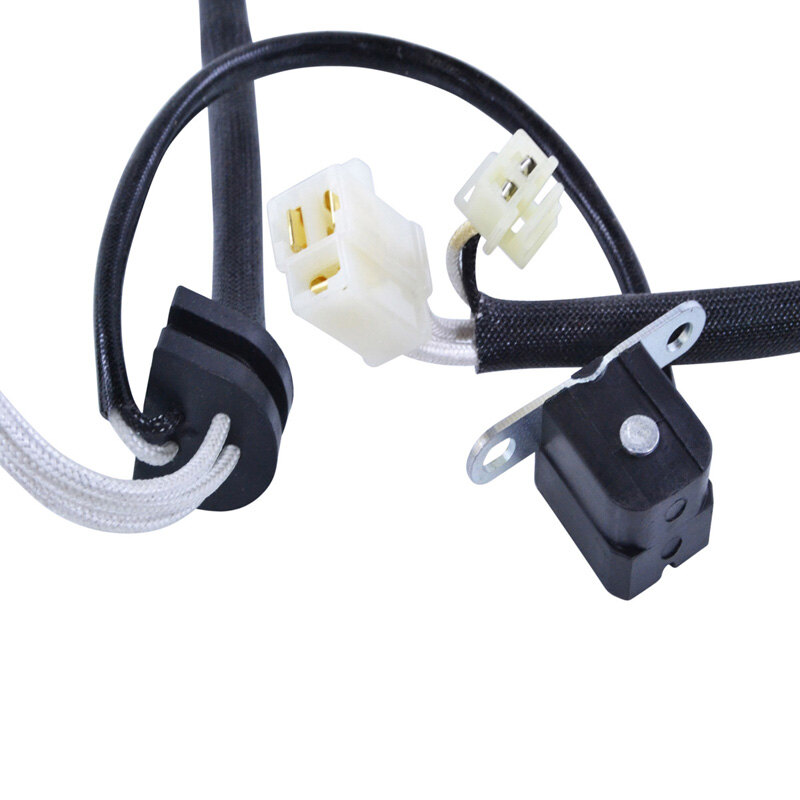

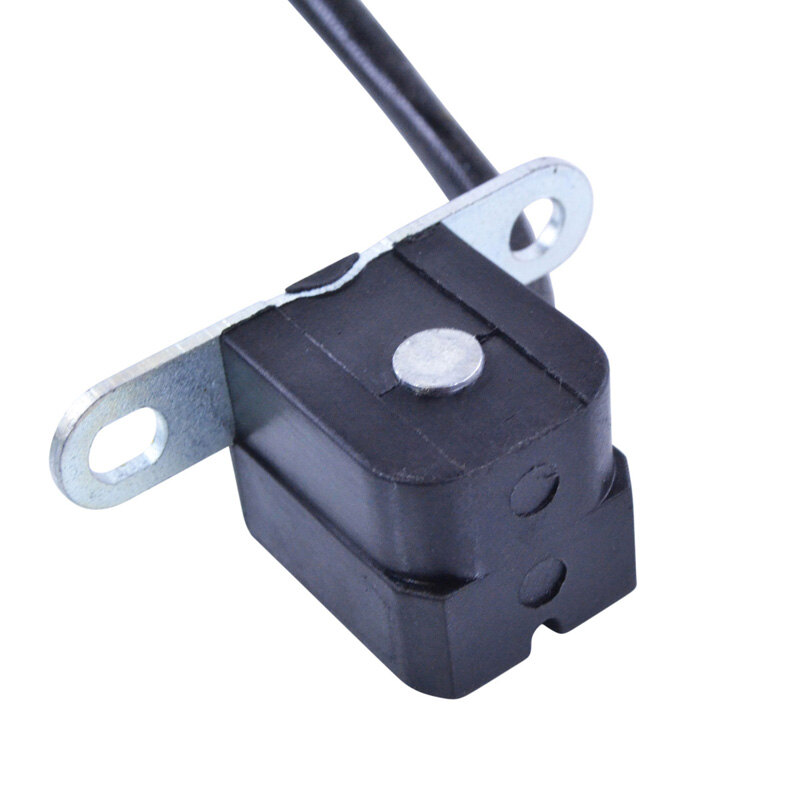

• Pick up pulsar coil included

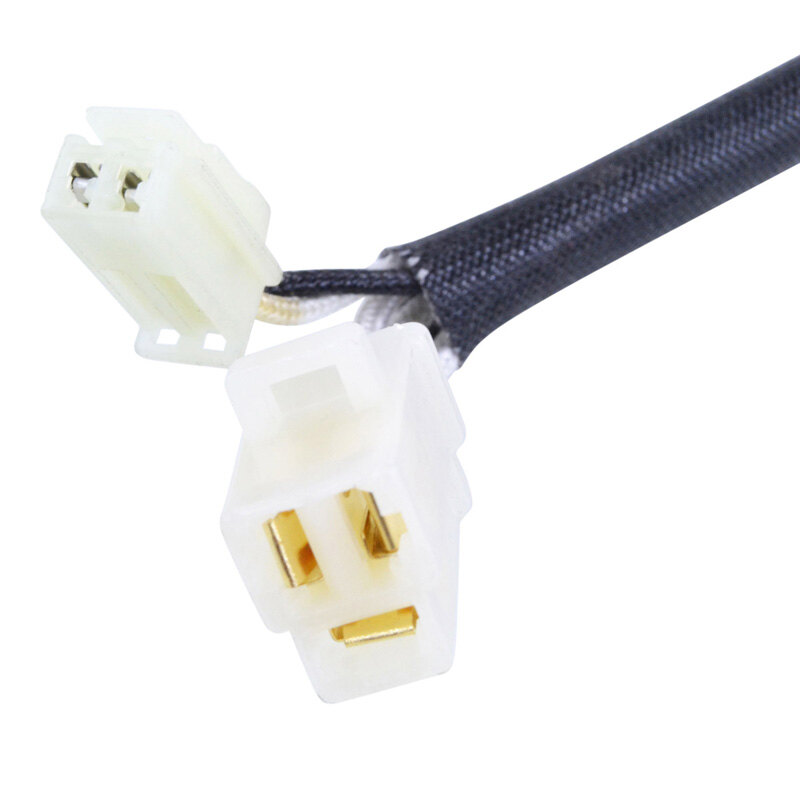

• Connector included

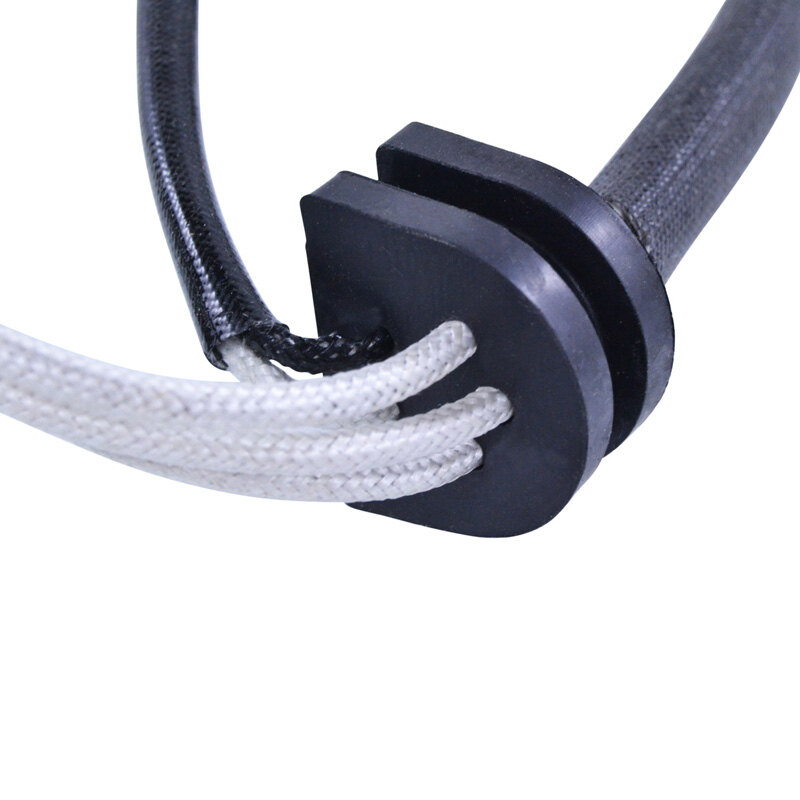

• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm

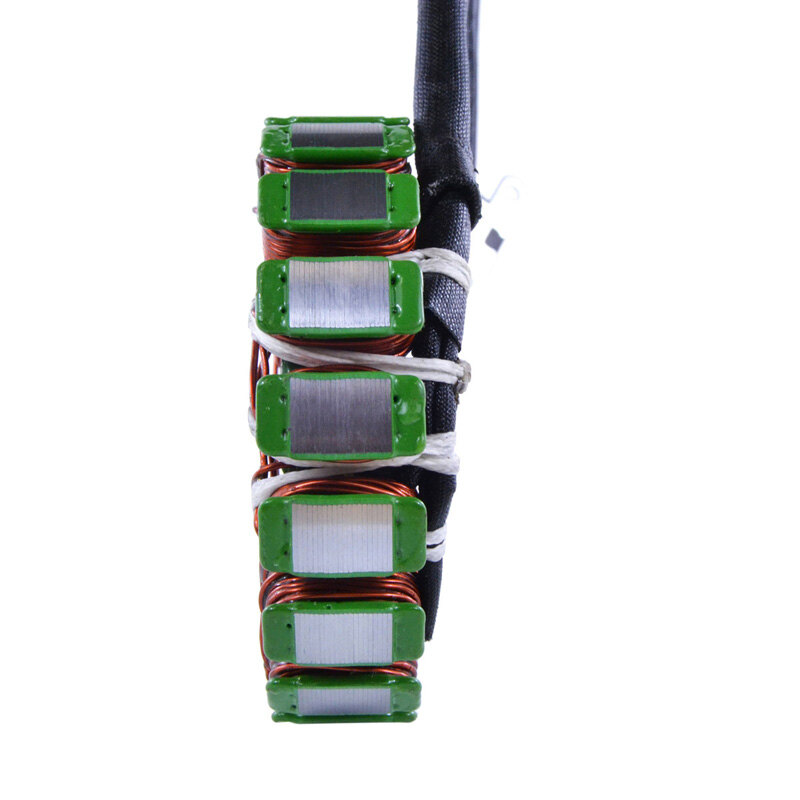

Thickness : 18 mm
Length of wires stator to grommet : 235 mm
Length of wires grommet to plug : 736 mm
Length of pickup coil\'s wire to grommet : 200 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms \-20%
Pickup : White to Black = 0.35 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
