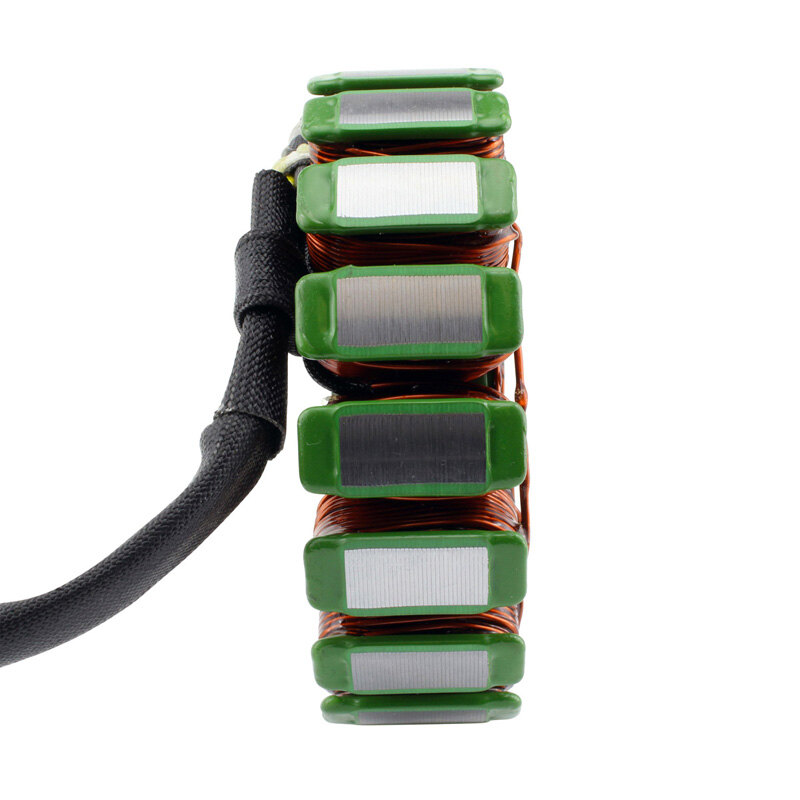

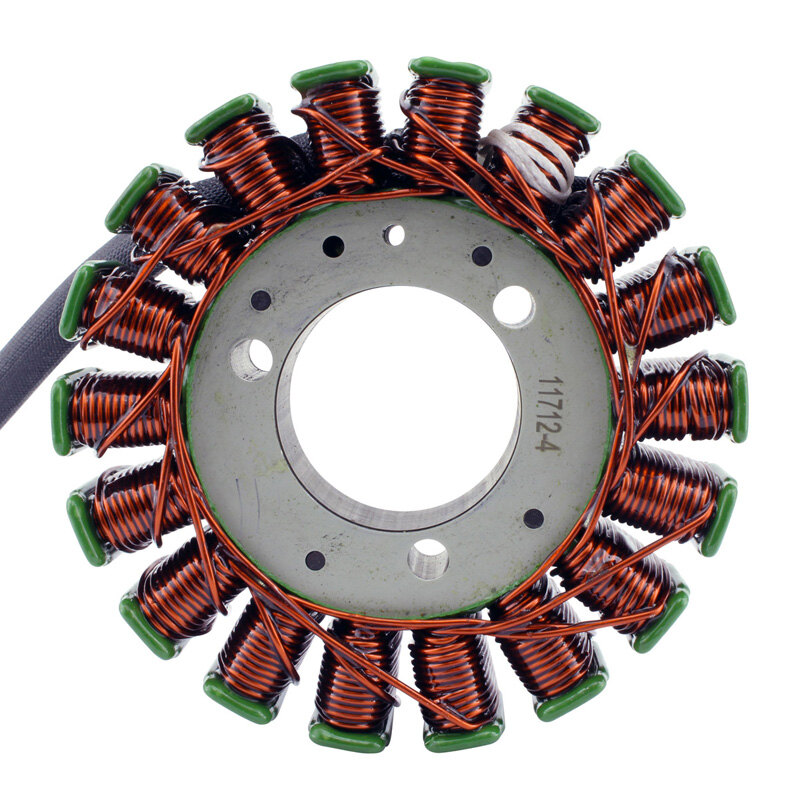

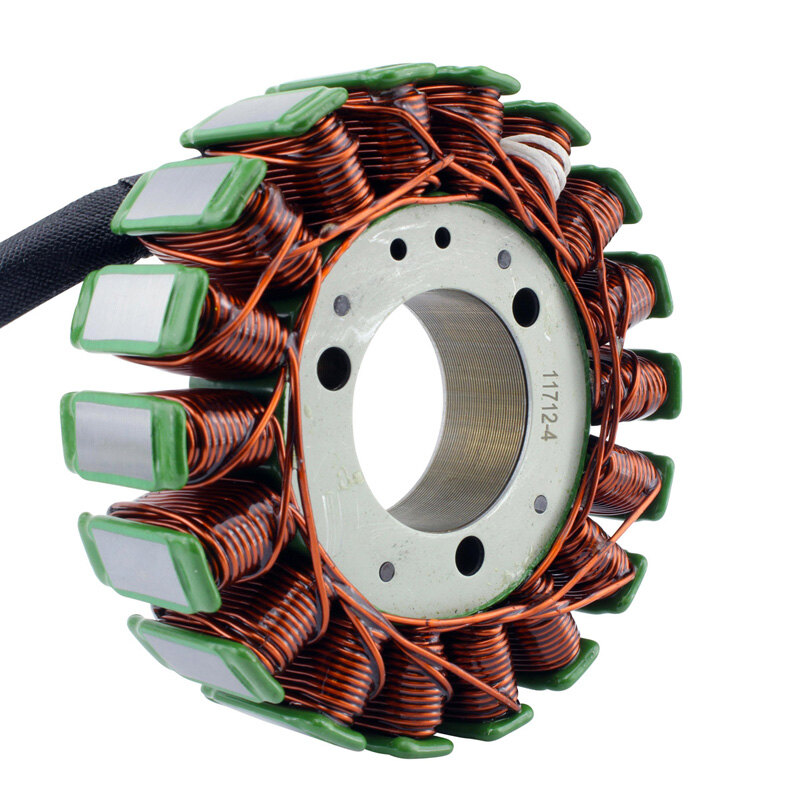

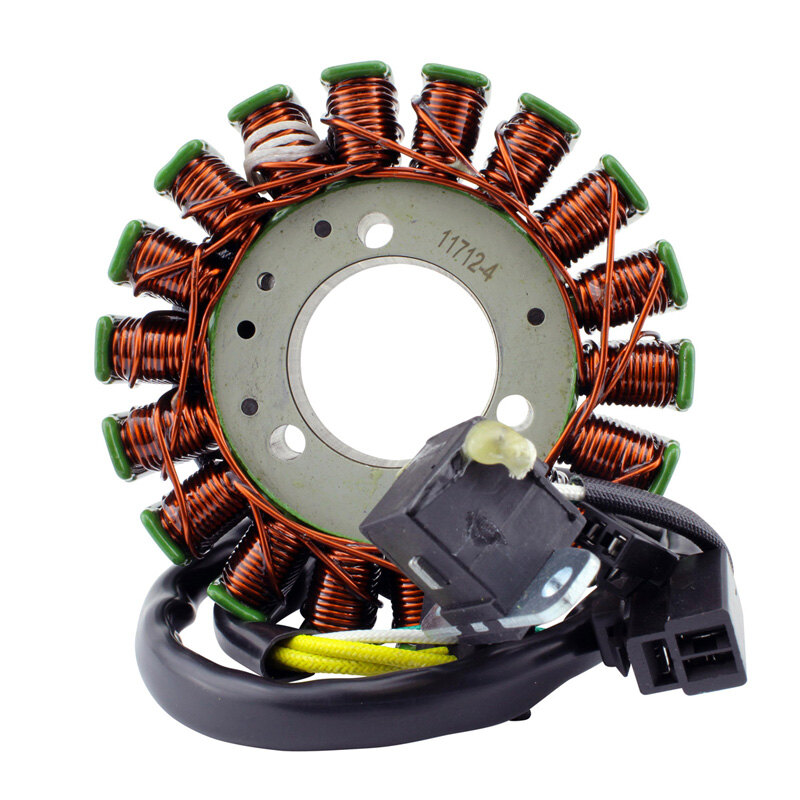

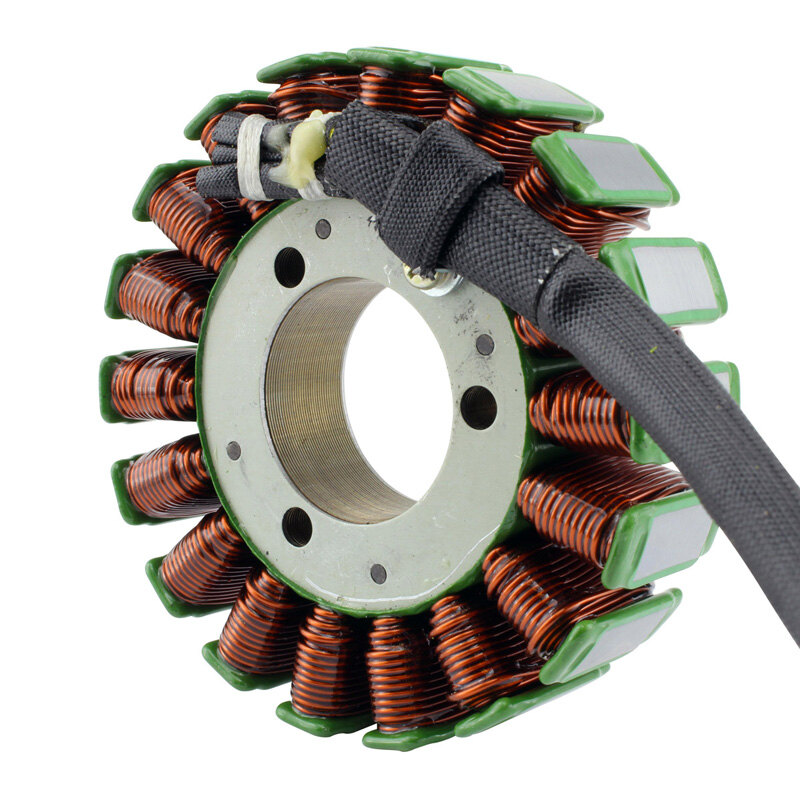

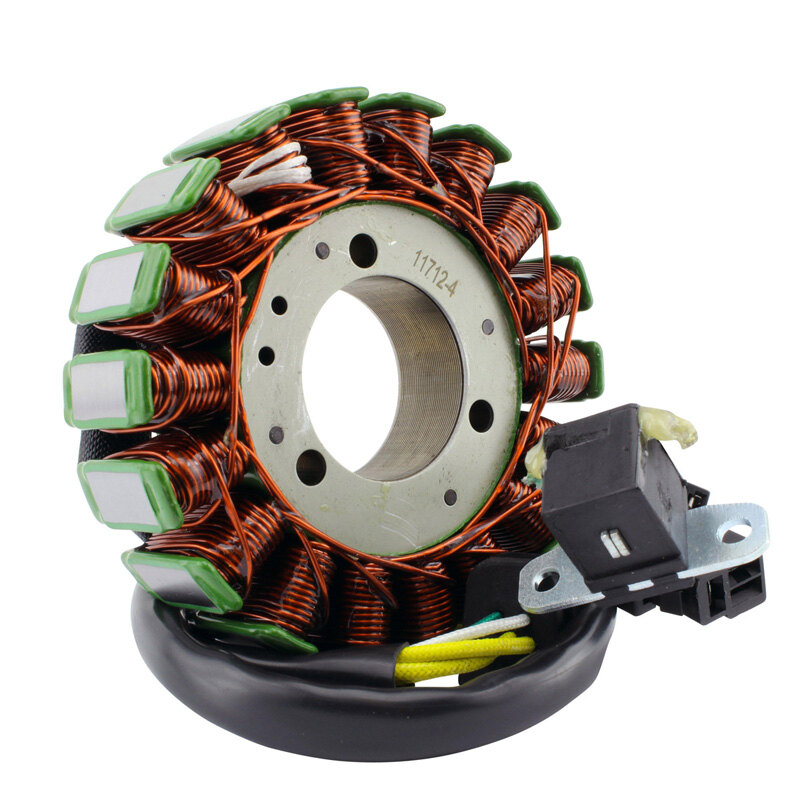

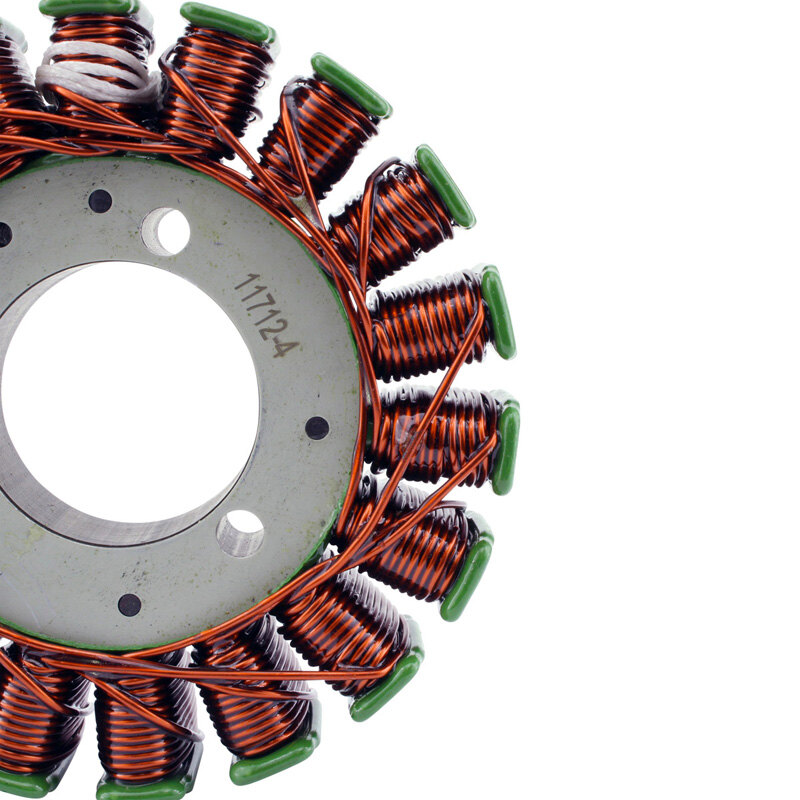

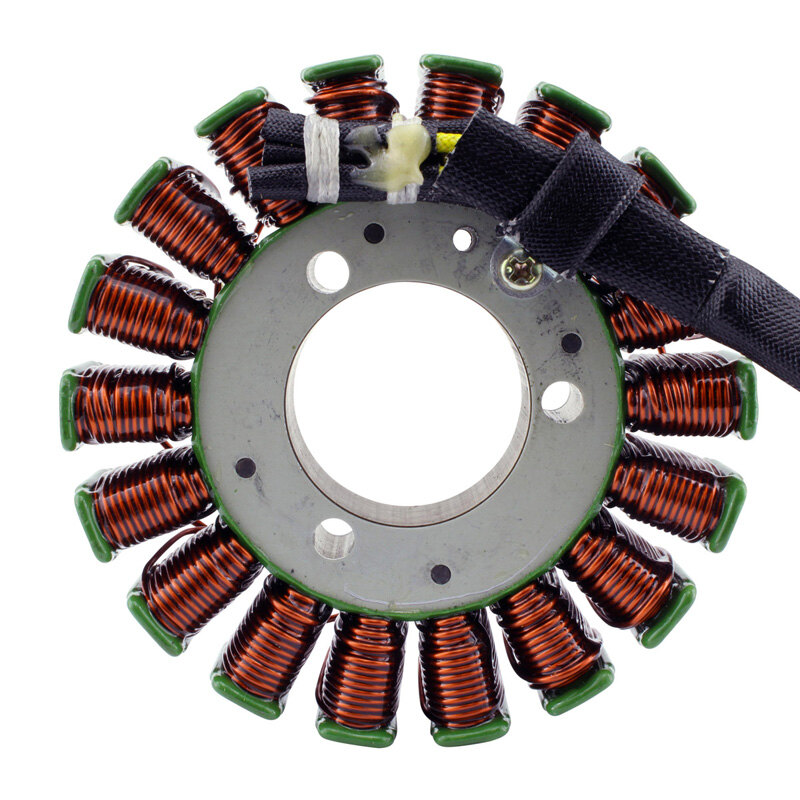

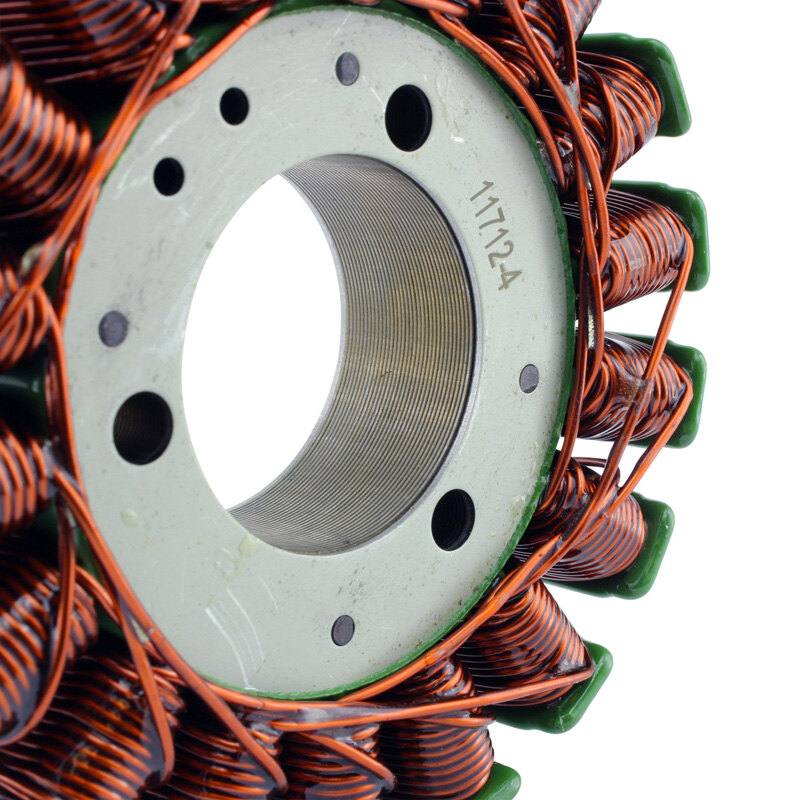

STATOR SUZ V-STROM 650 08-16

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

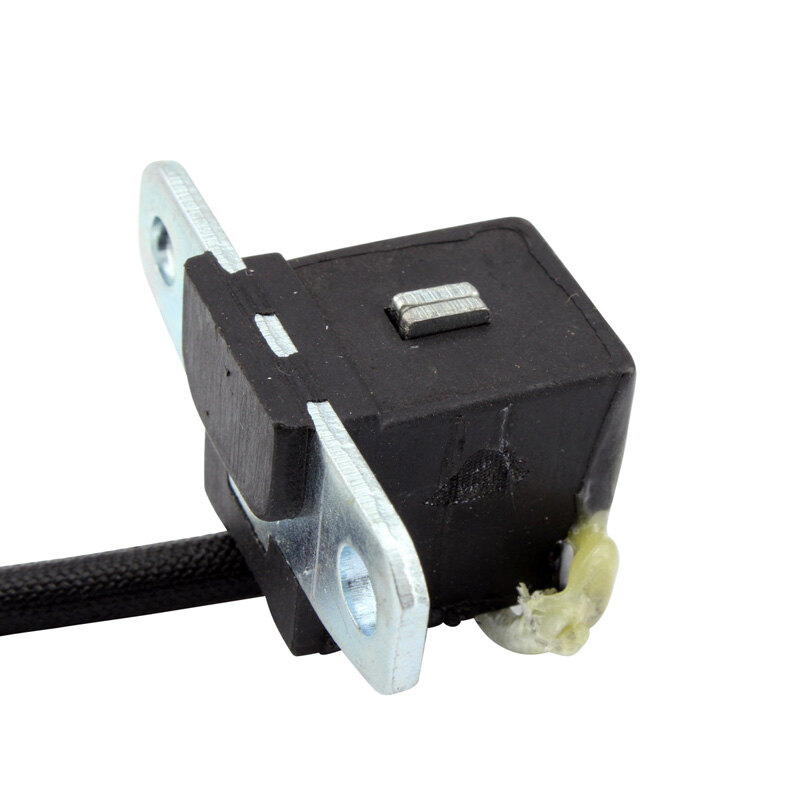

• Pick up pulsar coil included

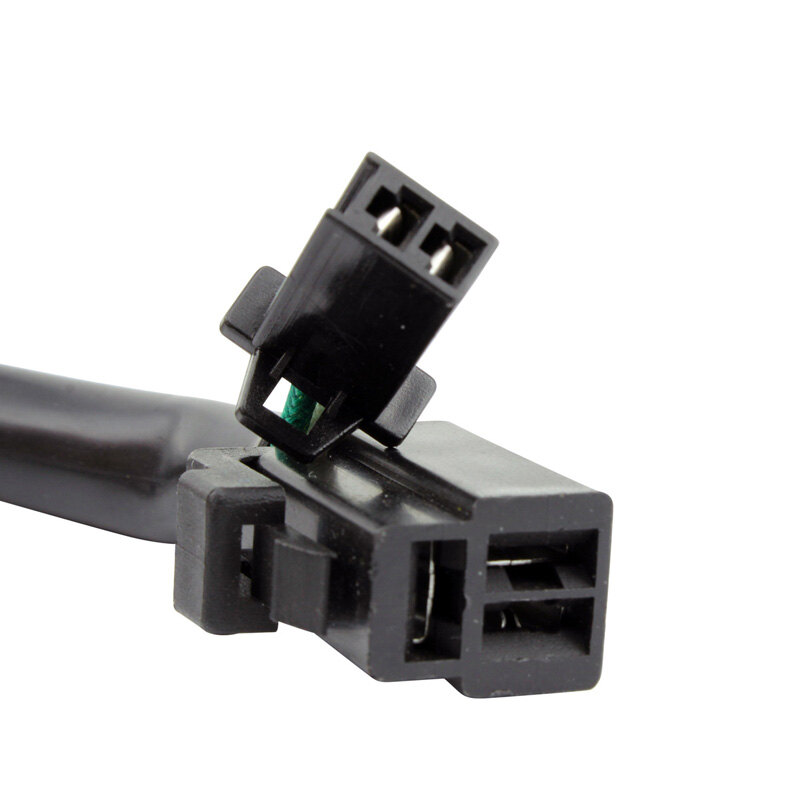

• Connectors included

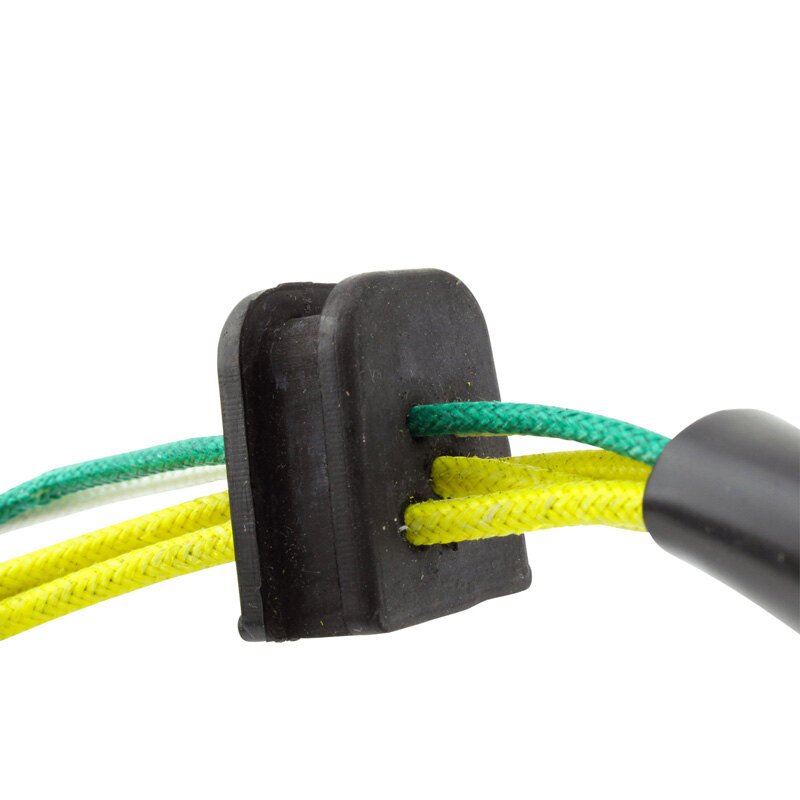

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 570 mm
Length of pickup coil\'s wire to grommet : 70 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms \-20%
Pickup : Green to White = 200 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
