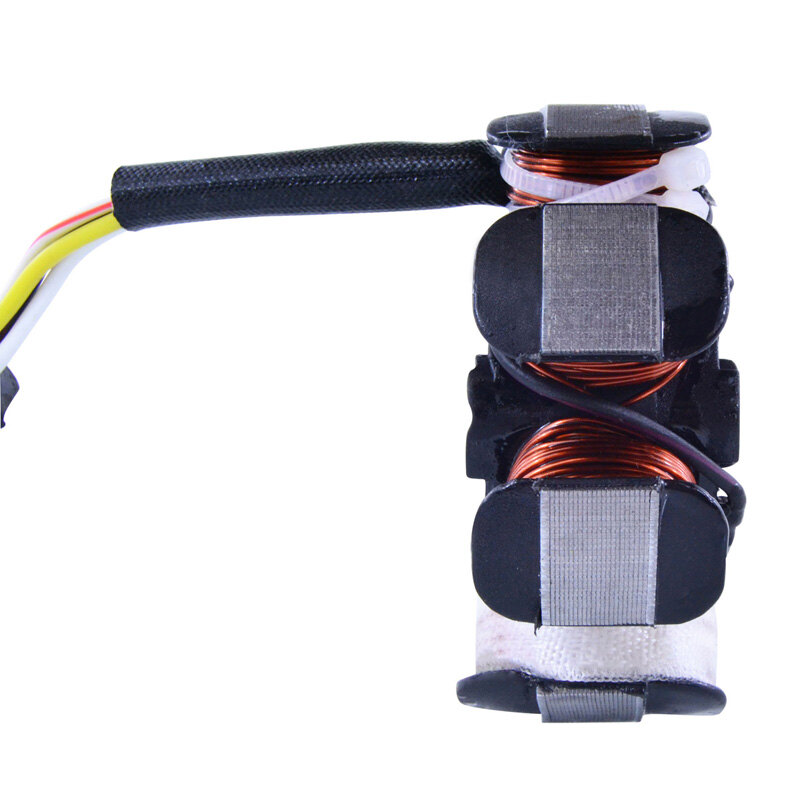

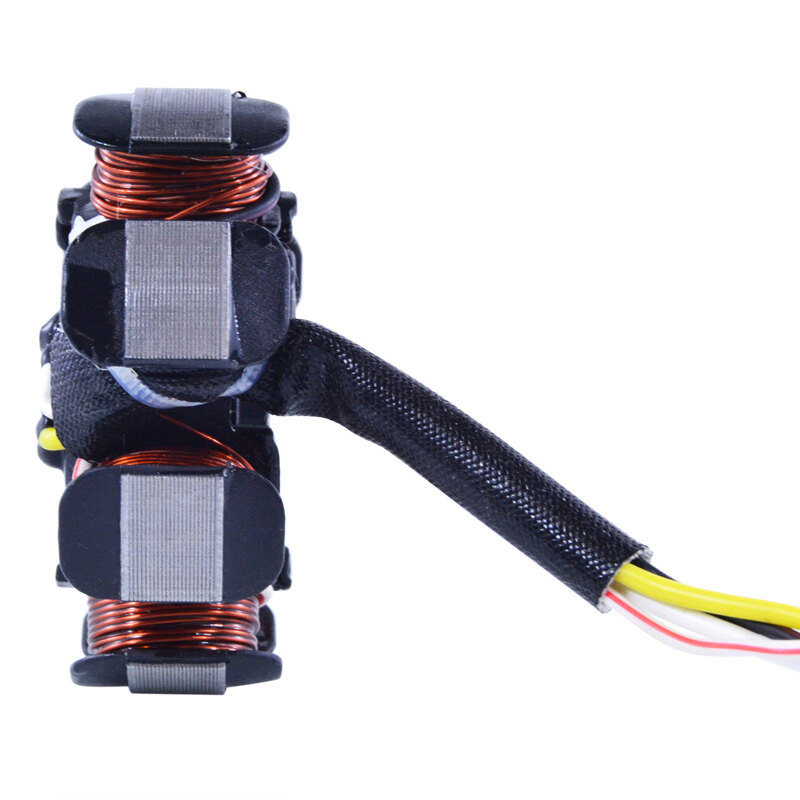

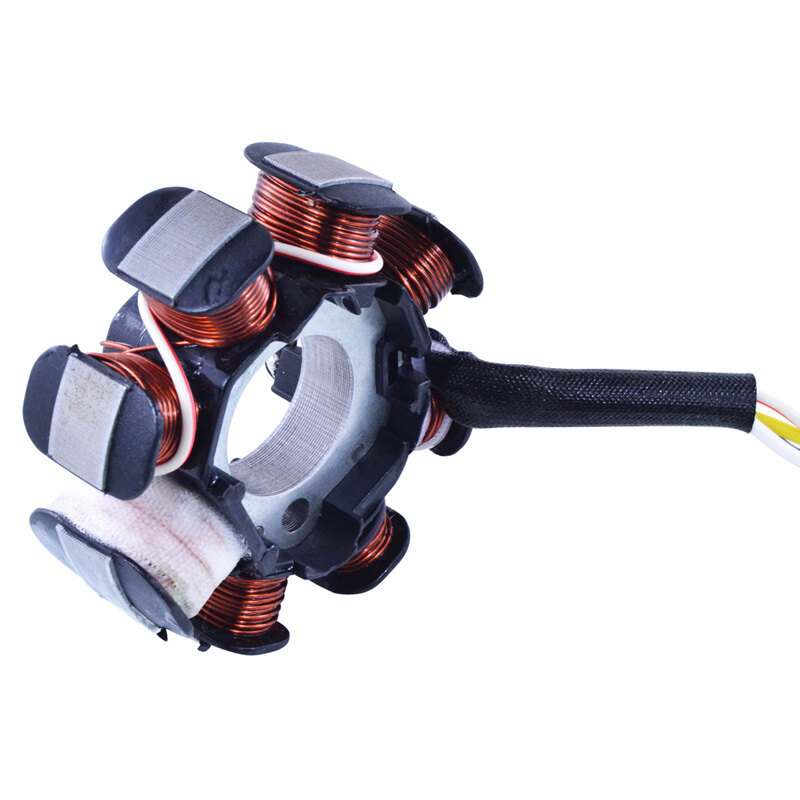

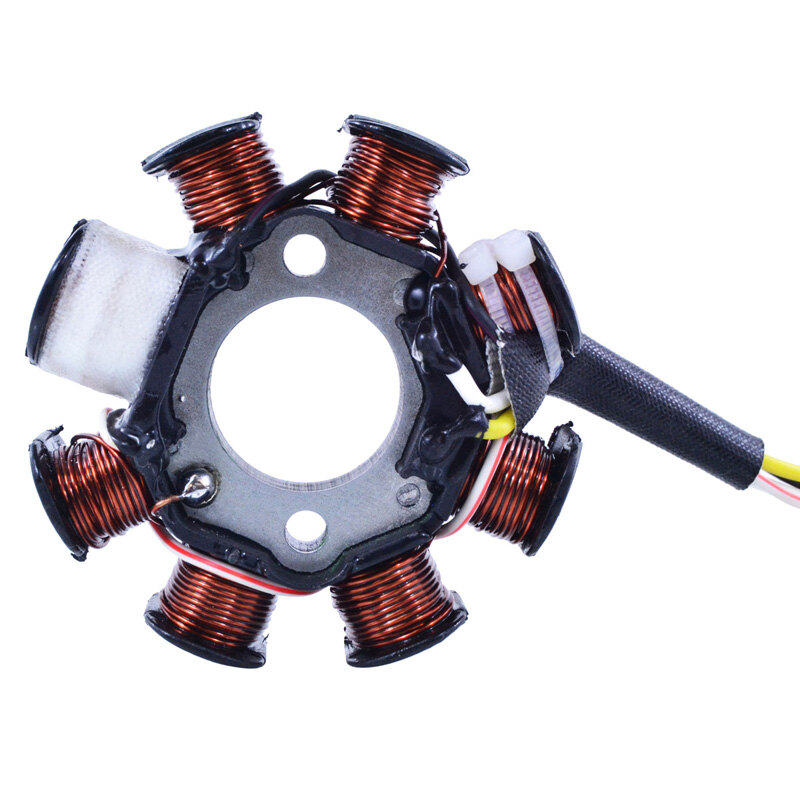

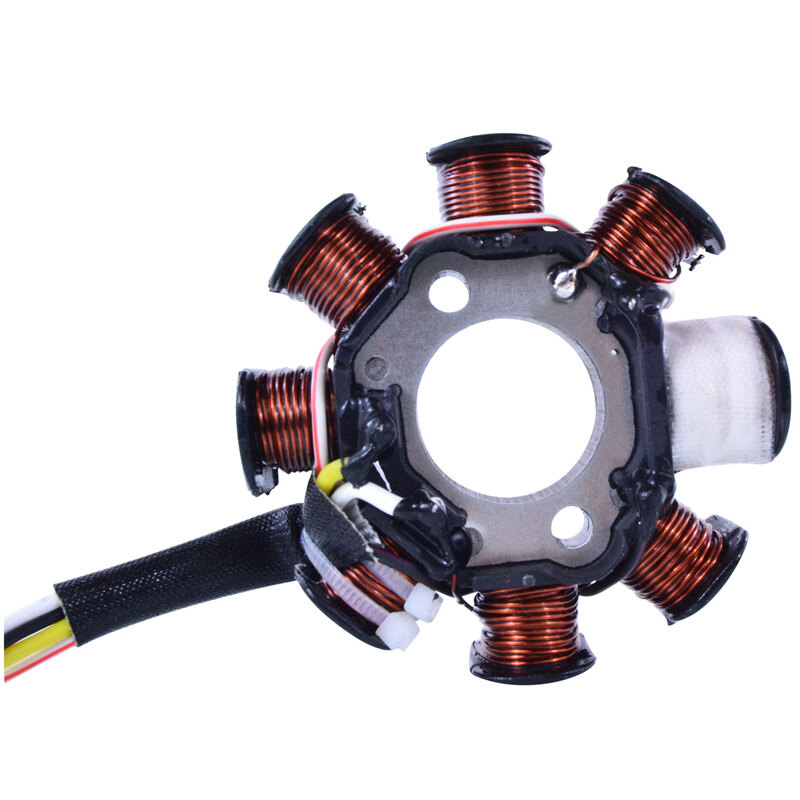

STATOR KTM 250-530 EXC|XC-W|SX|MXC-G 99-11

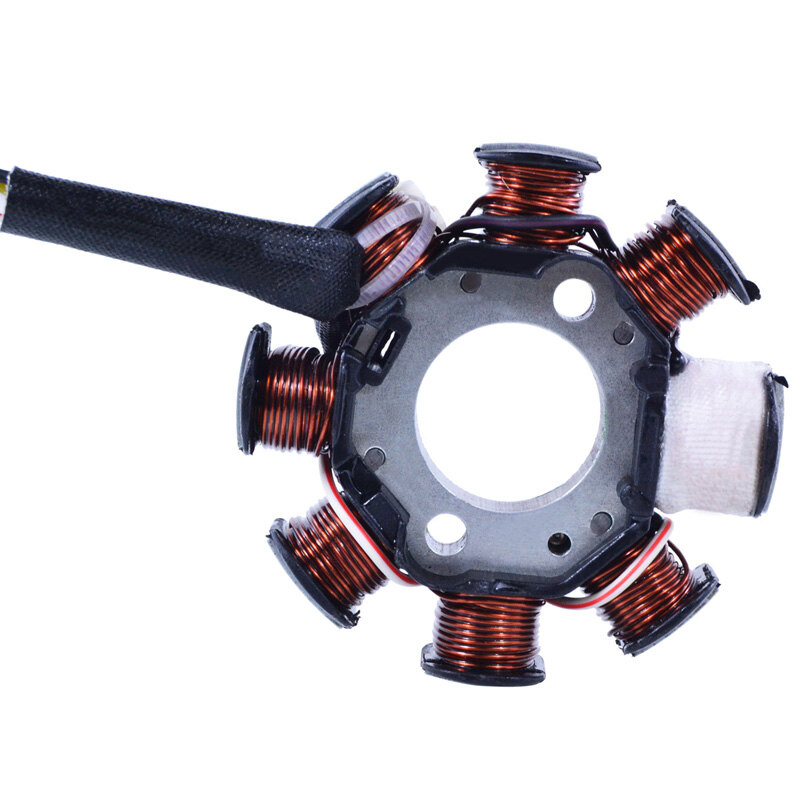

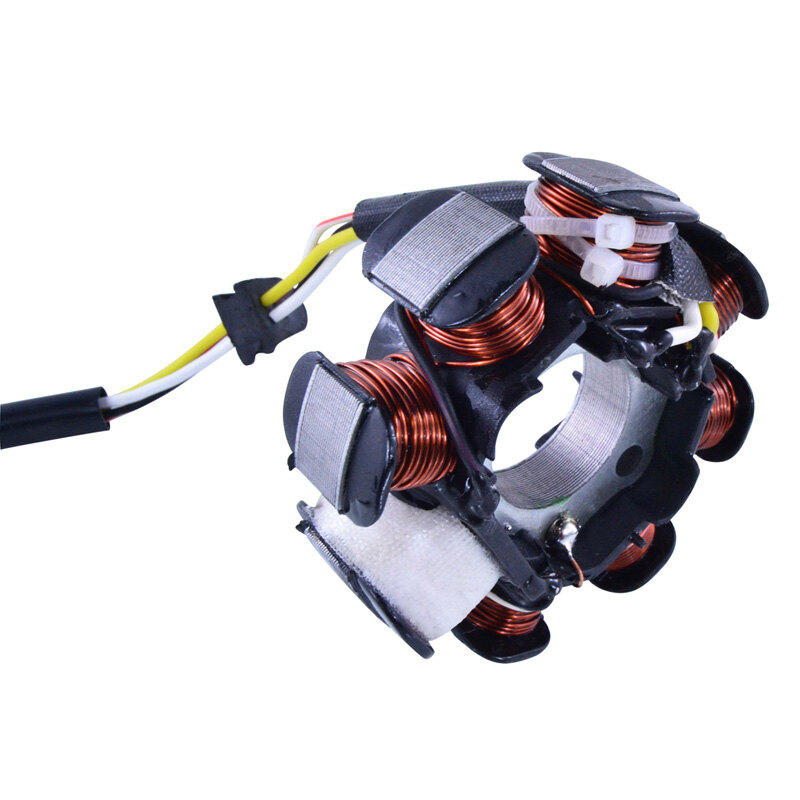

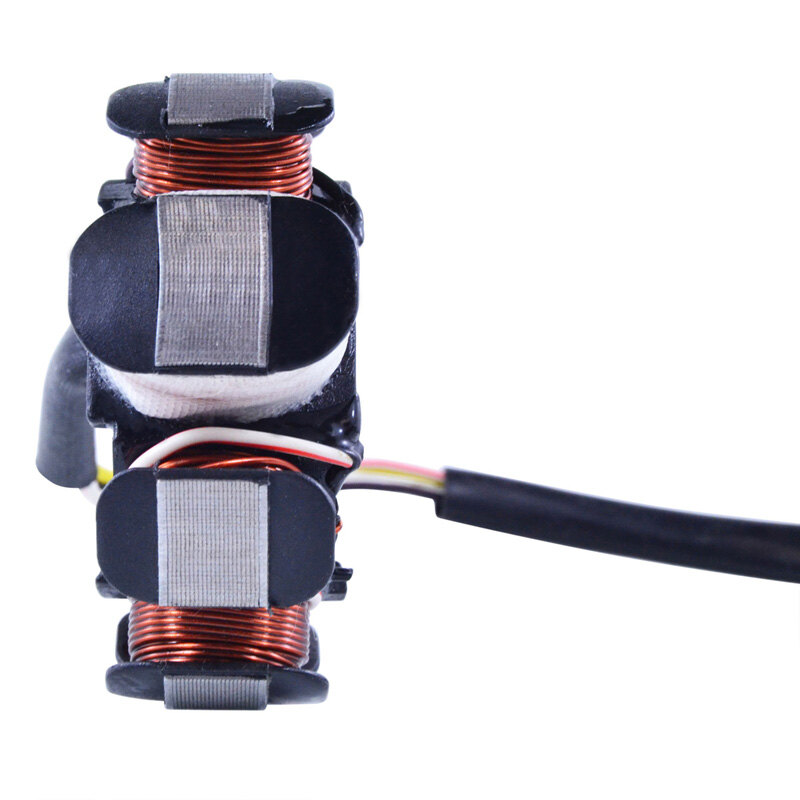

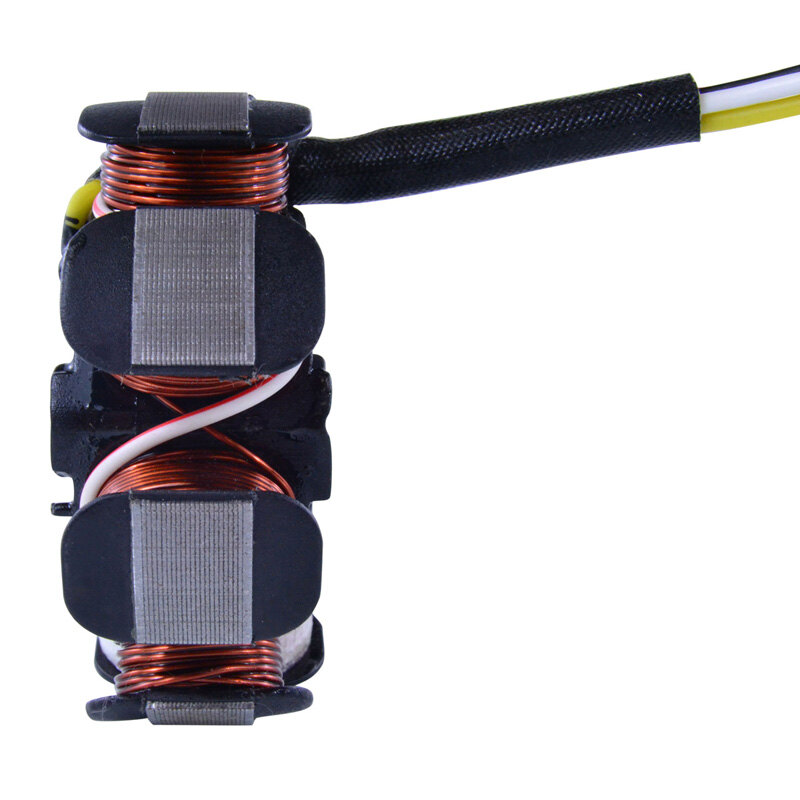

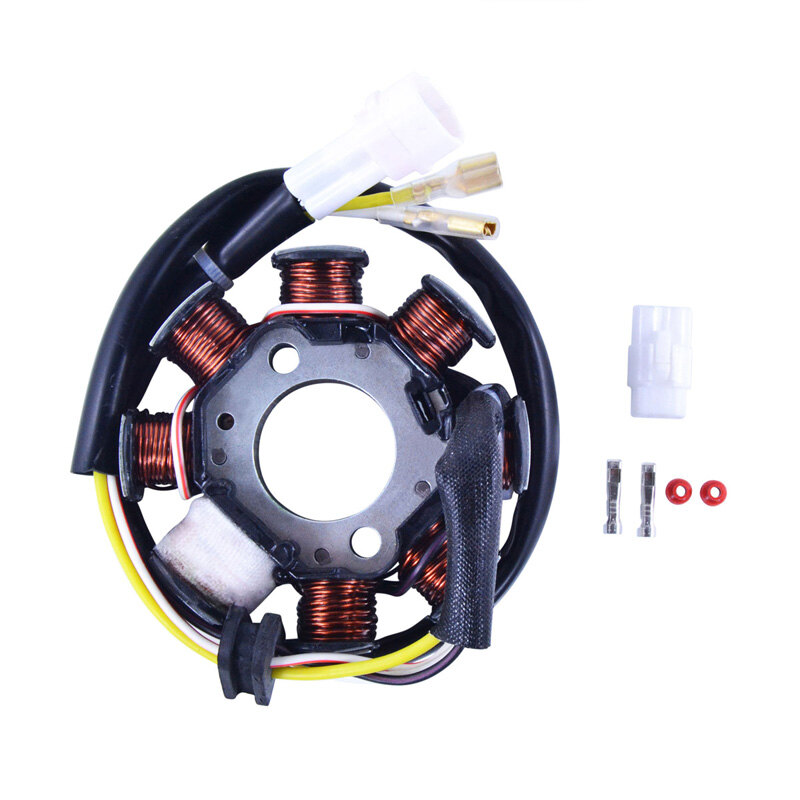

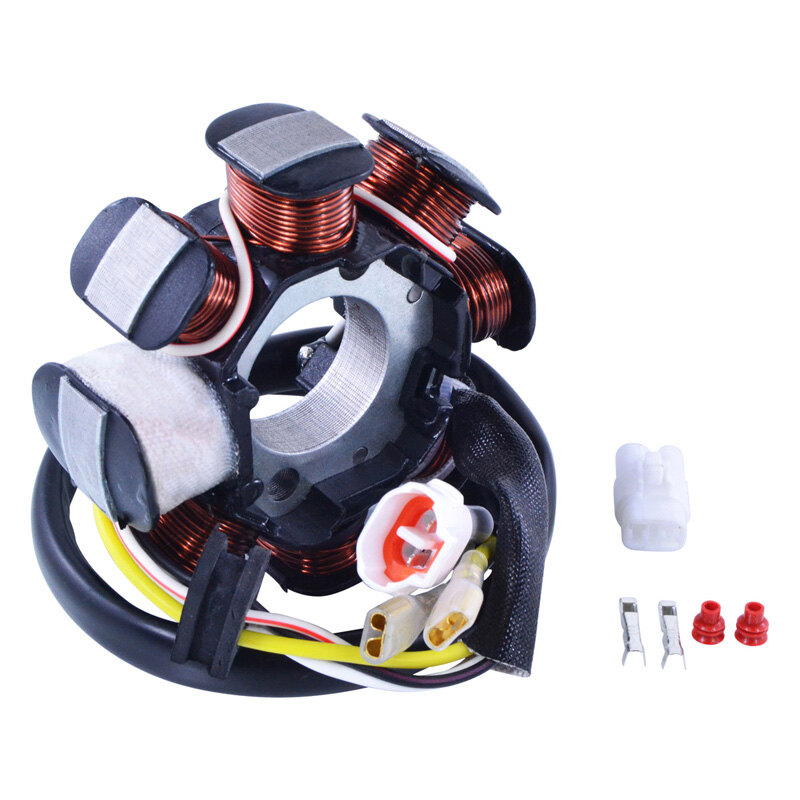

Brand new aftermarket Generator Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

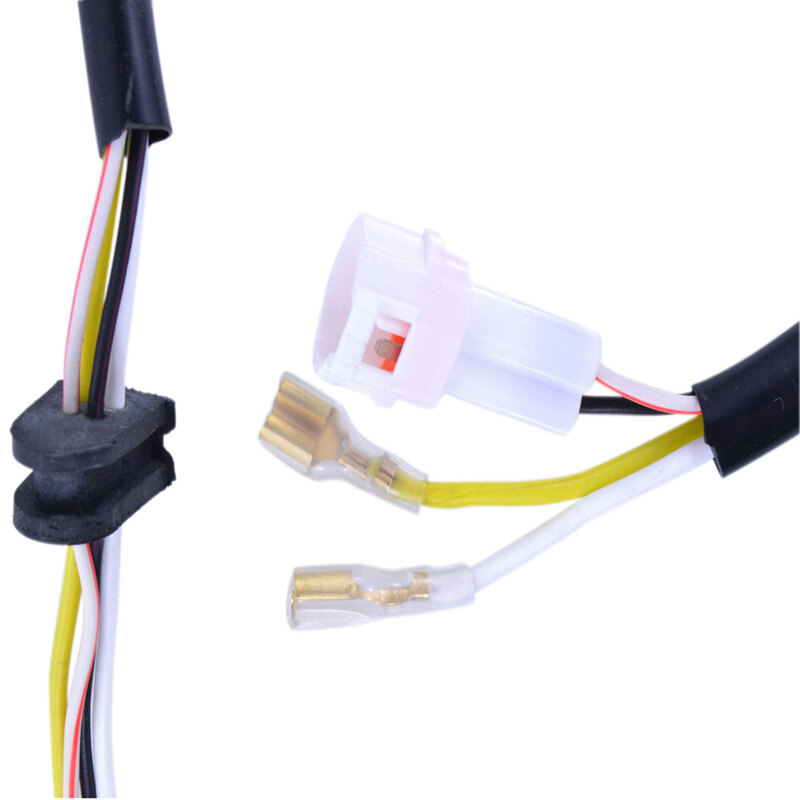

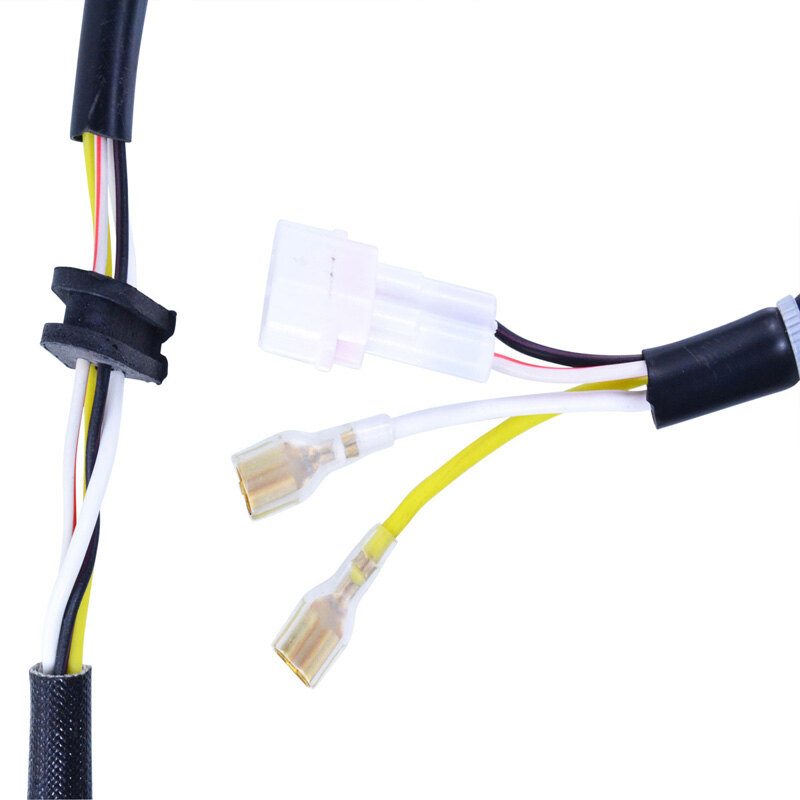

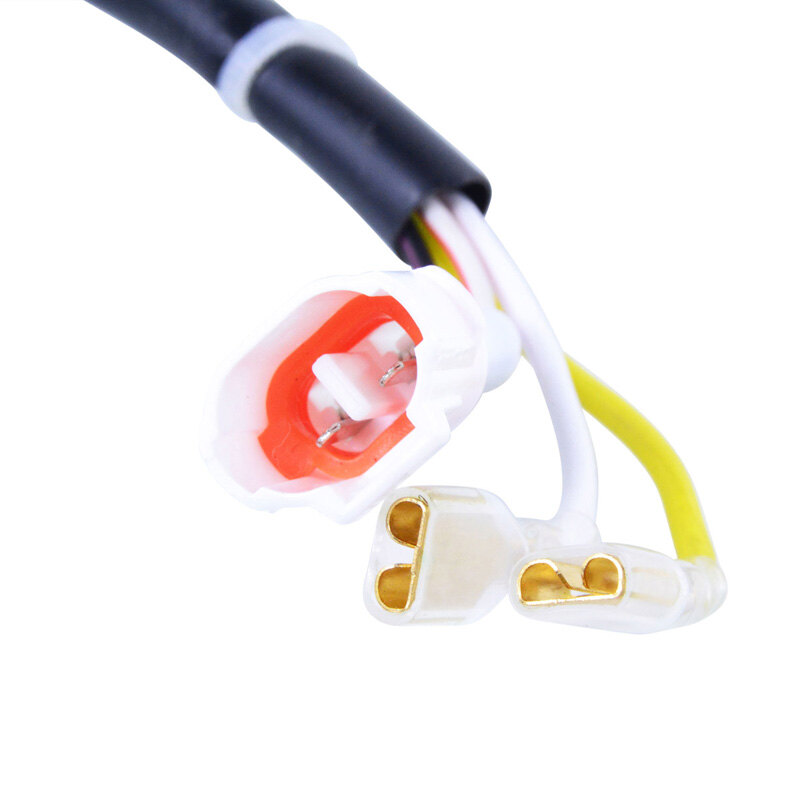

• Connector included

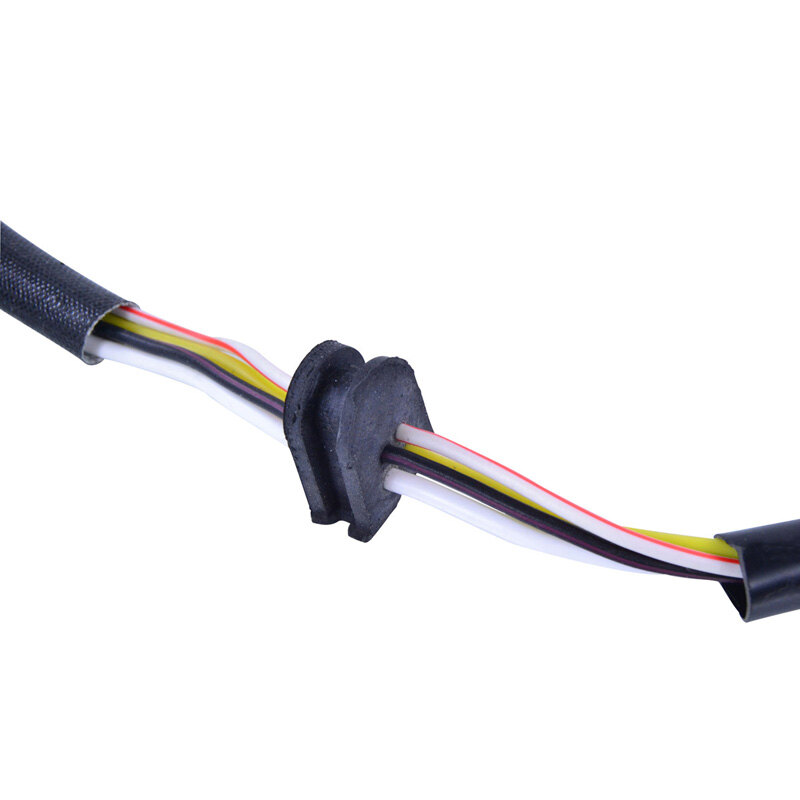

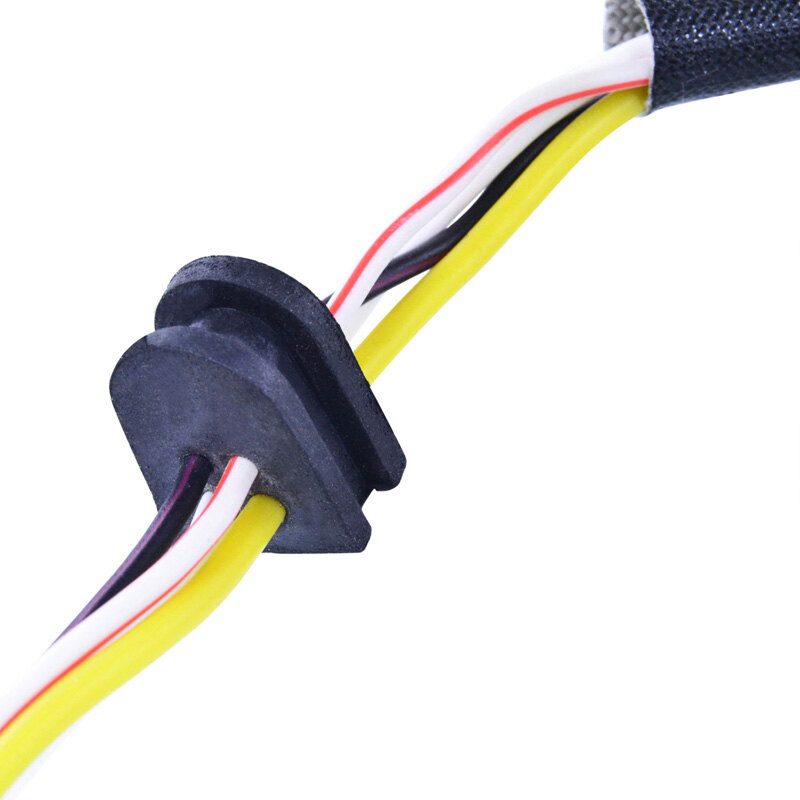

• Rubber grommet included
• All products shipped are tested

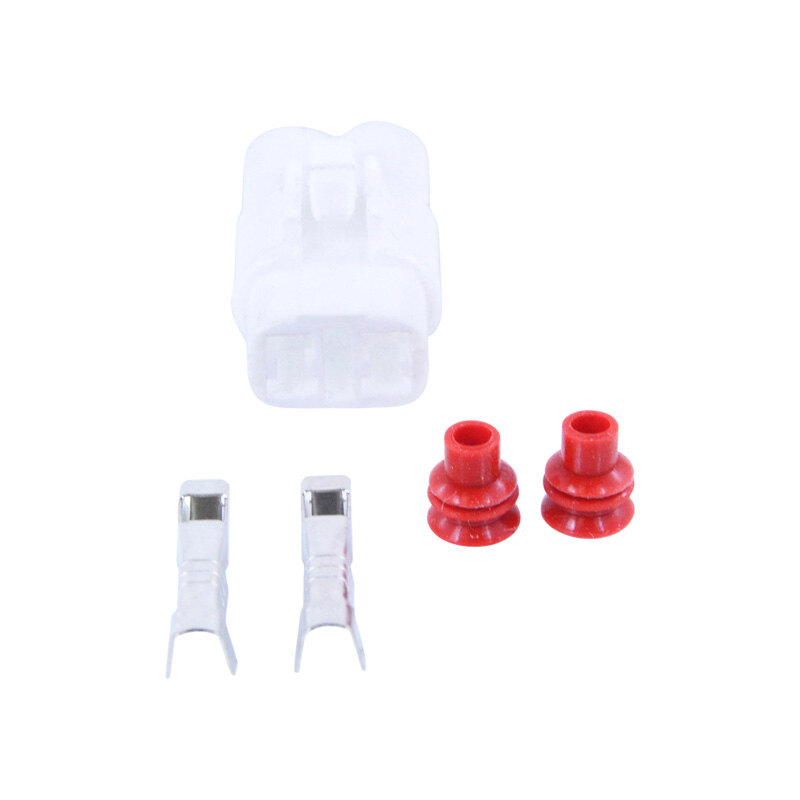

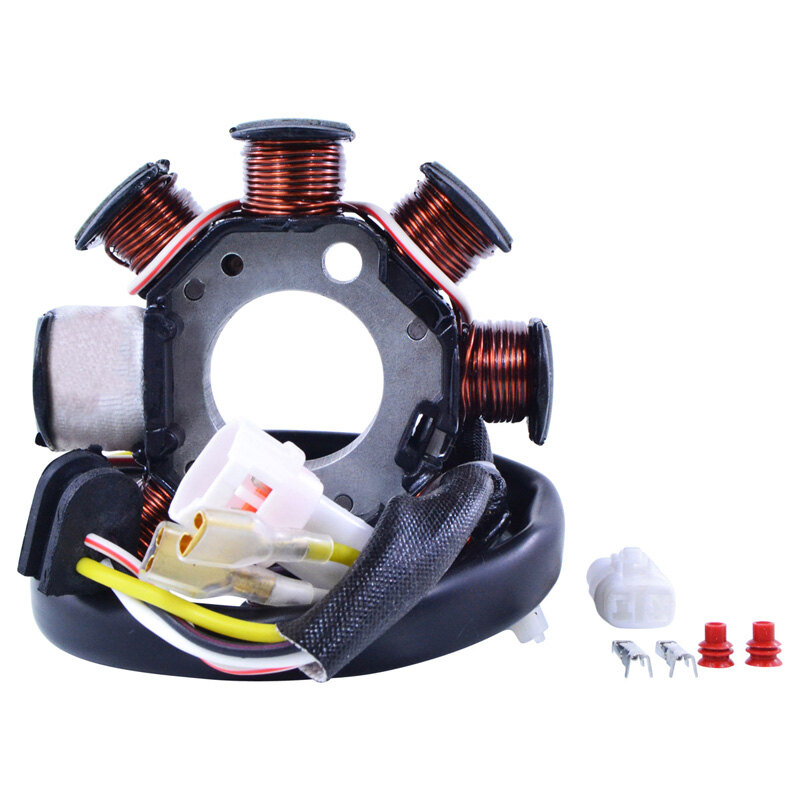

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 29 mm
Exterior diameter : 83 mm
Thickness : 13 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 490 mm

Other specifications :
Number of wires : 4
Number of plugs : 3
Number of pins : 4

Wire to wire resistance :
Alternator :White to Yellow = 0.5 ohms \-20%
Source: Black/Red to Red/White = 30 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
