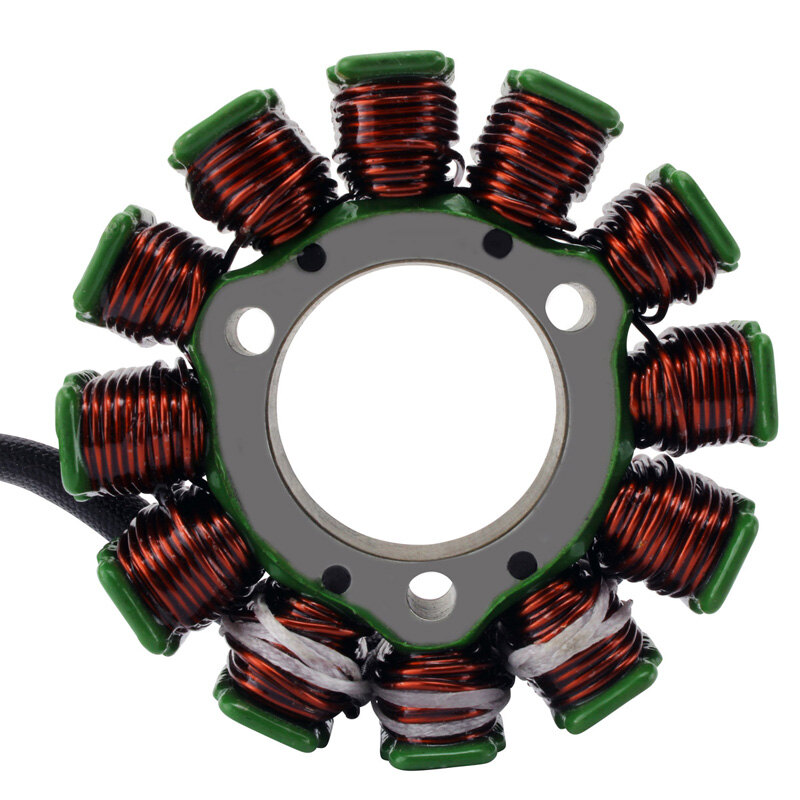

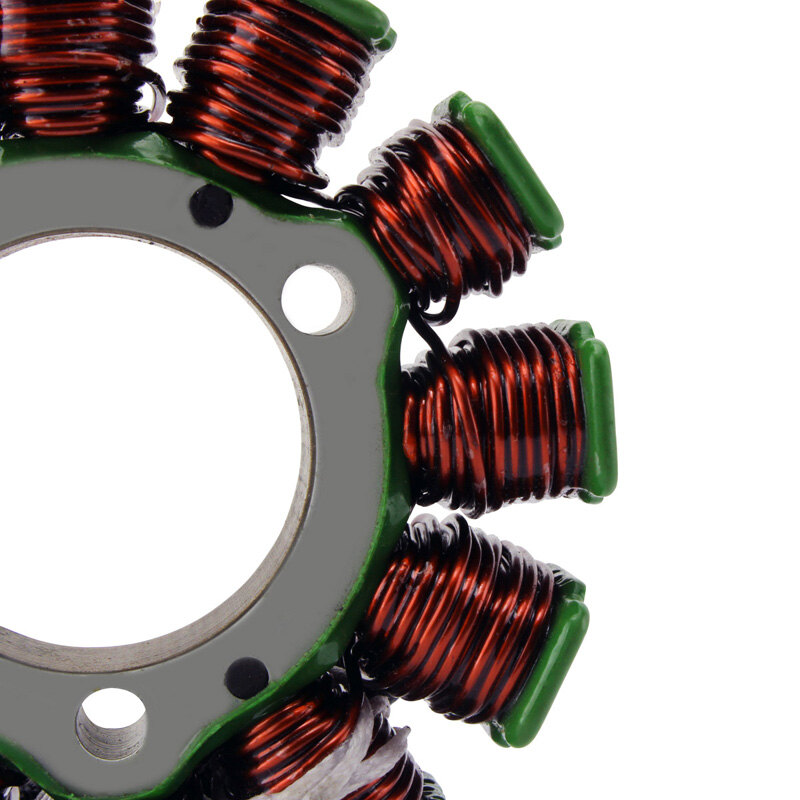

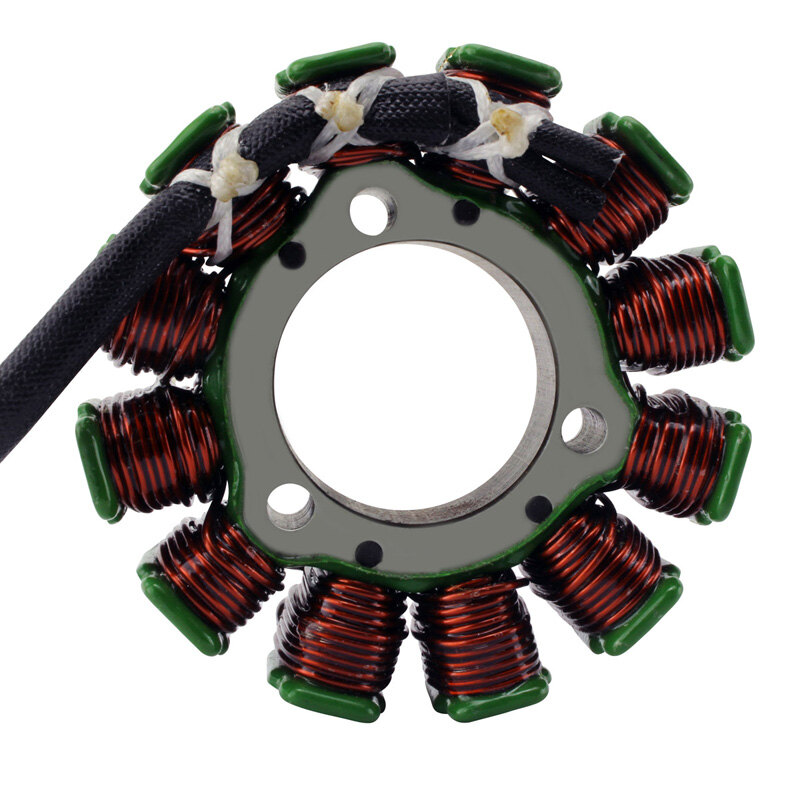

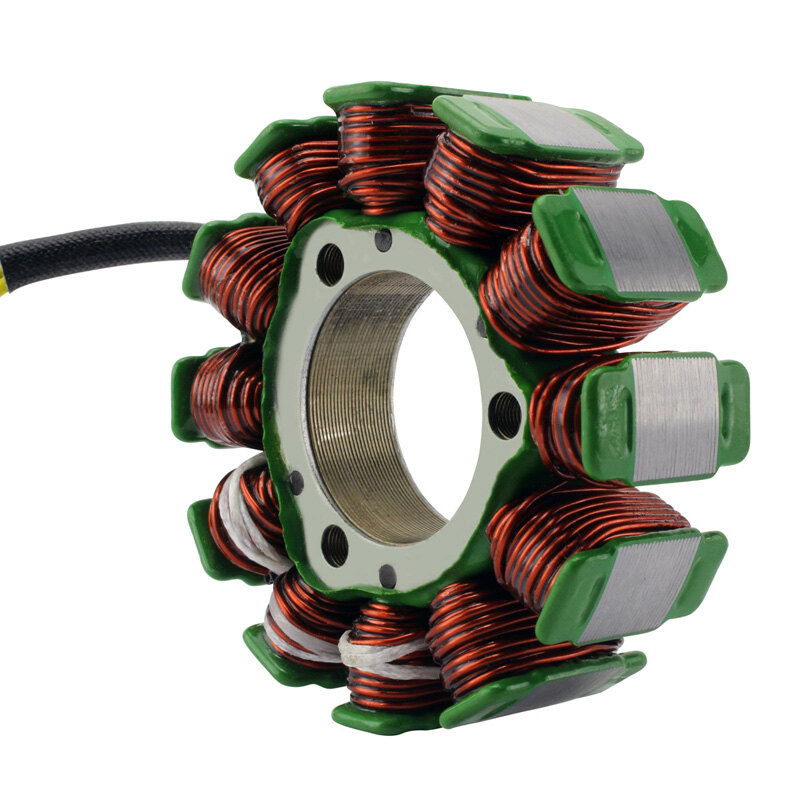

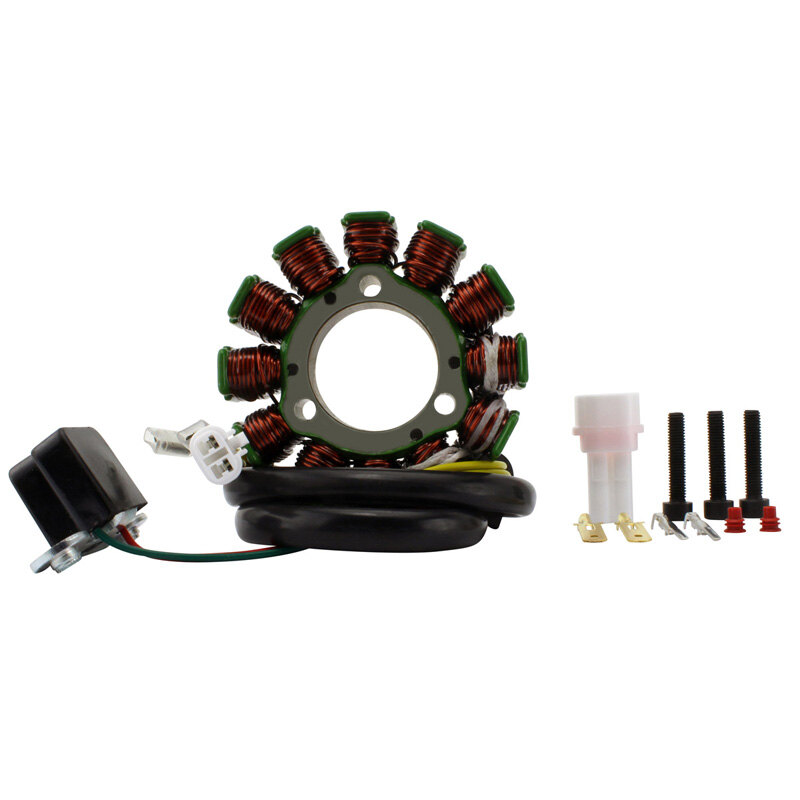

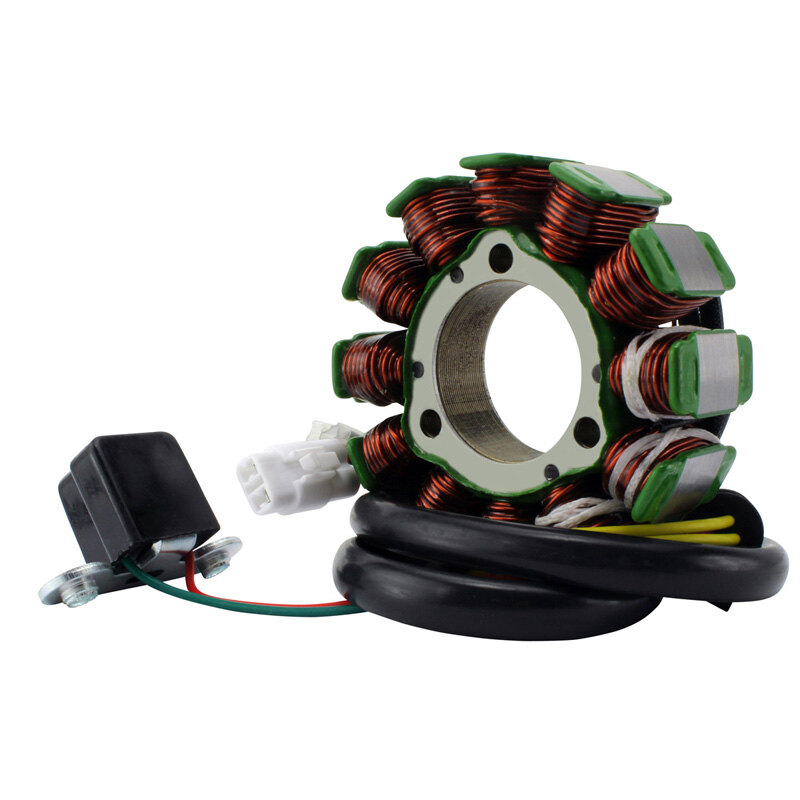

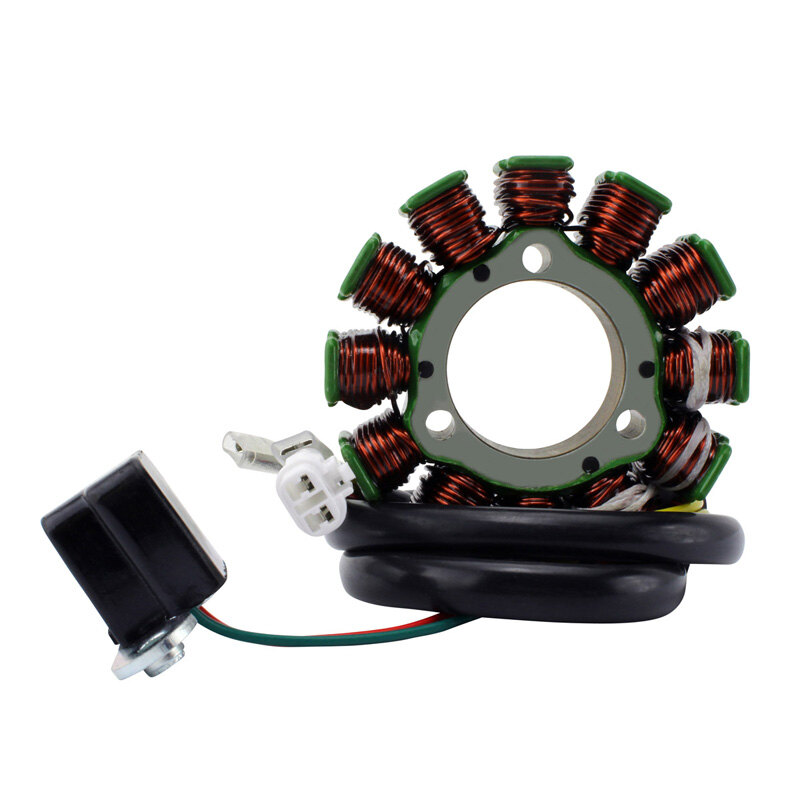

STATOR KTM 250-450 SX-F|XC-F|HUSQ FC|FX 11-22

Brand new aftermarket Stator

• Direct replacement to your original unit
• 80 Watt DC
• This stator increase power output significantly
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

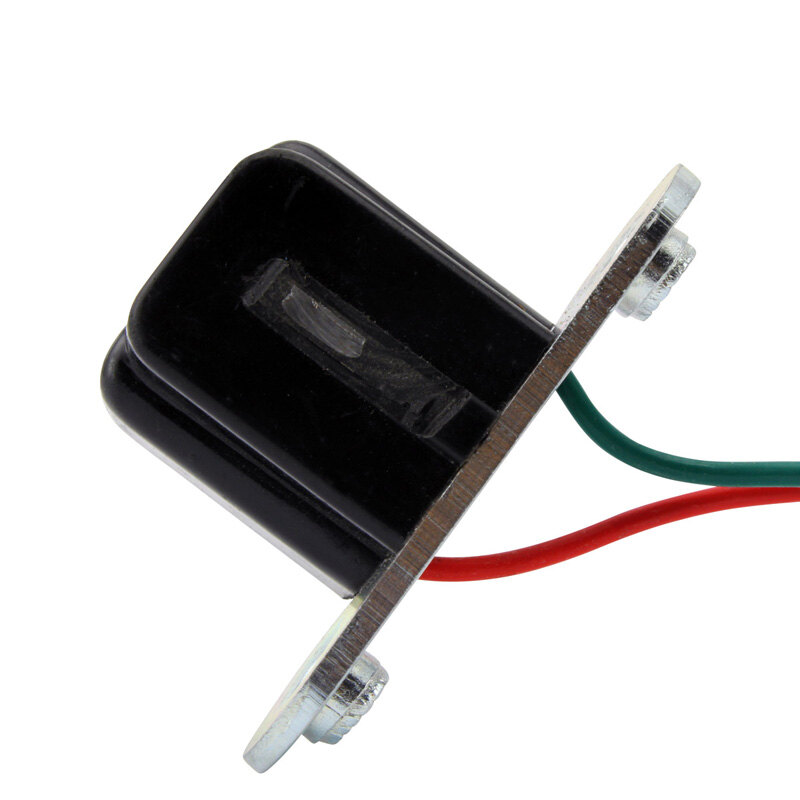

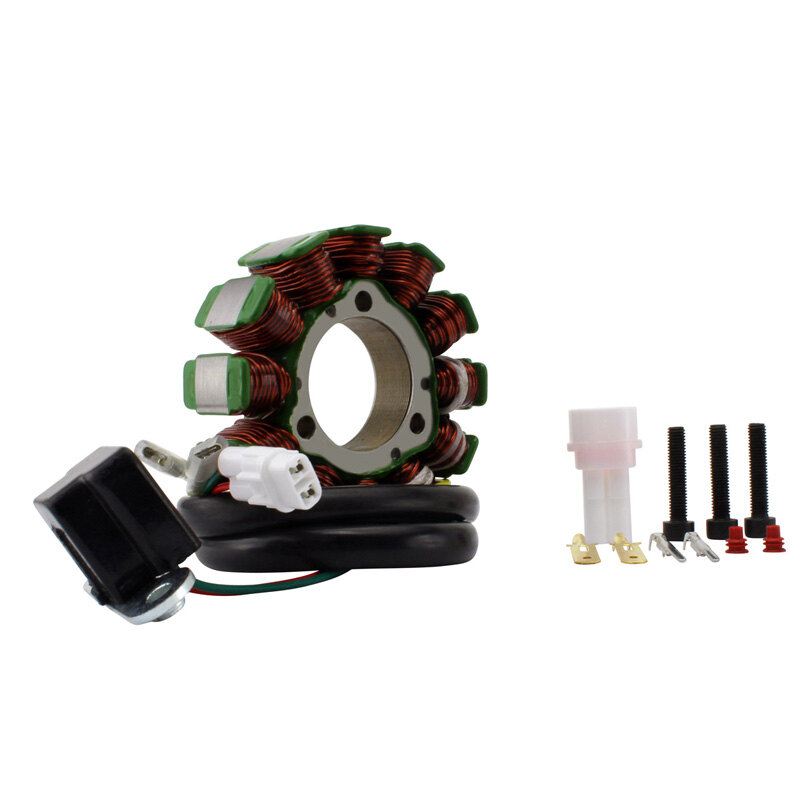

• Pick up pulsar coil included

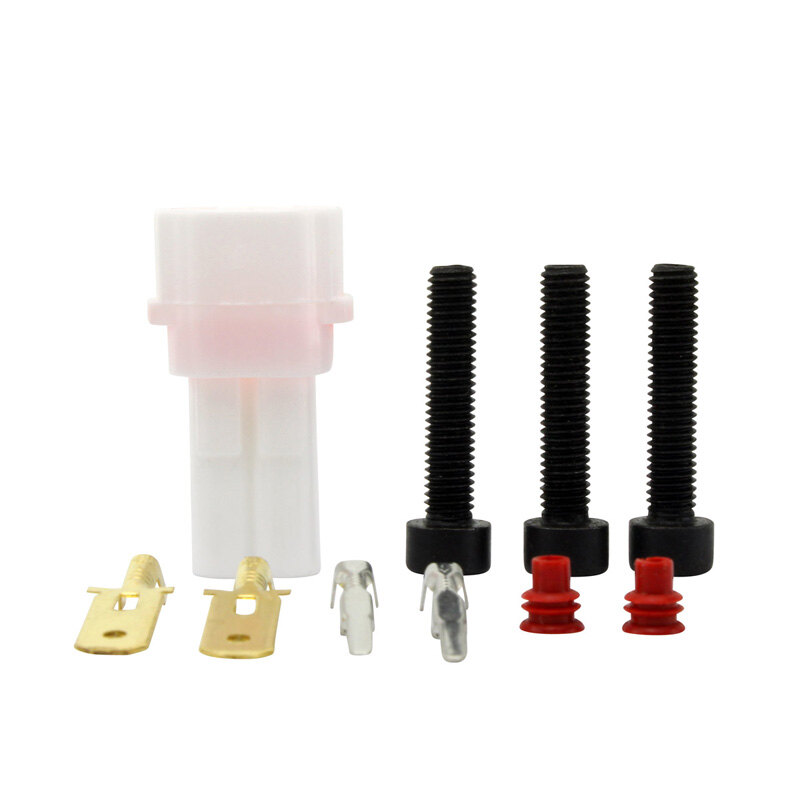

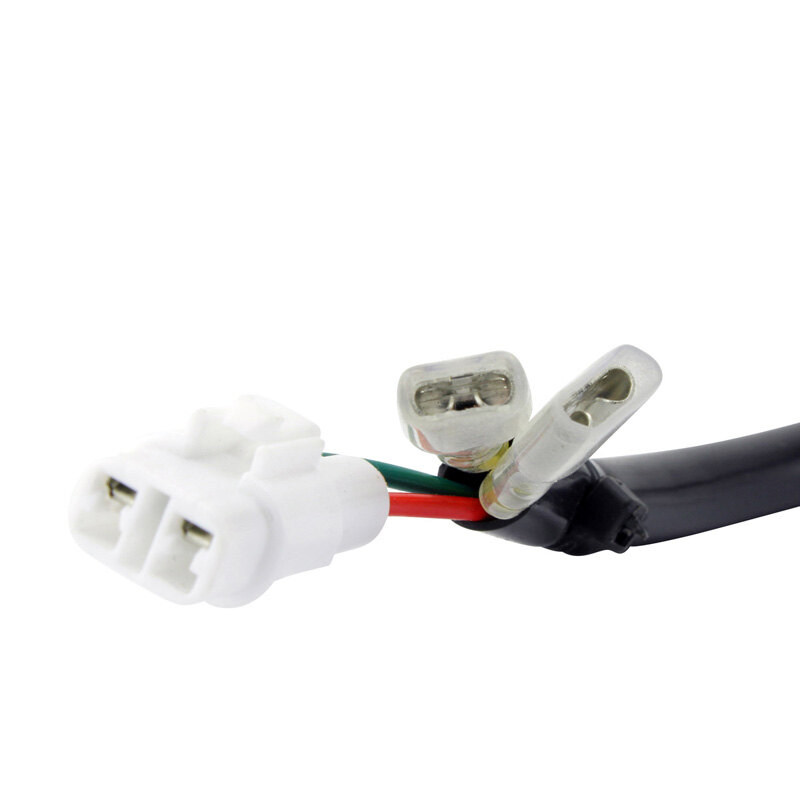

• Connectors included

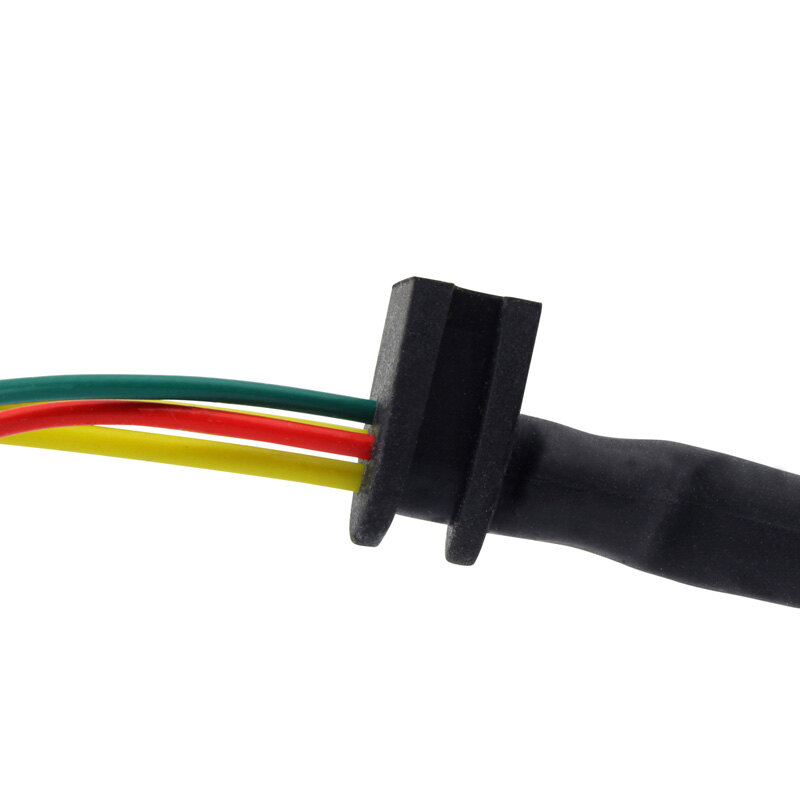

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 32 mm
Exterior diameter: 76 mm
Thickness: 17 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 510 mm
Length of pickup coil\'s wire to grommet: 100 mm

Other specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms \-20%
Alternator: Yellow to ground = O.L
Pickup: Green to Red = 133 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
