Overview

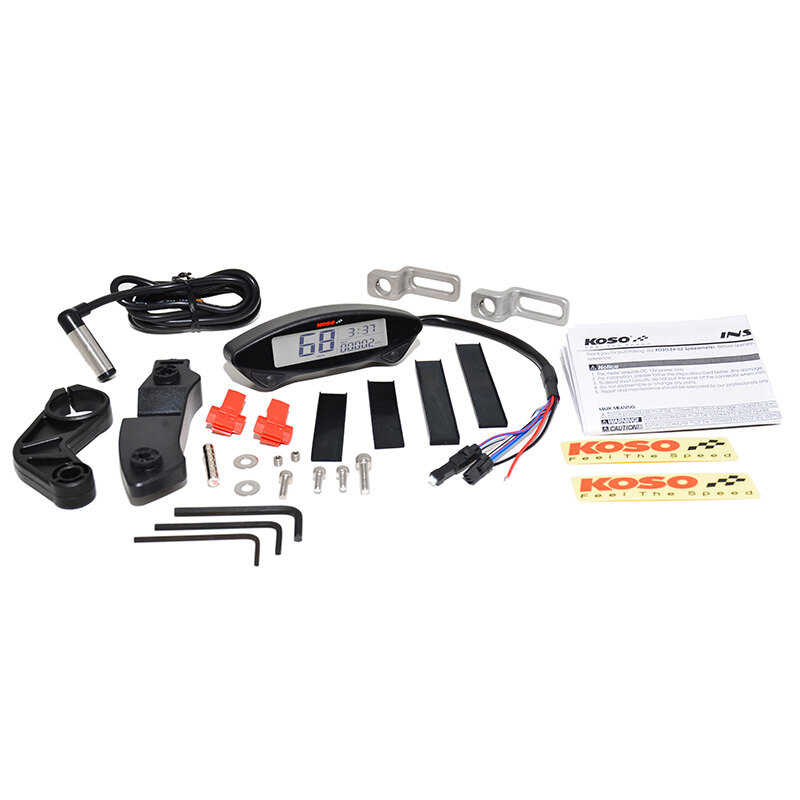

EX-02 | Speedometer | Universal version

With its compact shape and waterproof connectors, the EX02 speedometer is the perfect meter for all off road applications. The illuminated backlight makes the instrument very easy to read even in the darkest conditions. The EX02 speedometer is equipped with all the basic functions such as speed, odometer, tripmeter as well as hour meter, voltage, clock and stopwatch.

 Specifications (R= Range U=Unit)

  • Speedometer
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
    U: 1 MPH or km/h (alternative)
  • Odometer
    R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
  • Tripmeter A/B
    R: 0 ~ 9, 999.9 miles (km)
    U: 0.1 mile (km)
  • Hour meter
    R: 0 ~ 99,999.9 hours
    U: 0.1 H
  • Hour meter A/B
    R: 0 ~ 9,999.9 hours | U: 0.1 H
  • Volt meter
    R: DC 8 ~ 18 V | U: DC 0.1 V
  • Stopwatch
    R: 0 ~ 9’59’’99 | U: 0,01 second
  • Top speed record
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
  • Average speed record
    R: 0 ~ 225 MPH (0 ~ 360 km/h)
  • Max voltage record
    R: DC 8 ~ 18 V
  • Inner Battery level
    R: 4 levels
  • Clock
    R: 12 or 24 H format
  • Effective temperature range
    14 ~ 140 °F (10 ~ 60 °C)
  • Power
    LCD: Internal CR 2032 battery
    Backlight: DC 12 V
