TNT-02 64MM MULITFUNCTION METER

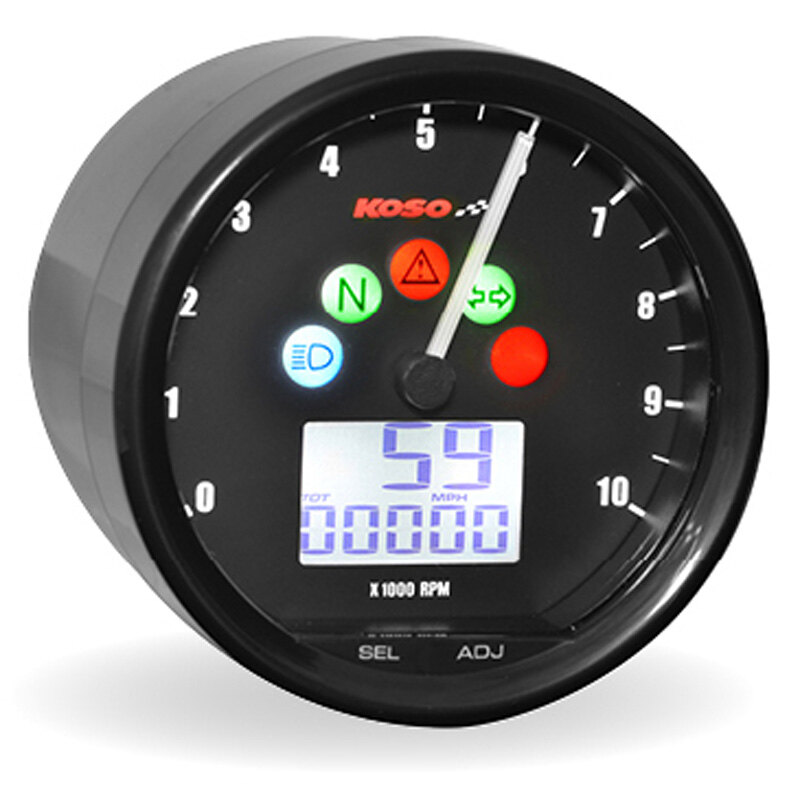

TNT-02 | Multifunction Meter

With its vintage look, our TNT02 is the perfect meter for all Café racers and special project bikes that require a small multifunction meter. This 64 mm instrument is a smaller version of our popular TNT01 and it has the same features such as; speedometer, odometer, tripmeter, tachometer, fuel meter, clock, shift light and indicator lights. Its strong stepper motor allow the reading to be fast and smooth for the best intime response you can have and its adjustable backlight brightness makes it very easy to read.

 Specifications
(R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: MPH or km/h
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 20
• Tachometer
  R: 0~10,000 RPM
• Shiftlight
  R: 5,000 ~ 20,000 RPM | U: 100 RPM
• Warning (shift light)
  R: Light on (FOFF), Flash (FON)
• RPM input signal number
  R: 0.5, 1 ~ 6

• RPM input pulse
  R: HIACT (positive wave pulse)
  LOACT (negative wave pulse)
• Fuel meter
  R: 0 ~ 100% | U: 1 %
• Clock
  R: 24 H format
• Backlight brightness
  R: 1/5 (darkest) ~ 5/5 (brightest)
• Indicator lights
  Neutral / High beam / Turn signals / Warning / RPM shift light
• Effective temperature range
  14 ~ 140 °F (10 ~ 60 °C)
• Effective voltage
  DC 12 V
• Sensor included
  Active speed sensor : BF019005
