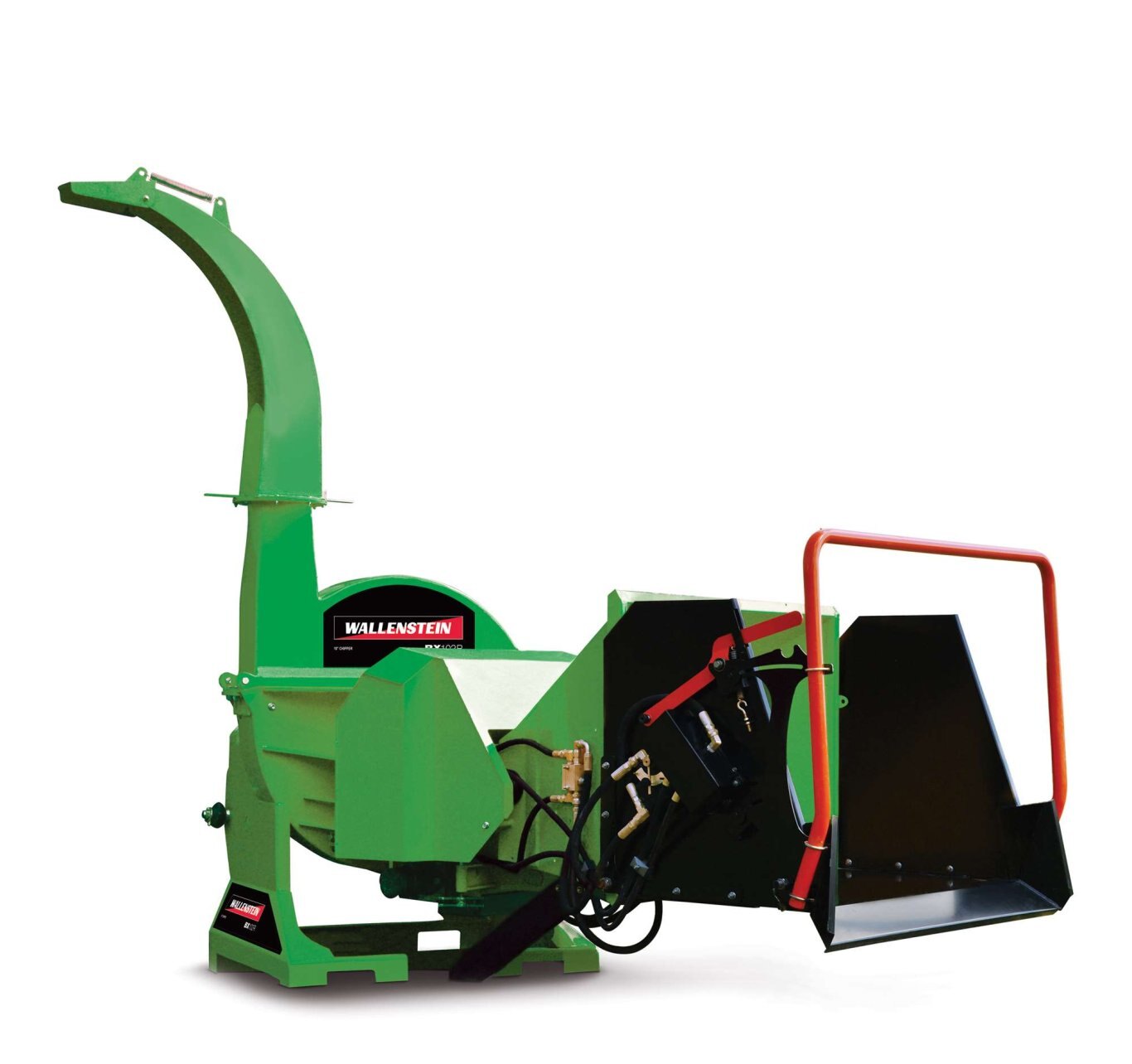

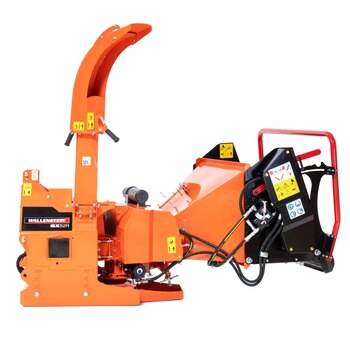

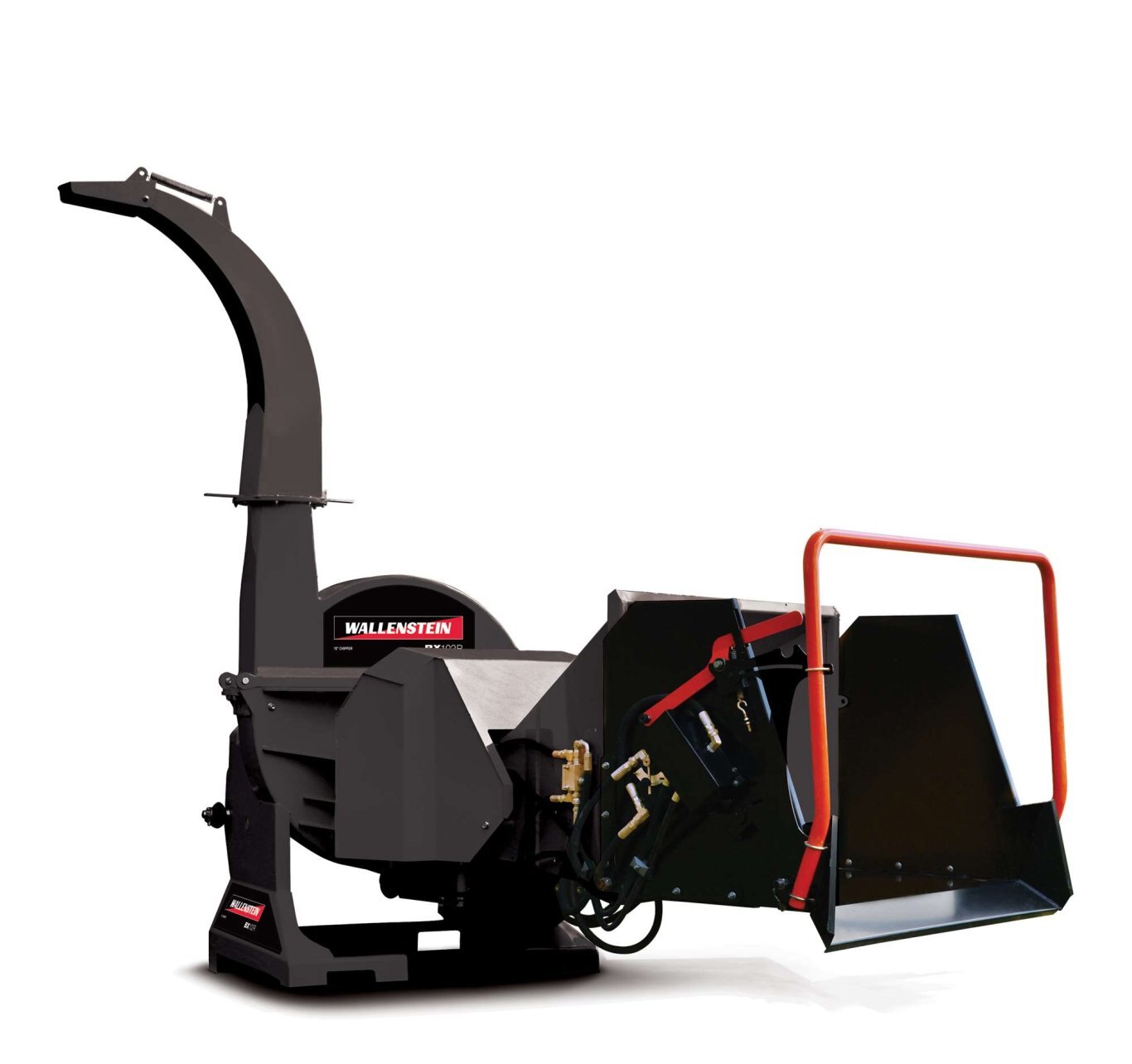

Wallenstein BX102R Dual Hydraulic Roller Feed

Videos
Call for Price
Overview

10" chipping capacity, the BX102R PTO driven wood chipper will handle all your rural and fence line property projects. The two feed rollers are driven by two hydraulic motors dialed in to your desired roller speed. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.

Specifications
Model
BX102R
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Rated RPM
540 - 1000
PTO Height
34" (86 cm)
Feed System
Dual Hydraulic Roller
Chipper Type
Disc
Drive System
PTO Direct Drive
Rotor Weight
425 lbs (193 kg)
Total Weight
1950 lbs (885 kg)
Rotor Diameter
36” (92 cm)
Engine HP Range
80 - 120
Mounting System
Cat II, iMatch™ & Quick Hitch Compatible
Chipping Capacity
10" (25 cm)
Chipper Hopper Opening
30" x 42" (76 cm x 107 cm)
Chipper Infeed Opening
10" x 17" (25 cm x 43 cm)
Discharge Chute Height
100" (253 cm)
Dimensions Open (LxWxH)
108" x 85" x 100" (273 cm x 215 cm x 253 cm)
Discharge Chute Rotation
360°
Number Of Chipper Knives
4
Dimensions Folded (LxWxH)
85" x 71" x 100" (215 cm x 180 cm x 253 cm)
features

Wallenstein BX102R Dual Hydraulic Roller Feed Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

Wallenstein BX102R Dual Hydraulic Roller Feed Fold Up Feed Hopper - No Tools

For easy transport. No tools required.

Wallenstein BX102R Dual Hydraulic Roller Feed Dual Driven Hydraulic Rollers

Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

Wallenstein BX102R Dual Hydraulic Roller Feed Oversized Heavy Duty Rotor

Extra large chipper intake backed up by extra large rotor spinning with high momentum.



Wallenstein BX102R Dual Hydraulic Roller Feed Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Wallenstein BX102R Dual Hydraulic Roller Feed Safety Control Bar

Forward/reverse control with two stop positions.

Wallenstein BX102R Dual Hydraulic Roller Feed Reversible Chipping Blades

Standard reversible rotor knives double the longevity of your knives.

Wallenstein BX102R Dual Hydraulic Roller Feed Shearbolt Protected PTO Drivetrain

Move on from a power spike by simply replacing a single shear bolt.

Wallenstein BX102R Dual Hydraulic Roller Feed Twig Breaker

The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.

Wallenstein BX102R Dual Hydraulic Roller Feed Wide Infeed Opening

Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

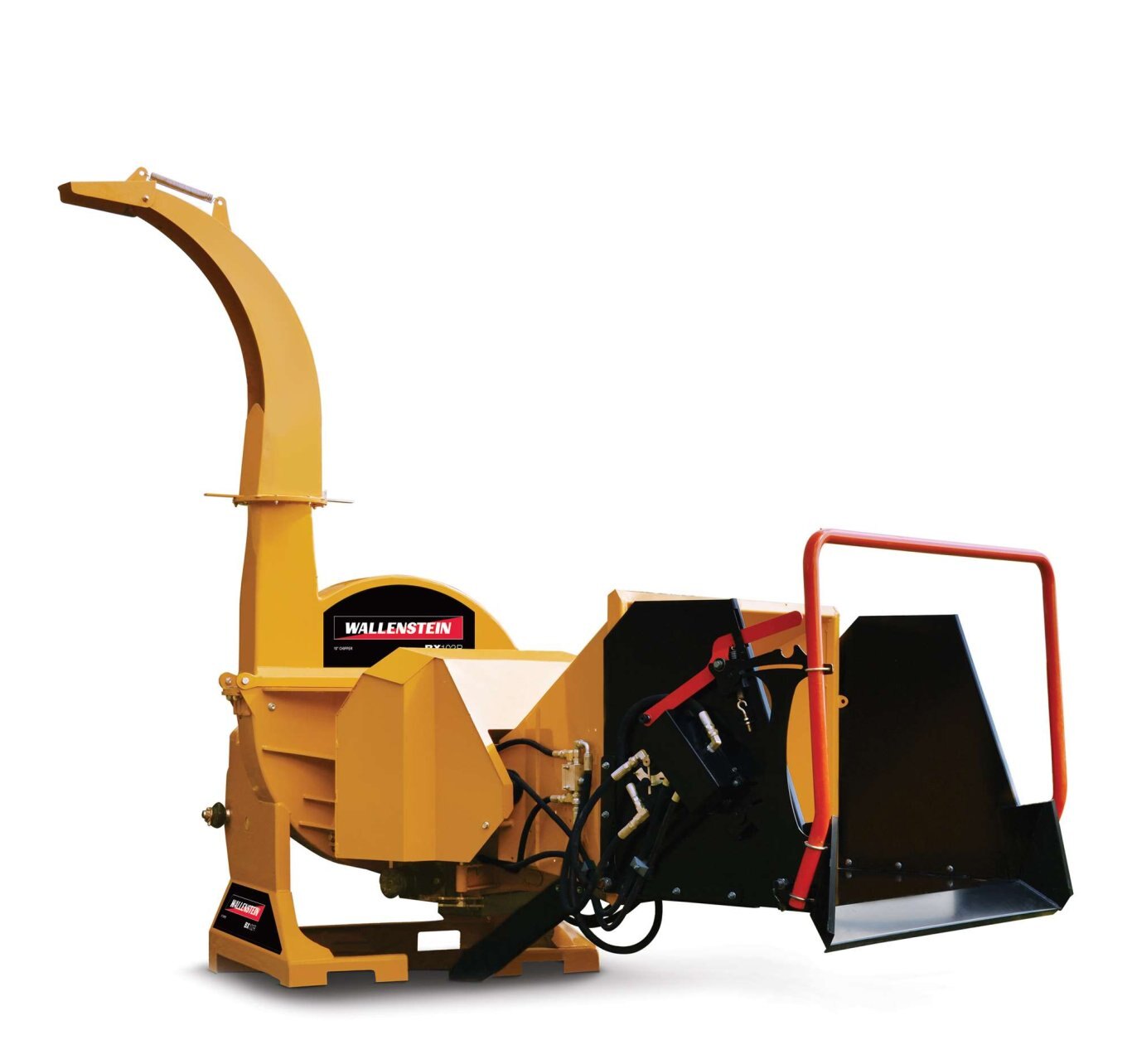

available colours
Wallenstein BX102R Dual Hydraulic Roller Feed
