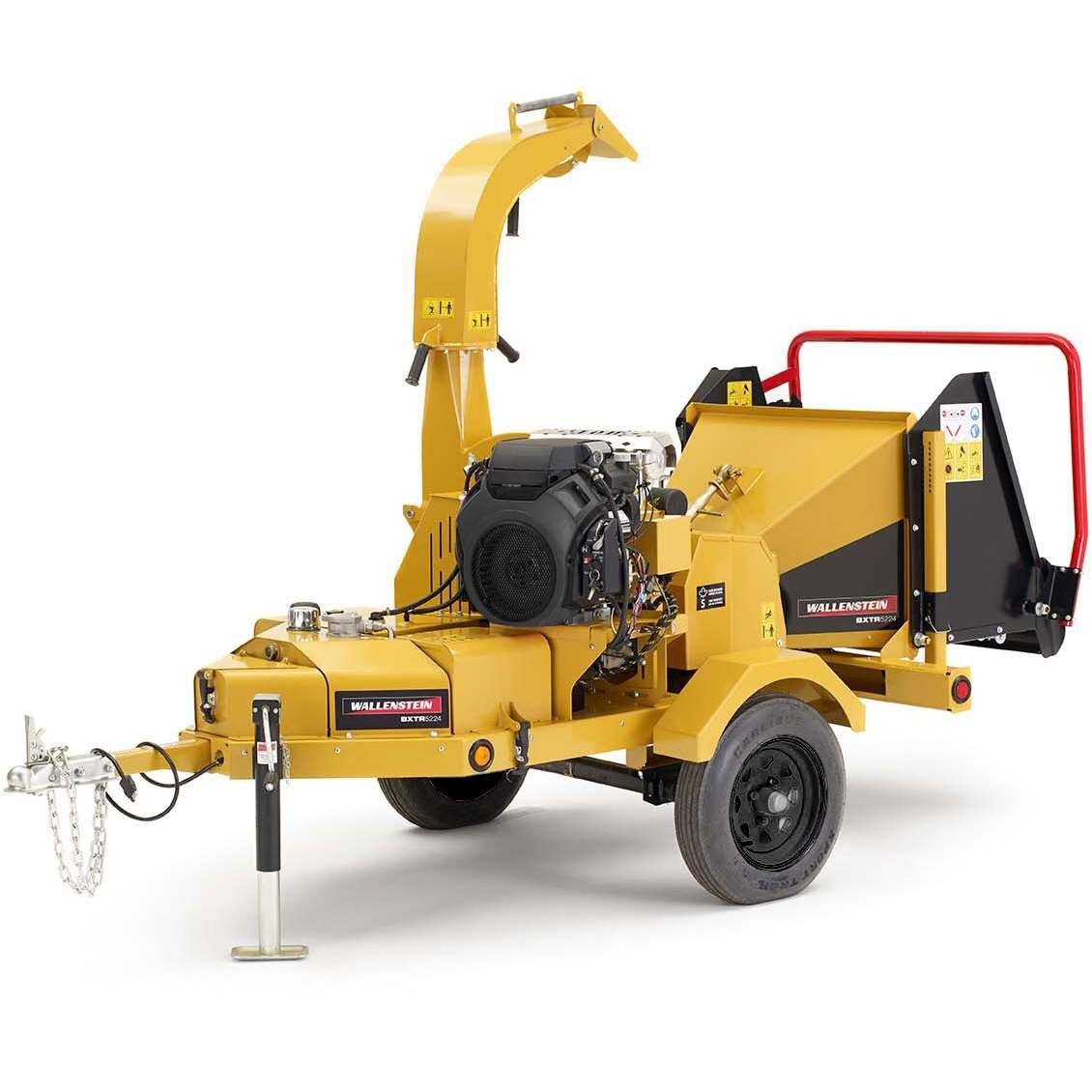

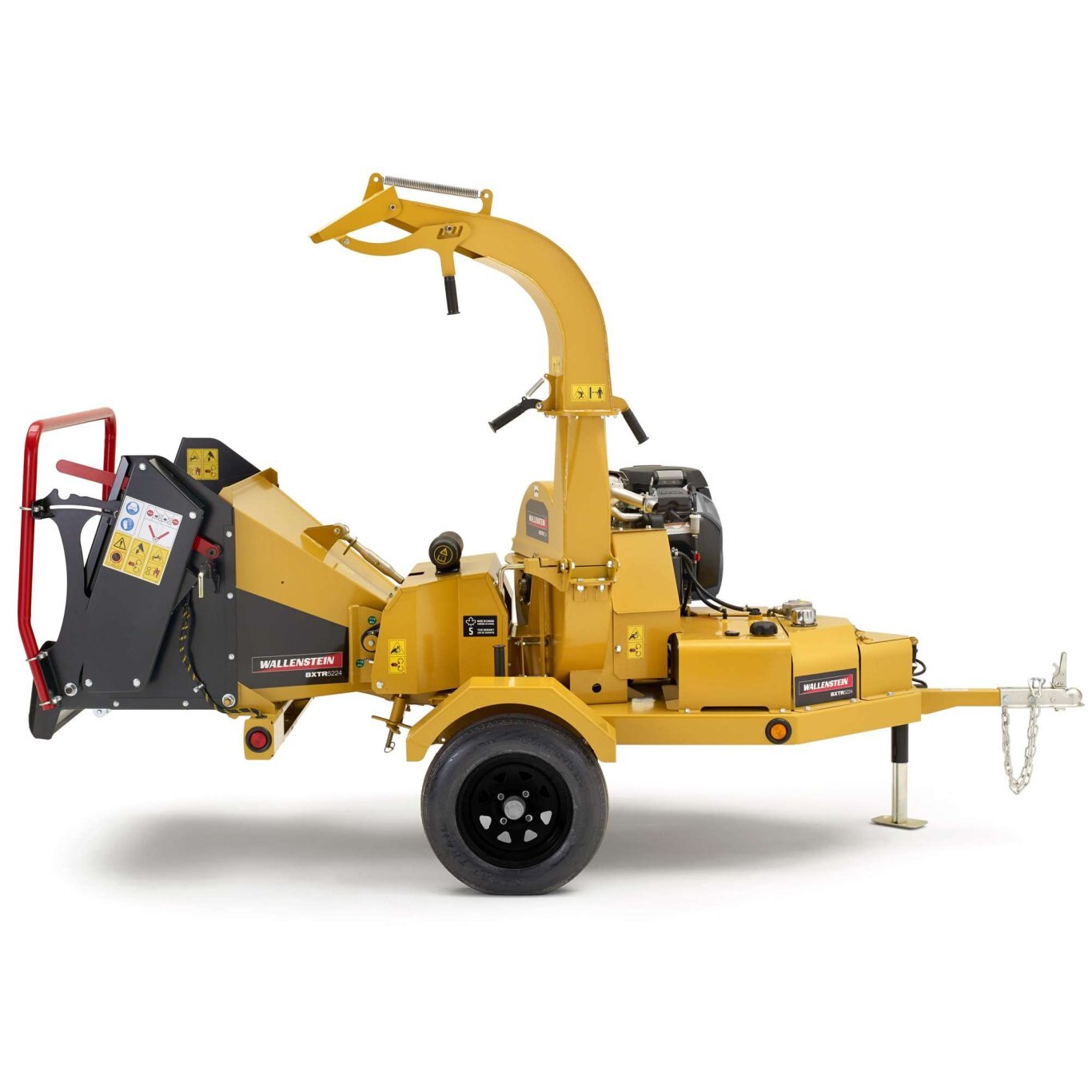

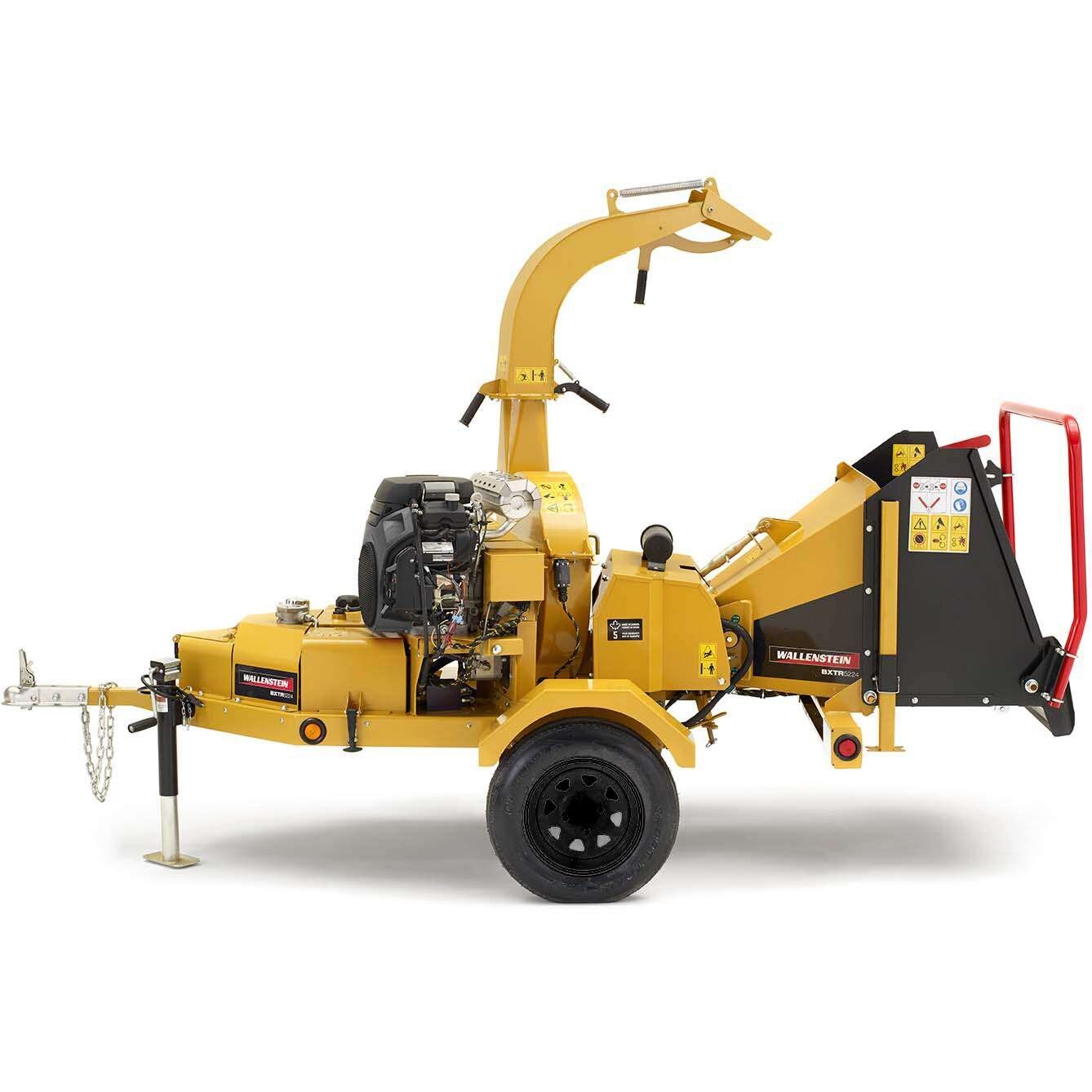

Wallenstein BXTR5224 Dual Hydraulic Roller Feed

Videos
Call for Price
Overview

5" chipping capacity, the BXTR5224 towable wood chipper will handle all your rural property and commercial landscaping projects. The two feed rollers are driven by two hydraulic motors and matched with automatic roller speed control. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.

Specifications
Model
BXTR5224
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Tires
5.30-12
Engine
Vanguard® 23 hp (627 cc) EFI
Feed System
Dual Hydraulic Roller
Rotor Speed
1340
Chipper Type
Disc
Drive System
Centrifugal Clutch, Belt Drive
Engine Speed
3600
Rotor Weight
117 lbs (53 kg)
Total Weight
1425 lbs (646 kg)
Tongue Weight
90 lbs
Rotor Diameter
25" (64 cm)
Chipping Capacity
5" (13 cm)
Fuel Tank Capacity
6.5 US gal (25 l)
Chipper Hopper Opening
24" x 35" (61 cm x 89 cm)
Chipper Infeed Opening
5.25" x 9" (13 cm x 23 cm)
Discharge Chute Height
80" (203 cm)
Dimensions Open (LxWxH)
126" x 54" x 80" (320 cm x 137 cm x 203 cm)
Discharge Chute Rotation
360°
Number Of Chipper Knives
2
Dimensions Folded (LxWxH)
107" x 54" x 80" (320 cm x 137 cm x 203 cm)
features

https://www.wallensteinequipment.com/file.aspx?id=8040a3f2-072d-49a0-a021-1806ea5032ec&h=500&w=500 Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

https://www.wallensteinequipment.com/file.aspx?id=bfc321fb-314d-407e-8392-2f35dad1a395&h=500&w=500 Wide Infeed Opening

Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

https://www.wallensteinequipment.com/file.aspx?id=55b5c6ae-f47e-48a4-9067-ccb70cf5d80d&h=500&w=500 Oversized Heavy Duty Rotor

Extra large chipper intake backed up by extra large rotor spinning with high momentum.

https://www.wallensteinequipment.com/file.aspx?id=e3d222f9-078b-47bb-af03-a6975ee32ef8&h=500&w=500 P3 Pulse

The P3 Pulse controller is designed to enhance the machines power, performance, and productivity.

https://www.wallensteinequipment.com/file.aspx?id=d46574ea-483a-4d76-9acc-cdd4f36b0359&h=500&w=500 Dual Driven Hydraulic Rollers

Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Built In Toolbox

Keep your small tools and replacement parts handy.

https://www.wallensteinequipment.com/file.aspx?id=e4ee9edc-51fc-41d7-9d9f-c460385c24cc&h=500&w=500 Electric Start

Reliable and convenient starting at the turn of a key.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Torflex® Suspension Axle

Axles are designed to absorb road impact, providing a smoother towing experience.

https://www.wallensteinequipment.com/file.aspx?id=88ca90fe-ac60-45d4-9cb0-3947dfe65095&h=500&w=500 Fold Up Feed Hopper - No Tools

For easy transport. No tools required.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Highway Towable

Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Reversible Chipping Blades

Standard reversible rotor knives double the longevity of your knives.

https://www.wallensteinequipment.com/file.aspx?id=9ed44b98-0c7c-40d9-b786-44be412eeea3&h=500&w=500 Safety Control Bar

Forward/reverse control with two stop positions.

Wallenstein BXTR5224 Dual Hydraulic Roller Feed Twig Breaker

The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
